Description

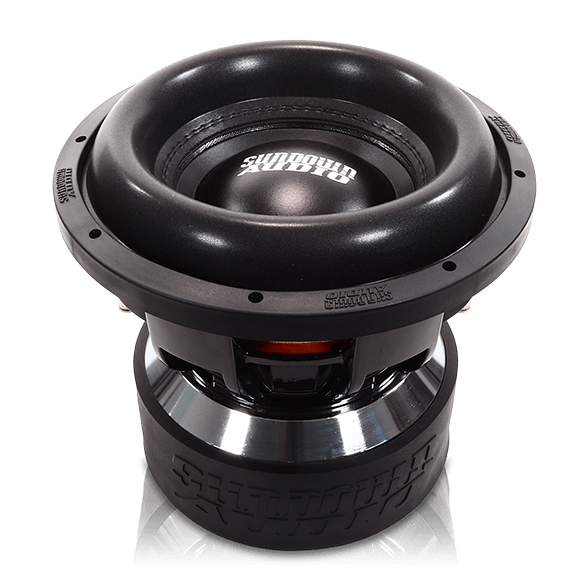

Sundown Audio X-10 v.3 D4

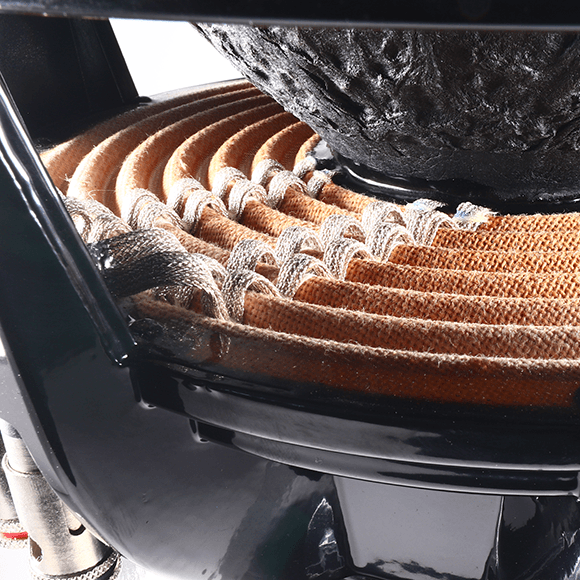

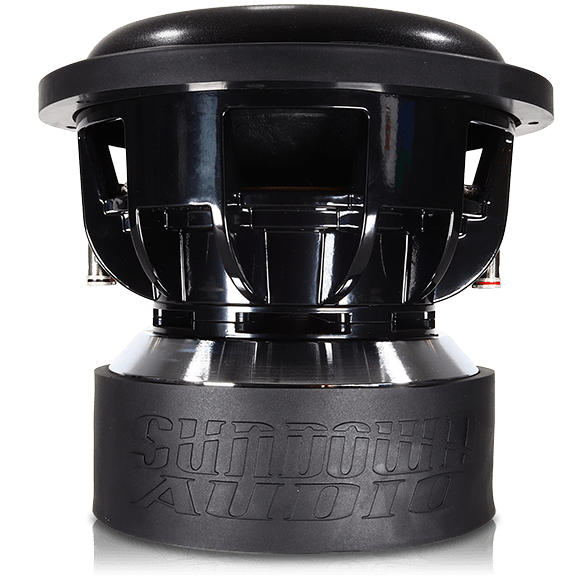

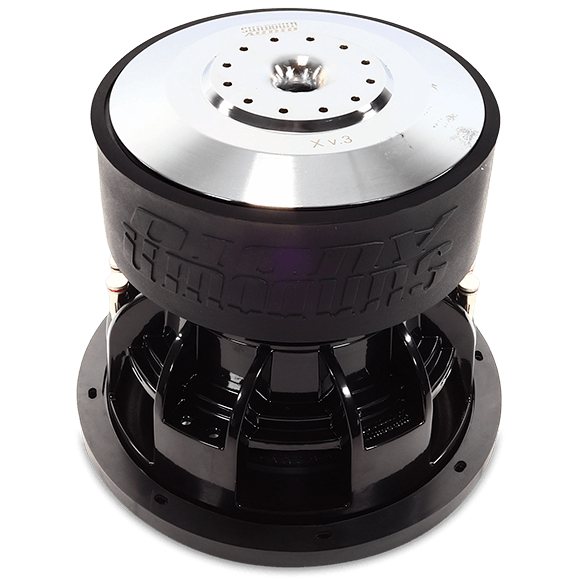

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
Specifications
| RE (Ohms) | 1.4 | 3.2 |
| FS (Hz) | 39.104 | 40.208 |
| VAS (L) | 11.623 | 9.352 |
| Qes | 0.441 | 0.528 |
| Qms | 2.567 | 2.842 |
| Qts | 0.376 | 0.445 |
| Le (mH) | ||
| BL (NA) | 14.155 | 21.509 |
| Mms (Grams) | 256.970 | 302.089 |
| Cms (uM/N) | 64.465 | 51.867 |
| Sens (dB @ 1w/1m) | 83.8dB | 82.5dB |
| Xmax | 30mm | 30mm |
| T/S SPECS | X V.3 10″ D1 | X V.3 10″ D2 |
|---|
Enclosure Specifications
| X v.3 8 | X v.3 10 | X v.3 12 | X v.3 15 | X v.3 18 | |
| Sealed Enclosure | 0.3-.04cuft | N/A | N/A | N/A | N/A |
| Ported Enclosure | 0.75-1.0 cu ft | 1.5 cu ft | 2.5 cu ft | 4.25 cu ft | 7.00 cu ft |
| Recommended Tuning | 32hz | 32hz | 32hz | 32hz | 32hz |
| Recommended Port Area | 12-16 sq in | 24 sq in | 40 sq in | 68 sq in | 112 sq in |
| Displacement | 0.13 cu ft | 0.21 cu ft | 0.2 cu ft | 0.22 cu ft | 0.23 cu ft |
| Depth | 6.8″ | 9.4″ | 10.4″ | 11.6″ | 13.6″ |
| Outside Diam. | 8.70″ | 11.65″ | 12.68″ | 15.51″ | 18.42″ |
| Cutout | 7.36″ | 10.01″ | 11.09″ | 13.83″ | 16.69″ |
