Description
Pioneer TS-WX140DA

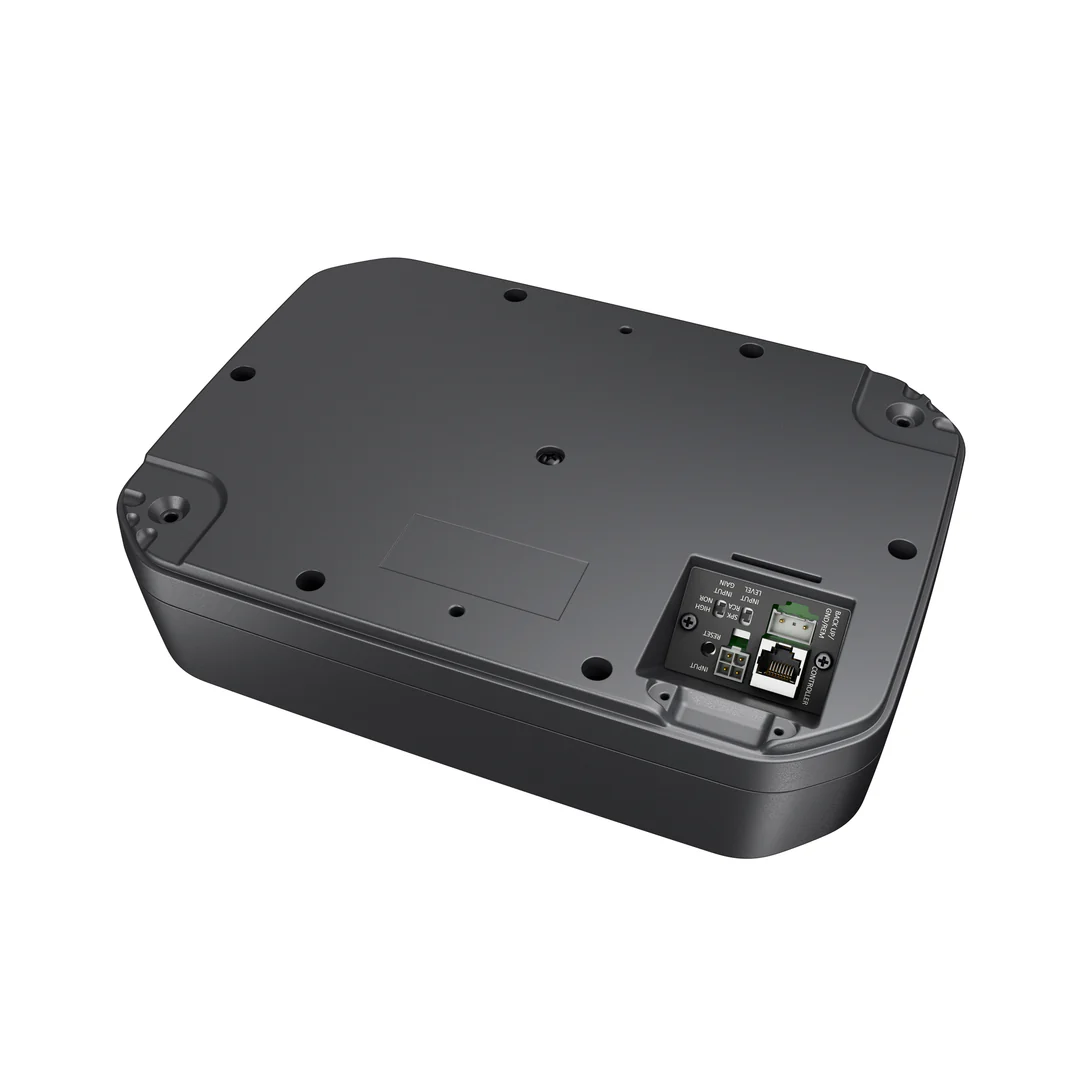

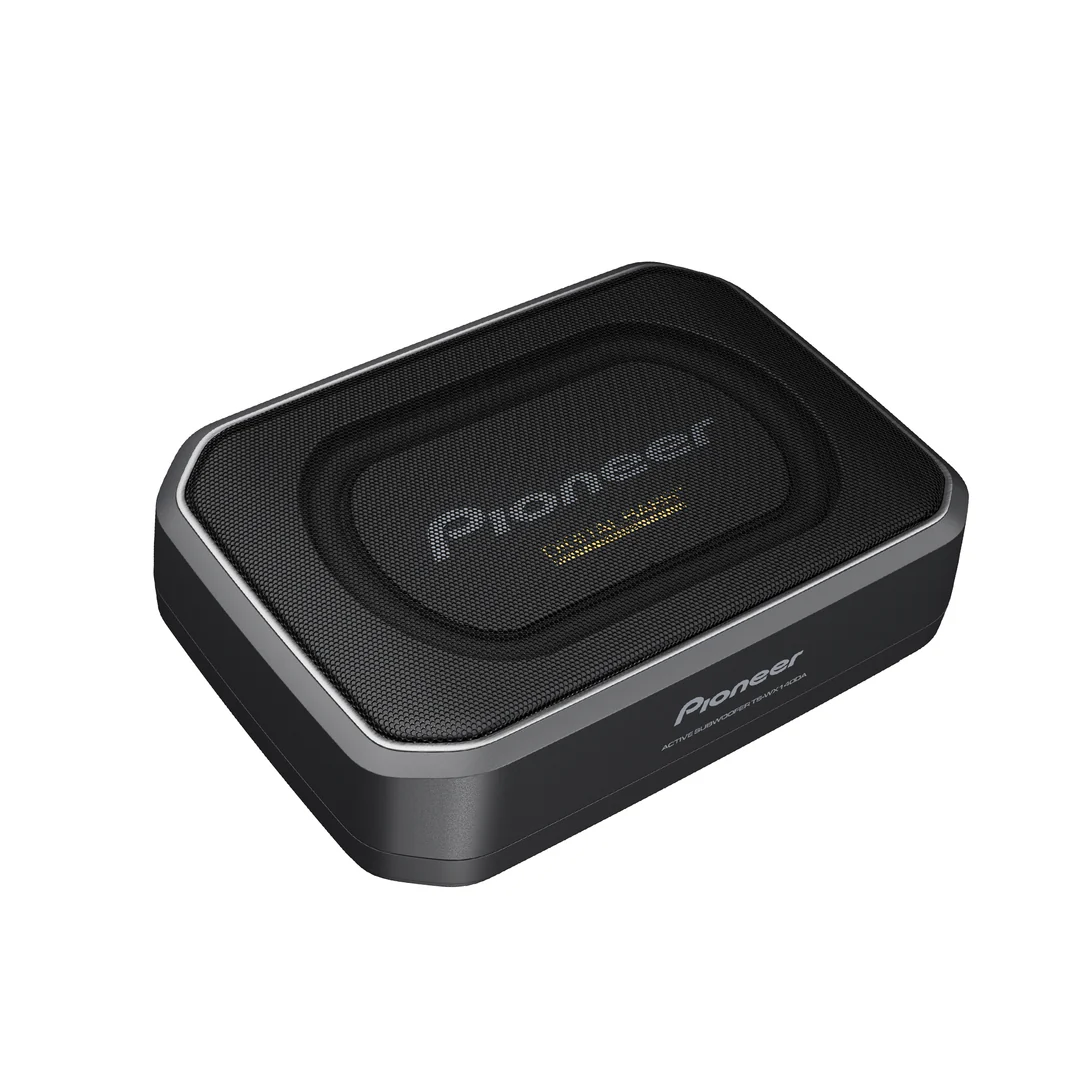

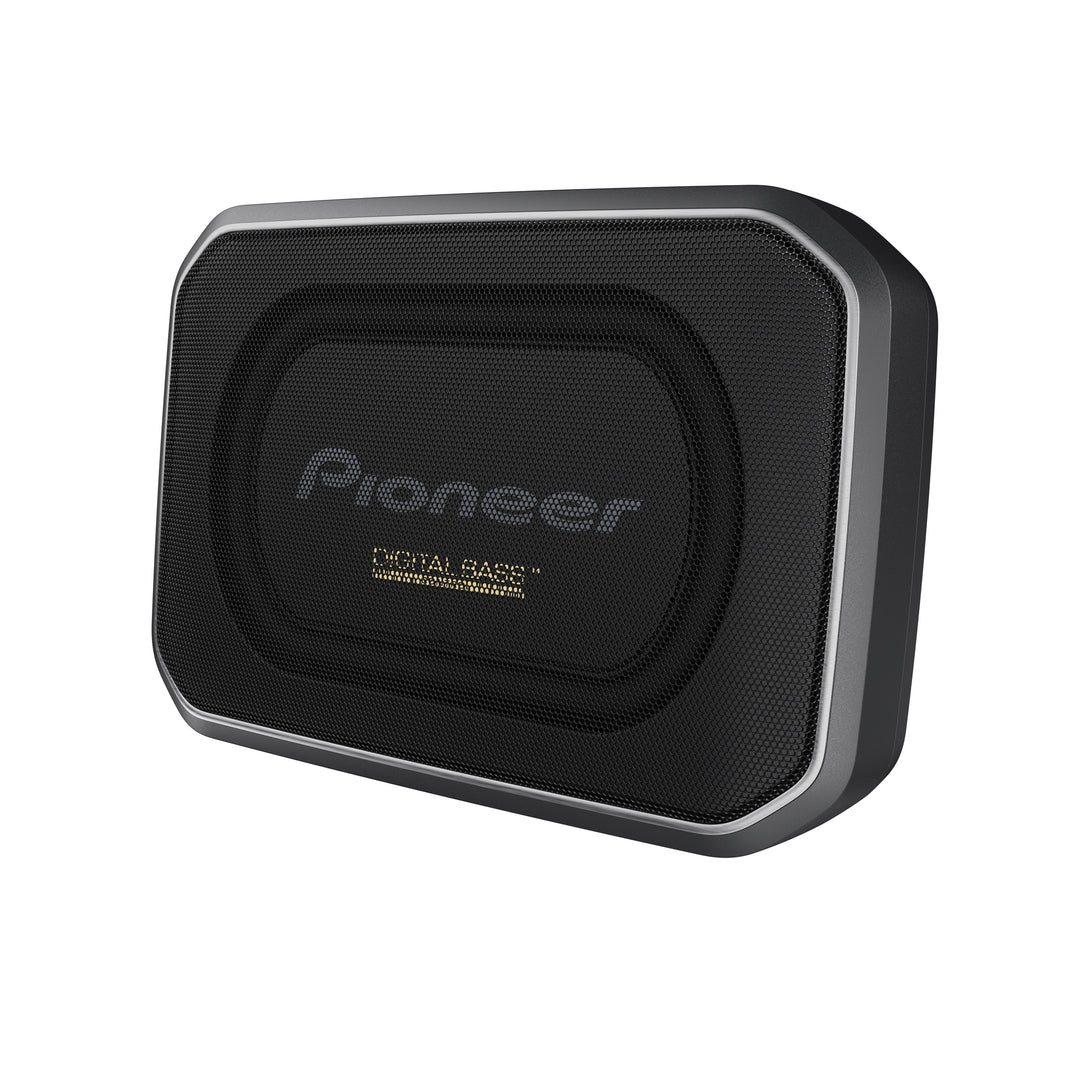

The Pioneer TS-WX140DA is a compact, amplified subwoofer designed to deliver powerful bass in limited spaces. Equipped with a built-in 170W (max) Class D amplifier and an 8″ x 5.25″ aluminum cone woofer, it offers deep, dynamic, and natural bass modes tailored to your listening preferences. Its ultra-low current consumption (4.3A max) makes it ideal for modern vehicles, including electric vehicles (EVs). The subwoofer features a wired remote control for easy adjustment of gain, low-pass filter, phase, and bass mode settings. With its compact dimensions (280 x 200 x 70 mm), the TS-WX140DA can be installed under seats or in tight spaces, enhancing your car’s audio experience without occupying much room
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Amp – Max Current Consumption | 4.3 A |
| Amp – Power Source | 14.4 V DC (10.8 V to 15.1 V) |
| Continuous Power Handling (RMS) | 50 W |
| Maximum Peak Power Handling | 170 W |
| Frequency Response | DEEP: 20 Hz – 200 Hz DYNAMIC: 40 Hz – 160 Hz NATURAL: 40 Hz – 200 Hz |
| Input Level @ Gain Max | DEEP: 60 mV+60 mV / 22 kΩ DYNAMIC: 30 mV+30 mV / 22 kΩ NATURAL: 60 mV+60 mV / 22 kΩ |
| Sensitivity (1W/1m) | DEEP: 95 dB DYNAMIC: 100 dB NATURAL: 98 dB |
| Speaker Line Input Sensor | DEEP: 1.2 V+1.2 V / 5 kΩ |
| System Type | Powered |
FEATURES
| Feature | Specification |
|---|---|
| Amp – Grounding | Negative |
| Built-in Amp | Yes |
| CarSoundFit | Yes |
| Subwoofer Grille | Fully Covered Steel Mesh |
| Woofer Dimensions | 8″ x 5.25″ |
MATERIALS
| Feature | Specification |
|---|---|
| Basket Material | Iron Plate Press |
| Cone Material | Cellulose Fiber |
| Damper | Aramid Fiber |
| Drive Cone Material | Blended Pulp |
| Magnet Material | Ferrite |
| Magnet Weight | 17.2 oz |
| Surround Material | Urethane |
| Surround Type | Rolled |
| Voice Coil Bobbin | Glass Imide |
| Voice Coil Special Feature | Heat Resistant |
| Voice Coil Type | Single Voice Coil |
| Voice Coil Wire | Copper |
About The Product
Easy Installation

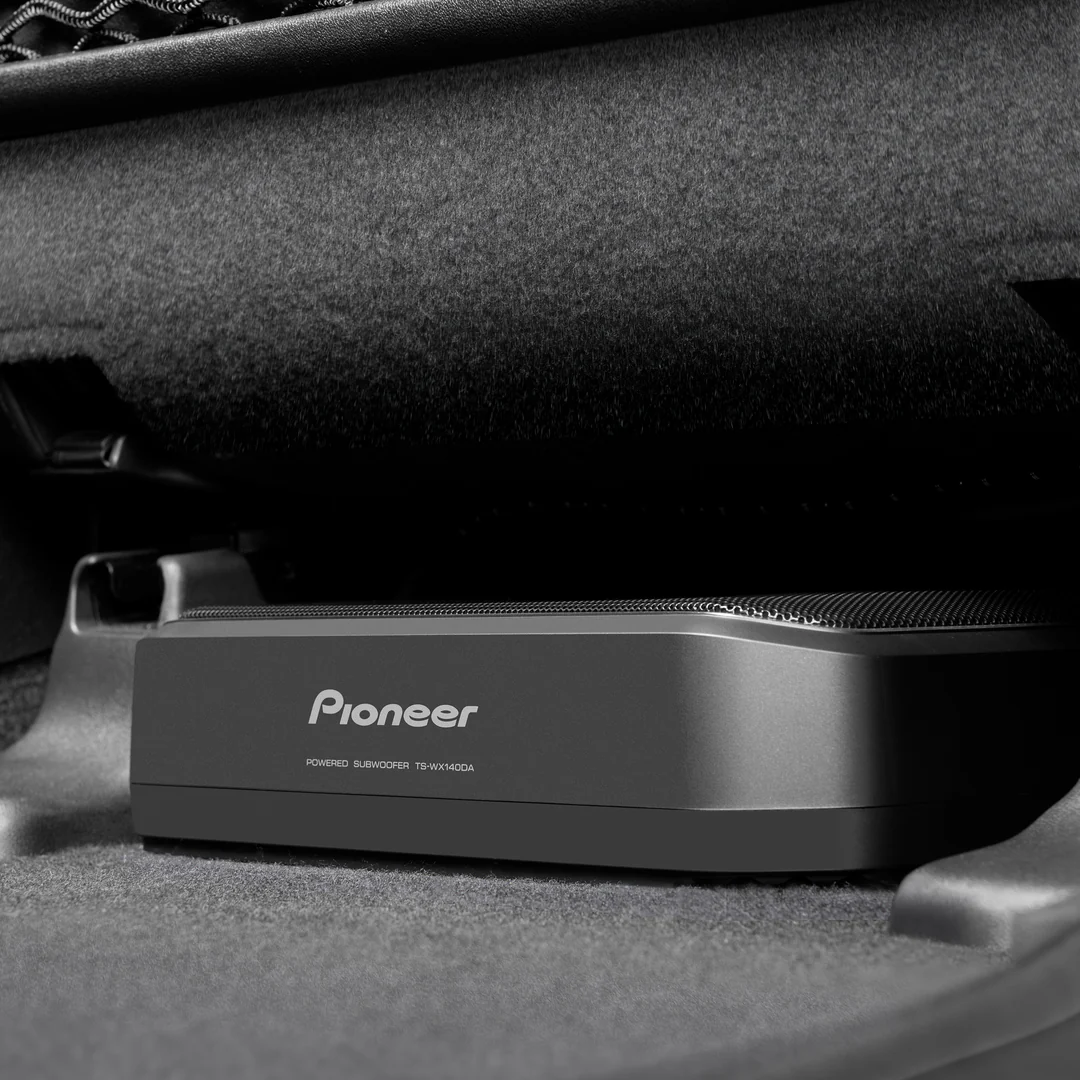

This speaker is particularly compact, allowing for installation in a wide range of vehicle applications. While it is primarily designed for under-seat use, its small size and high output power may make you want to use it in other applications as well.
Ultra-Low current consumption
The TS-WX140DA features built-in high-efficiency Class-D amplification, offering an ultra-low average current consumption of only 4.3 amps (max). This allows the unit to be installed without the need for heavy-gauge wires to power the internal amplification. In fact, this current consumption is so low that this amplified subwoofer is the ideal solution for adding bass to music in an electric vehicle.
No RCAs, No Problem!
With the included RCA (low-voltage) input and speaker line (high-voltage) input cables, you can start your setup right out of the box. Designed for easy integration, this powered subwoofer makes installation easy, whether or not your source unit has pre-outs.
Small size, Big Deliveries!
This amplified subwoofer features a built-in, high-quality, low-distortion Class D amplifier, specifically designed to work in partnership with the high-sensitivity woofers. The built-in DSP optimizes the output. Don’t be fooled by its small size; it’s surprisingly powerful!

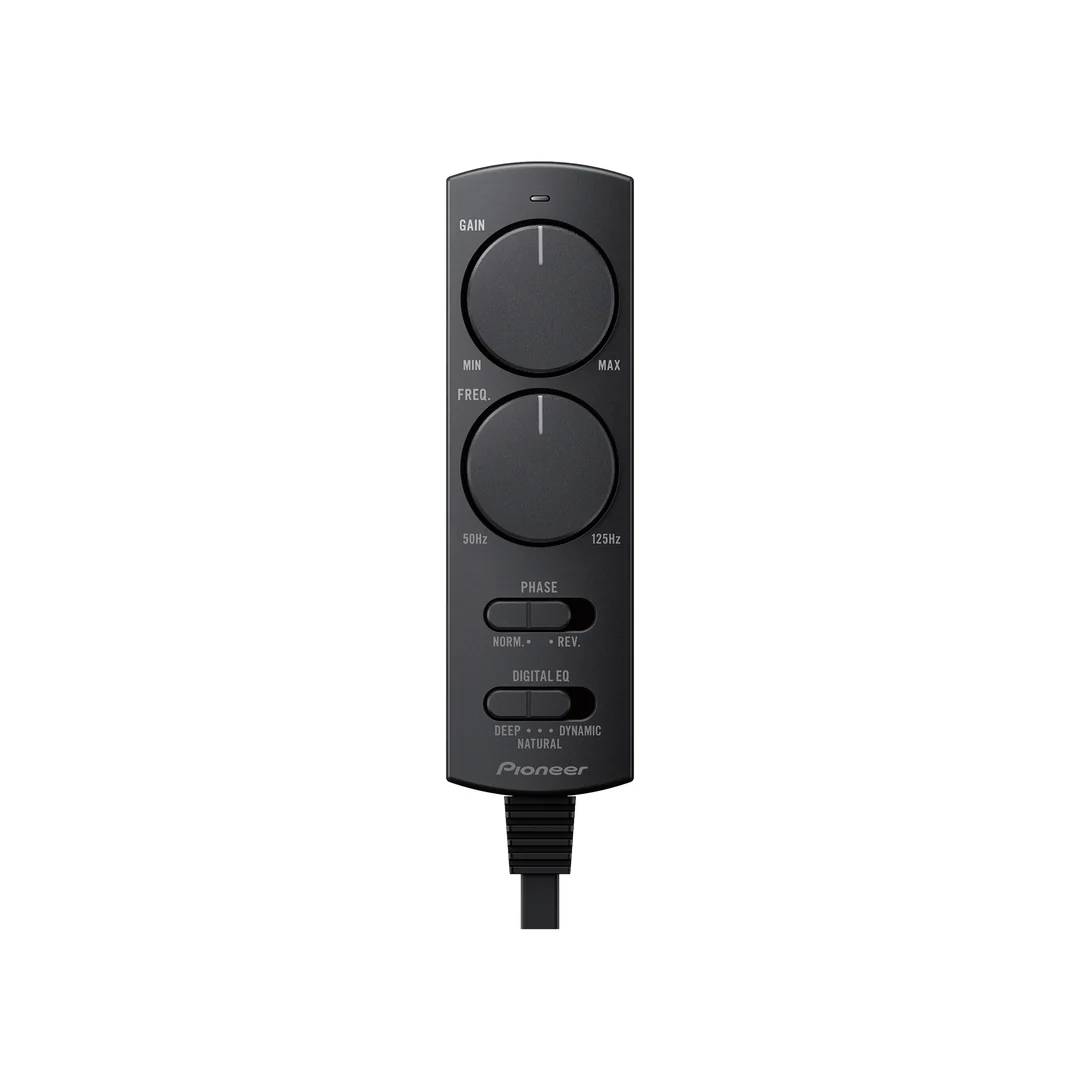

Since this powered subwoofer has a built-in DSP, we have designed a cable remote control to give you all the control required to fine-tune the sound according to your acoustic preferences. You can adjust the volume, bass cut-off frequencies, phase selection, and even choose a DSP mode. DEEP Mode achieves rich, deep bass sound quality in the car; NATURAL Mode provides clean, lifelike bass; and DYNAMIC Mode emphasizes powerful, strong, and dynamic bass sound in the car.
Honeycomb Structure
The TS-WX140DA main chassis is designed with an optimized honeycomb structure, making the shallow and compact composite body more rigid and reducing mechanical vibrations. The result is cleaner bass output with lower distortion, even at high volume levels.
CarSoundfit App
Pioneer’s Car Sound Fit app is a car sound simulator that lets you experience what your car could sound like using your own smartphone. You’ll be able to hear the difference between stock speakers and Pioneer’s various audio options, and see how the quality of Pioneer speakers can enhance your in-car experience. For a virtual listening demo of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
