Description

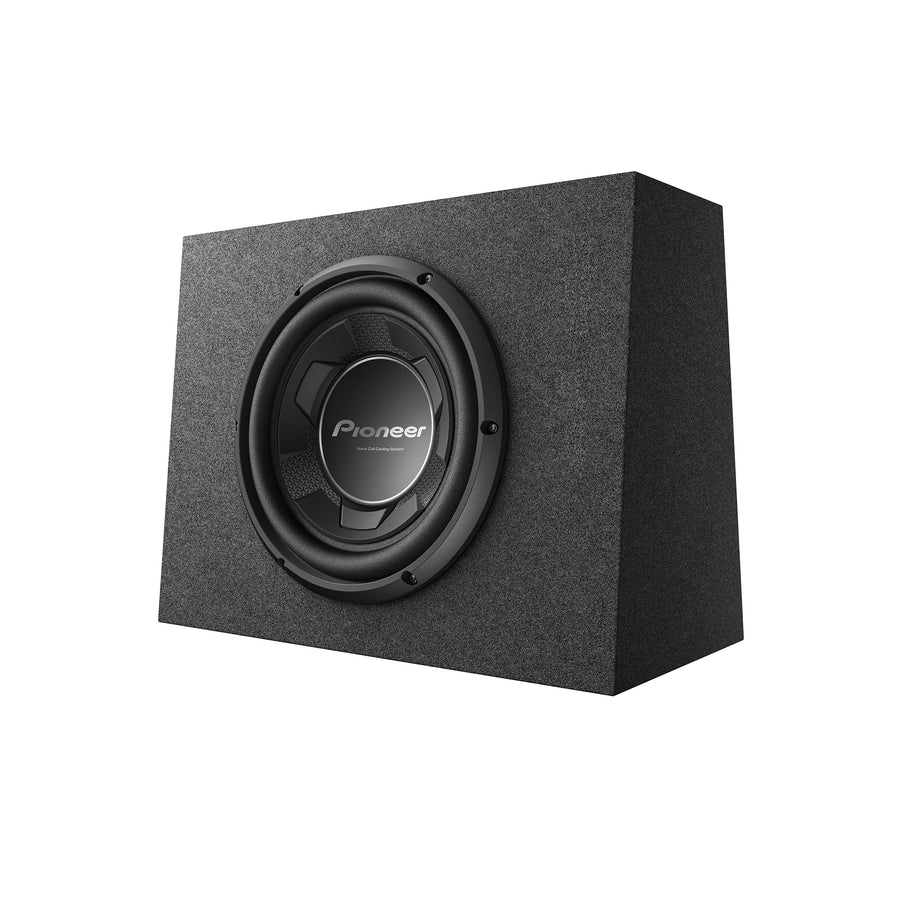

Pioneer TS-WX106B
The TS-WX106B is a powerful, pre-loaded 10-inch subwoofer designed to deliver deep, precise bass and exceptional sound clarity for any car audio system. With a continuous power handling of 250 watts RMS and a peak power capacity of 1100 watts, it provides robust performance while maintaining reliability. Its 4-ohm impedance and 73 dB sensitivity ensure efficient audio output, while the IMPP composite cone, urethane rolled surround, and poly cotton damper contribute to durable construction and minimal distortion. The ferrite magnet and aluminum voice coil with VCCS technology enhance responsiveness and control, making the TS-WX106B an ideal choice for audiophiles seeking rich low-frequency sound with high fidelity and long-lasting performance.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 250 W |
| Maximum Peak Power Handling | 1100 W |
| Frequency Response | 20 Hz – 3.7 kHz |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 73 dB |
| System Type | Pre-Loaded |
Features
| Specification | Value |
|---|---|
| Woofer Dimensions | 10″ |
Materials
| Specification | Value |
|---|---|
| Basket Material | Stamped Metal |
| Cone Material | IMPP – Composite |
| Damper | Poly Cotton |
| Installation Ring | Polypropylene |
| Magnet Material | Ferrite |
| Magnet Weight | 29.1 oz |
| Surround Material | Urethane |
| Surround Type | Rolled |
| Voice Coil Bobbin | Aluminum |
| Voice Coil Special Feature | VCCS |
| Voice Coil Wire | Copper |
About The Product
Lightweight polymide (PI) tweeter diaphragm loaded uniquely shaped wave guide provides natural loaded clear vocals subwoofer wide dispersion.
Small Space, Big Bass
The trapezoidal shape of the enclosure is designed to create greater rigidity and reduce internal standing waves while minimizing any space lost by matching the typical angle of the car’s rear seat. The TS-WX106B is fully carpeted, creating a non-slip, durable, and scratch-resistant surface.
IMPP™ cone
An extremely rigid yet lightweight cone is essential to avoid cone failure and distortion under high power. Pioneer’s IMPP™ composite cones meet this need perfectly. Computer-Aided Engineering (CAE) was applied to create a curvilinear cone with varying thicknesses during the injection process, maintaining a balance between lightness (responsiveness) and rigidity (precise audio and tight bass).
Keep it cool
This subwoofer uses Pioneer’s VCCS (Voice-Coil Cooling System) to create better airflow around the motor drive unit, including the voice coil within the extended pole-piece and magnet. This design achieves better power handling and heat management within the sealed enclosure.
