Pioneer TS-WH500A

Name: Pioneer TS-WH500A
SKU: TS-WH500A
Availability: InStock

SKU: TS-WH500A

$179.95

In stock

100 in stock

Categories: Powered Subwoofer Boxes, Powered Subwoofers, Subwoofers Tags: compact powered subwoofer, HVT technology subwoofer, shallow mount car subwoofer, TS‑WH500A

Description

Powerful active subwoofer system with Horizontal-Vertical

Features

150W Peak Power: Delivers powerful bass output.

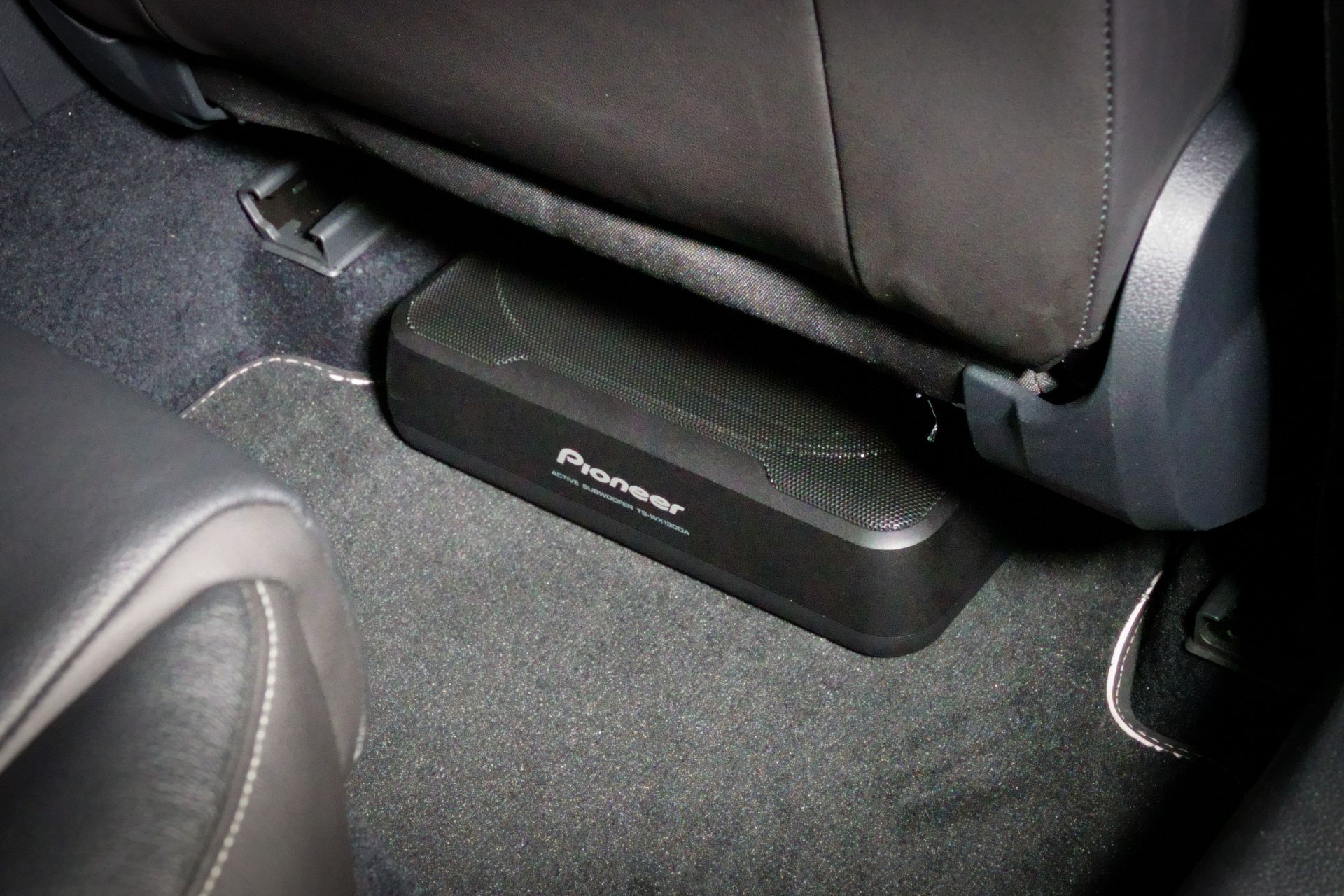

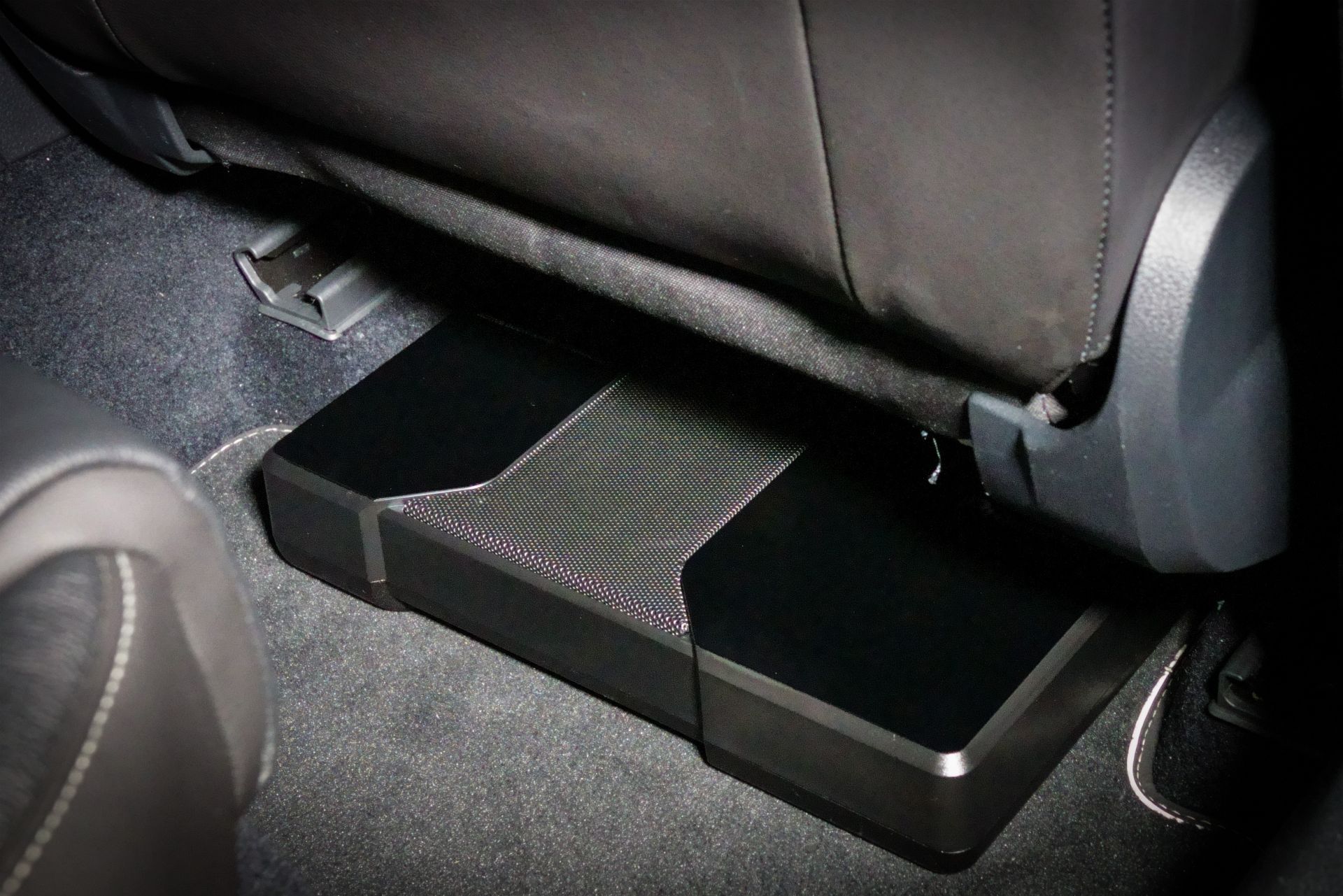

Ultra-Thin Design: Dimensions of 340mm x 60mm x 250mm for easy under-seat installation.
HVT Technology: Ensures authentic and wide-range bass.
Frequency Response: 20–200 Hz for deep bass reproduction.
Sensitivity: 98 dB for efficient sound output.

Description

Description

Pioneer TS-WH500A

The Pioneer TS-WH500A features a built-in MOSFET amplifier delivering up to 150W peak power through its aluminum cone woofer. The HVT technology produces vertical vibrations via a horizontal driving force, resulting in authentic and wide-range bass suitable for various music genres. Its ultra-thin design (340mm x 60mm x 250mm) makes it ideal for installation under seats, preserving cabin space. With a frequency response of 20–200 Hz and a sensitivity of 98 dB, it ensures clear and impactful bass performance.

Specifications

Feature	Specification
Subwoofer Type	Active Subwoofer
Nominal Input Power	70 W
Frequency Response	20 Hz – 200 Hz
Sensitivity	98 dB
Space-Saving Design	Yes
Wired Remote Control	Yes
Dimensions (W × H × D)	340 mm × 60 mm × 250 mm
Speaker Grill	Included
Weight	4.40 kg

Reviews

There are no reviews yet.

Be the first to review “Pioneer TS-WH500A”

Questions and Answers

Q1: What is the size and installation footprint of the TS‑WH500A?

A1: The enclosure measures about 340 mm (W) × 60 mm (H) × 250 mm (D).

Q2: What is the power rating of this subwoofer?

A2: It is rated at 50 W RMS (nominal) and up to 150 W peak power.

Q3: What frequency range does it cover and how deep is the bass?

A3: The frequency response is approximately 20 Hz to 200 Hz, allowing for deep bass even in a compact form.

Q4: What special technology is used and why does it matter?

A4: It uses HVT (Horizontal Vertical Transforming) technology which reconfigures the driver motion so that the enclosure height can be very shallow, making it easier to install in compact spaces without sacrificing bass performance.

Q5: Is this suitable for installing in a vehicle in Pakistan (Karachi) and what should I check?

A5: Yes it’s suitable for smaller vehicles or where space is limited. You should check that you have sufficient space for the dimensions (~340 × 60 × 250 mm), that your vehicle’s electrical system can support the amplifier draw, and ensure that you have proper wiring with a fused power lead and safe mounting.
