Description

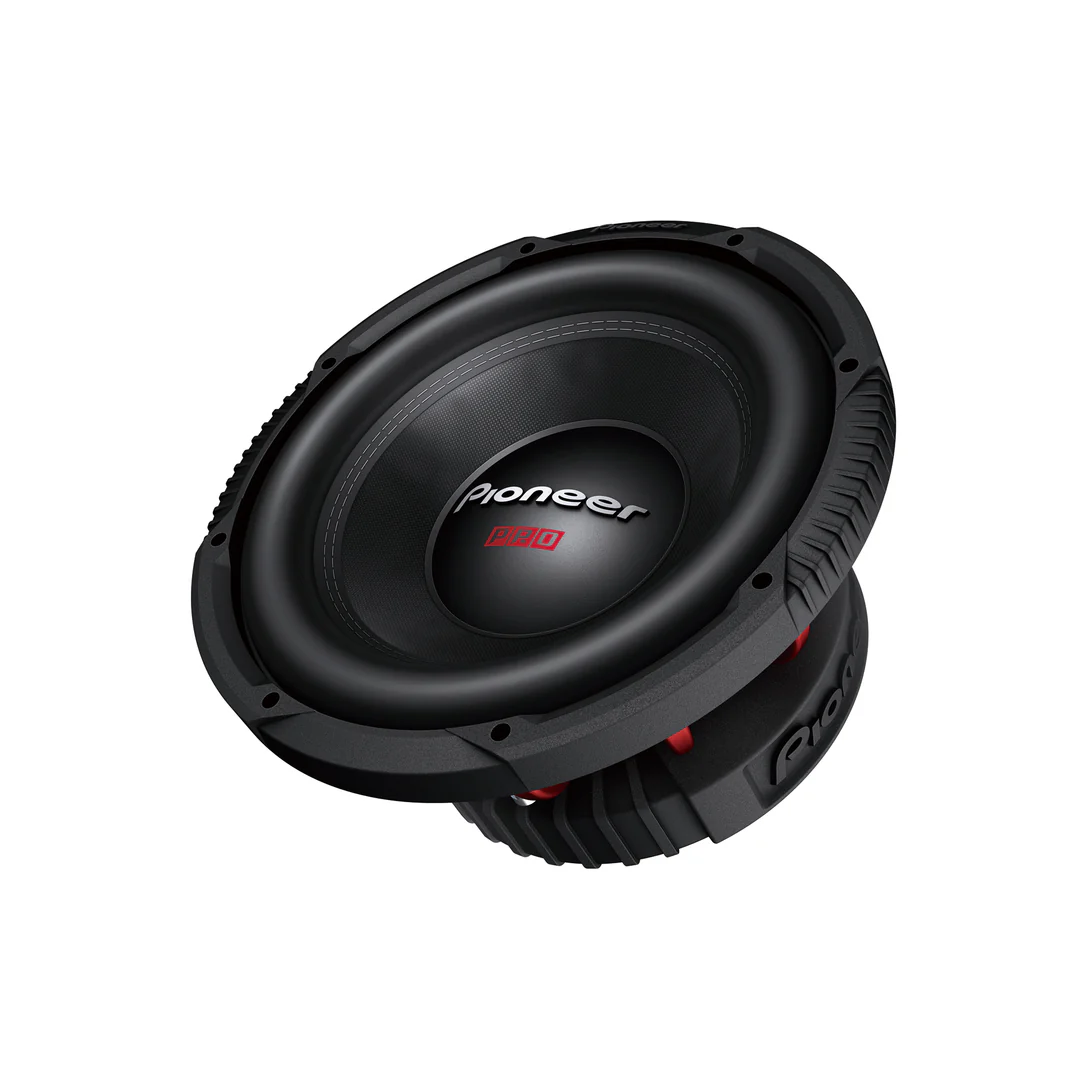

Pioneer TS-W3020PRO
The Pioneer TS-W3020PRO is a high-performance 12-inch subwoofer from Pioneer’s PRO Series, engineered for enthusiasts seeking exceptional bass output and clarity. With a maximum power handling of 3,500 watts and a continuous RMS rating of 1,800 watts, it delivers deep, powerful bass suitable for both sealed and ported enclosures. Its dual 2-ohm voice coils offer versatile wiring options, while the optimally blended pulp woofer cone ensures minimal distortion and enhanced audio fidelity.
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Continuous Power Handling (RMS) | 1800 W |
| Maximum Peak Power Handling | 3500 W |
| Frequency Response | 20 Hz – 200 Hz |
| Nominal Impedance | Dual 2-Ohm |
| Sensitivity (1W/1m) | 86 dB |
| System Type | Subwoofer |
| Crossover Frequency | NA |
FEATURES
| Feature | Specification |
|---|---|
| Cut Out Dimensions | 11-3/32″ |
| Equivalent Compliance (VAS) | 8.3 – 0.293 |
| Linear Excursion (Xmax) | 22.8 mm – 0.897″ |
| Mounting Depth | 6.06″ |
| Outer Diameter | 12-11/16″ |
| Protrusion | 1″ |
| Recommended Ported Box Volume | 1.75 cu.ft (50 liters) |
| Recommended Sealed Enclosure Volume | 1.25 cu.ft (34.4 liters) |
| Total Speaker Q (Qts) | 1.3 |
| Woofer Dimensions | 12″ |
MATERIALS
| Feature | Specification |
|---|---|
| Cone Material | Blended Pulp, Cellulose fiber |
| Magnet Material | Ferrite |
| Magnet Weight | 3,680 g (130 oz) |
| Spider Material | Polycotton |
| Surround Material | Urethane |
| Surround Type | Rolled |
| Voice Coil Bobbin | Aluminum |
| Wire Terminals | Lug Type |
About The Product
The Pioneer P.R.O. (Pioneer Reference for Open Show) series of speakers is designed specifically for those looking to produce serious sound pressure levels. Inspired by Pioneer’s history of record-breaking SPL competition, the new P.R.O. Series line of speakers is constructed with the street enthusiast in mind. Emphasizing efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid-bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output without requiring a significant investment.
The TS-W3020PRO 12″ is a high-efficiency subwoofer with a maximum power of 3,500 W (1,800 W nominal), featuring an optimally blended pulp woofer cone, a motor (magnet and voice coil), and a basket structure designed for high efficiency (dB) and high power.
What is Pioneer P.R.O.
In the early 2000s, an SPL competition called “dB drag racing” became popular in the U.S. By 2003, there were approximately 10,000 competitors, with winners achieving around 150dB. Pioneer broke the world record in 2004 by reaching 173.0dB and renewed this title the following year with an impressive 180.5dB!
Around 2005, under the sponsorship of the IASCA (International Auto Sound Challenge Association), an emerging SPL competition called “OPEN SHOW” was introduced with great success. The acronym for Pioneer P.R.O. (Pioneer Reference for Open Show) for our dedicated products comes from this designation.
Now, it’s a trend that can also be enjoyed casually outdoors, whether partying or tailgating at your favorite sports event.
Large and Heavy

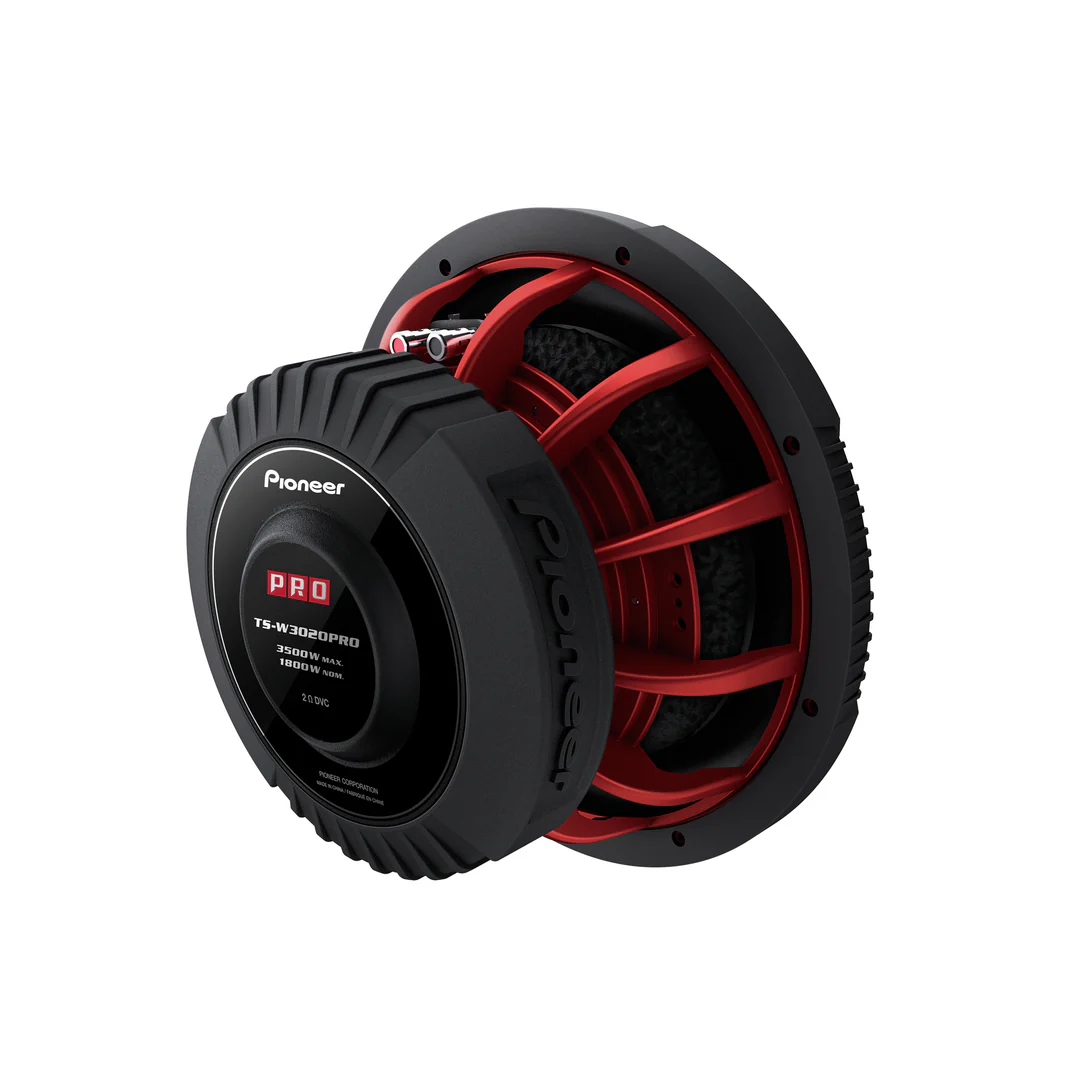

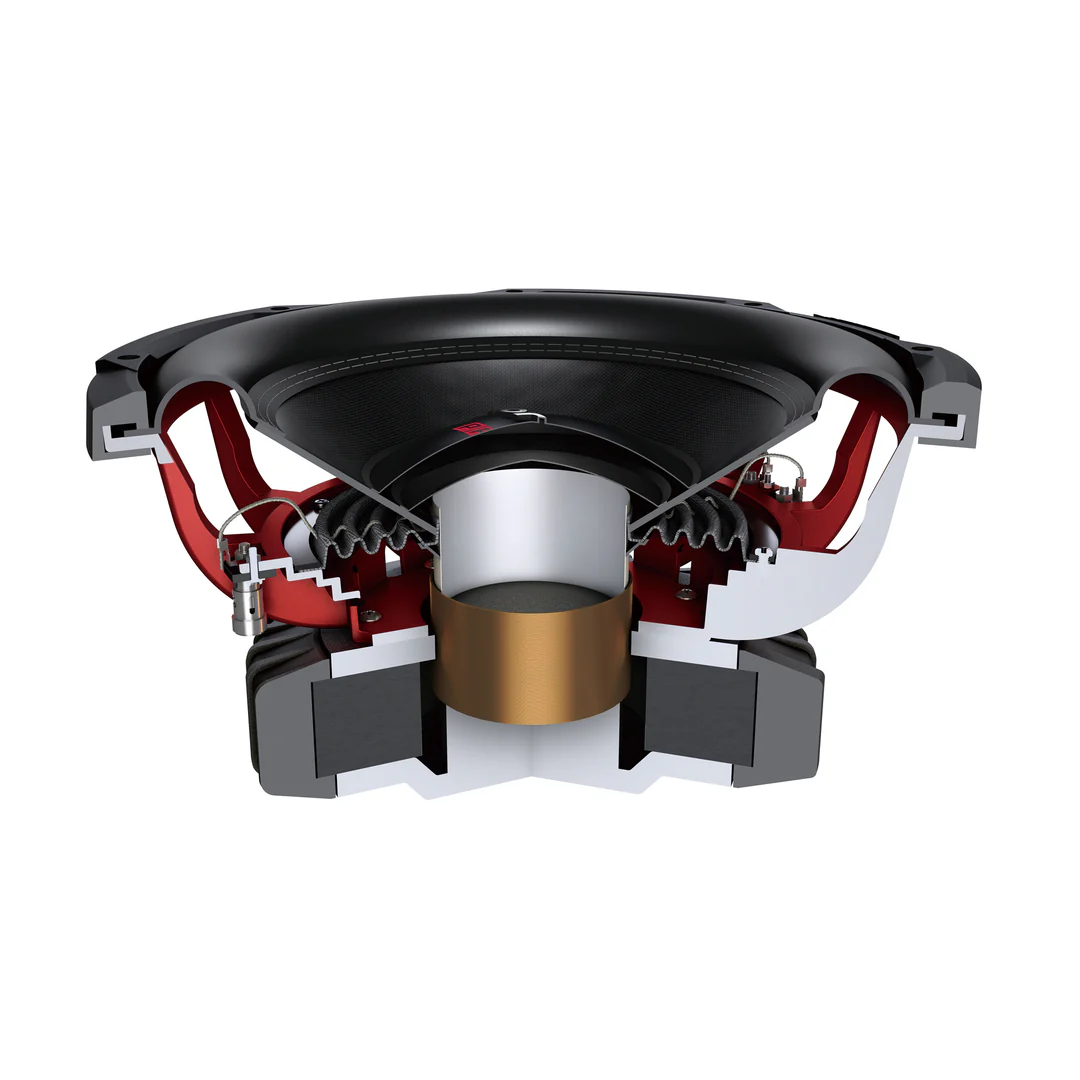

The large red aluminum basket and massive motor structure, utilizing a 130 oz. double-stack magnet, provide all the support and thermal management required to handle up to 3,500 watts of power.
Paper Beats Rock
The optimally blended pulp cone woofer guarantees precise and vibrant sound, while the motor construction, voice coil, and powerful magnet. Drawing inspiration from Pioneer’s history in SPL competitions, promise high efficiency and excellent thermal management, even at high volumes.
Massive Urethane Suspension
The cone structure is attached to the basket using a massive urethane suspension, glued and secured with a double-stitched seam to ensure high durability, even when the subwoofer handles high-input power.
