Description

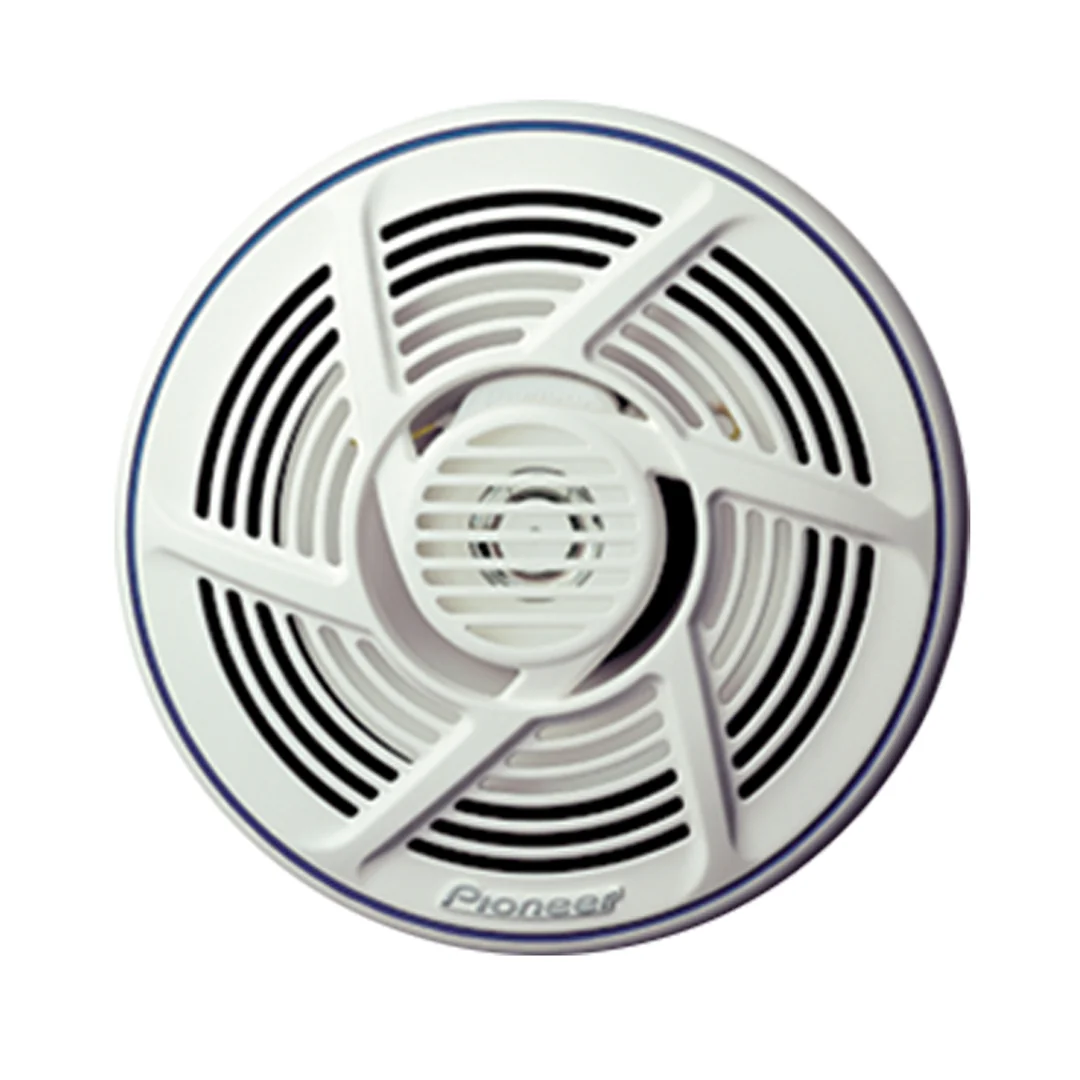

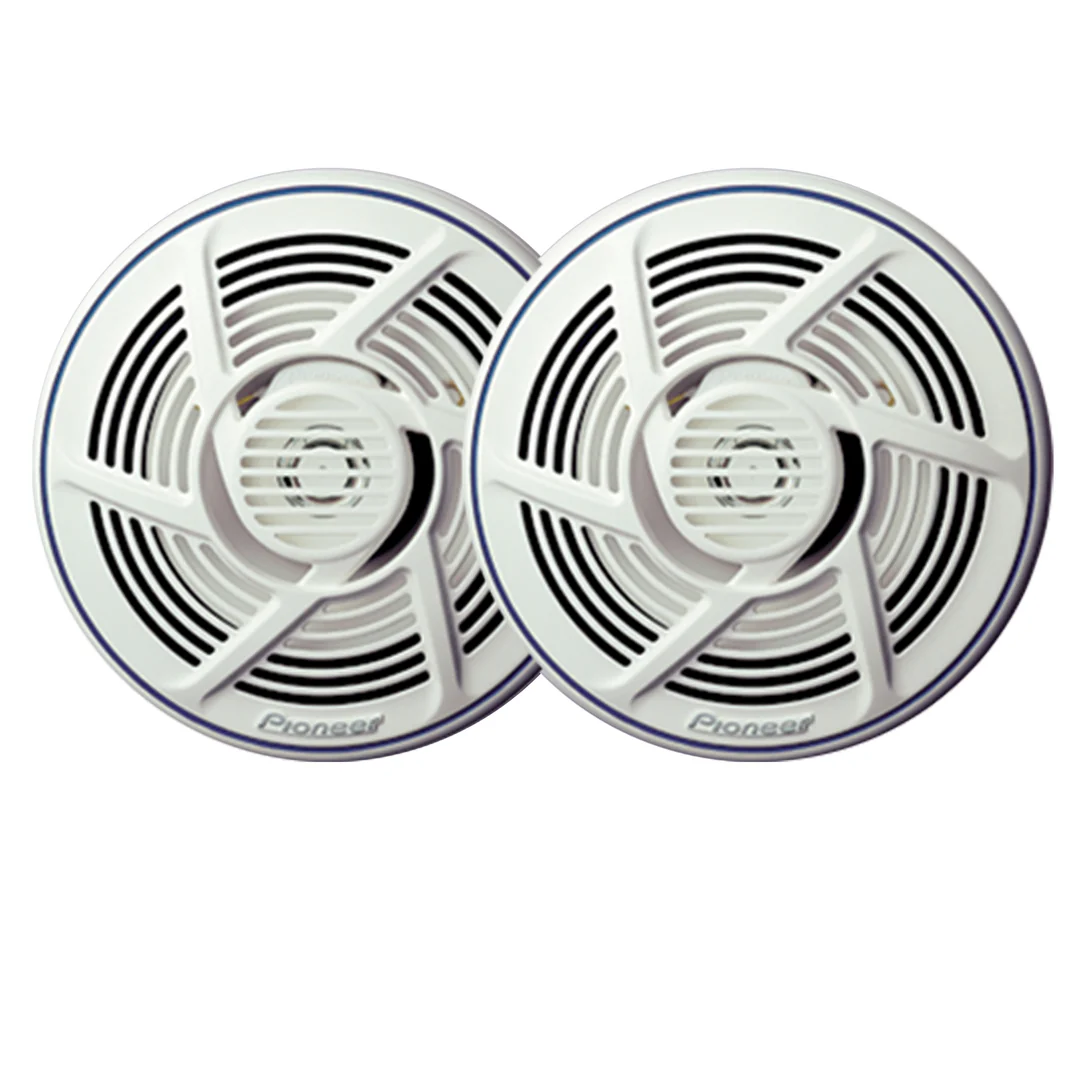

Pioneer TS‑MR1640
The Pioneer TS‑MR1640 is a 6.5‑inch (≈16 cm) 2‑way marine‑use coaxial speaker pair designed for boat, yacht or outdoor applications where durability and weather‑resistance matter. It is rated for 30 W nominal (RMS) and 160 W maximum (peak) power handling. The woofer uses a water‑resistant IMPP™ (Injection Moulded Polypropylene) composite cone and the tweeter is a PEI (Polyetherimide) dome type, delivering a frequency response of approximately 30 Hz to 30 kHz, sensitivity of 91 dB, and a nominal impedance of 4 ohms. The build includes UV‑, salt‑water and corrosion‑resistant materials suitable for harsh marine conditions
Specifications
PRODUCT PERFORMANCE
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 30 W |
| Frequency Response | 30 Hz to 30 kHz |
| Maximum Peak Power Handling | 160 W |
| Nominal Impedance | 4 Ohm |
| Sensitivity (1W/1m) | 91 dB |
| System Type | Coaxial 2-way, Dome – Tweeter |
FEATURES
| Specification | Value |
|---|---|
| Cut Out Dimensions | 5″ |
| Mounting Depth | 2-1/4″ |
| Outer Diameter | 5/8″ |
| Speaker Grill | Classic White |
| Tweeter Dimensions | 1.06″ |
| Woofer Dimensions | 6.5″ |
MATERIALS
| Specification | Value |
|---|---|
| Cone Material | IMPP – Water Resistant |
| Damper | Nomex |
| Diaphragm Material | Polyetherimide (PEI) – Tweeter |
| Magnet Material | Ferrite – Speaker, Ferrite, Strontium – Tweeter |
| Magnet Weight | 9 oz – Speaker, 0.74 oz – Midrange |
| Surround Material | Elastic Polymer |
| Surround Type | Rolled |
| Voice Coil Material | Glass Imide |
| Voice Coil Wire | Copper |
| Wire Terminals | Integrally Molded |
About The Product
Nautica Series 6-1/2” Marine-Use 2-way Speaker with 160 W Max. Power
Lightweight polymide (PI) tweeter diaphragm with uniquely shaped wave guide provides natural with clear vocals Marine wide dispersion.
Poly-Imide Reflex Horn Tweeter
The Reflex Horn design is a Pioneer innovation that delivers stunning high frequencies while at the same time providing protection for the tweeter from moisture.
Acrylonitrile-Elastomer Styrene (AES) Glass Fiber Reinforced Basket/Magnet Cover
The AES cover protects the magnetic circuit that can affect the performance of the speaker. The speakers also sport the pure white AES grilles to resist fading and yellowing caused by direct sunlight and heat.
Elastomer Surround
Each speaker utilizes an elastomer surround that resists color fading or running, which extends the longevity of the product.
Gold Tinsel Wire
Gold tinsel wire and gold plated wire terminals are used for better current transfer.
Water-resistant IMPP Composite Cone
Pioneer’s popular injection molded polypropylene (IMPP) cones produce outstanding mid-bass response and resist the effects of salt water, humidity and extreme heat.
