Description
Pioneer TS‑MR1600

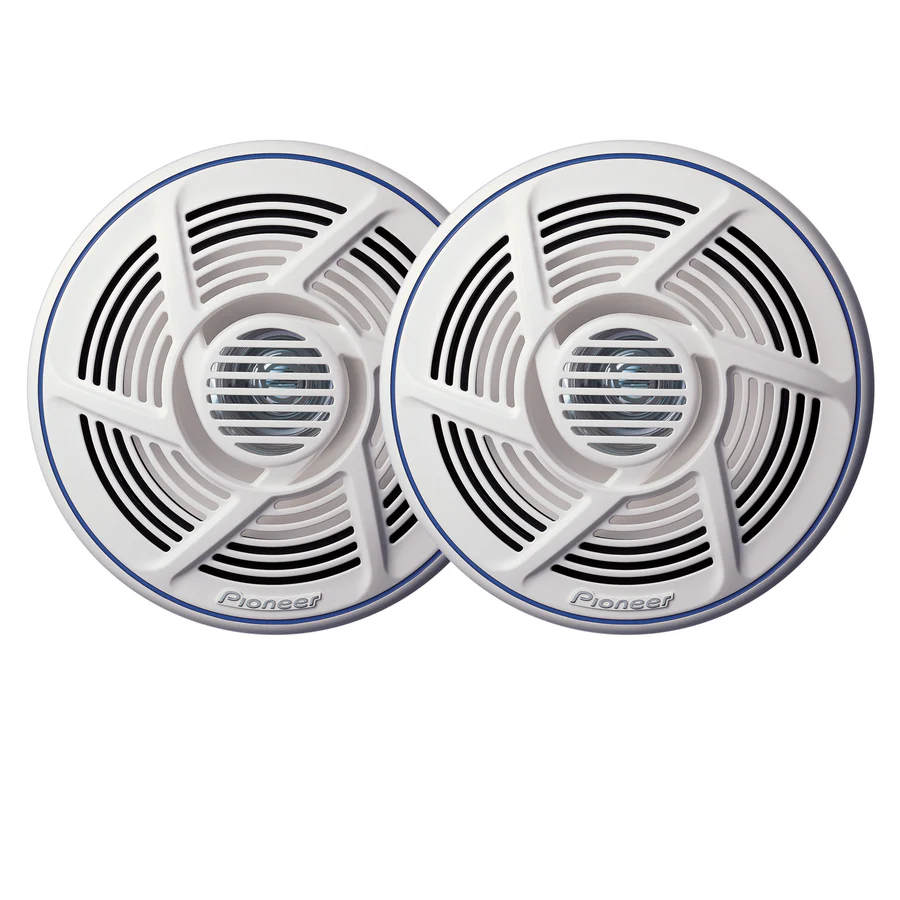

The TS‑MR1600 is a 6.5‑inch (≈16 cm) marine‑use dual‑cone speaker pair designed for boat, marine and outdoor installations, while also being usable in cars where corrosion resistance is helpful. It has a peak power rating of 100 W and a nominal (RMS) rating of 25 W.It features a water‑resistant IMPP™ (injection‑molded polypropylene) composite cone, an elastomer surround for durability in marine environments, gold‑plated terminals and corrosion‑resistant mounting hardware. The sensitivity is rated at 90 dB (1 W/1 m) and the impedance at 4 ohm.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 25 W |
| Maximum Peak Power Handling | 100 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 30 Hz – 20 kHz |
| Crossover Frequency | N/A |
| System Type | Coaxial 2-way |
Features
| Specification | Value |
|---|---|
| Cut Out Dimensions | 5″ |
| Mounting Depth | 2-1/4″ |
| Speaker Grill | Classic White |
| Woofer Dimensions | 6.5″ |
Materials
| Specification | Value |
|---|---|
| Cone Material | Carbon and Mica reinforced Injected Molded Polypropylene (IMPP) |
| Cone Special Feature | Marine Use Construction |
| Damper | Nomex |
| Magnet Material | Strontium – Speaker, Strontium – Midrange |
| Magnet Weight | 6.3 oz – Speaker, 6.3 oz – Midrange |
| Surround Material | Elastic Polymer |
| Surround Type | Rolled |
| Voice Coil Material | Glass Imide |
| Voice Coil Wire | Copper |
| Wire Terminals | Integrally Molded |
About The Product

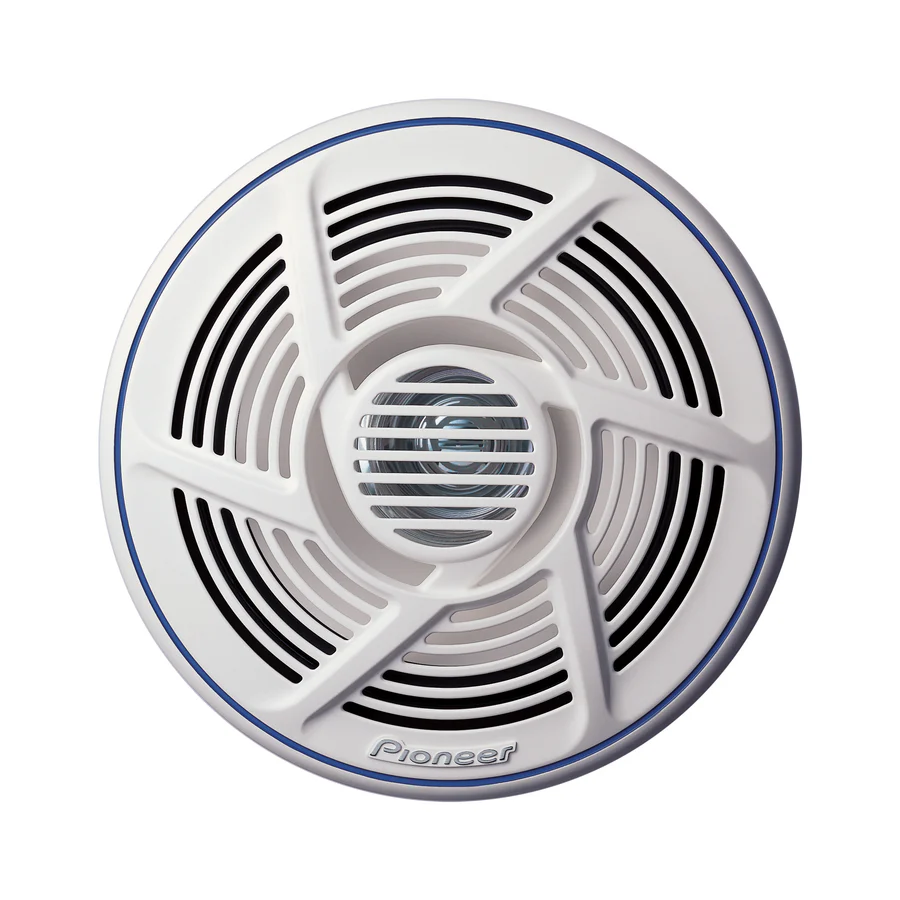

Nautica Series 6-1/2″ Marine-Use Dual-Cone Speaker
The Nautica Series 6-1/2″ speaker delivers 100 W maximum power and features a lightweight polyimide (PI) tweeter diaphragm with a uniquely shaped wave guide for natural, clear vocals and wide dispersion.
¾ Inch Poly-Imide Reflex Horn Tweeter
The Reflex Horn design, a Pioneer innovation, provides stunning high frequencies while protecting the tweeter from moisture.
Acrylonitrile-Elastomer Styrene (AES) Glass Fiber Reinforced Basket/Magnet Cover
The AES cover protects the magnetic circuit, ensuring consistent speaker performance. The pure white AES grilles resist fading and yellowing from direct sunlight and heat.
Elastomer Surround
Each speaker uses an elastomer surround that resists color fading and running, extending the product’s longevity.
Gold Tinsel Wire
Gold tinsel wire and gold-plated wire terminals are used for improved current transfer and enhanced audio performance.
Water-Resistant IMPP Composite Cone
The injection-molded polypropylene (IMPP) cone provides outstanding mid-bass response while resisting the effects of salt water, humidity, and extreme heat, ensuring reliable performance in marine environments.
