Description
Pioneer TS‑ME100WS
The Pioneer TS‑ME100WS is a 10″ (25 cm) marine‑grade subwoofer from the ME‑Series, designed for all‑weather use in marine or outdoor audio environments. It features a mica‑reinforced IMPP™ monocoque cone construction with a butyl rubber surround, is certified to IPX7 (water‑immersion proof) and meets ASTM D4329 for UV‑exposure durability. The power handling is rated at 300 W RMS nominal and 900 W peak, with 4 Ω impedance and a sensitivity of 84 dB. Frequency response spans approximately 20 Hz to 3.5 kHz. The mounting depth is about 126 mm and the cut‑out diameter is ~225 mm (~8‑7/8″).
Specifications
GENERAL
| Feature | Specification |
|---|---|
| Size | 10″ |
| Design | 10″ Component Subwoofer |
| Woofer Composition | Injected Molded Polypropylene™ |
| Woofer Surround | Trex Plane |
| Woofer Magnet Composition | Ferrite |
| Warranty | 1 Year |
MARINE FEATURES
| Feature | Specification |
|---|---|
| Water Resistant | IPX7 |
| UV Resistant | ASTM D4329 |
| Grille Style | Black and White Sports Grilles Included |
INSTALLATION SPECIFICATION
| Feature | Specification |
|---|---|
| Max. Music Power (Nominal) | 900 W Peak (300 W RMS) |
| Frequency Response | 20 Hz – 3.5 kHz |
| Sensitivity (1W/1 m) | 84 dB |
| Impedance | 4 Ω |
| Mounting Depth | 5″ (126 mm) |
| Cut-Out Dimensions | 8-7/8″ Dia. (φ225 mm) |
| Free Air Operation | Yes |
About The Product
Pioneer ME-series subwoofers (both Sports and Classic designs) are protected from the effects of sun and water exposure, meeting both IPX7 and ASTM D4329 certification to achieve all-weather reliability.

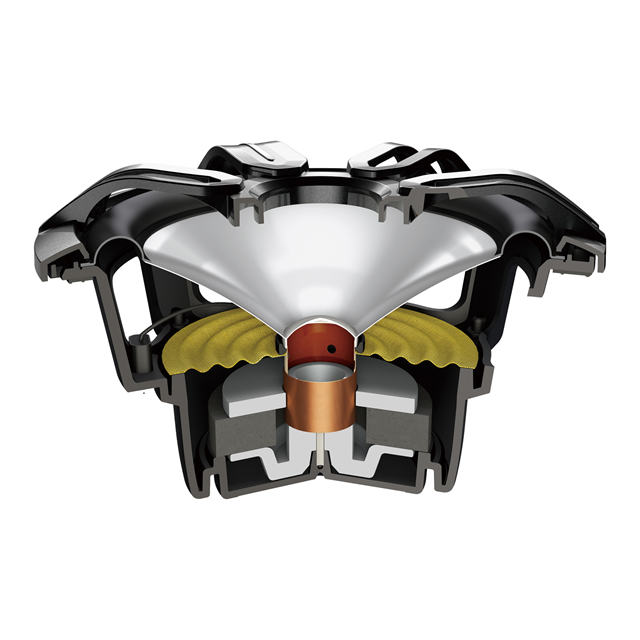

Mica Reinforced IMPP monocoque cone with butyl rubber surround, constructed using an advanced in-mold bonding technique for superior water resistance while maintaining high quality, powerful sound.
The symmetrical motor design with high strength suspension is optimized to provide stability, linearity and clear, low distortion sound reproduction.

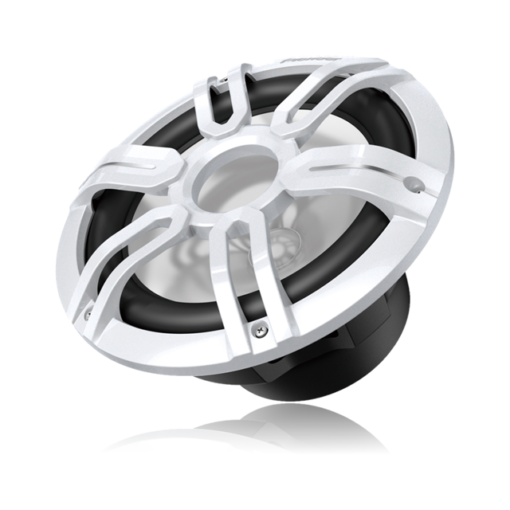

The TS-ME100WS comes with two sleek modern grilles, one in black and the other in a white finish that cosmetically integrate seamlessly into marine interiors and cabin designs.
IPX7 CERTIFIED
Marine products are constantly exposed to the elements but with IPX7 certification you can be assured your Pioneer speakers are purpose built for these environments. Highly durable but also focused on providing a superb audio experience your Pioneer speakers are the perfect addition to your marine audio system!
ASTM D4329 CERTIFIED
Additionally, ASTM D4329 certification has been achieved ensuring the UV stability and durability of Pioneer Marine speakers are built for Australian conditions.
UD-ME100LED OPTIONAL LED LIGHT KIT
Looking for a more customized look for your marine audio system? Add the UD-ME100LED RGB LED Light Kit (sold separately) to give your system a custom look!
