Description
Pioneer TS‑ME100WC
The Pioneer TS‑ME100WC is a 10″ (≈ 25 cm) marine‑grade subwoofer from the ME‑Series, built for all‑weather outdoor and marine installations. It features a mica‑reinforced IMPP™ mono‑cocque cone, butyl‑rubber surround, and is certified for IPX7 water immersion and ASTM D4329 UV exposure. Key specs: 300 W RMS / 900 W peak, 4 Ω impedance, sensitivity 84 dB, frequency response from 20 Hz to 3.5 kHz
Specifications
General – 10″ Component Subwoofer
| Feature | Specification |
|---|---|
| Size | 10″ |
| Design | Component Subwoofer |
| Woofer Composition | Injection Molded Polypropylene™ (IMPP™) |
| Woofer Surround | Trex Plane |
| Woofer Magnet Composition | Ferrite |
| Warranty | 1 Year |
Marine Features
| Feature | Specification |
|---|---|
| Water Resistant | IPX7 |
| UV Resistant | ASTM D4329 |
| Grille Style | Classic White Grille |
Installation Specification
| Feature | Specification |
|---|---|
| Max. Music Power | 900 W Peak (300 W RMS) |
| Frequency Response | 20 Hz – 3.5 kHz |
| Sensitivity (1W/1 m) | 84 dB |
| Impedance | 4 Ω |
| Mounting Depth | 5″ (126 mm) |
| Cut-Out Dimensions | 8‑7/8″ Dia. (φ225 mm) |
| Free Air Operation | Yes |
About The Product
Pioneer ME-series subwoofers (both Sports and Classic designs) are protected from the effects of sun and water exposure, meeting both IPX7 and ASTM D4329 certification to achieve all-weather reliability.

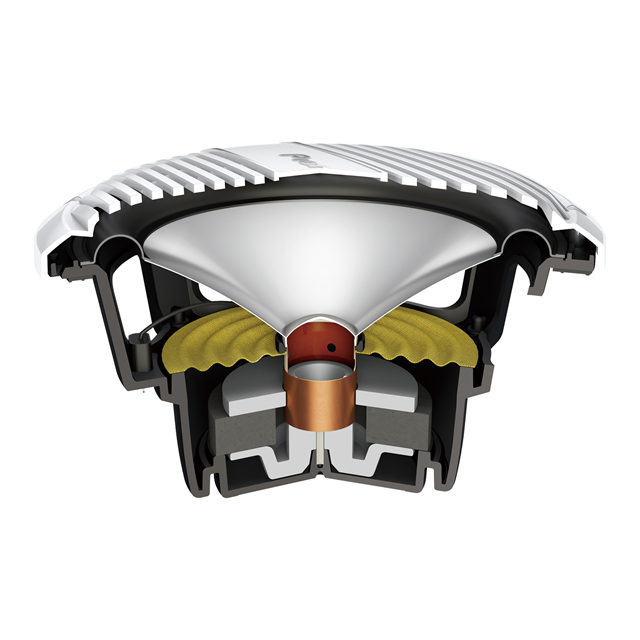

Mica Reinforced IMPP monocoque cone with butyl rubber surround, constructed using an advanced in-mold bonding technique for superior water resistance while maintaining high quality, powerful sound.
The symmetrical motor design with high strength suspension is optimized to provide stability, linearity and clear, low distortion sound reproduction.

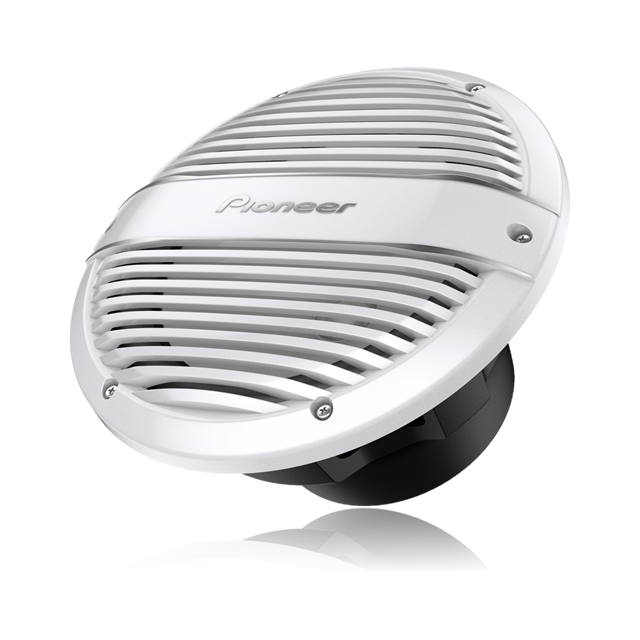

The TS-ME100WC comes with a sleek modern white grille that cosmetically integrates seamlessly into marine interiors and cabin designs.
IPX7 CERTIFIED
Marine products are constantly exposed to the elements but with IPX7 certification you can be assured your Pioneer speakers are purpose built for these environments. Highly durable but also focused on providing a superb audio experience your Pioneer speakers are the perfect addition to your marine audio system!
ASTM D4329 CERTIFIED
Additionally, ASTM D4329 certification has been achieved ensuring the UV stability and durability of Pioneer Marine speakers are built for Australian conditions.
UD-ME100LED OPTIONAL LED LIGHT KIT
Looking for a more customized look for your marine audio system? Add the UD-ME100LED RGB LED Light Kit (sold separately) to give your system a custom look!
