Description

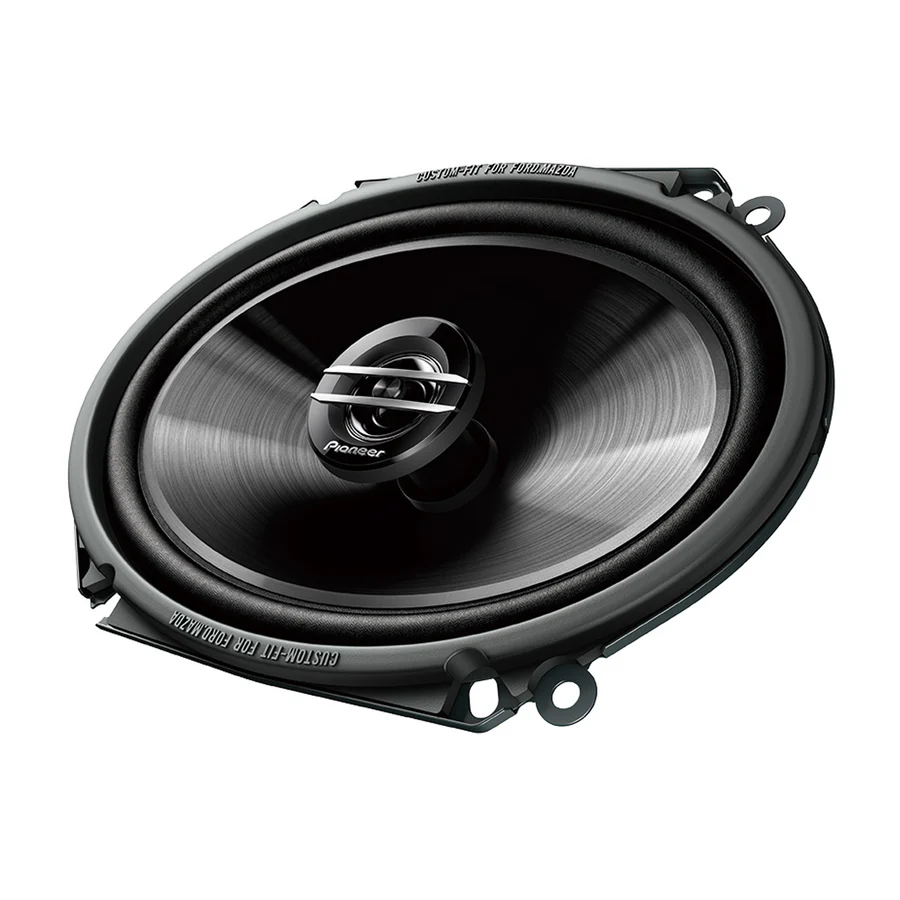

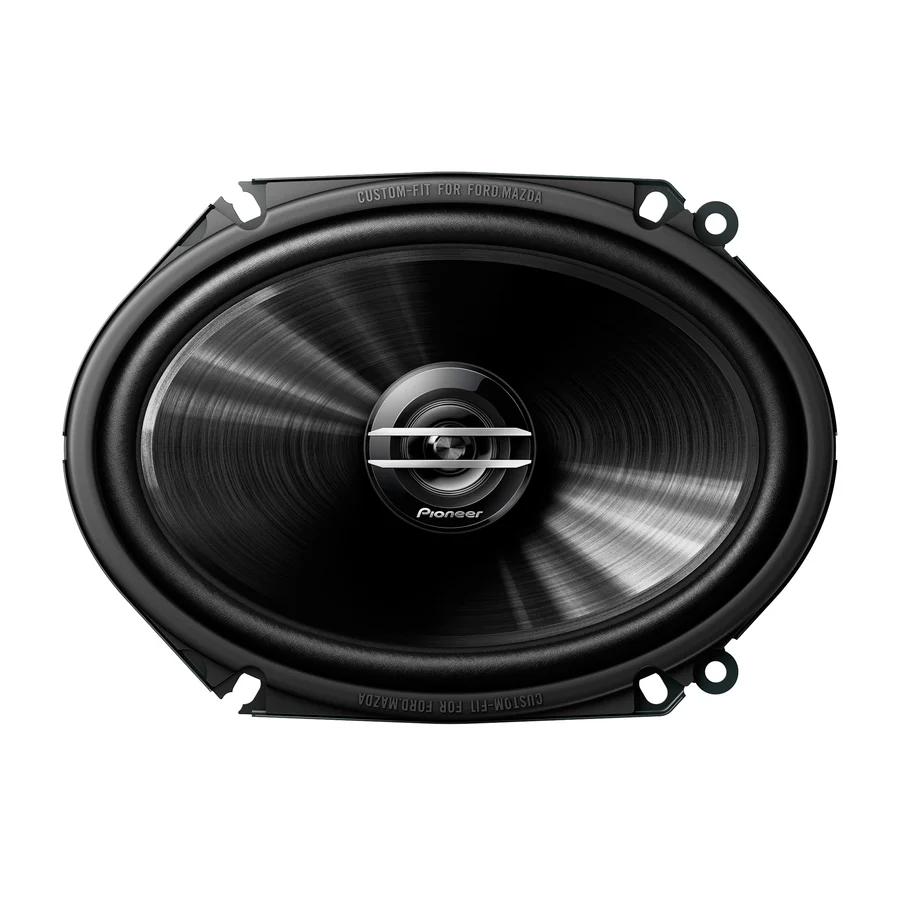

Pioneer TS‑G6820S

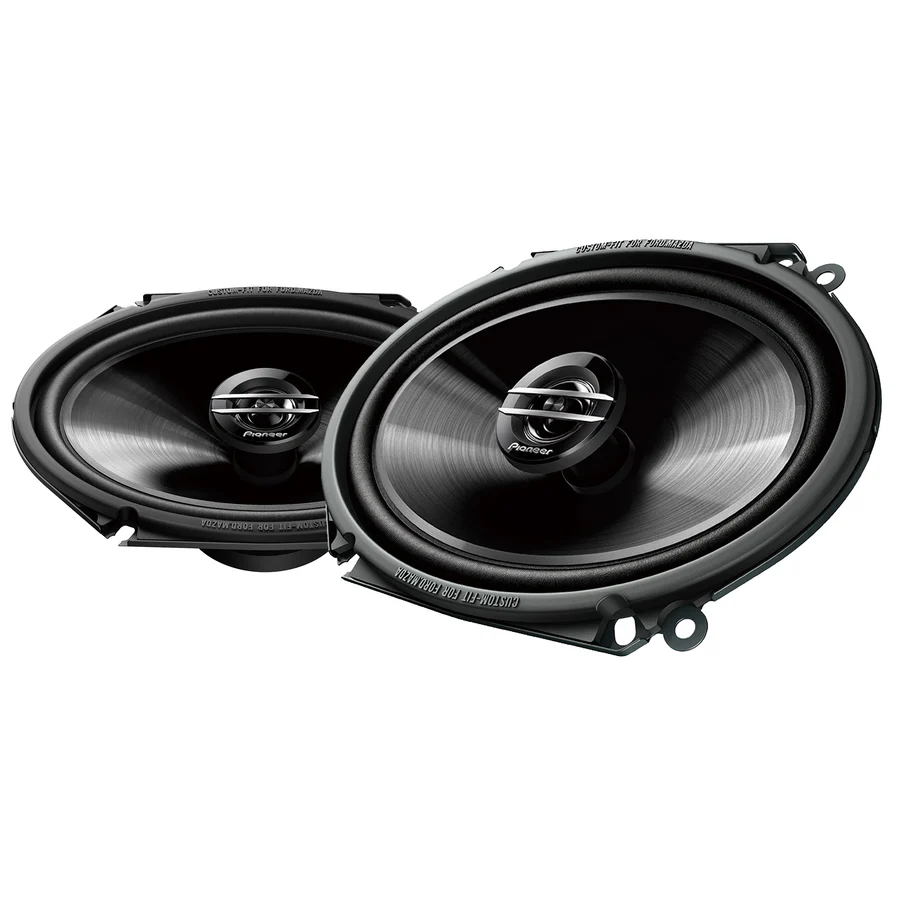

The Pioneer TS‑G6820S is a 6″ × 8″ 2‑way coaxial speaker pair from the G‑Series, designed as a direct upgrade for factory speakers in many vehicles that use the 6×8 (or compatible 5×7) size format. According to the official specs, it has a peak power rating of 250 W, with a nominal power rating around 40 W RMS. It features a mica‑reinforced IMPP™ (Injected Moulded Polypropylene) cone paired with a 30 mm PET hard‑dome tweeter, offering a frequency response from approximately 72 Hz to 14 kHz and a sensitivity around 92 dB (1W/1 m). With its shallow mounting depth (~2½ inches) and standard size cut‑out, the TS‑G6820S is a solid choice for improving sound clarity, bass response and overall audio quality without needing a full component system.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 40 W |
| Maximum Peak Power Handling | 250 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 92 dB |
| Frequency Response | 72 Hz – 14 kHz |
| Crossover Frequency | N/A |
| System Type | Coaxial 2-way, Balance Dome Tweeter |
Features
| Specification | Value |
|---|---|

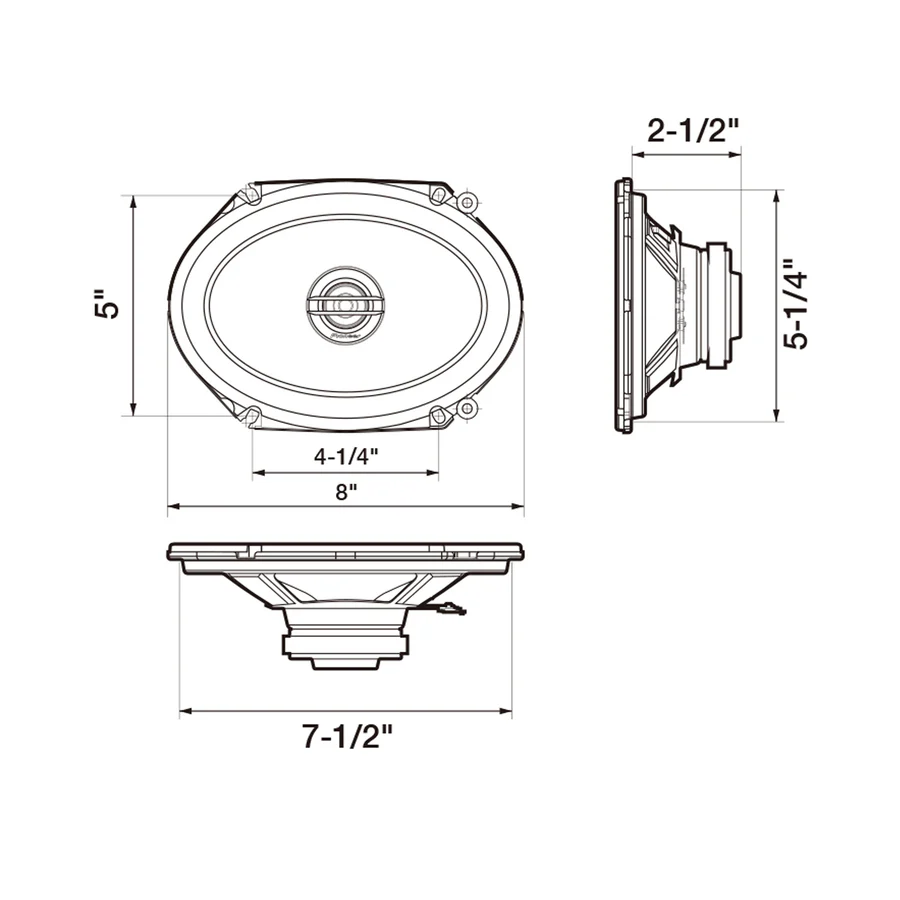

| Cut Out Dimensions | 7-1/2″ x 5-1/4″ |
| Mounting Depth | 2-1/2″ |
| Tweeter Dimensions | 1.18″ |
| Woofer Dimensions | 6″ x 8″ |
Materials
| Specification | Value |
|---|---|
| Basket Material | Metal |
| Cone Material | IMPP with MICA |
| Damper | Poly cotton |
| Diaphragm Material | Polyethylene terephthalate (PET) – Midrange |
| Magnet Material | Ferrite |
| Magnet Weight | 5.5 oz |
| Shorting Ring Material | Copper |
| Surround Material | Rubber Coated Cloth |
| Surround Type | Rolled |
| Voice Coil Material | Kapton |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
TS-G6820S 6”x 8” Two-Way Speakers
The TS-G6820S 6”x 8” two-way speakers feature 250 W max power (40 W nominal) and Pioneer’s extremely strong, lightweight Injected Molded Polypropylene (IMPP™) cone for improved sensitivity and reduced distortion. The Conex damper delivers higher power handling and deeper bass, while the 25 mm balanced dome tweeter reproduces highs with excellent performance and musicality. Shallow mounting depth allows easy installation in a wide variety of vehicles.
Affordable & Reliable OEM Speaker Replacement
Ideal for replacing factory speakers, these two-way speakers feature an IMPP™ with MICA composite cone woofer for high sensitivity and low distortion. The Conex damper enhances power handling and bass depth, while the balanced dome tweeter provides clear and musical highs. Shallow mounting depth ensures convenient installation.
Mica Reinforced IMPP™ Cone
The extremely rigid yet lightweight cone prevents distortion and failure under high power. Pioneer’s IMPP™ composite cones, enhanced with mica, achieve an optimal rigidity-to-weight ratio and resonance across the audio bandwidth, ensuring balanced sound reproduction.
PET Hard Dome Tweeter
The PET (Polyethylene Terephthalate) dome maintains stable electrical and mechanical properties across a wide frequency range. Its strength-to-weight ratio is ideal for high-frequency vibrations. A front diffuser ensures balanced audio from on-axis to off-axis listening points in the car.
Pioneer Exclusive P.F.S.S. Spider
The Progressive Flex Suspension System (P.F.S.S.) supports the voice coil by damping cone vibrations and improving sound linearity. Its soft section ensures smooth movement and clarity under high power, while the firmer section controls excessive vibrations to prevent distortion and maintain musical detail during large bass excursions.
