Description

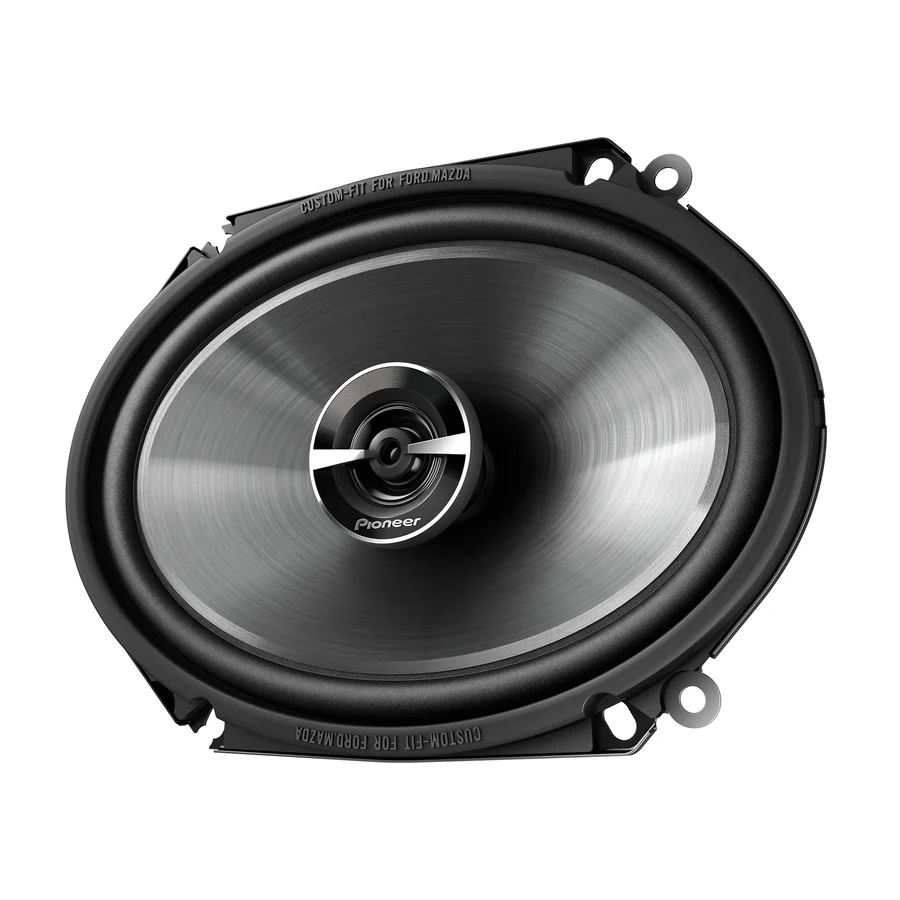

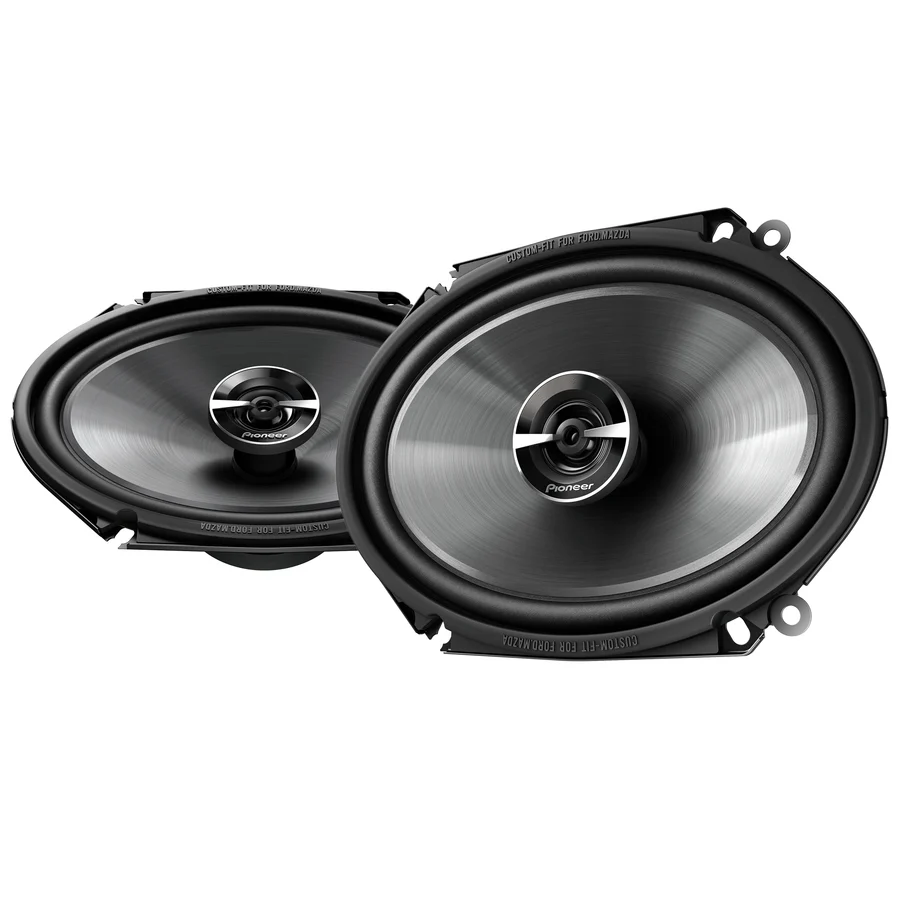

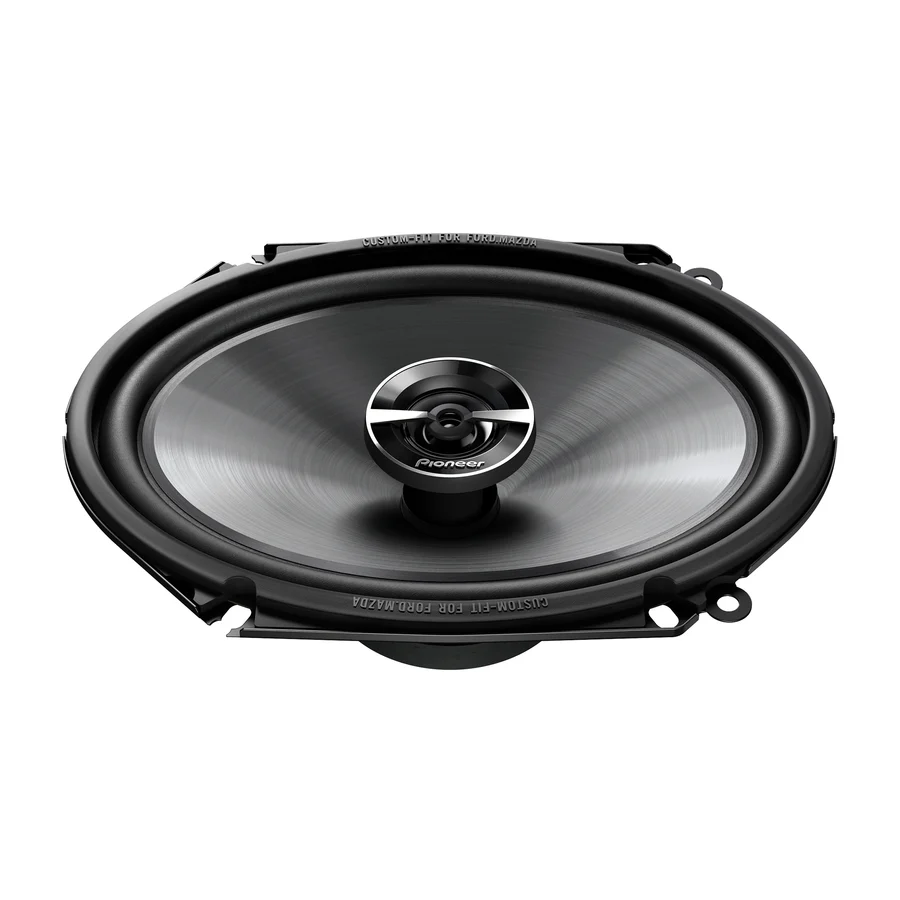

Pioneer TS‑G680
The Pioneer TS‑G680 is a 6″ × 8″ 2‑way coaxial car speaker designed to deliver clear, high-quality audio in a compact form factor. It features a mica‑reinforced IMPP™ woofer cone for rigidity and reduced distortion, paired with a 1‑3/16″ PET balanced‑dome tweeter to produce crisp high frequencies. With a maximum power handling of 250 W peak and 40 W RMS continuous, the TS‑G680 is suitable for both factory head unit upgrades and moderate aftermarket audio setups. Its shallow mounting depth allows for easy installation in most 6×8″ or 5×7″ car door or rear deck spaces. The speaker is designed to provide a balanced sound with strong mids, clear highs, and a solid bass response for a full, rich listening experience.
Specifications
PRODUCT PERFORMANCE
| Category | Specification |
|---|---|
| Continuous Power Handling (RMS) | 40 W |
| Frequency Response | 1400 Hz – 72 kHz |
| Maximum Peak Power Handling | 250 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 92 |
| System Type | Coaxial 2-way, Balanced Dome – Tweeter |
FEATURES
| Feature | Specification |
|---|---|

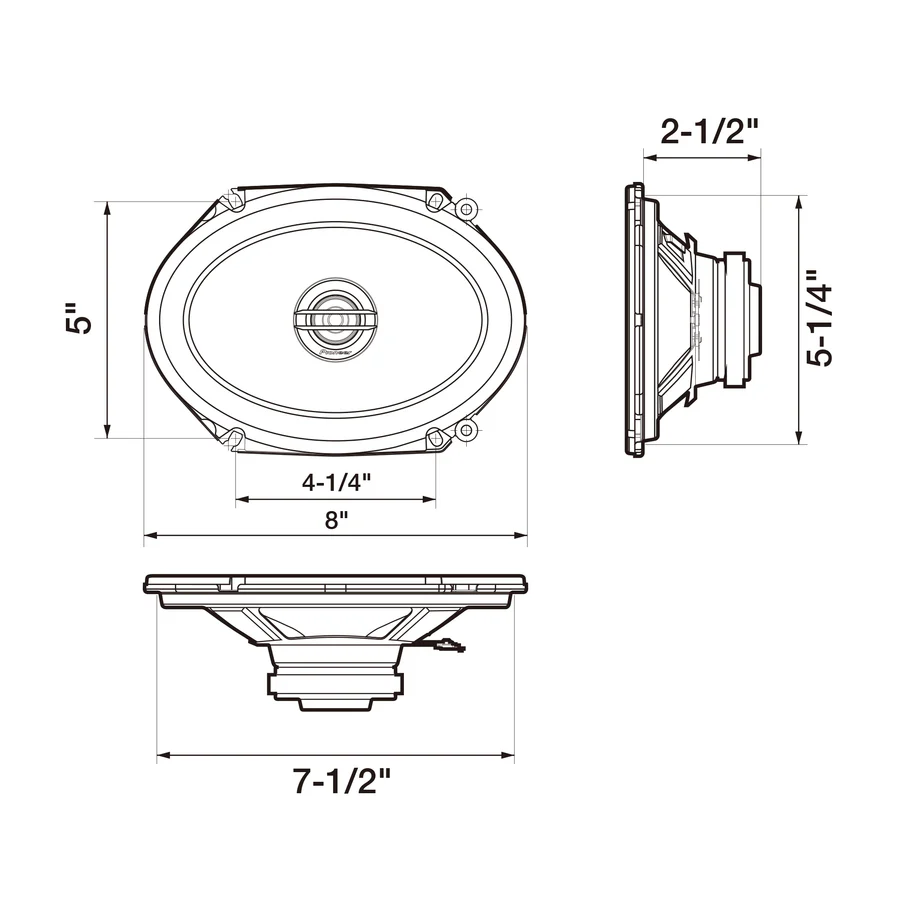

| Cut Out Dimensions | 7-1/2″ x 5-1/4″ |
| Mounting Depth | 2-1/2″ – Tweeter |
| Tweeter Dimensions | 1.18″ |
| Woofer Dimensions | 6″ x 8″ |
MATERIALS
| Material Component | Specification |
|---|---|
| Basket Material | Stamped Metal |
| Cone Material | Carbon and Mica reinforced Injected Molded Polypropylene – IMPP |
| Damper | Poly Cotton |
| Diaphragm Material (Tweeter) | Polyethylene Terephthalate (PET) |
| Magnet Material | Ferrite |
| Magnet Weight | 5.5 oz |
| Shorting Ring Material | Copper |
| Surround Material | Rubber Coated Cloth |
| Surround Type | Rolled |
| Voice Coil Bobbin | Kapton |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
The Pioneer TS-G680 6″ x 8″ is a 2-way speaker system with 250 W maximum power handling and 40 W continuous power handling. It features a 30 mm tweeter to enrich high-range reproduction, while the speaker cone comprises a polypropylene IMPP™ cone and a rubber-coated cloth surround, giving your music more impact and presence.
G-Series Speakers
This G-Series speaker is built with quality materials and a durable design for an enhanced listening experience. The sensitive yet strong polypropylene woofer and rubber-coated cloth surround deliver powerful sound with more impact. Its large balanced dome tweeter ensures accurate high-range reproduction of all details in vocals and instrumentation.
Mid-Range Dome
The mid-range is a 30 mm PET Balanced Dome that produces vibrant high frequencies. Its OFC shorting ring minimizes distortion even at higher volumes, ensuring clarity and precision.
Pioneer Exclusive P.F.S.S. Spider
The Progressive Flex Suspension System (P.F.S.S.) supports the voice coil by damping cone vibrations and improving linearity of sound reproduction. The soft part ensures smooth movement and clear sound under high power, while the firmer part controls excessive vibrations and prevents unwanted movements that cause distortion. The goal is to provide every detail of your music while maintaining control during large bass excursions.
Installation and Sound to Suit Any Car
These speakers are ideal replacements for worn-out factory speakers. The two-way design features Pioneer’s extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) with MICA composite cone woofer for improved sensitivity and reduced distortion. The conex damper enhances power handling and bass depth, while the balanced dome tweeter reproduces highs with excellent musicality. Designed with a shallow mounting depth and custom-fit baskets, installation is easy, including for select Ford and Mazda vehicles.
