Description

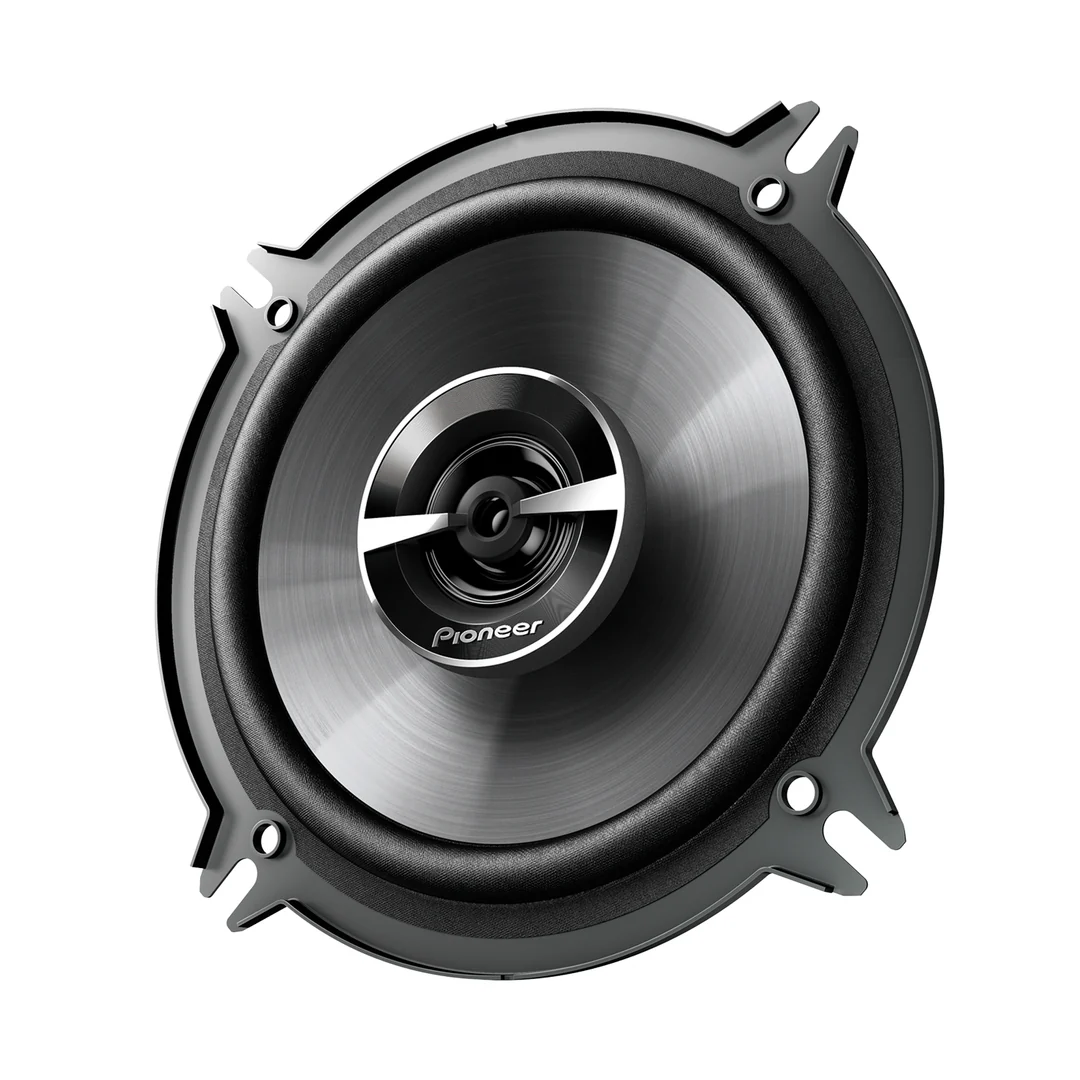

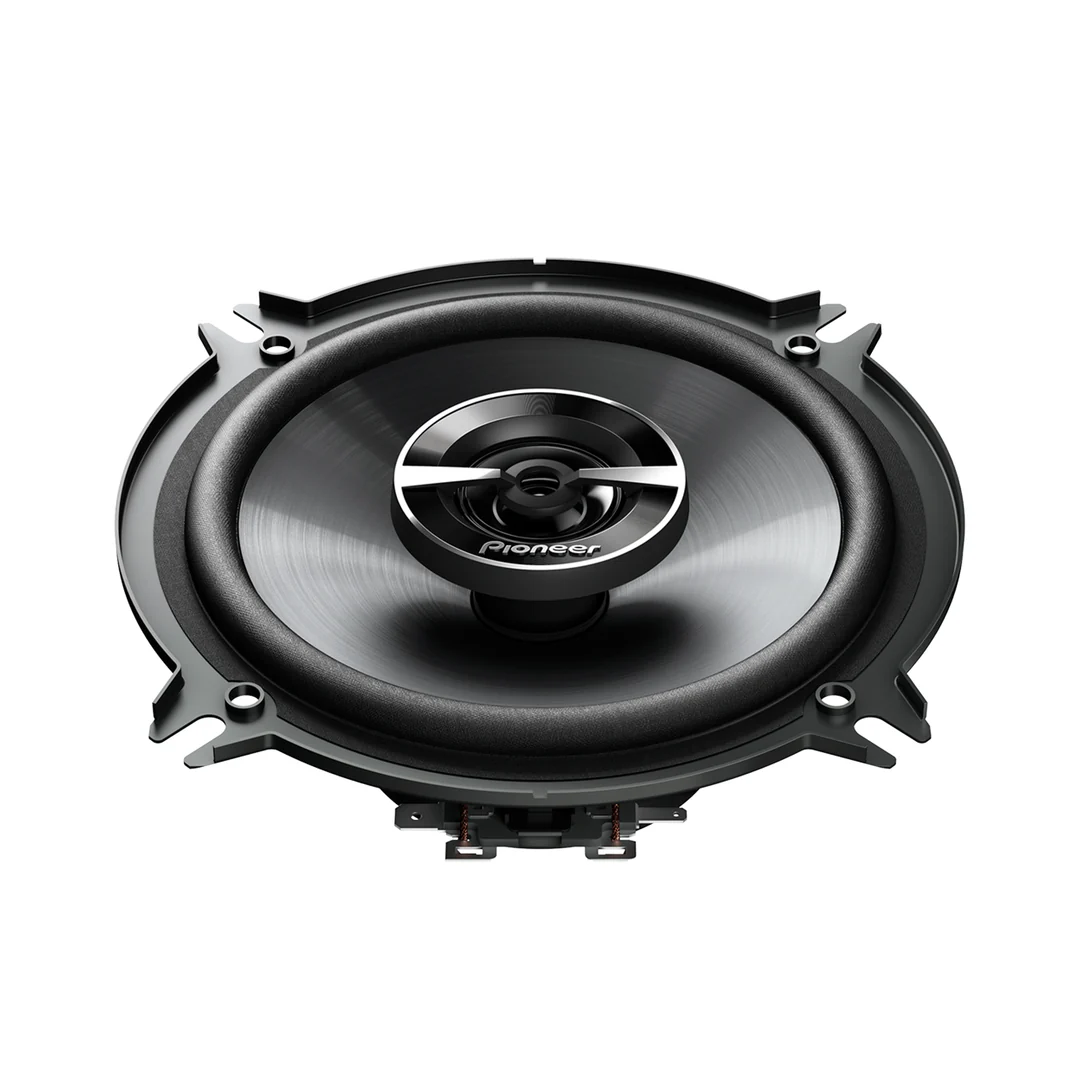

Pioneer TS-G520

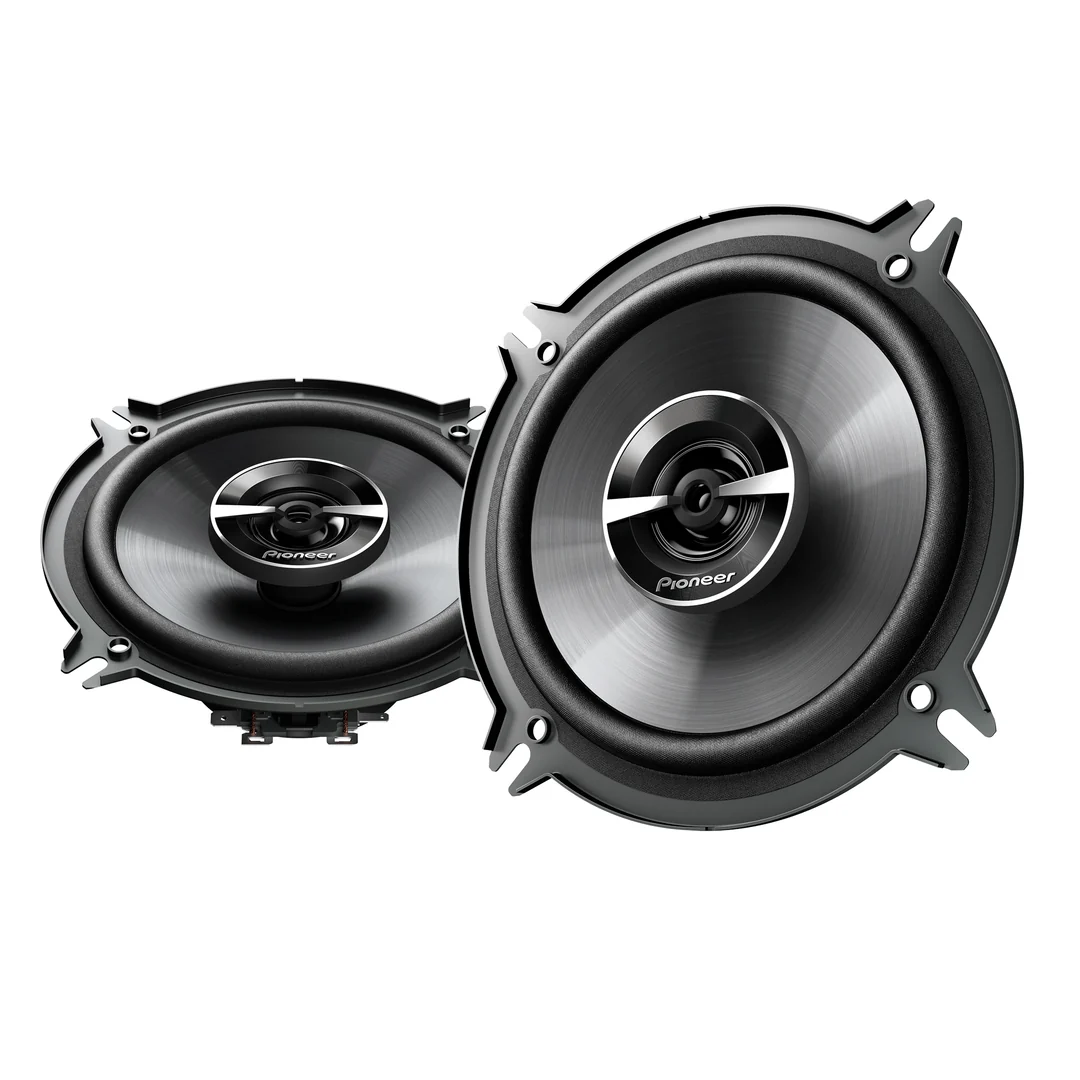

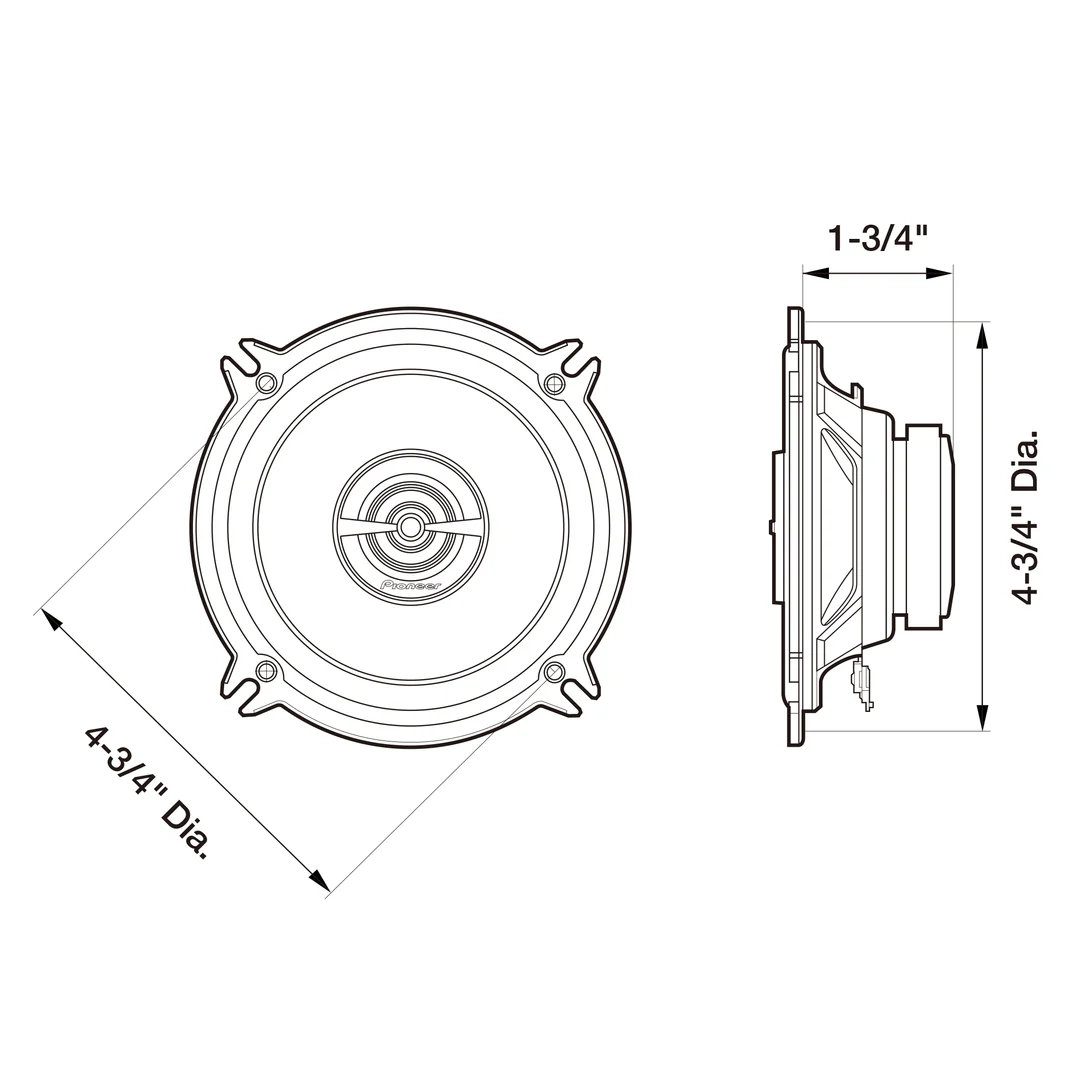

The Pioneer TS‑G520 is a 5¼‑inch (≈13 cm) 2‑way coaxial speaker pair from the G‑Series, designed for upgrading factory door or rear deck speakers while maintaining compact fitment. It supports up to 250 W peak power and 35 W RMS (continuous) rating.It features a mica‑reinforced IMPP™ (Injection Molded Polypropylene) woofer cone with a rubber‑coated cloth surround for durability and clarity, and a 1‑3/16″ PET balanced‑dome tweeter for crisp high‑frequency detail. The sensitivity is rated at 88 dB (1 W/1m), impedance 4 ohms, and a frequency response range of 33 Hz to 24 kHz. The shallow mounting depth (~1¾″ / 44 mm) enables fitment in many vehicles with limited space.
Specifications
PRODUCT PERFORMANCE
| Category | Specification |
|---|---|
| Continuous Power Handling (RMS) | 35 W |
| Frequency Response | 33 Hz – 24 kHz |
| Maximum Peak Power Handling | 250 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 88 dB |
| System Type | Coaxial 2-way, Balanced Dome – Tweeter |
FEATURES
| Feature | Specification |
|---|---|
| Mounting Depth | 1-5/8″ – Tweeter |
| Tweeter Dimensions | 1.18″ |
| Woofer Dimensions | 5.25″ |
MATERIALS
| Material Component | Specification |
|---|---|
| Basket Material | Stamped Metal |
| Cone Material | Carbon and Mica reinforced Injected Molded Polypropylene – IMPP |
| Diaphragm Material (Tweeter) | Polyethylene Terephthalate (PET) |
| Surround Material | Rubber |
| Surround Type | Rolled |
About The Product
The Pioneer TS-G520 5-1/4″ is a 2-way speaker system with 250 W maximum power handling and 35 W continuous power handling. It also features a 30mm tweeter to enhance high-range reproduction. The speaker cone is made of polypropylene IMPP™ with a rubber-coated cloth surround, giving your music more impact and presence.
G-Series Speakers
This G-series speaker combines quality materials and durable design for a better listening experience. The strong polypropylene woofer and rubber-coated cloth surround enhance sound impact, while the large balanced dome tweeter ensures accurate high-range reproduction of vocals and instrumentation.
Mid-Range Dome
The mid-range is a 30mm PET Balanced Dome that produces vibrant high frequencies. Its OFC shorting ring minimizes distortion when the volume is increased.
Pioneer Exclusive P.F.S.S. Spider
The Progressive Flex Suspension System (P.F.S.S.) supports the voice coil by damping cone vibrations and improving sound linearity. The softer section ensures smooth movement and clear sound under high power, while the firmer section controls excessive vibrations, preventing distortion and preserving musical detail even during strong bass excursions.
Installation and Sound to Suit Any Car
The TS-G520 speakers are ideal for replacing factory speakers. They feature a lightweight IMPP™ cone with MICA composite woofer for improved sensitivity and reduced distortion. The conex damper delivers higher power handling and deeper bass, while the balanced dome tweeter reproduces highs with clarity and musicality. With shallow mounting depth and custom-fit baskets for select Ford and Mazda vehicles, installation is simple and seamless.
