Description

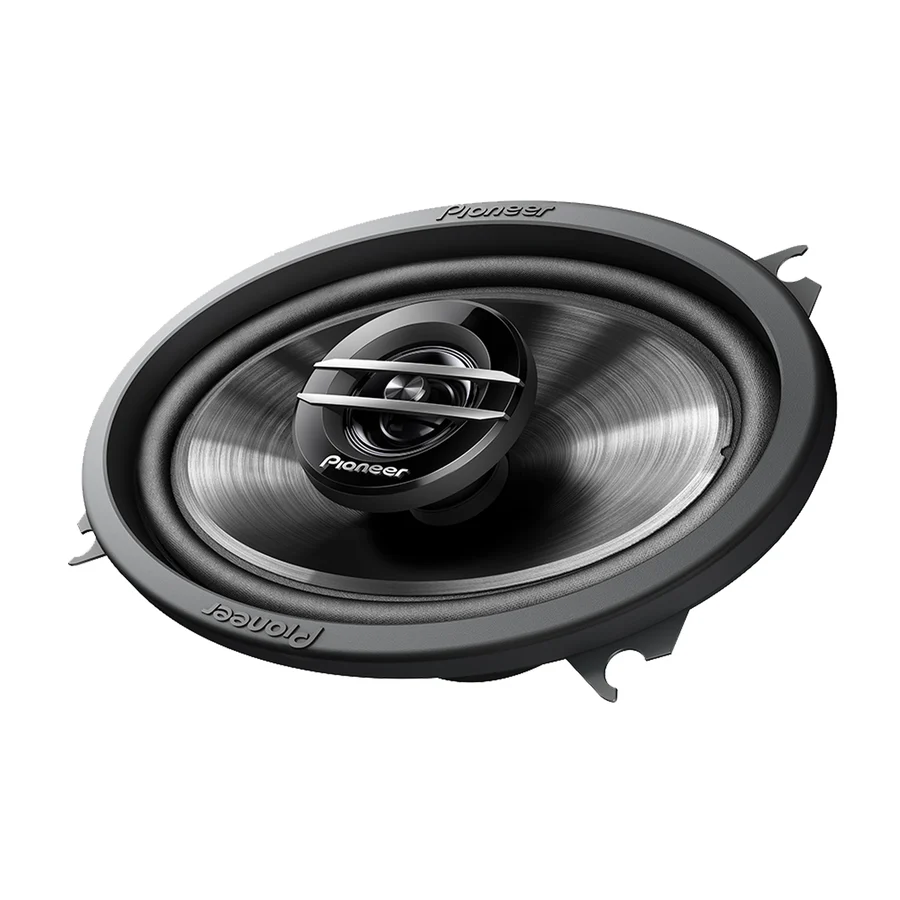

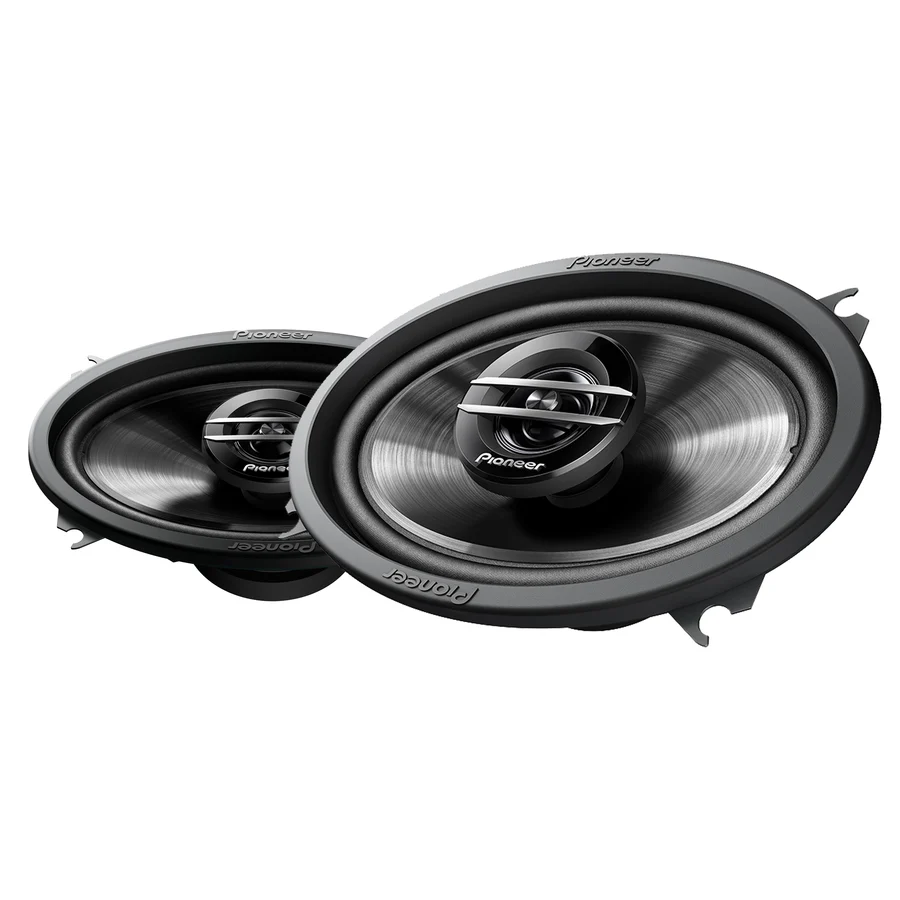

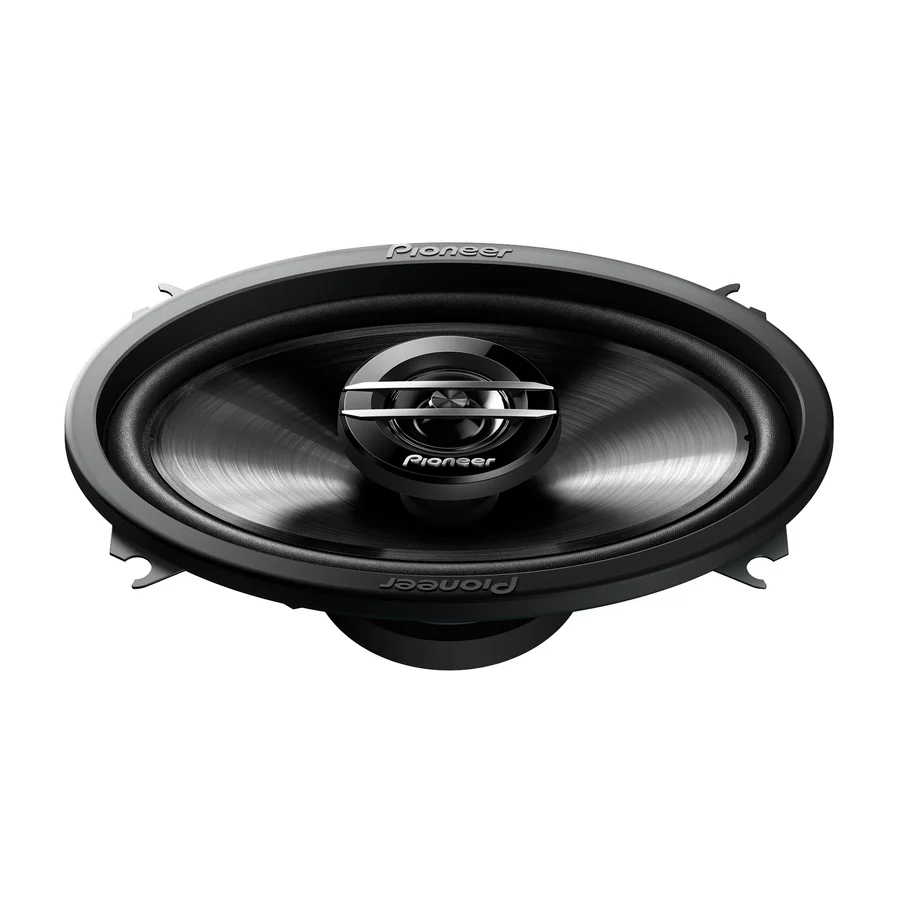

Pioneer TS‑G4620S
The Pioneer TS‑G4620S is a 4″ × 6″ 2‑way coaxial speaker pair from the G‑Series, designed as a high‑quality upgrade for factory door or rear deck speakers with compact mounting size. It handles up to 200 W peak power (approximately 30 W RMS nominal) and features a mica‑reinforced IMPP™ (Injection Molded Polypropylene) woofer cone paired with a 1‑3/16″ (≈30 mm) balanced‑dome tweeter for improved clarity and durability. Its frequency response spans from 35 Hz to 22 kHz, with a sensitivity around 89 dB (1 W/1 m) and a nominal impedance of 4 ohms, making it efficient and compatible with many factory audio systems.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 30 W |
| Maximum Peak Power Handling | 200 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 89 dB |
| Frequency Response | 35 Hz – 22 kHz |
| System Type | Coaxial 2-way, Balance Dome Tweeter |
Features
| Specification | Value |
|---|---|

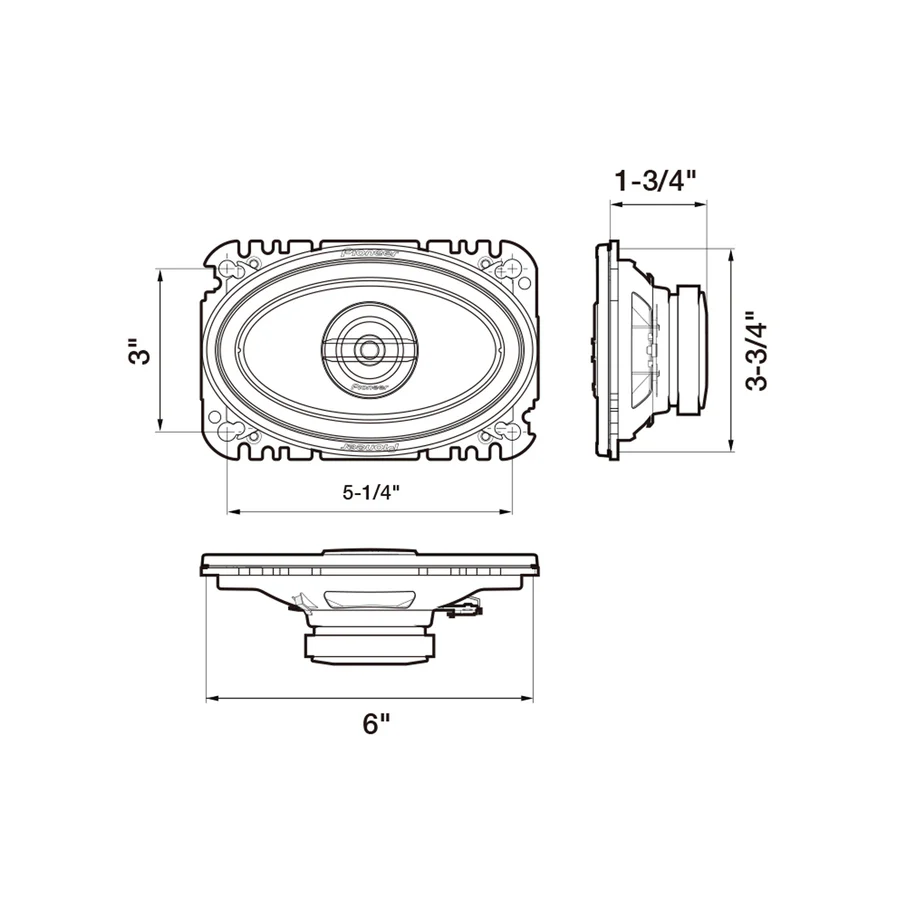

| Mounting Depth | 1-5/8″ |
| Tweeter Dimensions | 1.18″ |
| Woofer Dimensions | 4″ x 6″ |
Materials
| Specification | Value |
|---|---|
| Basket Material | Metal |
| Cone Material | IMPP with MICA |
| Damper | Poly cotton |
| Diaphragm Material | Polyethylene terephthalate (PET) – Tweeter |
| Magnet Material | Ferrite |
| Magnet Weight | 3.9 oz |
| Shorting Ring Material | Copper |
| Surround Material | Rubber Coated Cloth |
| Surround Type | Rolled |
| Voice Coil Material | Kapton |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
TS-G4620S 4”x 6” Two-Way Speakers
These 4”x 6” two-way speakers feature 200 W max power (30 W nominal) and Pioneer’s extremely strong and lightweight Injected Molded Polypropylene (IMPP™) cone for improved sensitivity and reduced distortion. The Conex damper delivers higher power handling and deeper bass, while the 25 mm balanced dome tweeter reproduces highs with great performance and musicality. Shallow mounting depth allows easy installation in a wide variety of vehicles.
Affordable & Reliable OEM Speaker Replacement
Ideal for replacing factory speakers, these two-way speakers combine an IMPP™ with MICA composite cone woofer for high sensitivity and low distortion. The Conex damper enhances power handling and bass depth, while the balanced dome tweeter provides clear and musical highs. Shallow mounting depth makes installation simple and convenient.
Mica Reinforced IMPP™ Cone
The extremely rigid yet lightweight cone prevents distortion and failure under high power. Pioneer’s IMPP™ composite cones, enhanced with mica integration, achieve an optimal rigidity-to-weight ratio and resonance across the audio bandwidth for balanced sound reproduction.
PET Hard Dome Tweeter
The PET (Polyethylene Terephthalate) dome maintains stable electrical and mechanical properties across a wide frequency range. Its strength-to-weight ratio is ideal for high-frequency vibrations. The tweeter includes a front diffuser to ensure balanced audio between on-axis and off-axis listening points in the car.
Pioneer Exclusive P.F.S.S. Spider
The Progressive Flex Suspension System (P.F.S.S.) supports the voice coil by damping cone vibrations and improving sound linearity. Its soft section ensures smooth movement and clarity under high power, while the firmer section controls excessive vibrations to prevent distortion, maintaining detail and control even during large bass excursions.
