Description

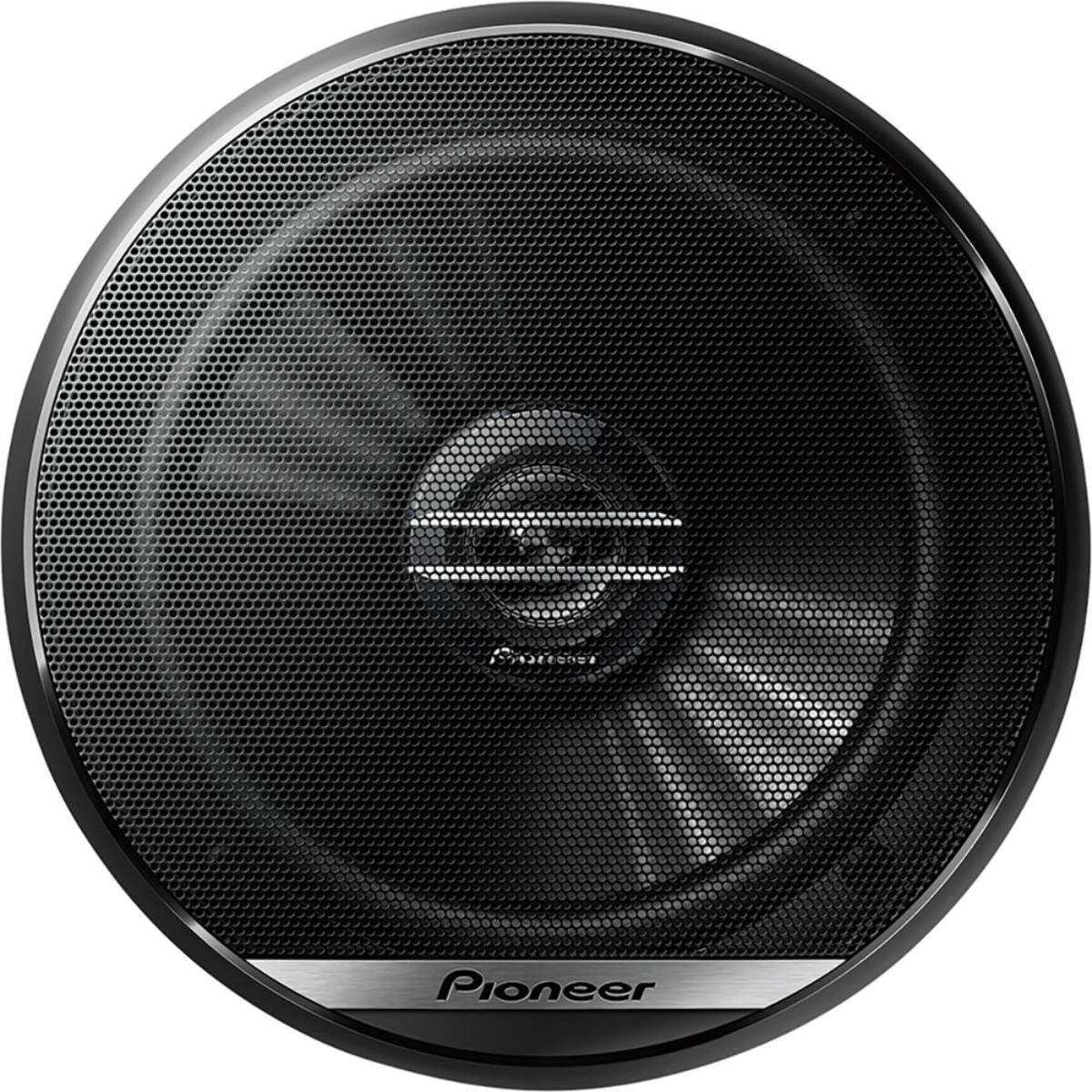

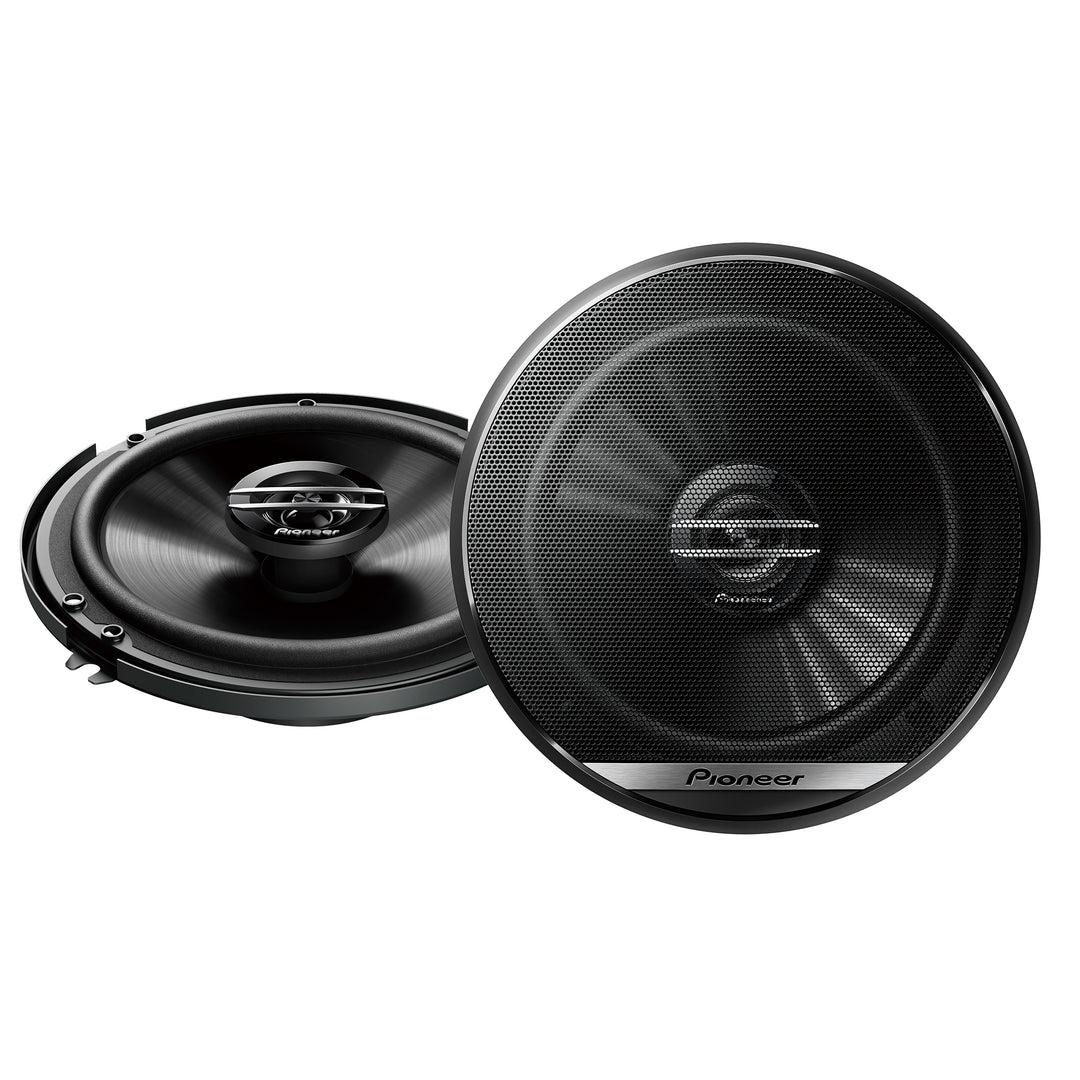

Pioneer TS‑G1620F
The Pioneer TS‑G1620F is a 6.5‑inch (≈16 cm) 2‑way coaxial speaker pair from the G‑Series, designed as a direct upgrade from factory speakers. It’s rated for up to 300 W peak power and 40 W RMS nominal power. The woofer uses a mica‑reinforced IMPP™ (Injected Moulded Polypropylene) cone for improved rigidity and clarity, while the tweeter is a 30 mm PET hard dome delivering crisp highs. With a sensitivity of 89 dB and 4‑ohm impedance, it’s efficient enough to work well with many factory head units. Designed with a shallow mounting depth (~42 mm) and wide frequency response (31 Hz‑18 kHz), it offers a good blend of bass capability and overall clarity in a compact form.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 40 W |
| Maximum Peak Power Handling | 300 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 89 dB |
| Frequency Response | 31 Hz – 18 kHz |
| System Type | Coaxial 2-way, Balance Dome Tweeter |
Features
| Specification | Value |
|---|---|
| Cut Out Dimensions | 5″ |
| Mounting Depth | 1-5/8″ |
| Speaker Grill | Included |
| Tweeter Dimensions | 1.18″ |
| Woofer Dimensions | 6.5″ |
Materials
| Specification | Value |
|---|---|
| Basket Material | Metal |
| Cone Material | IMPP with MICA |
| Damper | Poly cotton |
| Diaphragm Material | Polyethylene terephthalate (PET) – Tweeter |
| Magnet Material | Ferrite |
| Magnet Weight | 5.5 oz |
| Shorting Ring Material | Copper |
| Surround Material | Rubber Coated Cloth |
| Surround Type | Rolled |
| Voice Coil Material | Kapton |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
TS-G1620F 6-1/2″ Two-Way Speakers
The TS-G1620F 6-1/2″ two-way speakers feature 300 W max power (40 W nominal) and Pioneer’s extremely strong, lightweight Injected Molded Polypropylene (IMPP™) cone for improved sensitivity and reduced distortion. The Conex damper delivers higher power handling and deeper bass, while the 25 mm balanced dome tweeter reproduces highs with excellent performance and musicality. Shallow mounting depth allows easy installation in a wide variety of vehicles.
Affordable & Reliable OEM Speaker Replacement
Ideal for replacing factory speakers, these two-way speakers feature an IMPP™ with MICA composite cone woofer for improved sensitivity and reduced distortion. The Conex damper enhances power handling and bass depth, and the balanced dome tweeter provides clear and musical highs. Shallow mounting depth ensures convenient installation.
Mica Reinforced IMPP™ Cone
The extremely rigid yet lightweight cone prevents distortion and failure under high power. Pioneer’s IMPP™ composite cones, enhanced with mica, achieve an optimal rigidity-to-weight ratio and resonance across the audio bandwidth, ensuring balanced sound reproduction.
PET Hard Dome Tweeter
The PET (Polyethylene Terephthalate) dome maintains stable electrical and mechanical properties across a wide frequency range. Its strength-to-weight ratio is ideal for high-frequency vibrations. A front diffuser ensures balanced audio from on-axis to off-axis listening points in the car.
Pioneer Exclusive P.F.S.S. Spider
The Progressive Flex Suspension System (P.F.S.S.) supports the voice coil by damping cone vibrations and improving sound linearity. The soft section ensures smooth movement and clarity under high power, while the firmer section controls excessive vibrations, preventing distortion and maintaining musical detail during large bass excursions.
