Description
Pioneer TS‑G1320S

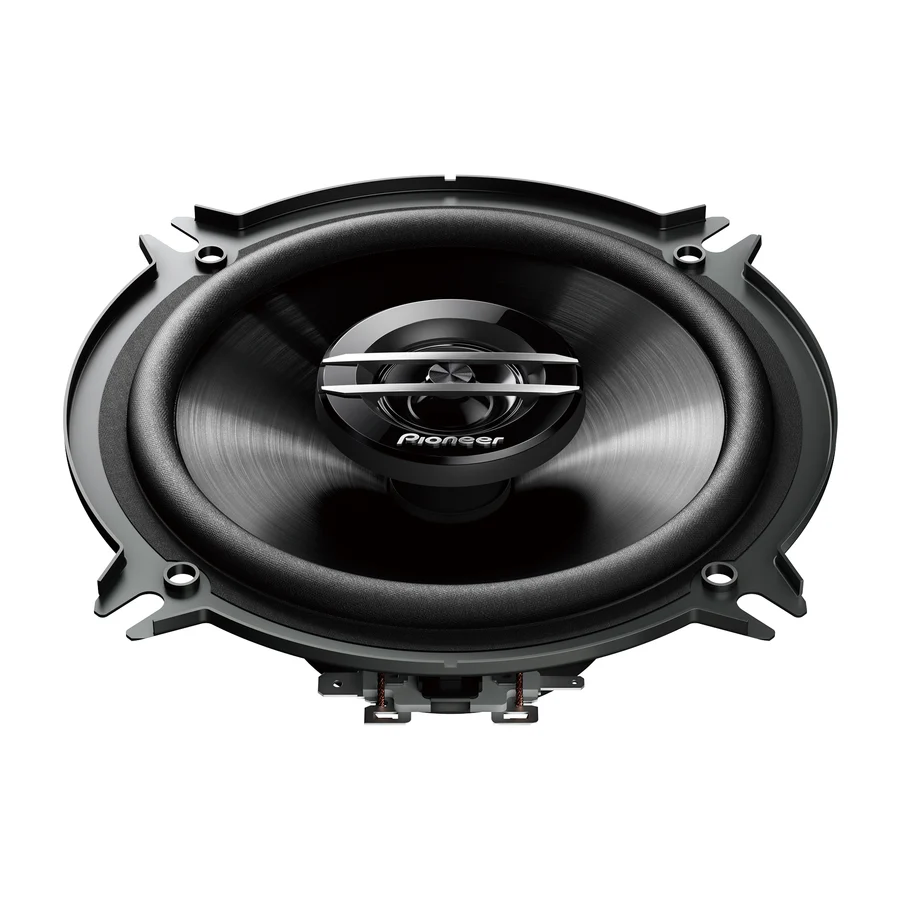

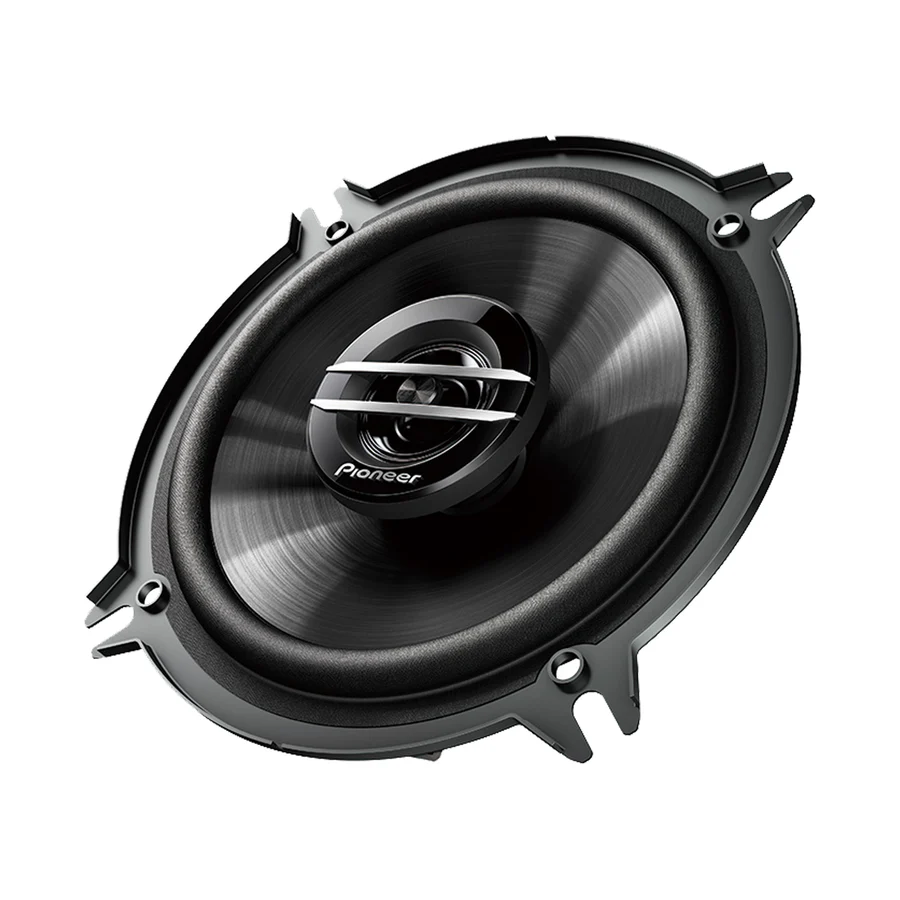

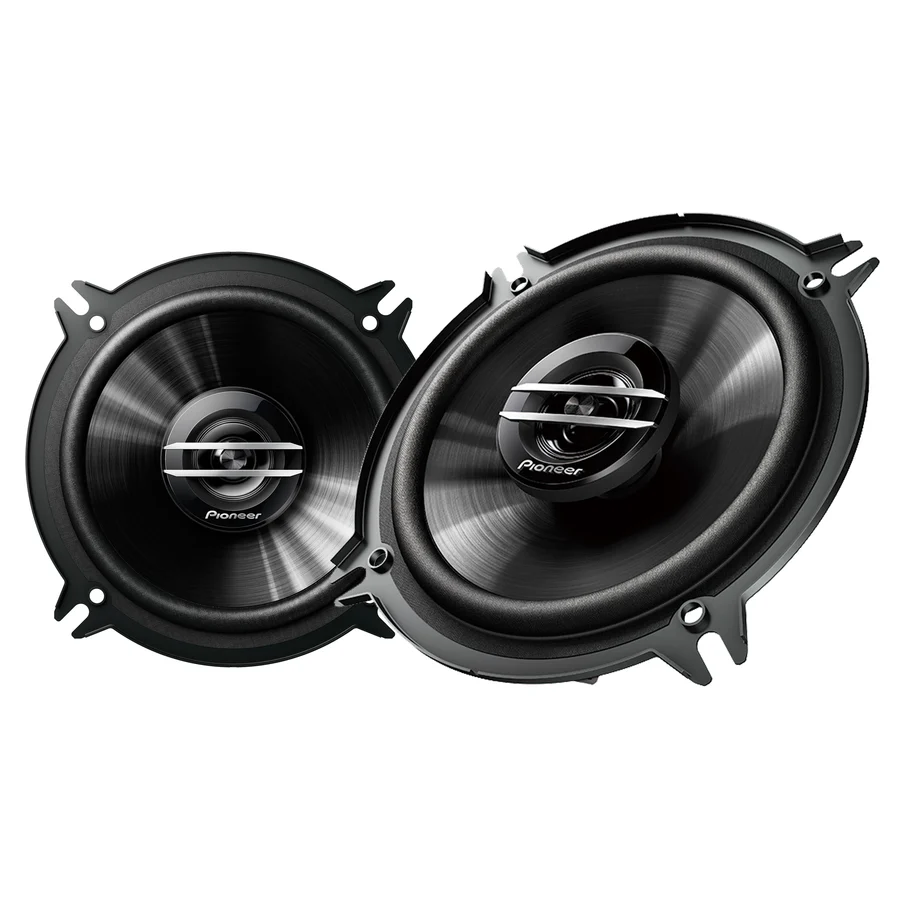

The Pioneer TS‑G1320S is a 5.25‑inch (13 cm) 2‑way coaxial speaker pair designed for upgrading factory systems with improved sound clarity and power handling. It offers a maximum (peak) power handling of 250 W and a continuous (nominal) rating of 35 W RMS. The speakers are built with a mica‑reinforced IMPP™ (Injected Moulded Polypropylene) woofer cone for rigid, low‑distortion performance, and a 30 mm PET hard‑dome tweeter for clear high frequencies. They have an impedance of 4 ohms and a sensitivity of 88 dB (1 W/1 m), making them compatible with many car audio head units. Their frequency response spans approximately 33 Hz to 24 kHz, giving a wide range from bass into treble.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 35 W |
| Maximum Peak Power Handling | 250 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 88 dB |
| Frequency Response | 33 Hz – 24 kHz |
| System Type | Coaxial 2-way, Balance Dome Tweeter |
Features
| Specification | Value |
|---|---|

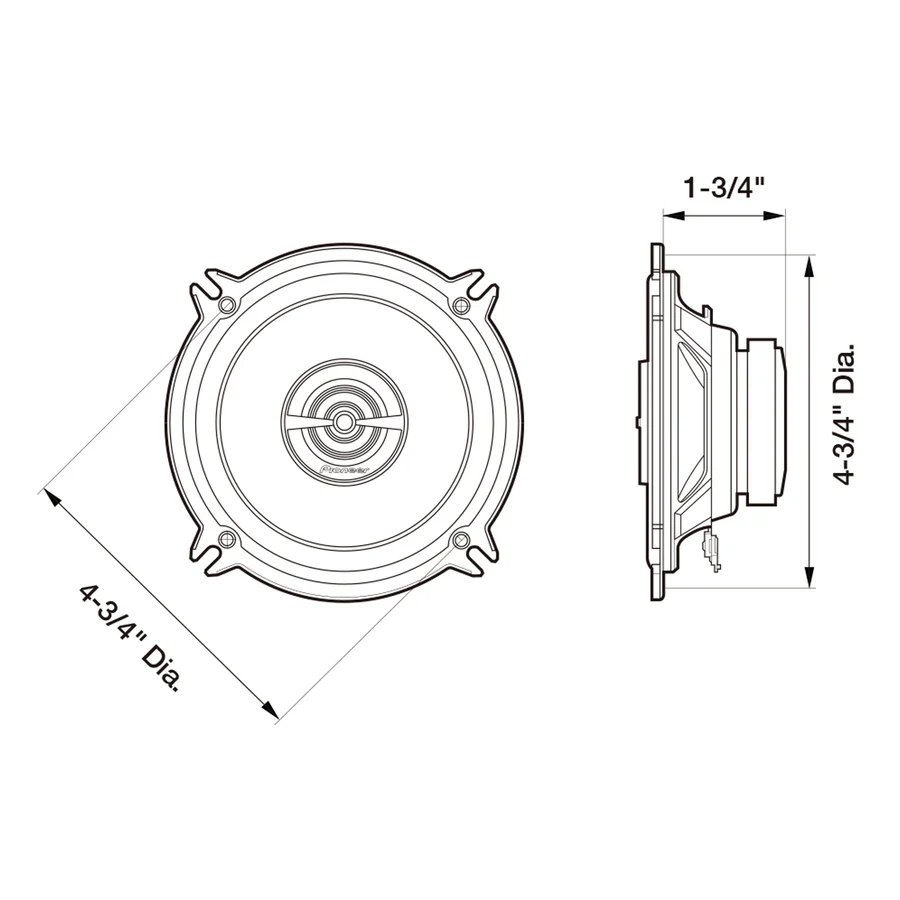

| Cut Out Dimensions | 4-3/4″ |
| Mounting Depth | 1-3/4″ |
| Tweeter Dimensions | 1.19″ |
| Woofer Dimensions | 5.25″ |
Materials
| Specification | Value |
|---|---|
| Basket Material | Metal |
| Cone Material | IMPP with MICA |
| Damper | Poly cotton |
| Diaphragm Material | Polyethylene terephthalate (PET) – Tweeter |
| Magnet Material | Ferrite |
| Magnet Weight | 3.9 oz |
| Shorting Ring Material | Copper |
| Surround Material | Rubber Coated Cloth |
| Surround Type | Rolled |
| Voice Coil Material | Kapton |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
TS-G1320S 5-1/4″ Two-Way Speakers
The TS-G1320S 5-1/4″ two-way speakers feature 250 W max power (35 W nominal) and Pioneer’s extremely strong, lightweight Injected Molded Polypropylene (IMPP™) cone for improved sensitivity and reduced distortion. The Conex damper delivers higher power handling and deeper bass, while the 25 mm balanced dome tweeter reproduces highs with excellent performance and musicality. Shallow mounting depth allows easy installation in a wide variety of vehicles.
Affordable & Reliable OEM Speaker Replacement
These speakers are an excellent choice for replacing factory speakers. The two-way design features an IMPP™ with MICA composite cone woofer for improved sensitivity and reduced distortion. The Conex damper enhances power handling and bass depth, while the balanced dome tweeter delivers clear and musical highs. Shallow mounting depth ensures convenient installation.
Mica Reinforced IMPP™ Cone
The extremely rigid yet lightweight cone prevents distortion and failure under high power. Pioneer’s IMPP™ composite cones, enhanced with mica, achieve an optimal rigidity-to-weight ratio and resonance across the audio bandwidth for balanced sound reproduction.
PET Hard Dome Tweeter
The PET (Polyethylene Terephthalate) dome maintains stable electrical and mechanical properties across a wide frequency range. Its strength-to-weight ratio is ideal for high-frequency vibrations. A front diffuser ensures balanced audio from on-axis to off-axis listening points in the car.
Pioneer Exclusive P.F.S.S. Spider
The Progressive Flex Suspension System (P.F.S.S.) supports the voice coil by damping cone vibrations and improving sound linearity. Its soft section ensures smooth movement and clarity under high power, while the firmer section controls excessive vibrations to prevent distortion, maintaining musical detail during large bass excursions.
