Description

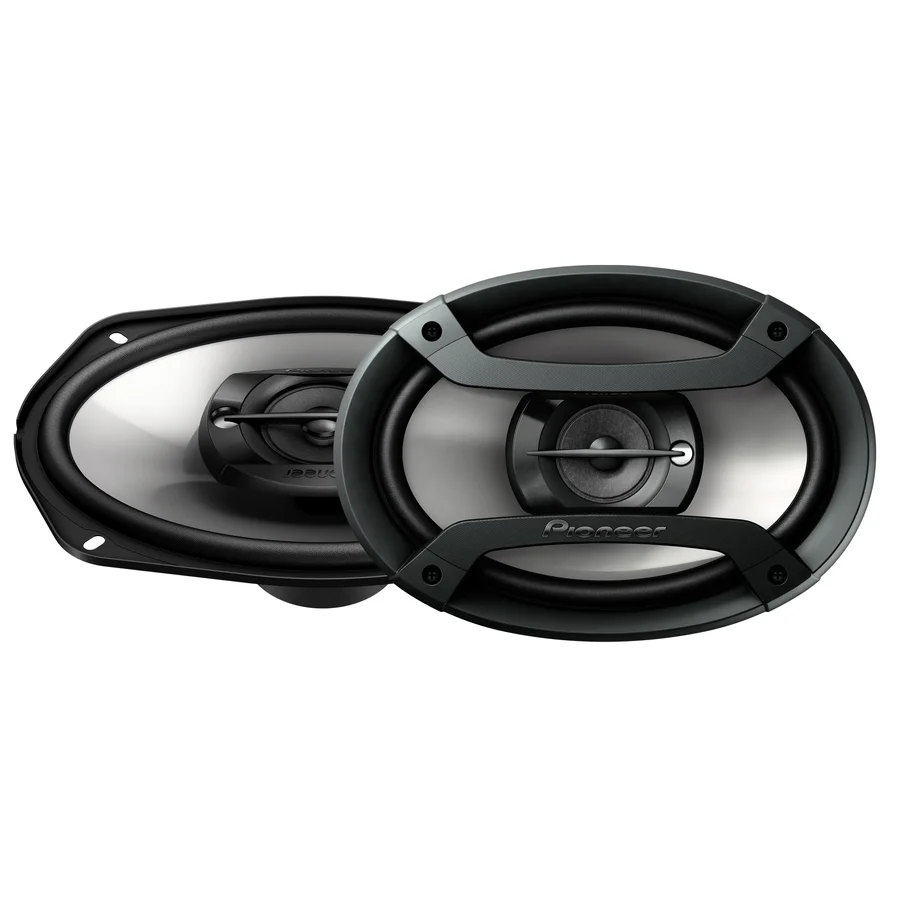

Pioneer TS‑F6935R
The Pioneer TS‑F6935R is a 6″×9″ 3‑way coaxial speaker pair designed to deliver full‑range audio across woofer, midrange and tweeter in a standard car speaker size. With a maximum peak power handling of 230 W and a nominal (RMS) of 30 W, it features a water‑resistant injection‑moulded polypropylene (IMPP™) cone for the woofer, a 30 mm tweeter, and 4 ohm impedance with sensitivity around 88 dB. Its frequency response spans approximately 28 Hz to 32 kHz, making it capable of reproducing deep bass through clear highs with ease.
Specifications
Product Performance
| Specification | Details |
|---|---|
| Continuous Power Handling (RMS) | 30 W |
| Maximum Peak Power Handling | 230 W |
| Frequency Response | 28 Hz – 32 kHz |
| Nominal Impedance | 4 Ohm |
| Sensitivity (1W/1m) | 88 dB |
| System Type | 3-Way Coaxial |
Features
| Specification | Details |
|---|---|
| Cut Out Dimensions | 8-3/4″ x 6″ |
| Mounting Depth | 2-5/8″ |
Materials
| Specification | Details |
|---|---|
| Basket Material | Stamped Metal |
| Cone Material | Injected Molded Polypropylene (IMPP) Composite |
| Damper | Cotton |
| Diaphragm Material | Cellulose Fiber (Tweeter) |
| Magnet Material | Ferrite |
| Magnet Weight | 5.3 oz (Woofer), 0.5 oz (Tweeter) |
| Surround Material | Rubber Coated Cloth |
| Surround Type | Rolled |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
Power Handling
Delivering 230W (30W nominal) with 4-ohm impedance, these speakers combine style and high-quality sound for a dynamic audio experience.
3-Way Coaxial Design
The innovative coaxial setup integrates a woofer and tweeter for balanced, immersive sound, ensuring a full range of frequencies during your drive.
Sensitivity
With an 88dB sensitivity rating, enjoy distortion-free music at higher volumes, ensuring a clear and loud audio experience with lower power inputs.
6×9″ Standard Sizing
Designed with a standard 6×9″ size, these speakers seamlessly integrate into most car interiors, offering versatility without compromising performance.
