Pioneer TS‑D68F

Description

Pioneer TS‑D68F

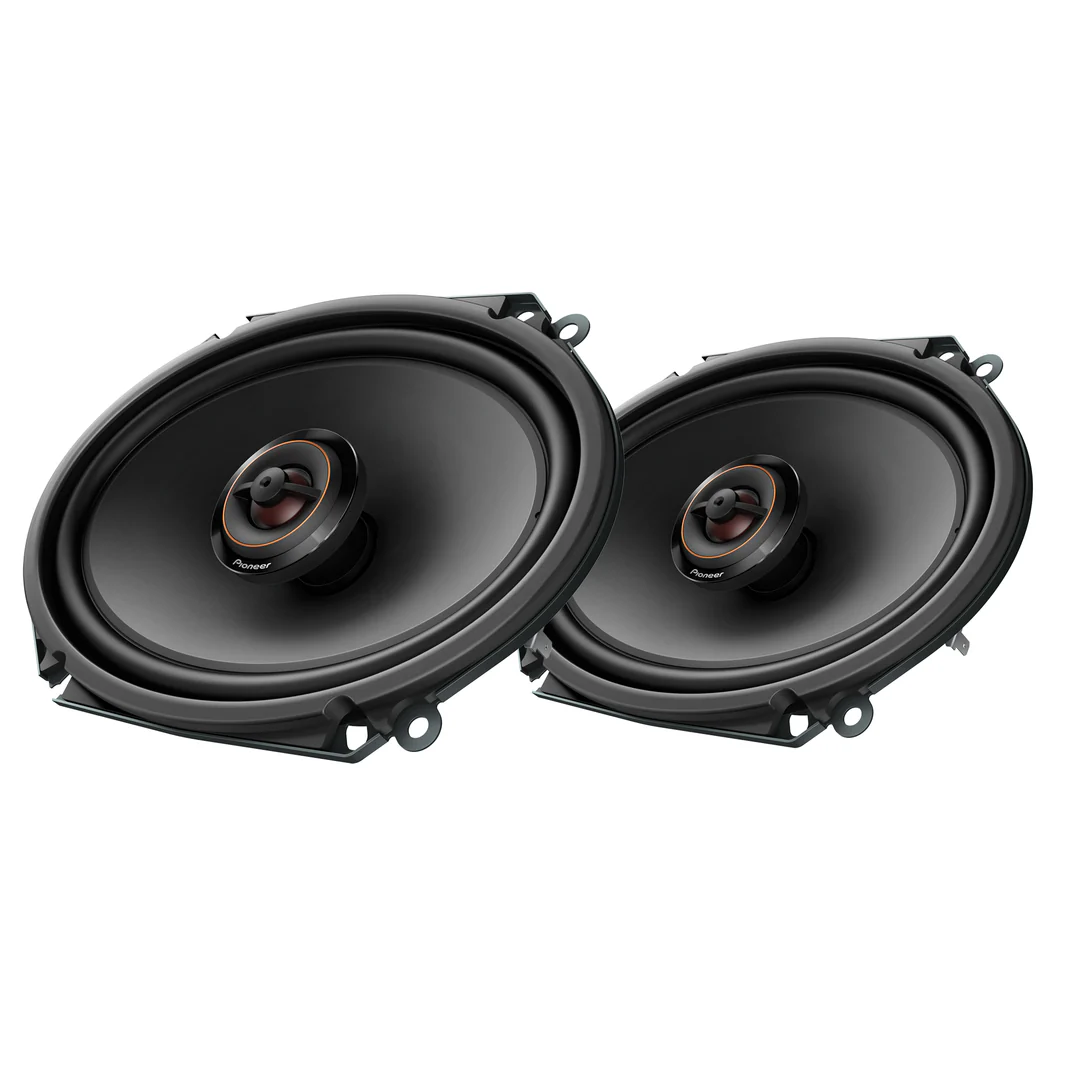

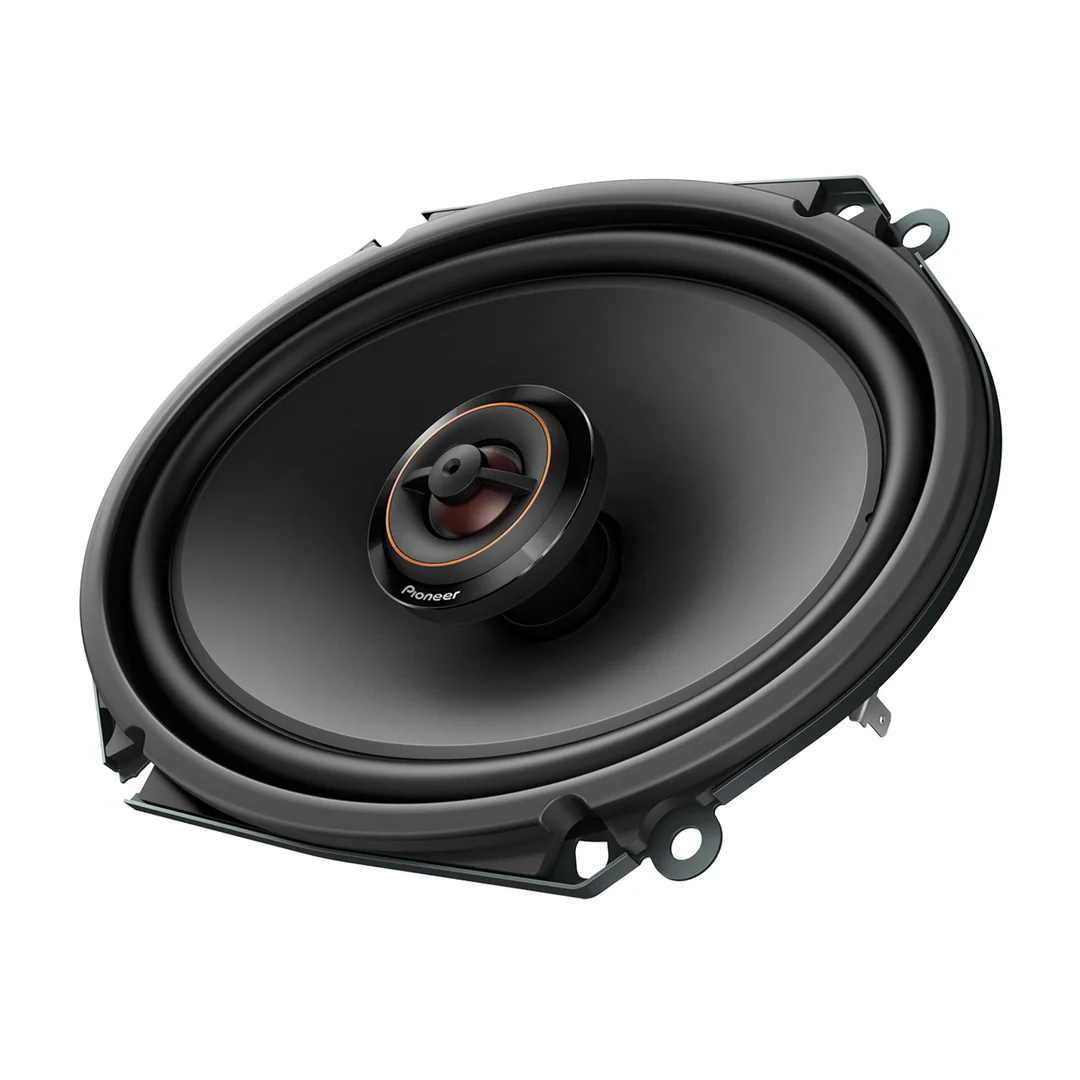

The Pioneer TS‑D68F is a 6″ × 8″ 2‑way coaxial speaker pair from Pioneer’s D‑Series, built to deliver higher‑quality sound than factory speakers with good clarity and bass extension. It uses an injection‑moulded polypropylene (IMPP™) woofer cone reinforced with aramid fibres for rigidity and improved bass response. According to official specs, it handles around 80 W RMS (continuous) power and up to 240 W peak power.  It has a sensitivity of approx. 87 dB (1W/1m) and is rated with a frequency response of about 34 Hz to 42 kHz. The impedance is 4 ohms, making it compatible with most car head units or modest amplifiers. The mounting depth is approximately 2 9/16″ (≈ 65 mm).

Specifications

PRODUCT PERFORMANCE

FEATURES

MATERIALS

About The Product

The TS-D68F 6″x8″ coaxial speaker system provides low distortion and flawless performance, even in the harsh conditions and environments of your car doors. The D-Series woofer’s IMPP™ cone is infused with tough aramid fibers, making it both durable and incredibly responsive for enhanced bass experiences. A coated textile dome tweeter delivers excellent high-frequency performance for accurate and detailed music playback.

The Perfect Match

All D-Series speakers feature the same tweeter without any alterations. From the largest component speaker set to the smallest 2-way coaxial speaker, you will get the same tweeter, ensuring perfect tonal balance throughout the car, regardless of the size of speakers required for the front and rear.

Hear More

The D-Series is the result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities. Following Pioneer’s OPEN & SMOOTH sound concept, the D-Series provides a broad and balanced frequency response with a wide sound stage and ambience. When paired with one of our Pioneer power amplifiers, these speakers will shine even brighter, delivering absolute acoustic fidelity coupled with beautiful bass extensions.

Open & Smooth

Pioneer’s OPEN & SMOOTH sound concept ensures a seamless and smooth transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response. This design is optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

Aramid Fiber Interlaced IMPP™

Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a speaker cone with low mass and high damping. PP cones offer good sensitivity and low distortion. However, basic raw polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers, using advanced Computer Aided Manufacturing, developed a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP™ cone is ultra-thin and low mass with high rigidity and superior strength, producing natural, detailed sound with deep and powerful bass.

Tweeter – Soft Dome

Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The diaphragm is highly resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup caused by excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound.

Keep It Simple and Clean

Avoid messy installations and keep your speaker wiring as clean as possible. These speakers use an in-line crossover design and/or an integrated crossover already installed on the speaker basket. This eliminates the need for a bulky external box typically found with passive crossovers, saving you from having to find extra space for it. Additionally, it removes the need for extra wires going in and out of your door to accommodate a woofer in the door with a matching tweeter on your dash.

CarSoundFit App

Pioneer’s Car Sound Fit app is a car sound simulator that lets you experience what your car could sound like using your own smartphone. You’ll be able to hear the difference between stock speakers and Pioneer’s various audio options, and see how the quality of Pioneer speakers can enhance your in-car experience. For a virtual listening demo of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
