Description
Pioneer TS‑D65F

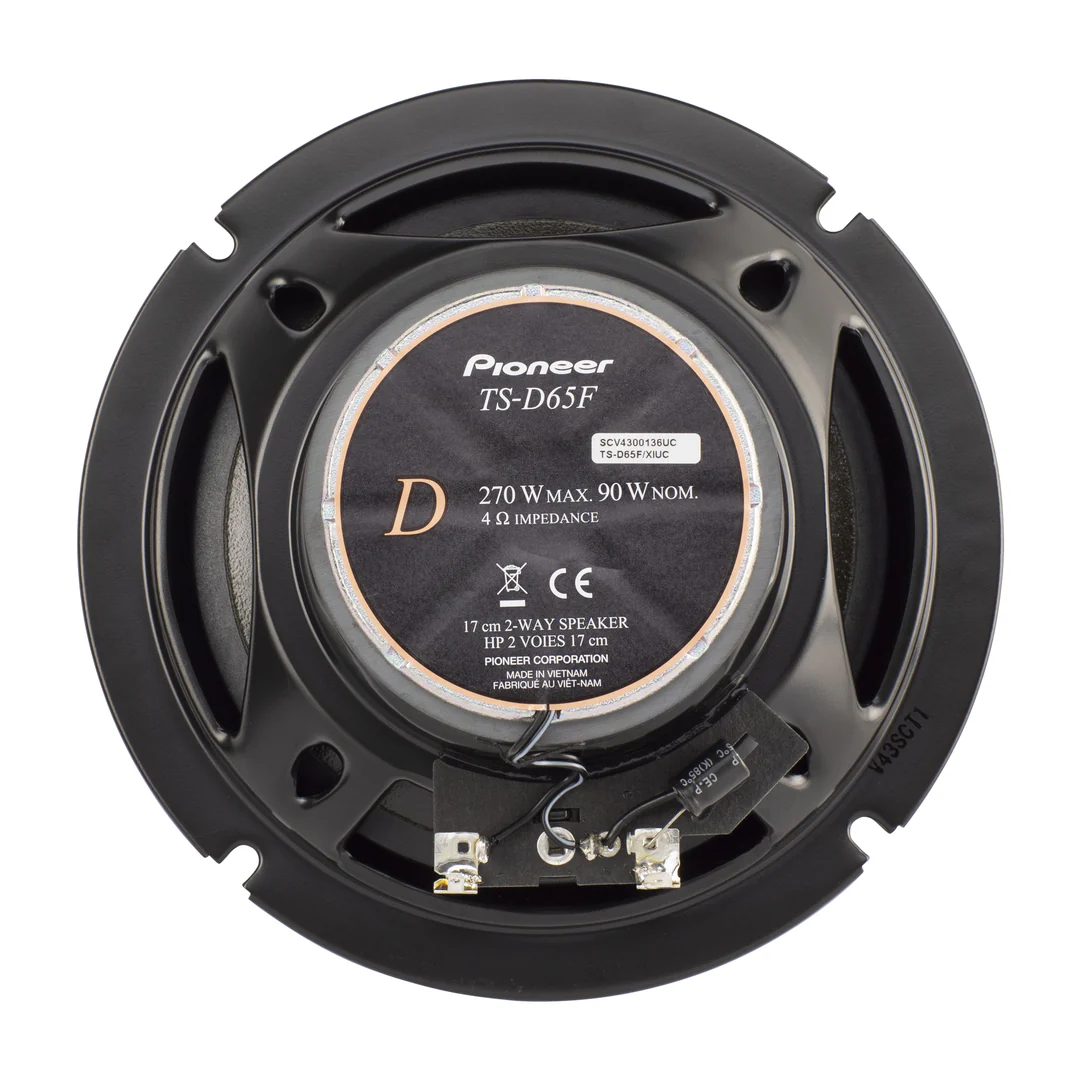

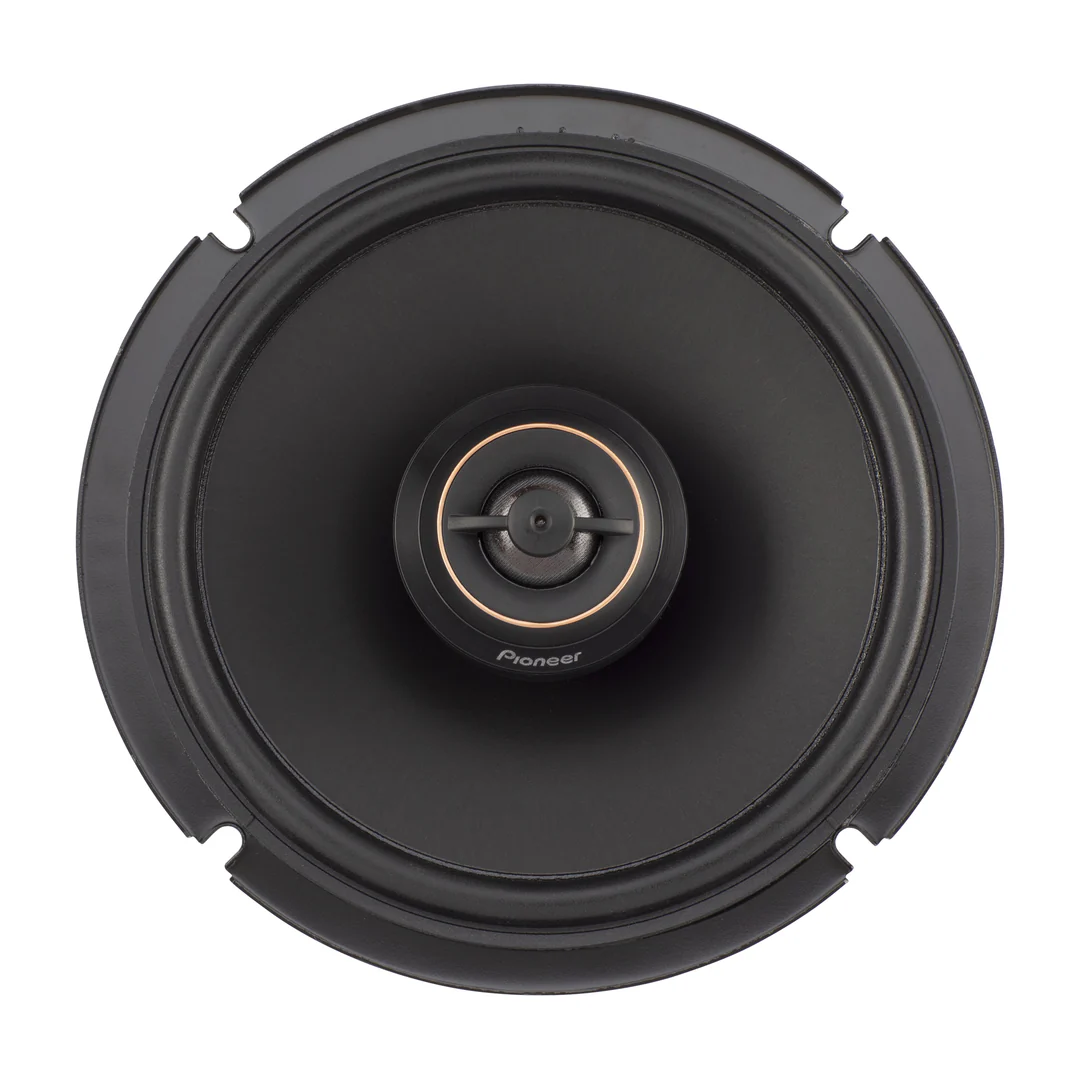

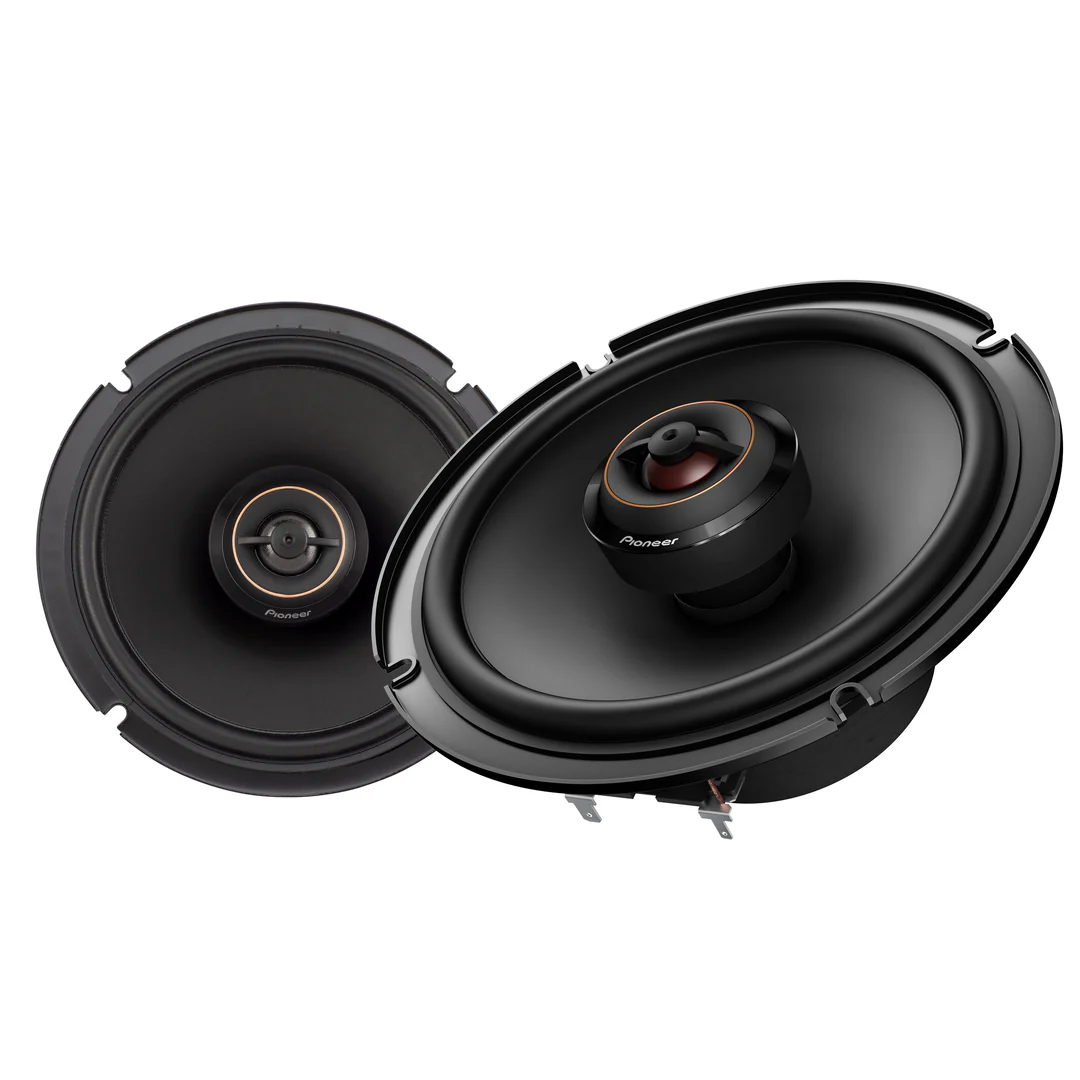

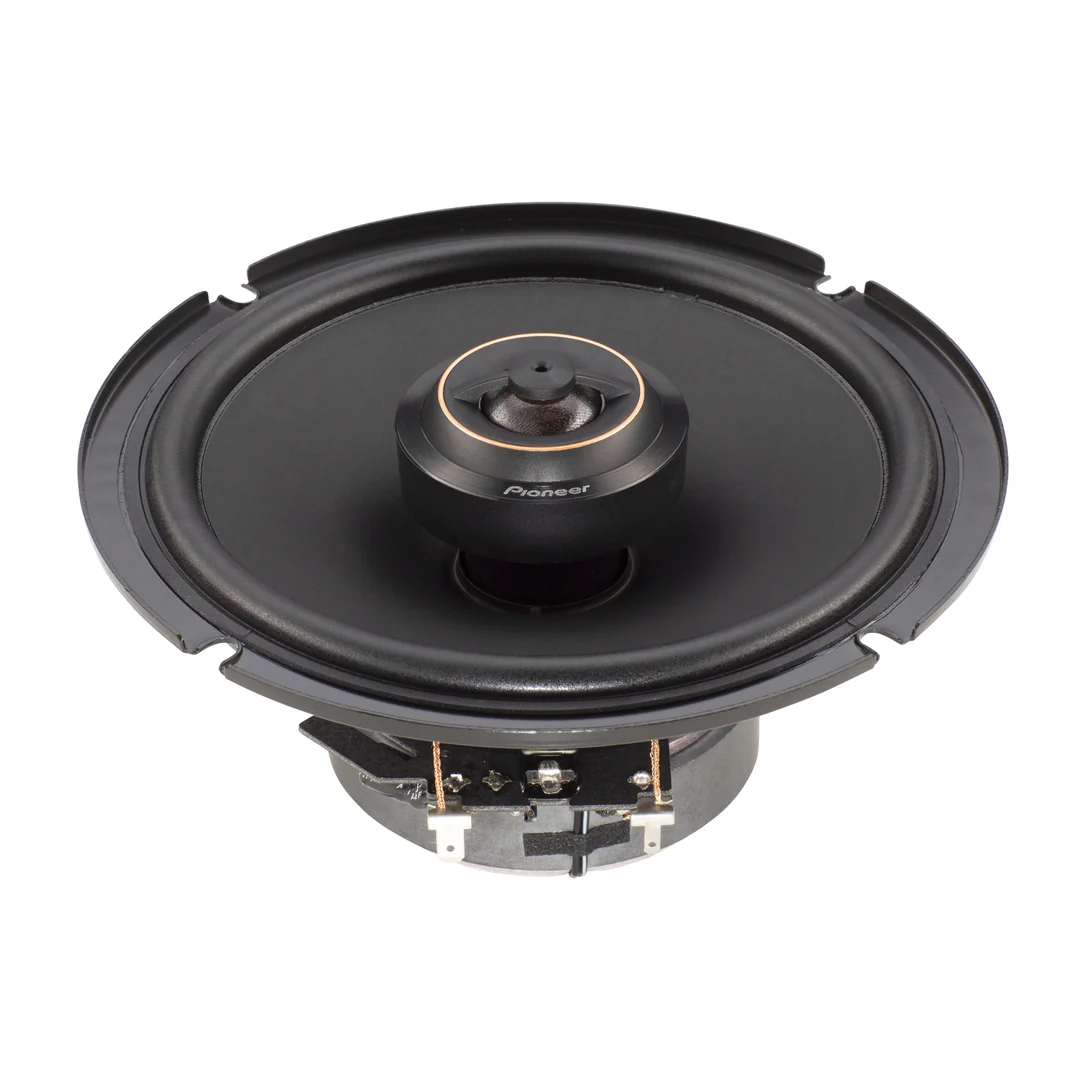

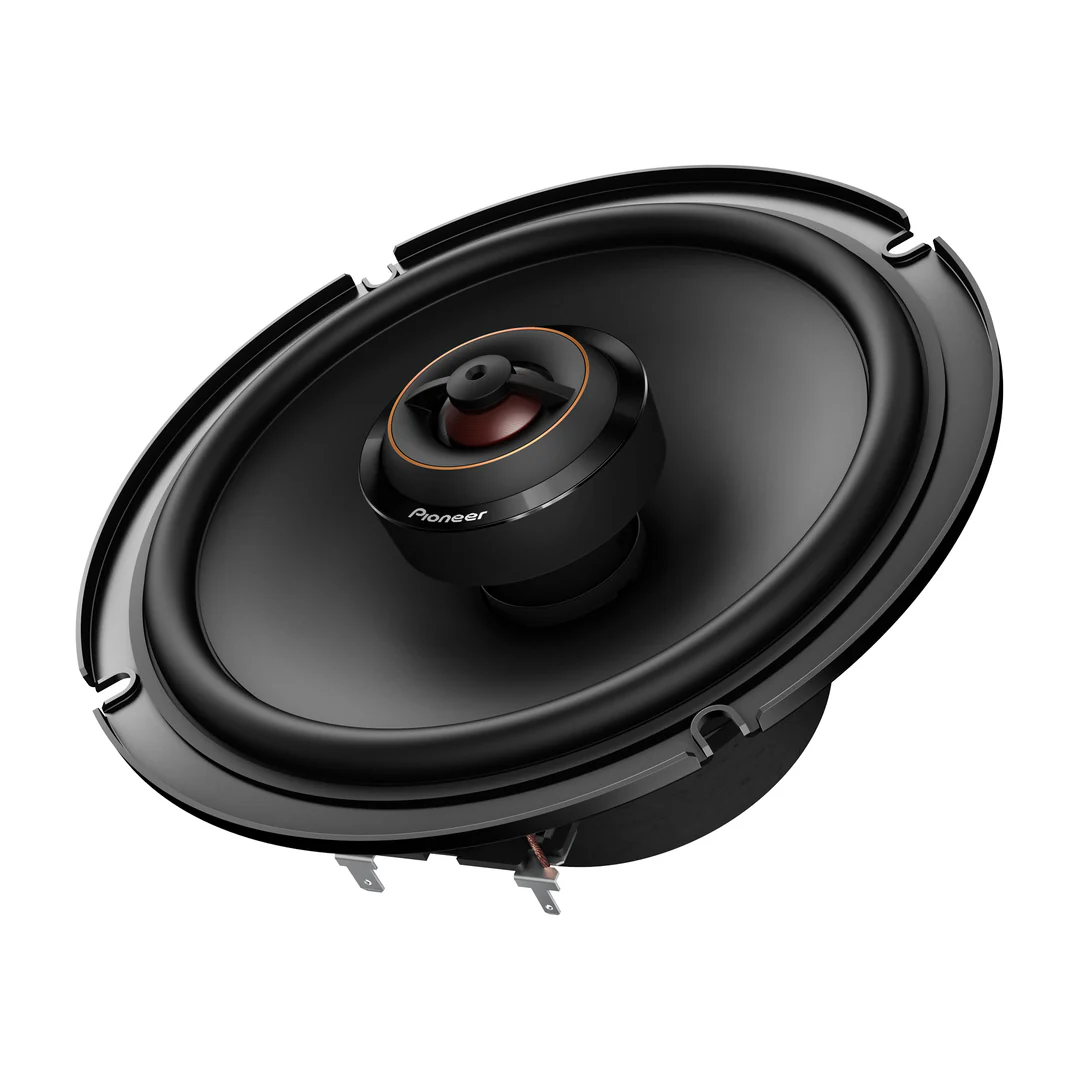

The Pioneer TS‑D65F is a 6.5‑inch (approximately 16.5 cm) 2‑way coaxial speaker pair from Pioneer’s D‑Series, crafted for car‑audio enthusiasts looking for a high‑fidelity upgrade. It features an aramid‑fiber‑interlaced Injection‑Moulded Polypropylene (IMPP™) woofer cone and a 26 mm polyester soft‑dome tweeter. The speakers handle up to 270 W peak power and approximately 90 W RMS (nominal) per unit, with a 4‑ohm impedance and a sensitivity of about 85 dB. Their wide frequency response range covers roughly 32 Hz to 49 kHz, delivering both deep lows and crisp highs.
Specifications
PRODUCT PERFORMANCE
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 90 Watts |
| Crossover Frequency | 5200 Hz (Acoustic), 3900 Hz (Electric) |
| Frequency Response | 32 Hz to 49 kHz |
| Maximum Peak Power Handling | 270 Watts |
| Nominal Impedance | 4 Ohm |
| Sensitivity (1W/1m) | 85 dB (±1.5 dB) |
| System Type | Coaxial 2-way, Soft Dome Tweeter |
FEATURES
| Specification | Value |
|---|---|
| Cut Out Dimensions | 5-5/8″ |
| Mounting Depth | 2-1/2″ |
| Tweeter Dimensions | 1.02″ |
| Tweeter – Swivel Type | Yes |
| Woofer Dimensions | 6.5″ |
MATERIALS
| Specification | Value |
|---|---|
| Basket Material | Metal |
| Cone Material | Aramid Fiber Interlaced Injection Moldled Polypropylene (IMPP) |
| Damper | Aramid Fiber |
| Diaphragm Material | Polyester – Tweeter |
| Magnet Material | Ferrite – Speaker, Neodymium – Tweeter |
| Magnet Weight | 11.3 oz – Speaker, 0.2 oz – Tweeter |
| Surround Material | Butyl Rubber |
| Surround Type | Rolled |
| Voice Coil Material | Glass Imide |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
The TS-D65F 6.5″ coaxial speaker system provides low distortion and flawless performance, even in the harsh conditions and environments of your car doors. The D-Series woofer’s IMPP™ cone is infused with tough aramid fibers, making it both durable and incredibly responsive for enhanced bass experiences. A coated textile dome tweeter delivers excellent high-frequency performance for accurate and detailed music playback. The tweeter features a unique pivoting mount that allows you to angle it, optimizing your soundstage even if the speakers are positioned off-axis in your car.
The Perfect Match
All D-Series speakers feature the same tweeter without any alterations. From the largest component speaker set to the smallest 2-way coaxial speaker, you will get the same tweeter, ensuring perfect tonal balance throughout the car, regardless of the size of speakers required for the front and rear.
Hear More
The D-Series is the result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities. Following Pioneer’s OPEN & SMOOTH sound concept, the D-Series provides a broad and balanced frequency response with a wide sound stage and ambience. When paired with one of our Pioneer power amplifiers, these speakers will shine even brighter, delivering absolute acoustic fidelity coupled with beautiful bass extensions.
Open & Smooth
Pioneer’s OPEN & SMOOTH sound concept ensures a seamless and smooth transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response. This design is optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
Aramid Fiber Interlaced IMPP™
Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a speaker cone with low mass and high damping. PP cones offer good sensitivity and low distortion. However, basic raw polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers, using advanced Computer Aided Manufacturing, developed a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP™ cone is ultra-thin and low mass with high rigidity and superior strength, producing natural, detailed sound with deep and powerful bass.

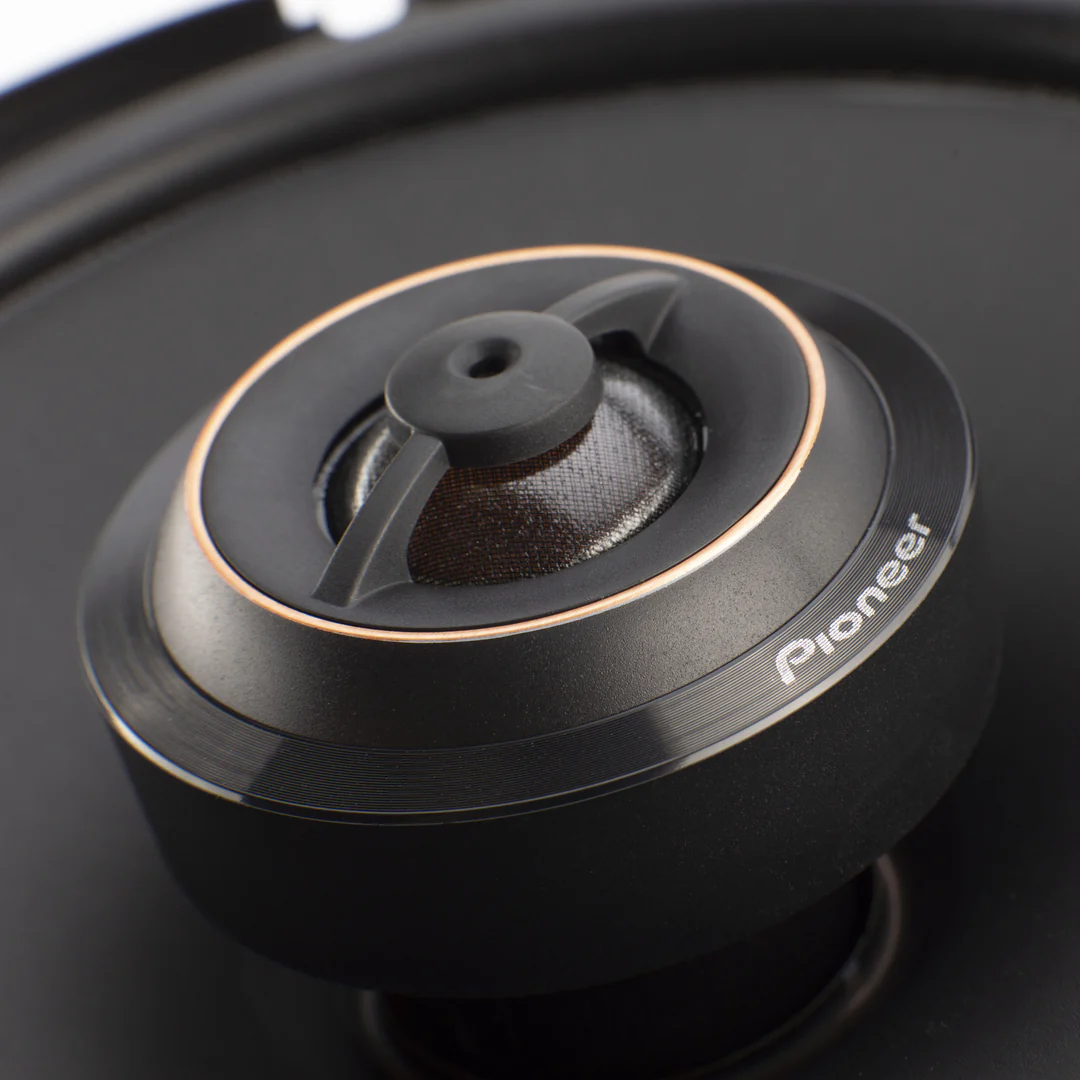

Tweeter – Soft Dome
Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The diaphragm is highly resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup caused by excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound.
Keep it simple and clean
Avoid messy installations and keep your speaker wiring as clean as possible. These speakers use an in-line crossover design and/or an integrated crossover already installed on the speaker basket. This eliminates the need for a bulky external box typically found with passive crossovers, saving you from having to find extra space for it. Additionally, it removes the need for extra wires going in and out of your door to accommodate a woofer in the door with a matching tweeter on your dash.
CarSoundfit App
Pioneer’s Car Sound Fit app is a car sound simulator that lets you experience what your car could sound like using your own smartphone. You’ll be able to hear the difference between stock speakers and Pioneer’s various audio options, and see how the quality of Pioneer speakers can enhance your in-car experience. For a virtual listening demo of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
