Description

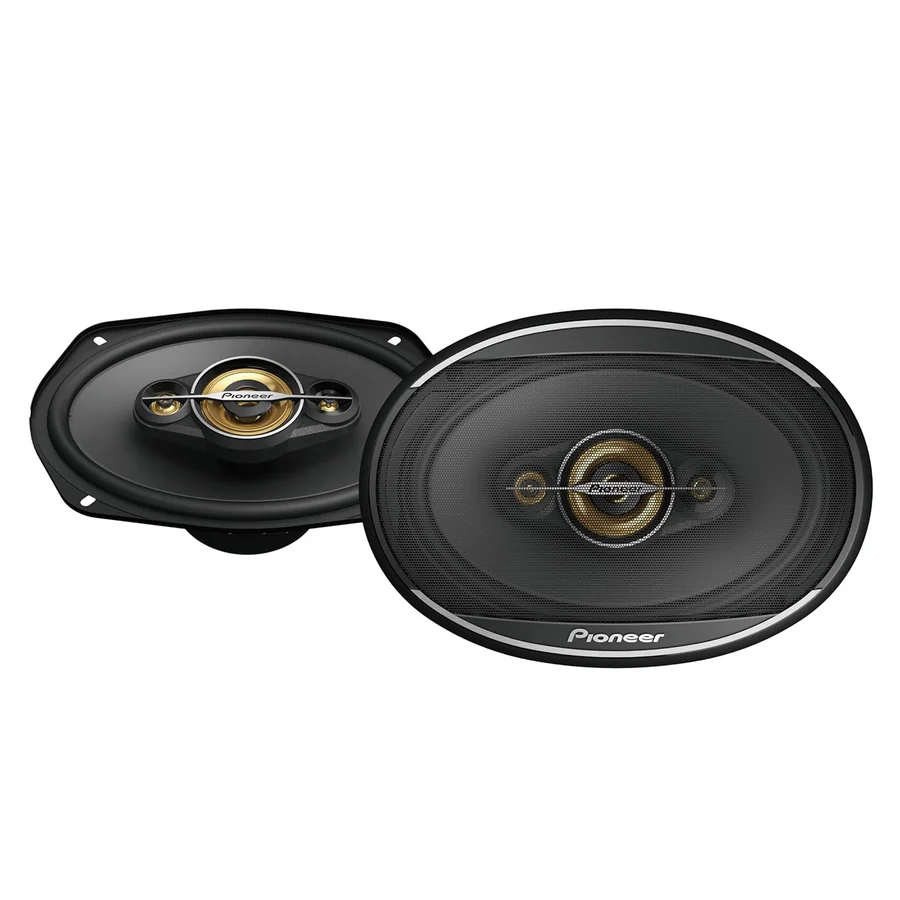

Pioneer TS‑A6971F

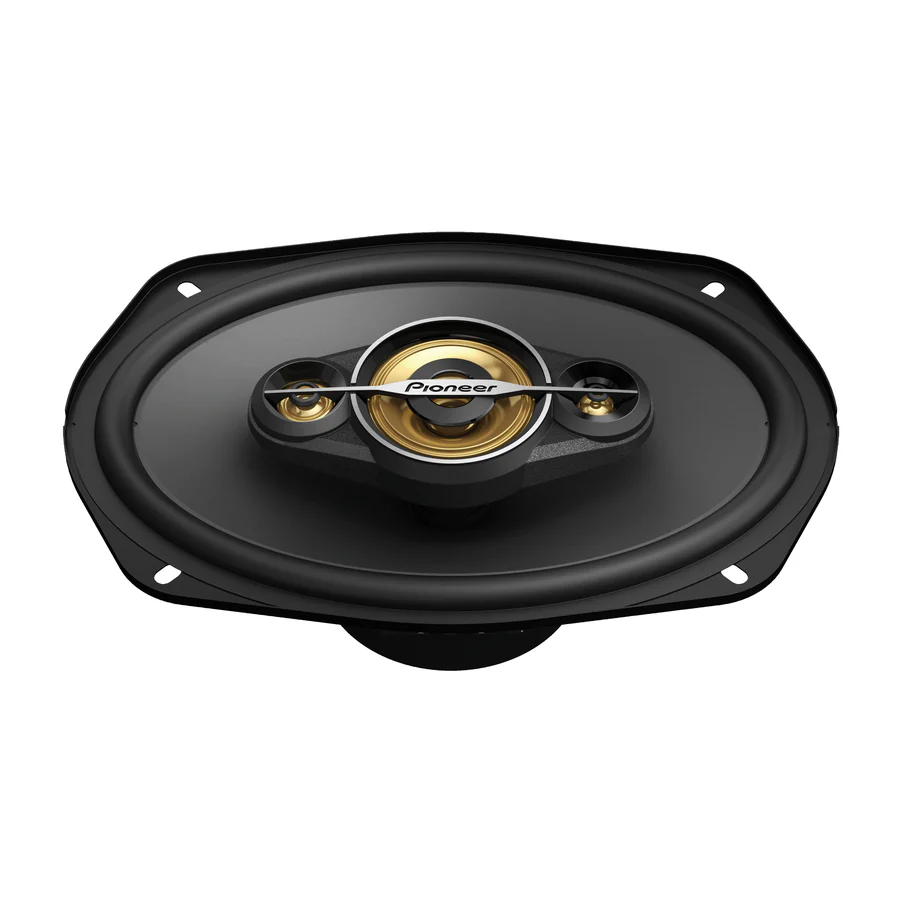

The Pioneer TS‑A6971F is a 6″ × 9″ 4‑way (sometimes described as 5‑way in detailed specs) coaxial speaker pair from Pioneer’s A‑Series, designed as a high‑output upgrade for car audio systems. It handles up to 600 W peak power and about 100 W RMS (nominal) power. It features a carbon & mica‑reinforced IMPP™ (injection‑moulded polypropylene) woofer cone for rigidity and reduced distortion, a 57 mm polyetherimide (PEI) midrange cone, an 18 mm tweeter and an 11 mm super‑tweeter for extended high‑frequency clarity. The frequency response spans approximately 29 Hz to 33 kHz, sensitivity is about 92 dB (1W/1m), and impedance is 4 ohms. With mounting depth of around 72 mm (2‑7/8″) and included multi‑fit adapters, it’s built for flexible installation in many vehicles.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 100 W |
| Maximum Peak Power Handling | 600 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 92 dB |
| Frequency Response | 29 Hz – 33 kHz |
| System Type | Coaxial 4-way, Twin PET Dome Tweeter |
| CarSoundFit | Yes |
Features
| Specification | Value |
|---|---|
| Cut Out Dimensions | 8-3/4″ x 6″ |
| Midrange Dimensions | 2.25″ |
| Mounting Depth | 2-7/8″ / 72.9 mm |

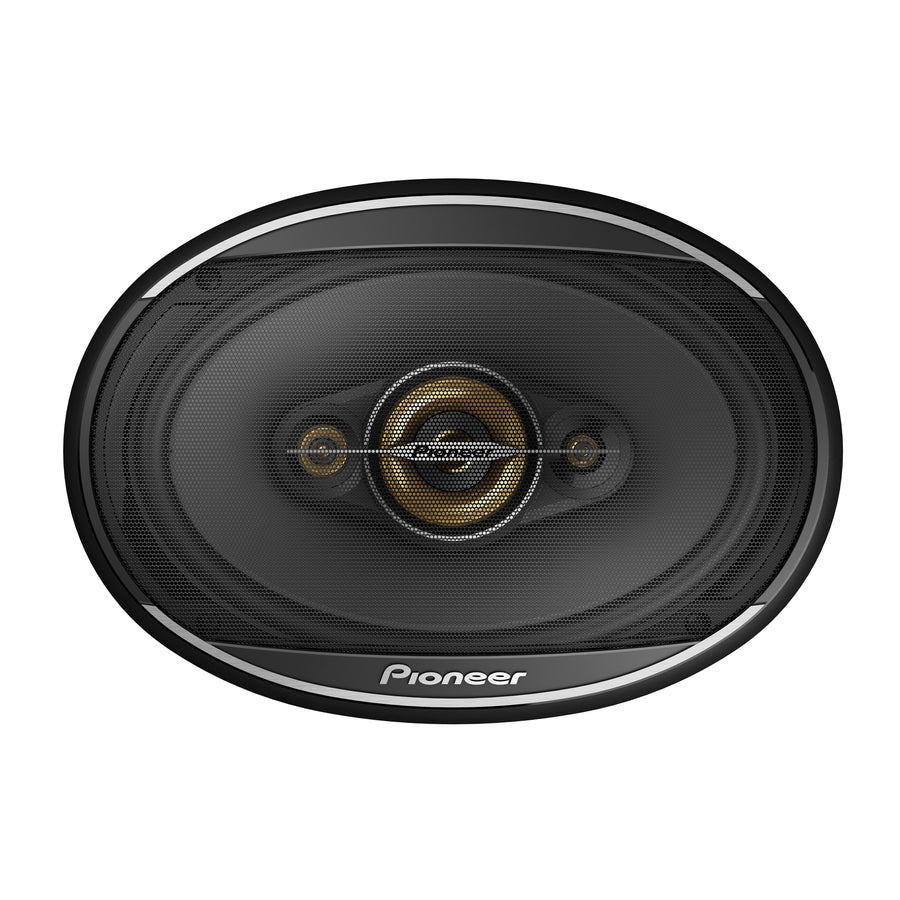

| Speaker Grill | Included |
| Tweeter Dimensions | 0.7″, 0.43″ Super |
| Woofer Dimensions | 6″ x 9″ |
Materials
| Specification | Value |
|---|---|
| Basket Material | Iron Plate Press |
| Cone Material | Carbon and Mica reinforced Injected Molded Polypropylene (IMPP) |
| Damper | Poly cotton Aramid |
| Diaphragm Material | Polyetherimide (PEI) – Tweeter |
| Magnet Material | Ferrite – Woofer, Ferrite – Tweeter |
| Magnet Weight | 13 oz – Woofer, 1.4 oz – Tweeter |
| Surround Material | Elastic Polymer |
| Surround Type | Rolled |
| Voice Coil Bobbin | Glass Imide |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
TS-A6990F 6″x9” 4-Way Coaxial Speakers
The TS-A6990F 6″x9” 4-way coaxial speakers deliver 600 W max power with a carbon and mica-reinforced IMPP™ cone, 2-1/4″ (57 mm) PEI midrange, 18 mm tweeter, and 11 mm super tweeter. Designed for superior audio performance, these A Series speakers provide seamless integration between subwoofers and full-range speakers, ensuring smooth, uniform sound across the frequency range.
A Series
Pioneer’s A Series speakers are highly efficient and engineered for seamless sound characteristics. The OPEN & SMOOTH concept ensures smooth transitions between midrange and tweeter drivers, delivering consistent off-axis frequency response. This design enhances detail, clarity, and acoustic performance in automotive environments where speakers may not always face listeners directly.
Loud & Clear
These speakers offer exceptional efficiency, producing coherent sound without exaggeration. They deliver improved precision and detail across the audio spectrum. High efficiency allows excellent performance even from low-power sources, while the capability to handle high power lets them shine with an external amplifier.

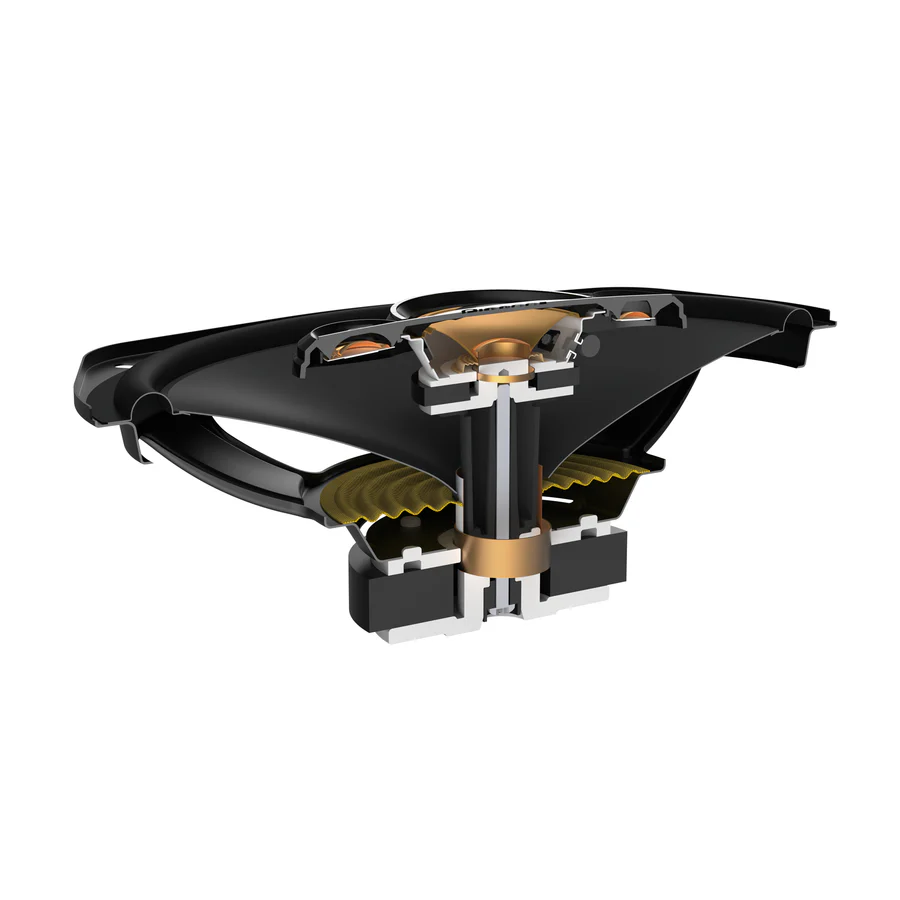

Carbon and Mica Reinforced IMPP™ Cone
The IMPP™ cone is lightweight yet rigid, preventing distortion under high power. Computer-Aided Engineering (CAE) creates a curvilinear cone with varying thickness for optimal responsiveness and precision. The addition of carbon and mica ensures balanced resonance and excellent performance across the full frequency range.
Polyetherimide (PEI) Midrange with PET Hard Dome Tweeters
PEI and PET materials maintain stability under high temperatures and deliver optimal strength-to-weight ratios. Carefully designed with a front diffuser, these components ensure balanced sound between on-axis and off-axis listening points for consistent audio throughout the vehicle.
Pioneer Exclusive Multi-Fit Adapters
Included multi-fit adapters allow flexible installation across various vehicles. These adapters can be modified to fit original speaker mounting points, saving installation time and improving acoustic performance by providing a secure foundation for the speakers.
Keep it Simple and Clean
An in-line or integrated crossover eliminates the need for bulky external boxes and additional wiring, simplifying installation and keeping speaker wiring neat.
CarSoundFit App
The CarSoundFit app allows you to simulate your car’s audio, comparing stock speakers with Pioneer options. This app helps you experience the improvement in clarity, detail, and overall sound quality for your in-car setup.
