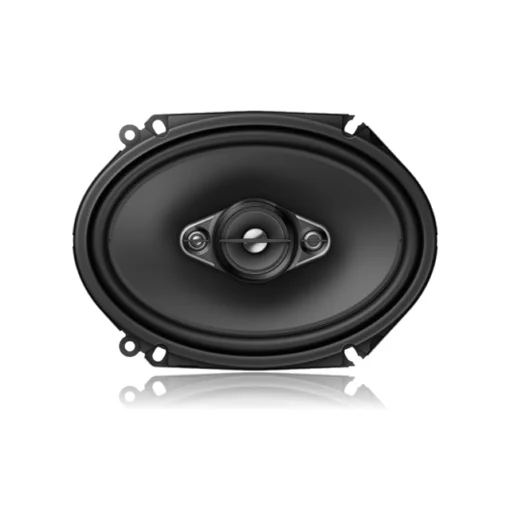

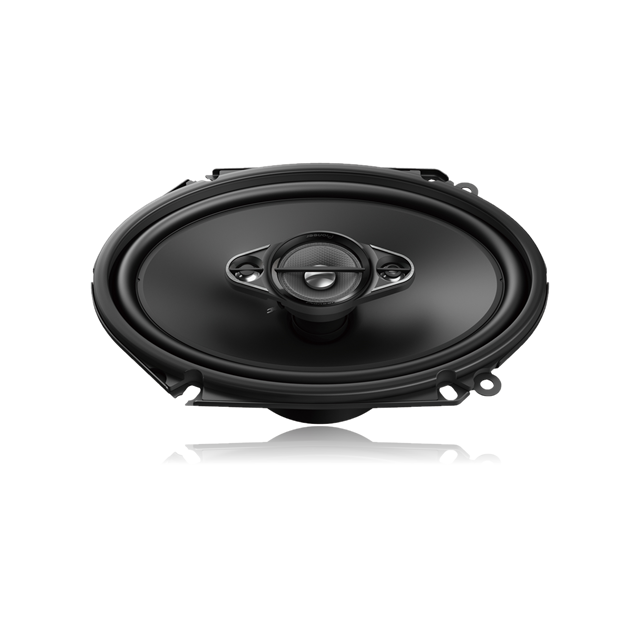

Pioneer TS‑A6880F
The Pioneer TS‑A6880F is a 6″ × 8″ 4‑way coaxial speaker system in the A‑Series. It features a carbon & mica‑reinforced IMPP™ woofer cone for deeper bass and reduced distortion, twin 11 mm PET hard‑dome tweeters, a frequency response from 34 Hz to 34 kHz, sensitivity of 88 dB, nominal impedance of 4 Ω, and is rated at 80 W RMS and 350 W peak power.
Specifications
General
| Feature | Specification |
|---|---|
| Size | 6×8″ |
| Design | 4-Way Coaxial System |
| Tweeter Design | Twin 11mm Balanced Dome |
| Tweeter Composition | Polyethylene Terephthalate (PET) |
| Woofer Composition | Carbon & Mica Reinforced IMPP |
| Woofer Surround | Elastic Polymer |
| Woofer Magnet Composition | Ferrite |
| Warranty | 1 Year |
Installation Specifications
| Feature | Specification |
|---|---|
| Max. Music Power (Nominal) | 350 W MAX (80 W Nom) |
| Frequency Response | 34 Hz – 34 kHz |
| Sensitivity (1W/1 m) | 88 dB |
| Impedance | 4Ω |
| Mounting Depth | 62 mm |
| Cut-Out Dimensions | 191 mm × 133 mm |
| Grills Included | Yes |
About The Product
Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible.

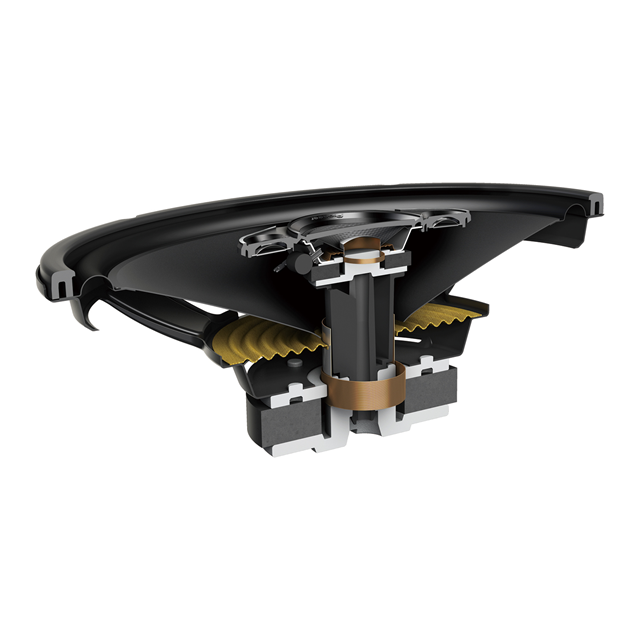

IMPP CONE CONSTRUCTION
Carbon & Mica reinforced IMPP cone for deeper and richer bass response.
Pioneer’s “Open & Smooth”™ Sound Concept
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
