Description

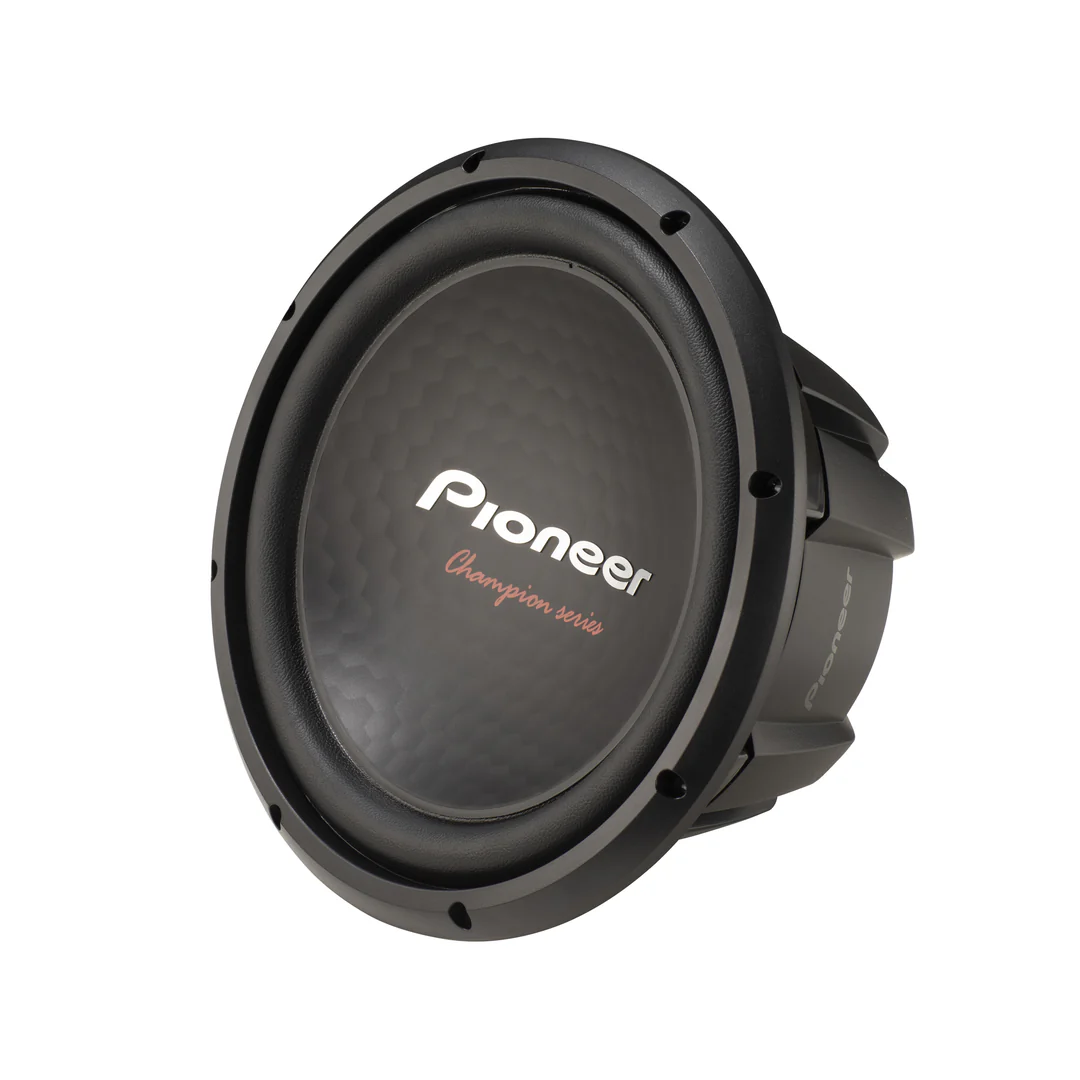

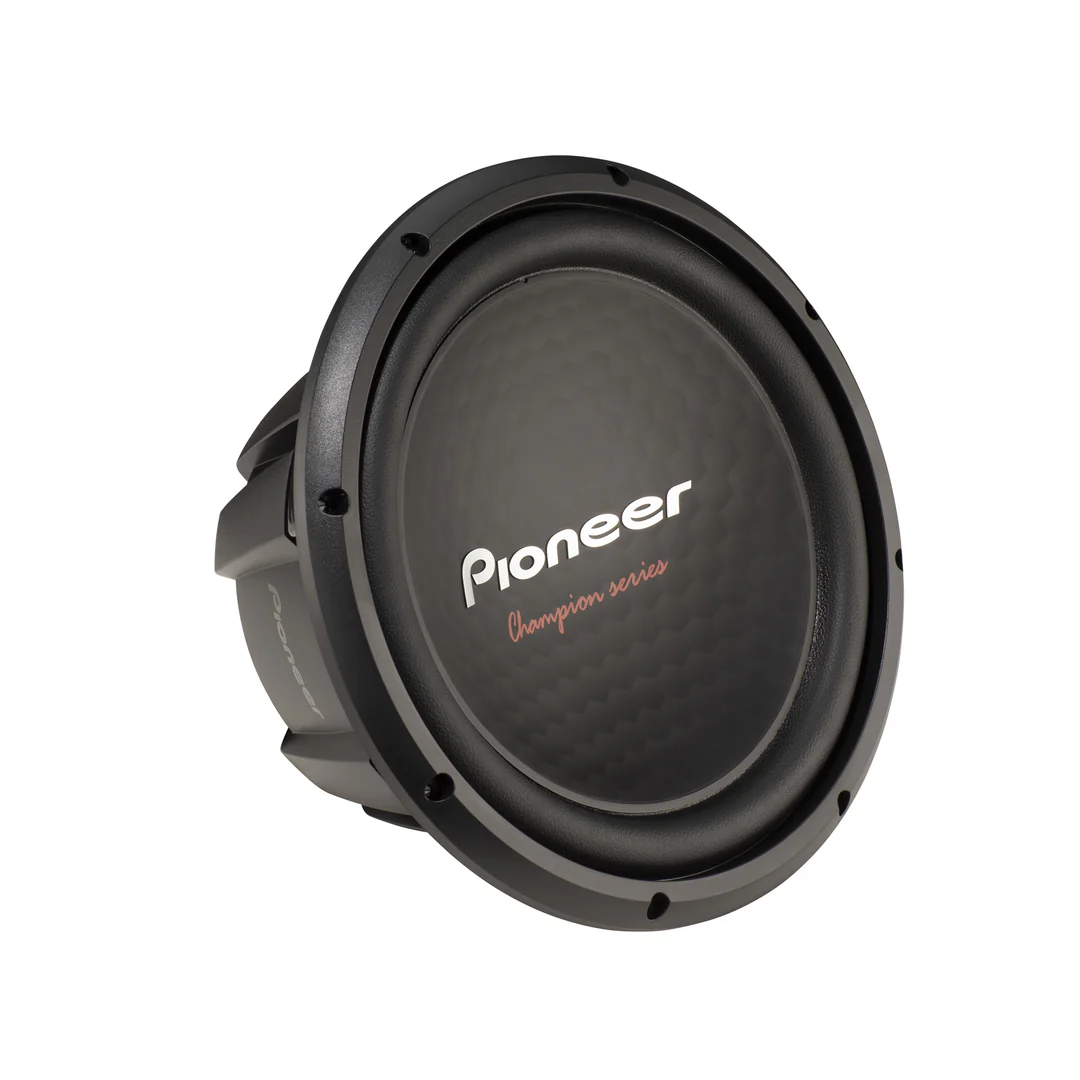

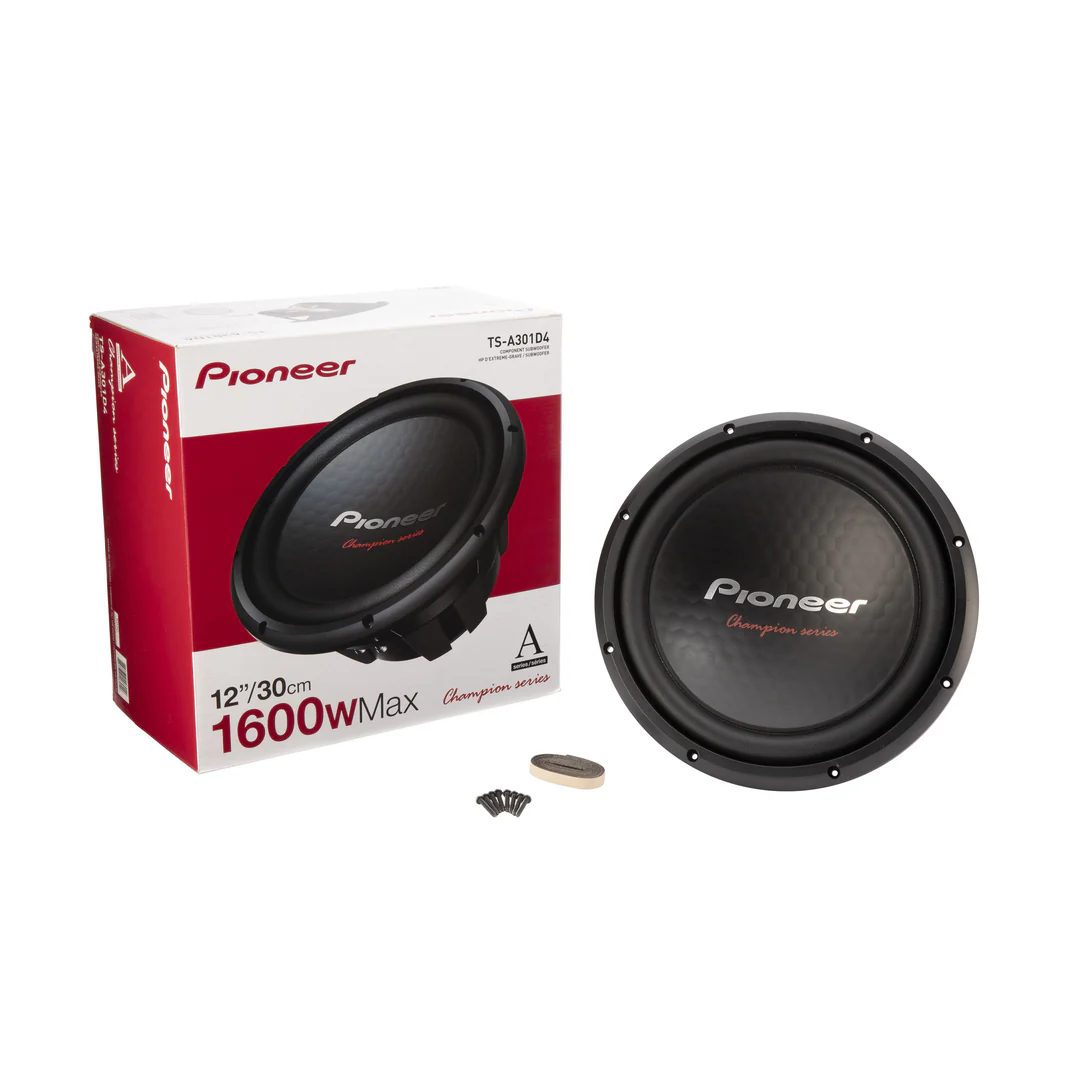

Pioneer TS-A301S4
The Pioneer TS-A301S4 is a 12-inch single 4-ohm component subwoofer from Pioneer’s Champion Series, designed to deliver deep and powerful bass. With a peak power handling of 1600 watts and an RMS of 500 watts, it offers robust performance suitable for various audio setups. The subwoofer features a 2-piece Honeycomb IMPP™ composite cone structure, providing enhanced rigidity and durability for high-output levels with reduced distortion. Its dual-layer fiber-reinforced elastic polymer surround supports the woofer during cone excursion, ensuring accurate and hard-hitting bass notes. The 90 oz double-stack ferrite magnet motor structure improves efficiency and sensitivity, while the aluminum voice coil and reinforced basket design contribute to better heat dissipation and reduced vibration. Compatible with both ported and sealed enclosures, the TS-A301S4 is an excellent choice for car audio enthusiasts seeking quality sound reproduction.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 500 W |
| Maximum Peak Power Handling | 1600 W |
| Frequency Response | 20 Hz – 1.6 kHz |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 92 dB |
| System Type | Component |
Features
| Specification | Value |
|---|---|
| CarSoundFit | Yes |
| Cut Out Dimensions | 11.125″, 28.26 cm |
| Equivalent Compliance (VAS) | 34.1 Liters, 1.2 Cu. Ft. |
| Free Air Resonance (Fs) | 38 |
| Linear Excursion (Xmax) | 7.7 mm, 5/16″ |
| Mounting Depth | 6.125″ |
| Port Diameter | 3″, 7.62 cm |
| Port Length | 6.5″, 16.51 cm |
| Recommended Ported Box Volume | 42.5 Liters, 1.5 Cu. Ft. |
| Recommended Sealed Enclosure Volume | 35.4 Liters, 1.25 Cu. Ft. |
| Total Speaker “Q” (Qts) | 0.64 |
| Woofer Dimensions | 12″ |
Materials
| Specification | Value |
|---|---|
| Basket Material | Steel |
| Center Cap Material | Polypropylene |
| Cone Material | Carbon & Mica reinforced IMPP |
| Damper | Poly cotton |
| Drive Cone Material | Cellulose Fiber |
| Installation Ring | ABS |
| Magnet Material | Ferrite |
| Magnet Weight | 90 oz |
| Surround Material | Elastic Polymer, Reinforced Fiber |
| Surround Type | Rolled |
| Voice Coil Bobbin | Aluminum |
| Voice Coil Type | Single 4-ohm |
| Voice Coil Wire | Copper |
| Wire Terminals | Push Type |
About The Product
The Champion Series subwoofers have evolved from Pioneer’s award-winning “SPL Champion Edition” lineup, known for its deep and powerful bass production. The TS-A301S4 12” dual-voice coil subwoofer features a redesigned large and powerful 90 oz double-stack magnet for improved efficiency and sensitivity. The subwoofer baskets are optimized with a reinforced structure design for added strength and reduced vibration, delivering excellent sound quality. This subwoofer has a continuous power of 500 watts with a maximum peak of 1,600 watts. It features an advanced 2-piece cone designed with a highly rigid and durable Honeycomb IMPP™ composite cone structure, plus a rigid drive cone to deliver high output levels with reduced distortion.
Iconic Champion Series Cosmetics
The Champion Series Subwoofers features iconic design elements that are symbolic to the subwoofer’s lineage including red graphics design decals; spider; and “Champion” cursive script.

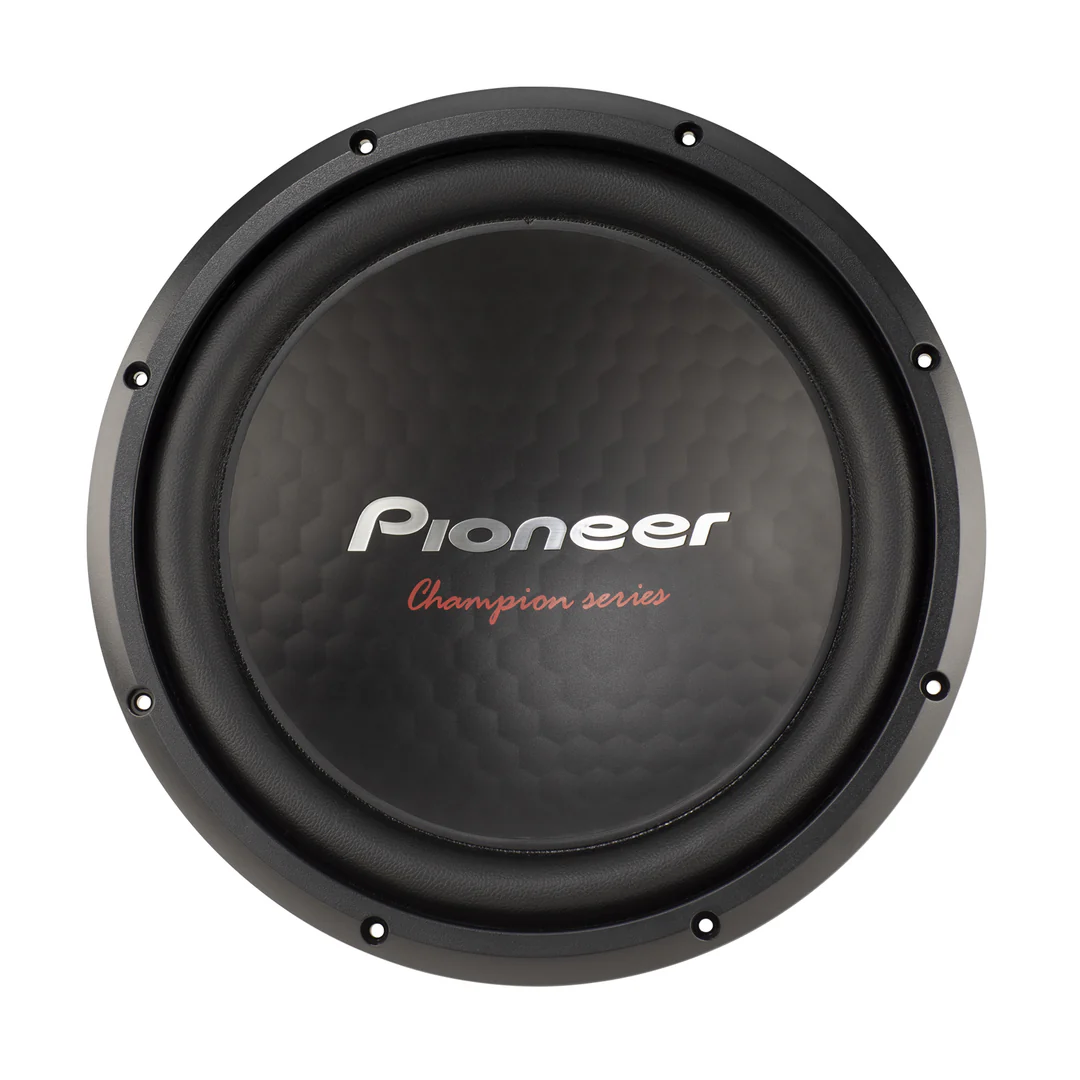

Advanced 2-Piece Cone
Designed with a highly rigid and durable Honeycomb IMPP™ composite seamless cone plus a rigid drive cone for deeper and louder bass reproduction.
Dual Layer Surround
A lighter and more durable surround, this subwoofer is comprised of elastic polymer and reinforced fiber to support the woofer during cone excursion for accurate and powerful bass.
Deep Bass
To achieve deep and tight bass, a rigid and lightweight cone is essential. However, without a proper motor structure, it’s ineffective if you’re looking for strong and dynamic bass. The subwoofer uses a double-stack strontium magnet for a stronger and longer magnetic field, paired with a large copper voice coil and an aluminum voice-coil former for better bass control under high excursions. This also helps achieve better heat dissipation.

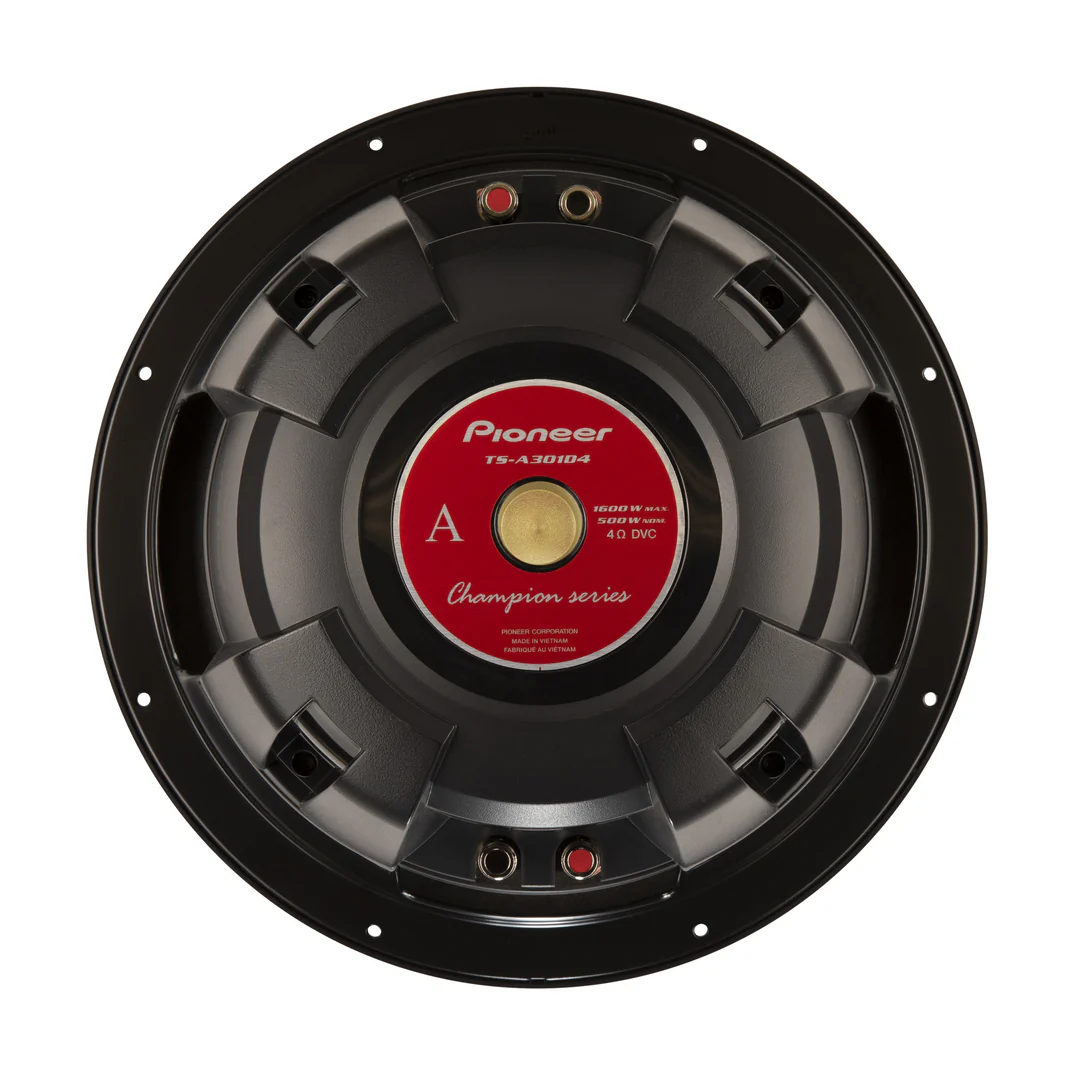

Reinforced Steel Basket
This Champion subwoofer features a reinforced steel chassis with a grooved structure that increases strength through stress dispersion. This robust design, intended to support high driving power, also helps minimize any vibrations that may be induced during large cone excursions. The goal is to give you only the good vibrations that are on the recording.
CarSoundfit App
Pioneer’s Car Sound Fit app is a car sound simulator that lets you experience what your car could sound like using your own smartphone. You’ll be able to hear the difference between stock speakers and Pioneer’s various audio options, and see how the quality of Pioneer speakers can enhance your in-car experience. For a virtual listening demo of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
