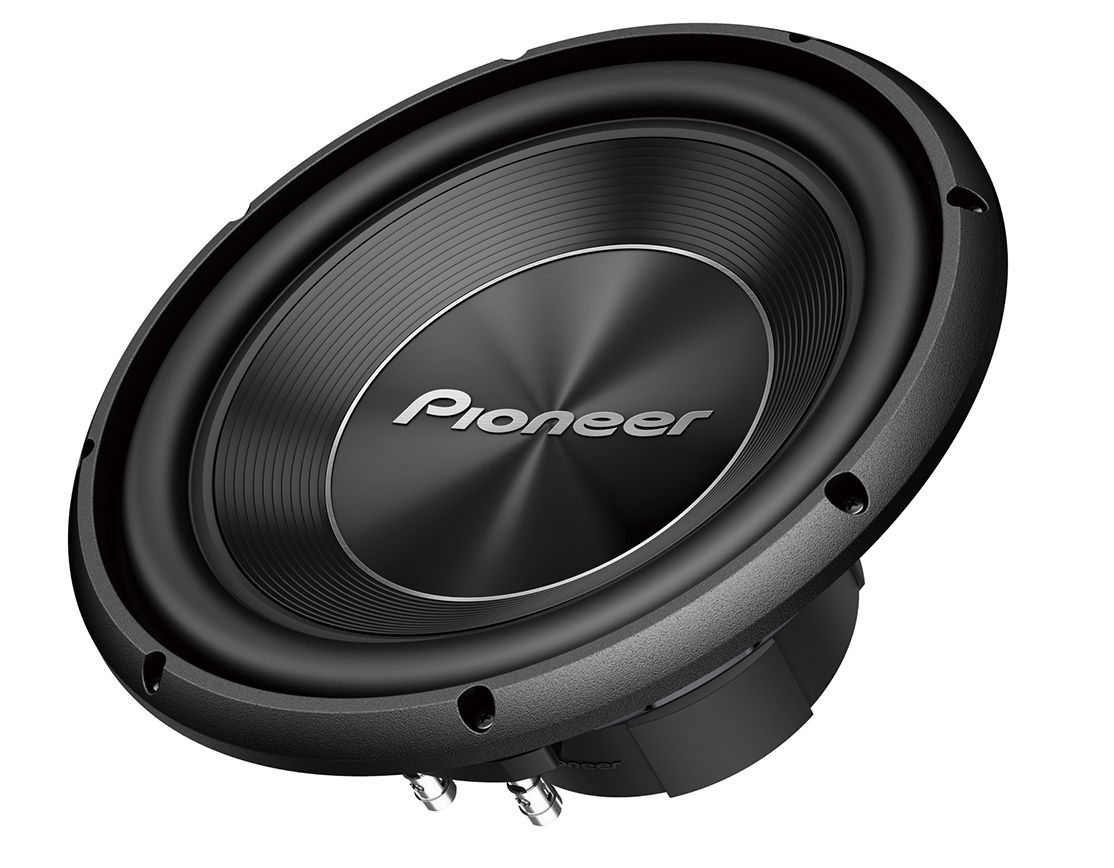

Pioneer TS‑A300D4

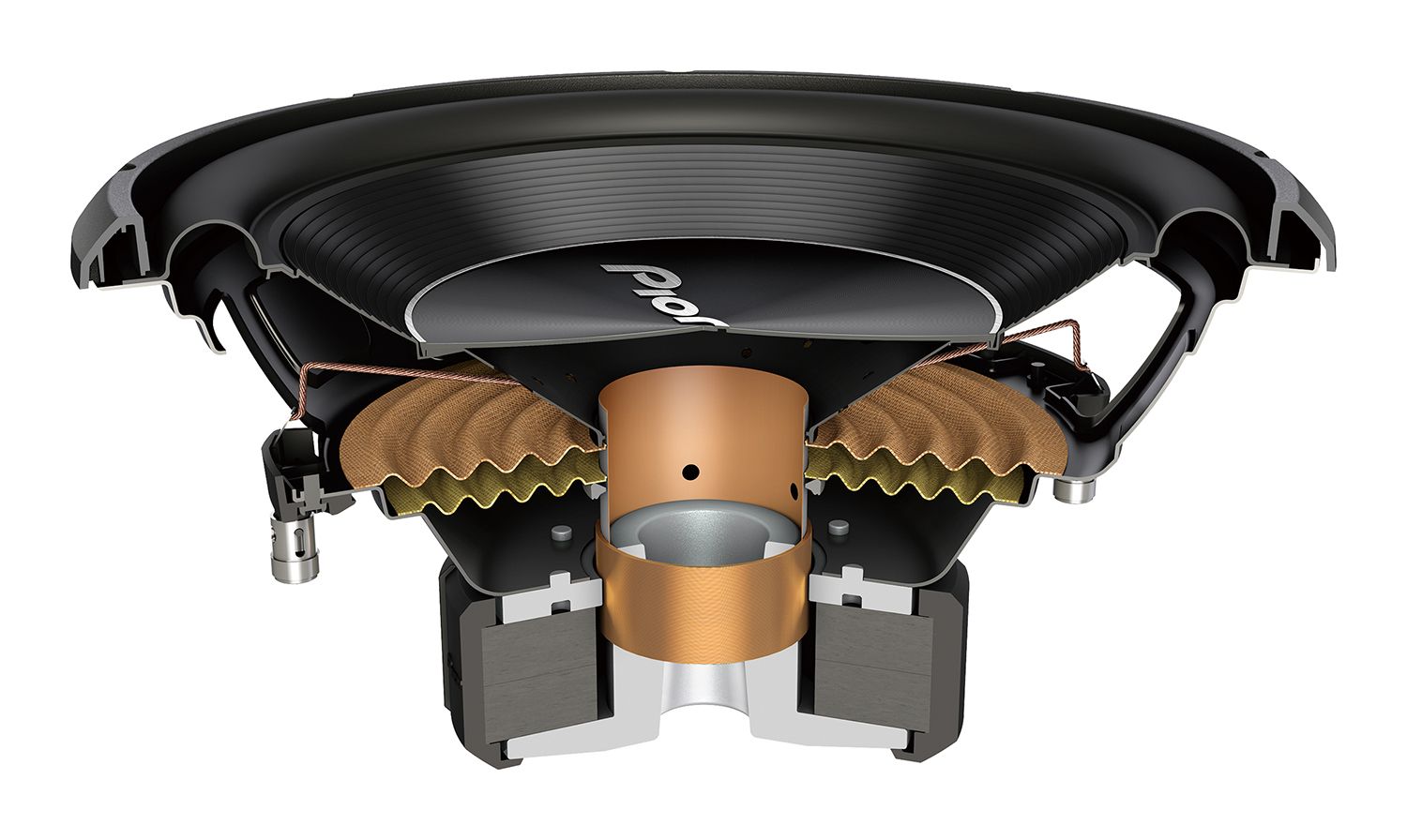

The Pioneer TS‑A300D4 is a 12″ (30 cm) dual voice‑coil (DVC) subwoofer from the A‑Series, designed for high‑performance bass upgrades. It features a glass‑fiber & mica‑reinforced IMPP™ (Injection Molded Polypropylene) cone, a butyl rubber surround, and a 4‑layer copper voice coil. It is rated for 500 W RMS continuous power and up to 1,500 W peak power, with dual 4 Ω voice‑coils allowing flexible wiring options. The frequency response is listed as approximately 20 Hz to 2,300 Hz (‑20 dB).
Features
| Feature | Specification |
|---|---|
| Frequency Response | 20 Hz – 2,300 Hz |
| Impedance | 4 Ω Dual Voice Coil (DVC) |
| Maximum Input Power | 1,500 W |
| Nominal Input Power (RMS) | 500 W |
| Sensitivity | 77 dB |
| Series | A-Series |
| Diameter Size | 30 cm |
| Dimensions (H x W) | 318 mm x 167 mm |
| Woofer Composition | Glass Fiber & Mica Reinforced IMPP™ Cone |
| Magnets | Ferrite |
| Cut-out Hole | 281 mm |
| Mounting Depth | 147 mm |
| Recommended Enclosure | 1.25 ft³ / 35.4 litres |
| Speaker Grill | Not Included |
| Weight | 4.65 kg |
| CarSoundFit App | Supported |
