Description

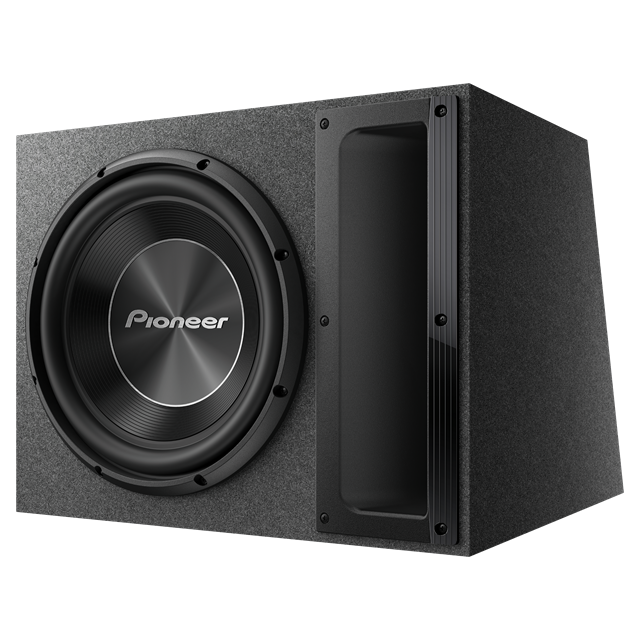

Pioneer TS‑A300B
The Pioneer TS‑A300B is a 12″ (30 cm) pre‑loaded ported subwoofer enclosure from the A‑Series, designed to deliver deep, impactful bass with minimal installation complexity. It has a nominal/RMS power handling of 500 W and a maximum peak power handling of 1,500 W, with an impedance of 2 Ω for high output potential. Its frequency response spans from 20 Hz to 2.6 kHz (‑20 dB), and it features a glass‑fiber & mica‑reinforced IMPP™ cone, butyl rubber surround, dual cotton spiders, and a double‑stacked ferrite magnet motor system for strong power handling and durability.
Specifications
SYSTEM
| Feature | Specification |
|---|---|
| System Type | Pre-loaded subwoofer (passive) |
| Sound Pressure Level (Sensitivity) | 78 dB (±1.5 dB) |
| Frequency Range | 20 Hz – 2.6 kHz |
| Continuous Power Handling (RMS) | 500 W |
| Maximum Peak Power Handling | 1500 W |
| Impedance | 2 Ω |
| Dimensions (W x H x D) | 484 mm x 374 mm x 463 mm (base) / 327 mm (top) |
WOOFER
| Feature | Specification |
|---|---|
| Diameter | 12″ |
| Woofer Composition | Glass fiber & mica reinforced Injection Molded Polypropylene (IMPP) |
| Woofer Surround | Butyl Rubber |
| Basket Material | Stamped Steel |
| Woofer Magnet Composition | Double stacked ferrite |
| Magnet Weight | 60 oz |
About The Product
Pioneer’s TS-A300B 12″ “A” Series subwoofer enclosure is designed to perfectly match the Pioneer “A” Series full-range loudspeakers.The bass reflex port is uniquely shaped to reduce port noise while producing clear and accurate bass.Combining the latest design and technology with specifically selected materials this subwoofer enclosure provides high quality sound and excellent bass response.Match with a compatible Pioneer amplifier for an impressive in car experience!
IMPP CONE CONSTRUCTION
12″ glass fiber and mica interlaced Injection Molded Polypropylene (IMPP) cone construction.
CarSoundFit
The Pioneer CarSoundFit app is a car sound simulator designed to allow you to experience an in-car sound with your own smartphone. Hear examples of the difference between the original speakers and Pioneer speaker upgrades to understand what improvements Pioneer can offer. To experience the virtual listening demonstration download the free Pioneer CarSoundFit app from either the App Store or Google Play.
