Description

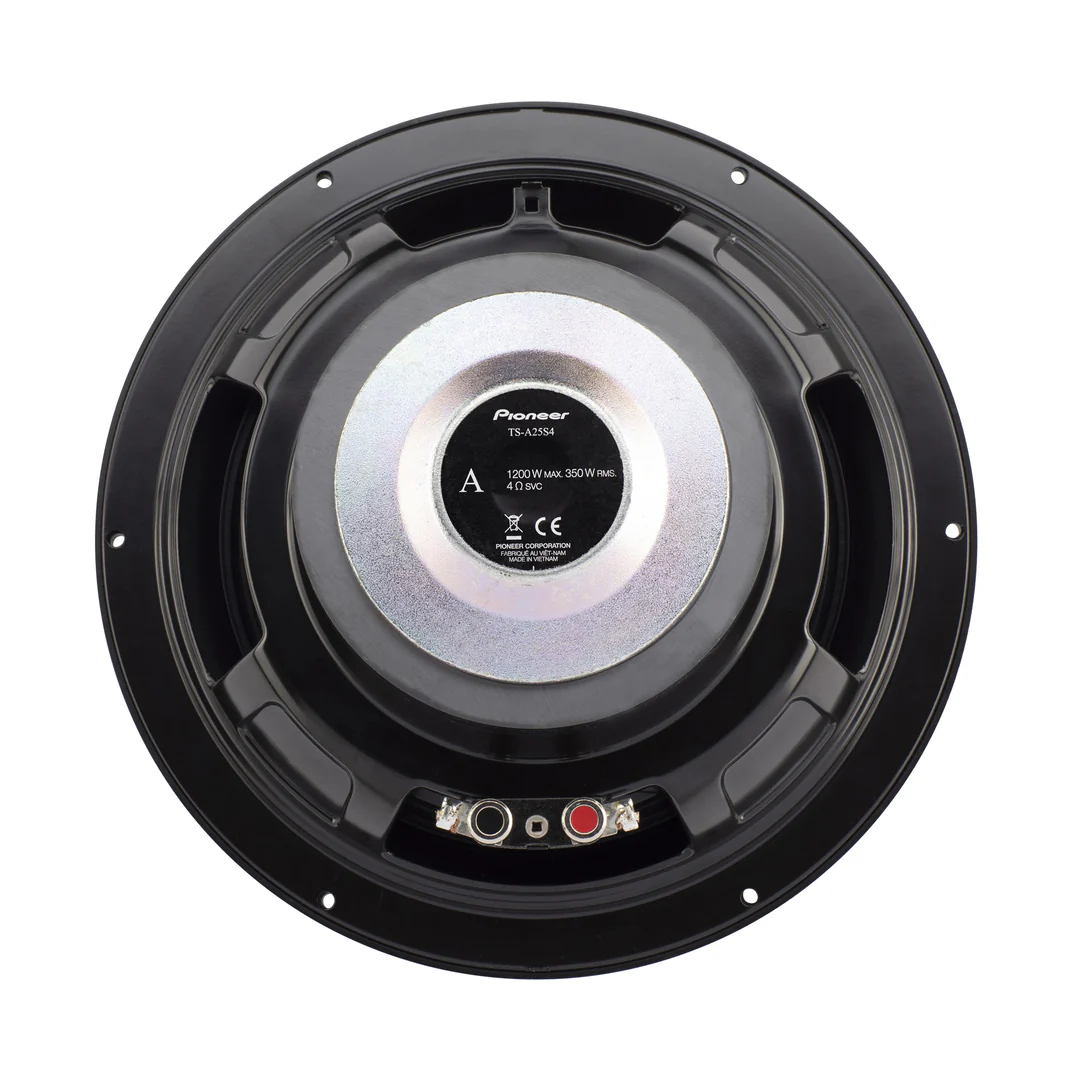

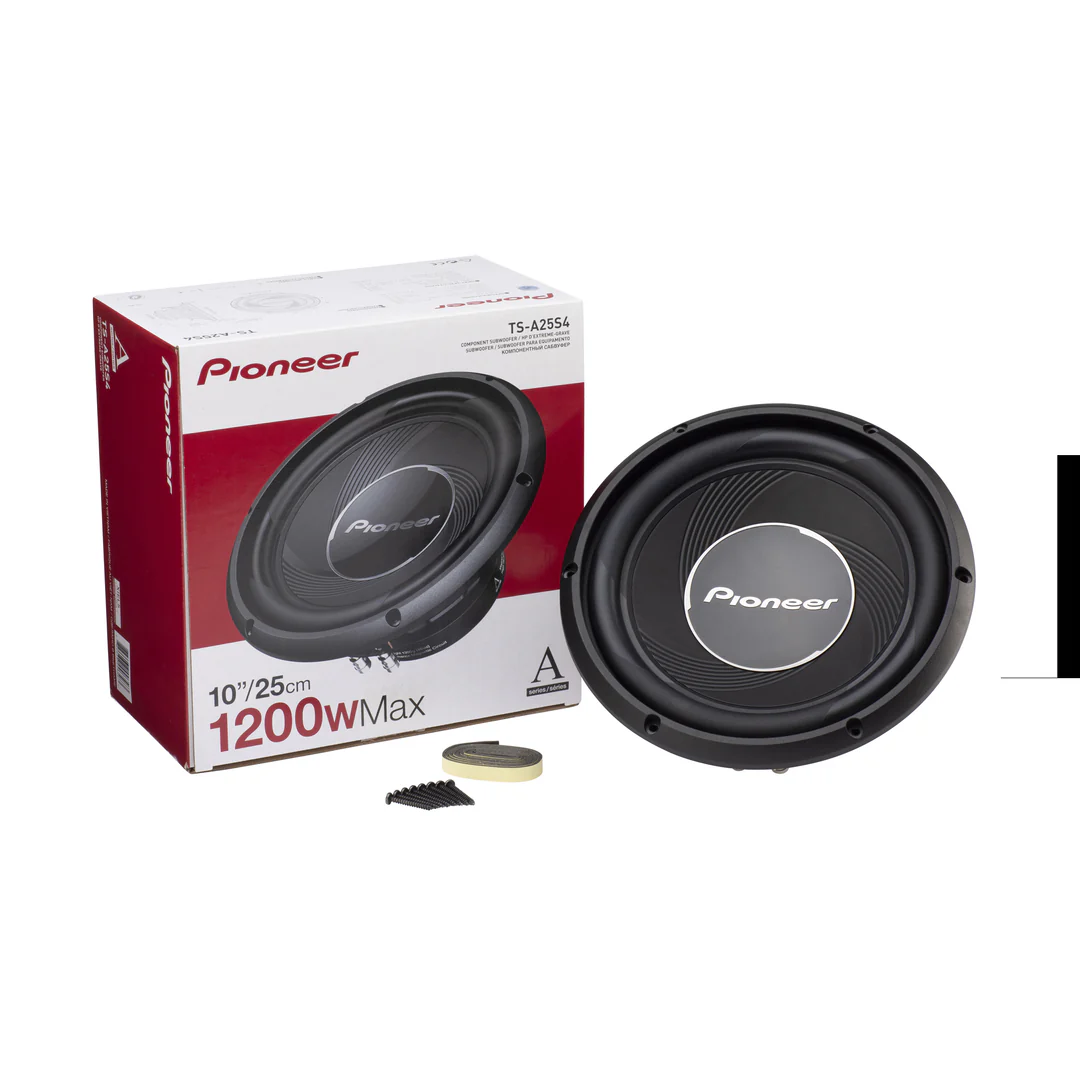

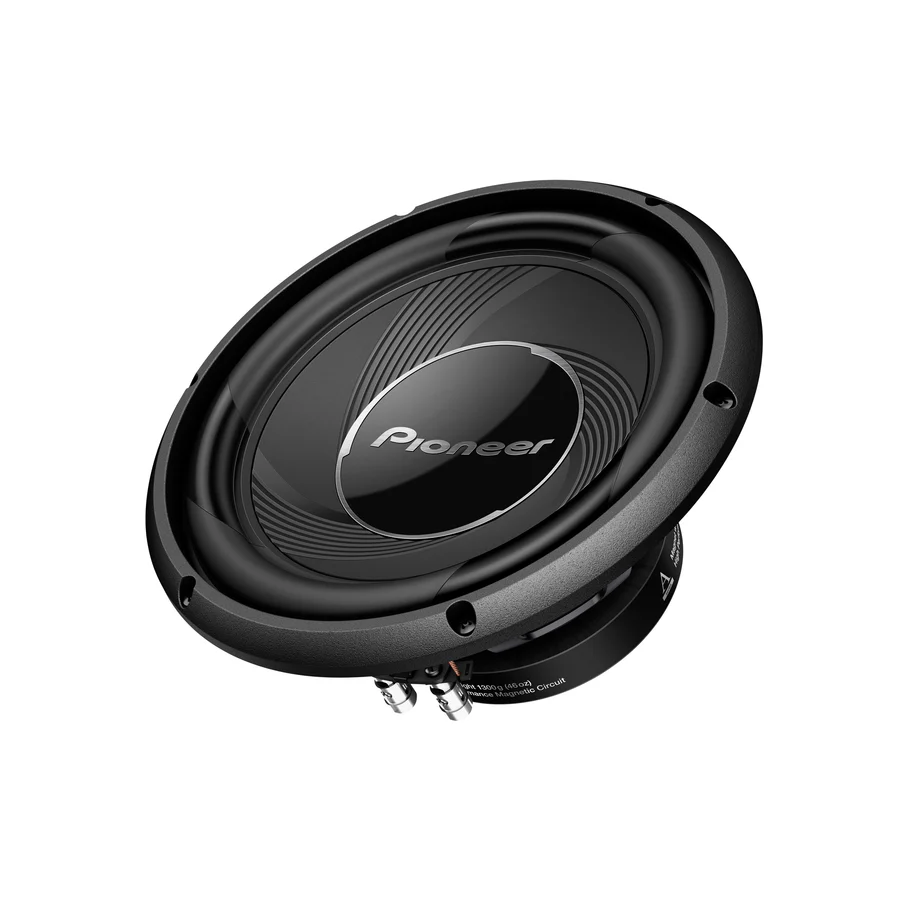

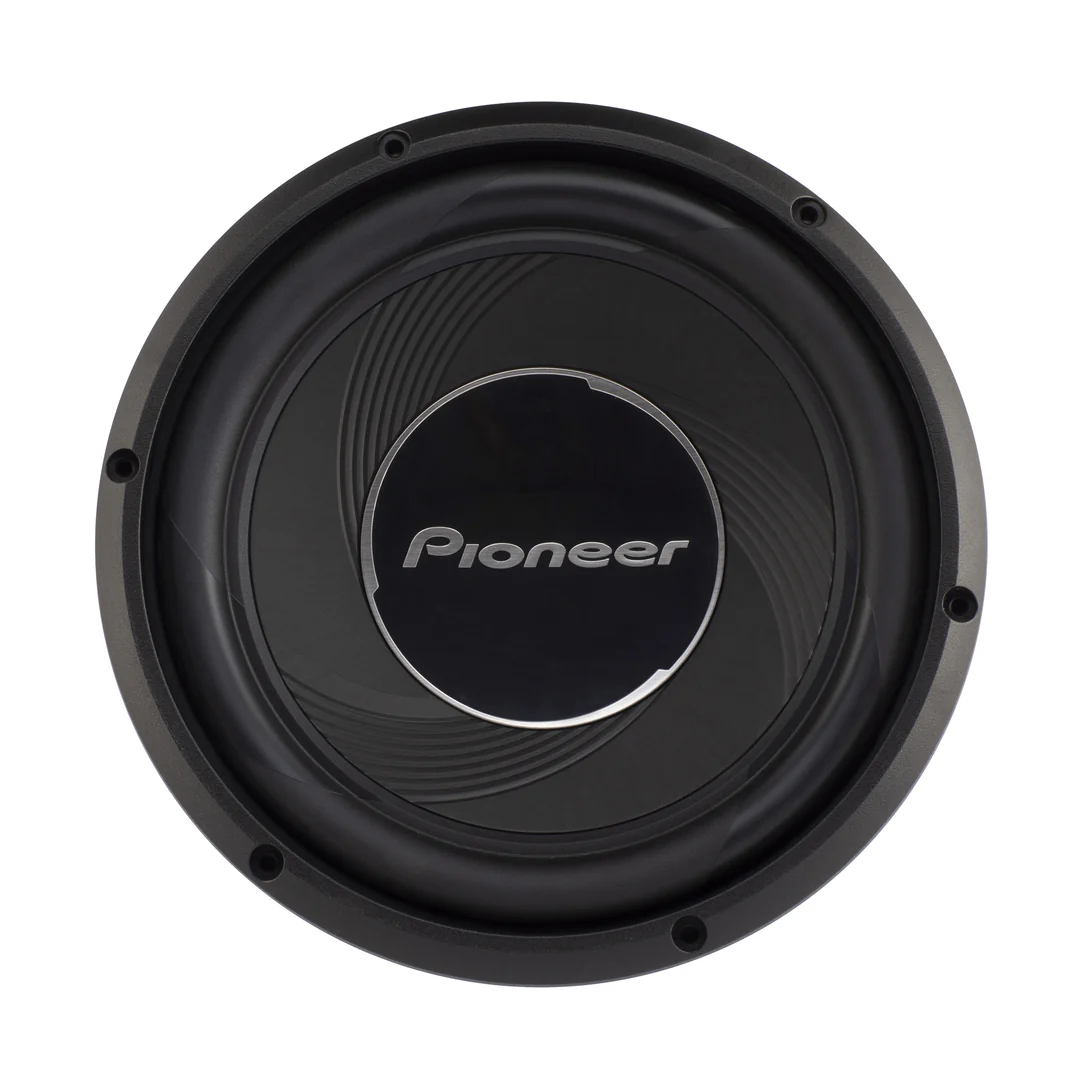

Pioneer TS-A25S4
The Pioneer TS-A25S4 is a 10-inch A-Series subwoofer engineered to deliver deep, impactful bass in a compact design. With a peak power handling of 1200 watts and an RMS of 350 watts, it offers robust performance suitable for various audio setups. The subwoofer features an IMPP™ cone, combining interlaced mica and carbon composite materials for enhanced rigidity and reduced distortion. Its rubber surround ensures durability and consistent performance over time. Designed for versatility, the TS-A25S4 is compatible with both vented and sealed enclosures, making it a flexible choice for car audio enthusiasts seeking quality sound reproduction.
Specifications
Product Performance
| Specification | Value |
|---|---|
| Continuous Power Handling (RMS) | 350 W |
| Maximum Peak Power Handling | 1200 W |
| Frequency Response | 22 Hz – 1.4 kHz |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 85 dB |
| System Type | Component |
Features
| Specification | Value |
|---|---|
| CarSoundFit | Yes |
| Cut Out Dimensions | 9″, 23 cm |
| Equivalent Compliance (VAS) | 23 Liters, 0.8 Cu. Ft. |
| Free Air Resonance (Fs) | 39.2 |
| Linear Excursion (Xmax) | 8.7 mm, 0.34″ |
| Mounting Depth | 5″, 12.7 cm |
| Port Diameter | 3″, 8 cm |
| Port Length | 6-1/2″, 17 cm |
| Recommended Ported Box Volume | 31.1 Liters, 1.09 Cu. Ft. |
| Recommended Sealed Enclosure Volume | 22.6 Liters, 0.8 Cu. Ft. |
| Total Speaker “Q” (Qts) | 0.72 |
| Woofer Dimensions | 10″ |
Materials
| Specification | Value |
|---|---|
| Basket Material | Metal |
| Center Cap Material | ABS |
| Cone Material | Carbon & Mica reinforced IMPP |
| Damper | Poly cotton/Aramid |
| Installation Ring | Polypropylene |
| Magnet Material | Ferrite |
| Magnet Weight | 46 oz |
| Surround Material | Rubber |
| Surround Type | Rolled |
| Voice Coil Bobbin | Aluminum |
| Voice Coil Type | Single 4-ohm |
| Voice Coil Wire | Copper |
| Wire Terminals | Push Type |
About The Product
10” Component Subwoofer – 1200 W Max Power (350 W Nominal), IMPP™ cone produces tight and accurate bass, Specially designed Voice coil offers higher power handling
A-Series Subwoofer
Upgrade to high performance with the Pioneer A-series sound design which acoustically matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.
Glass-fiber & Mica reinforced IMPP™
Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a speaker cone due to its low mass and high damping properties. PP cones offer good sensitivity and low distortion. However, basic raw polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers, using advanced Computer-Aided Manufacturing, developed a process to blend glass fibers and mica into the polypropylene resin during the injection molding process. The resulting reinforced IMPP™ cone is thinner and low mass with high rigidity and superior strength, producing natural, detailed sound with deep and powerful bass.
Deep Bass

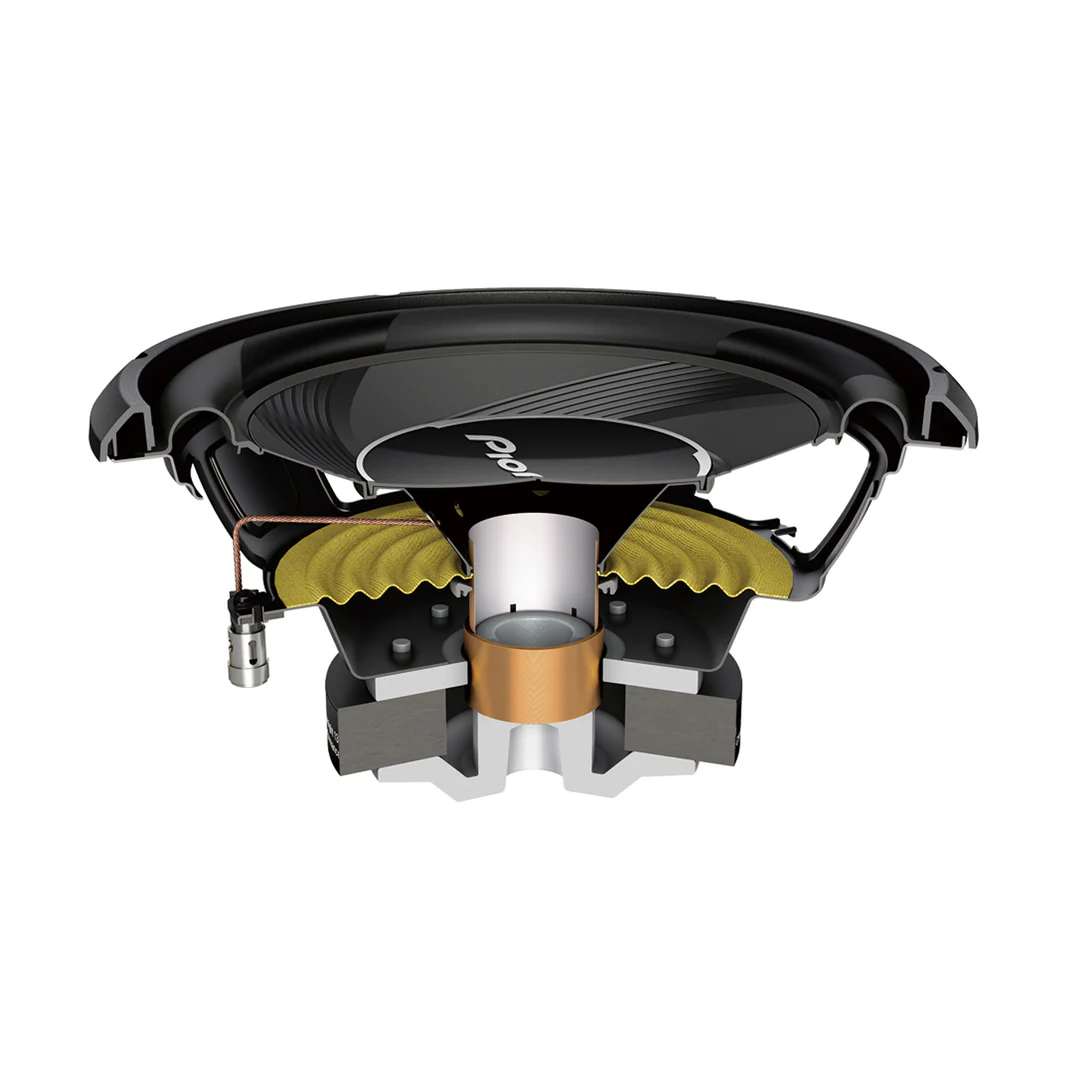

To achieve deep and tight bass, a rigid and lightweight cone is essential. However, without a proper motor structure, it’s useless if you’re looking for a good bass punch. This subwoofer uses a strontium magnet paired with a large copper voice coil and an aluminum voice-coil former for better bass control under high excursions. This also helps achieve better heat dissipation.
CarSoundfit
Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
