Description

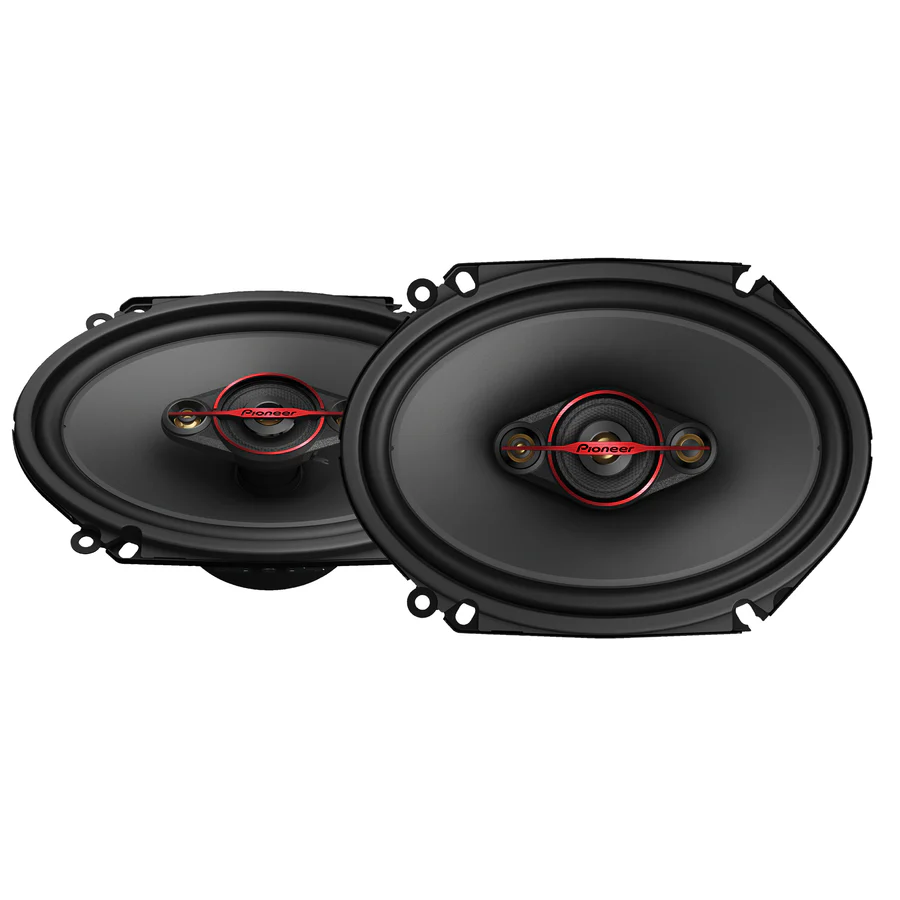

Pioneer TS-801M
The TS‑801M is a 6″ × 8″ 4‑way coaxial speaker from Pioneer, designed to deliver full‑range sound in a common vehicle mounting size. It features a carbon and mica reinforced IMPP™ woofer cone, a 1‑5/8″ cellulose fibre midrange, and both 11 mm tweeter and 11 mm super‑tweeter for extended treble clarity. The speaker is rated for up to 350 W peak power and about 80 W RMS continuous power.
PRODUCT PERFORMANCE
| Category | Specification |
|---|---|
| Continuous Power Handling (RMS) | 80 W |
| Frequency Response | 30 Hz – 32 kHz |
| Maximum Peak Power Handling | 350 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 90 dB (±1.5 dB) |
| System Type | 4-way coaxial, Twin Polyethylene terephthalate (PET) dome – Tweeter |
FEATURES
| Feature | Specification |
|---|---|
| Tweeter Dimensions | 0.43″, 0.43″ Super |
| Woofer Dimensions | 6″ x 8″ |
MATERIALS
| Material Component | Specification |
|---|---|
| Basket Material | Iron Plate Press |
| Cone Material | IMPP – Composite |
| Cone Material – Midrange | Cellulose Fiber |
| Diaphragm Material | Film (PET) |
| Magnet Material | Ferrite |
| Magnet Weight | 7.41 oz |
| Surround Material | Elastic Polymer |
About The Product
The TS-801M speaker boasts a maximum power output of 350 W and 80 W RMS per speaker, ensuring robust and clear sound. It features an 11 mm tweeter and an 11 mm super tweeter for crisp high frequencies, while the 1-5/8″ cellulose fiber cone midrange delivers rich mid-tones. The 6″ x 8″ carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction enhances durability and sound quality. Designed for easy installation, it fits both 6″ x 8″ and 5″ x 7″ applications seamlessly. The lightweight elastic polymer surround and heat-resistant voice coil further contribute to its reliability and performance.
A Series
The highly efficient design of the Pioneer A Series speakers intentionally matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics, with dynamic, high-impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response optimized for automotive applications, where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup enhances audio details and improves acoustic performance.
Open & Smooth
Pioneer’s OPEN & SMOOTH sound concept ensures a seamless and smooth transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response. This design is optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
