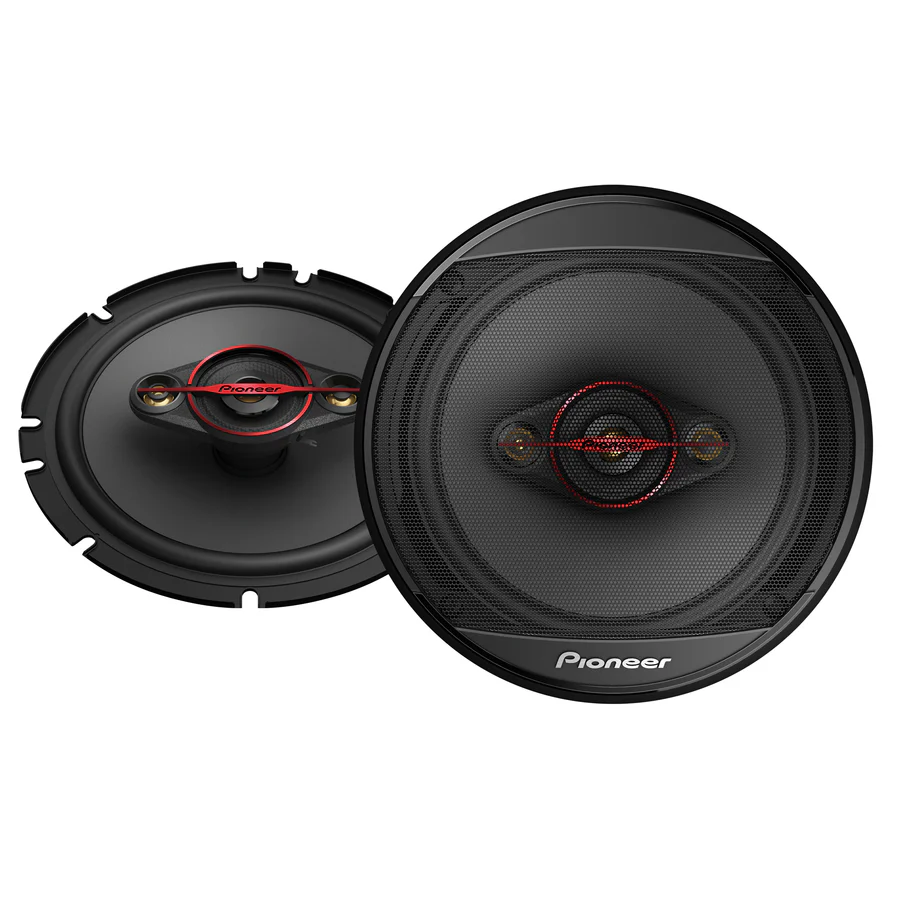

Pioneer TS‑601M
The Pioneer TS‑601M is a 6.5‑inch (≈16.5 cm) 4‑way coaxial speaker pair designed to deliver a fuller soundstage in vehicle doors with standard mounting sizes. With a maximum power handling of 320 W peak and 70 W RMS per speaker, it features dual 11 mm tweeter and super‑tweeter units, a 1‑5/8” midrange cone, and a 6.5” carbon & mica‑reinforced IMPP™ woofer cone for robust audio performance.
Specifications
PRODUCT PERFORMANCE
| Category | Specification |
|---|---|
| Continuous Power Handling (RMS) | 70 W |
| Frequency Response | 37 Hz – 31 kHz |
| Maximum Peak Power Handling | 320 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 91 dB (±1.5 dB) |
| System Type | 4-way coaxial, Twin Polyethylene terephthalate (PET) dome – Tweeter |
FEATURES
| Feature | Specification |
|---|---|
| Midrange Dimensions | 1.63″ |
| Speaker Grill | Included |
| Tweeter Dimensions | 0.43″, 0.43″ Super |
| Woofer Dimensions | 6.5″ |
MATERIALS
| Material Component | Specification |
|---|---|
| Basket Material | Iron Plate Press |
| Cone Material | IMPP – Composite |
| Cone Material – Midrange | Cellulose Fiber |
| Magnet Material | Ferrite |
| Magnet Weight | 7.41 oz |
| Surround Material | Elastic Polymer |
| Voice Coil Wire | Copper |
About The Product
The TS-601M speaker delivers powerful sound with a maximum output of 320 W and 70 W RMS per speaker. It features an 11 mm tweeter and super tweeter for clear high frequencies, and a 1-5/8″ cellulose fiber cone midrange for rich mid-tones. The 6-1/2″ carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone ensures durability and excellent sound quality. Installation is a breeze with multi-fit 6-1/2″ adapters and a protective mesh grille. The lightweight elastic polymer surround and heat-resistant voice coil enhance reliability. The box includes two speakers.
A Series
The highly efficient design of the Pioneer A Series speakers intentionally matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics, with dynamic, high-impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response optimized for automotive applications, where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup enhances audio details and improves acoustic performance.
Open & Smooth
Pioneer’s OPEN & SMOOTH sound concept ensures a seamless and smooth transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response. This design is optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
