Description

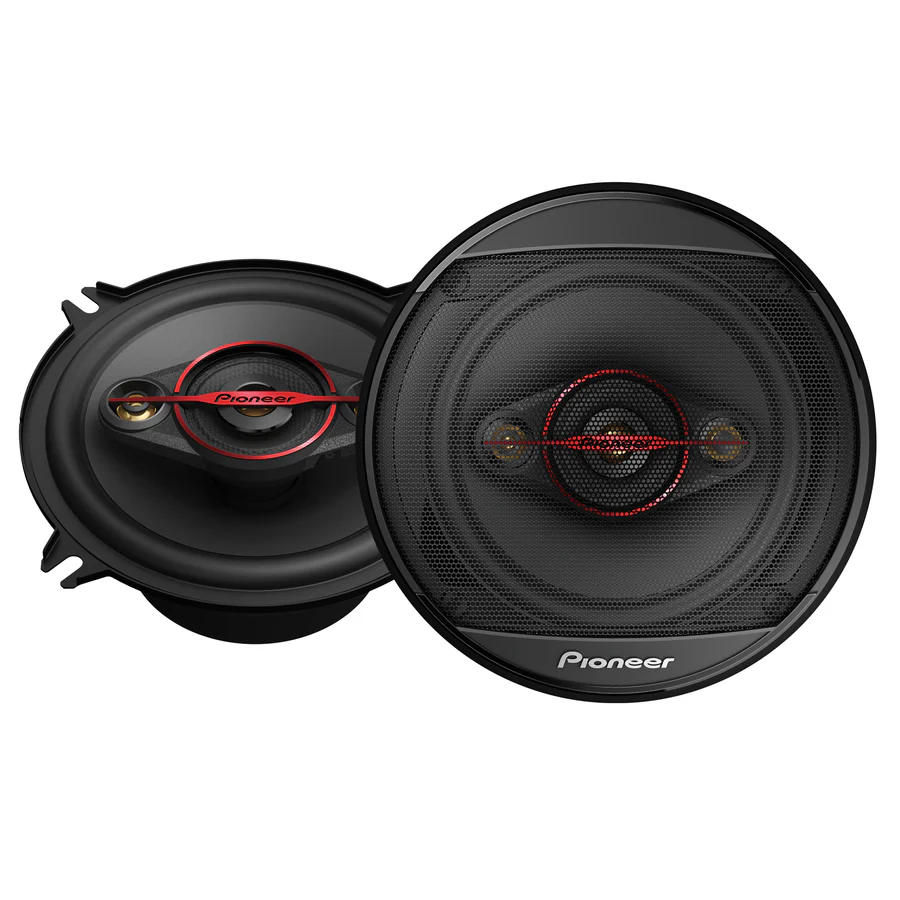

Pioneer TS-501M
The Pioneer TS-501M is a 5.25-inch (≈13.3 cm) 4-way coaxial speaker pair, designed for full-range car-audio upgrades even in modest mounting locations. It supports up to 300 W peak power with approximately 50 W RMS continuous power per speaker. It features an 11 mm tweeter plus 11 mm super-tweeter for clear highs, a 1-⅝″ (≈41 mm) midrange cone, and a carbon & mica-reinforced IMPP™ woofer for durability and clarity. With a 4-ohm impedance standard and efficient sensitivity (≈89 dB) it offers a strong upgrade path for vehicles where larger speakers won’t fit.
Specifications
PRODUCT PERFORMANCE
| Category | Specification |
|---|---|
| Continuous Power Handling (RMS) | 50 W |
| Frequency Response | 44 Hz – 52 kHz |
| Maximum Peak Power Handling | 300 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 89 dB (±1.5 dB) |
| System Type | 4-way coaxial, Twin Polyethylene terephthalate (PET) dome – Tweeter |
FEATURES
| Feature | Specification |
|---|---|
| Tweeter Dimensions | 0.43″, 0.43″ Super |
| Woofer Dimensions | 5.25″ |
MATERIALS
| Material Component | Specification |
|---|---|
| Basket Material | Iron Plate Press |
| Cone Material | IMPP – Composite |
| Cone Material – Midrange | Cellulose Fiber |
| Magnet Material | Ferrite |
| Magnet Weight | 7.41 oz |
| Surround Material | Elastic Polymer |
| Voice Coil Bobbin | Glass Imide |
| Voice Coil Wire | Copper |
About The Product
The TS-501M speaker offers a powerful audio experience with a maximum output of 300W and 50W RMS per speaker. It features an 11mm tweeter and super tweeter for clear high frequencies, and a 1-5/8″ cellulose fiber cone midrange for rich mid-tones. The 5-1/4″ carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone ensures durability and excellent sound quality. The included protective mesh grille adds a layer of protection and style, while the lightweight elastic polymer surround and heat-resistant voice coil enhance reliability. The box contains two speakers, providing a complete audio solution.
A Series
The highly efficient design of the Pioneer A Series speakers intentionally matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics, with dynamic, high-impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response optimized for automotive applications, where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup enhances audio details and improves acoustic performance.
Open & Smooth
Pioneer’s OPEN & SMOOTH sound concept ensures a seamless and smooth transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response. This design is optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
