Description

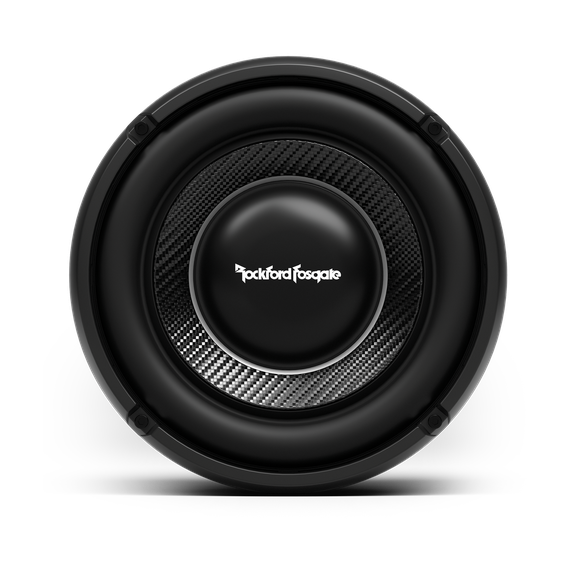

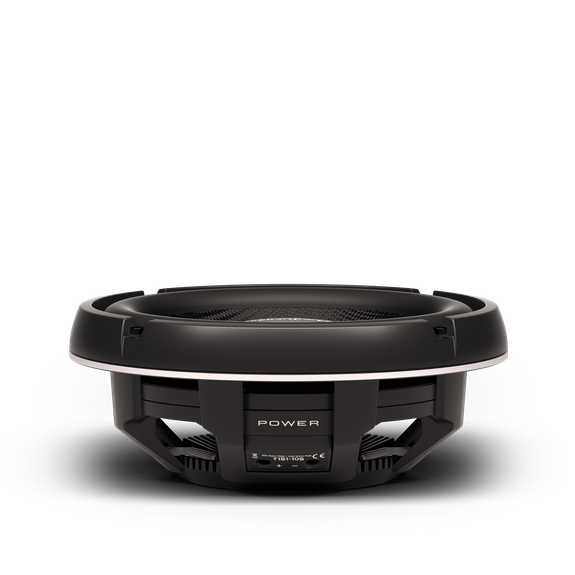

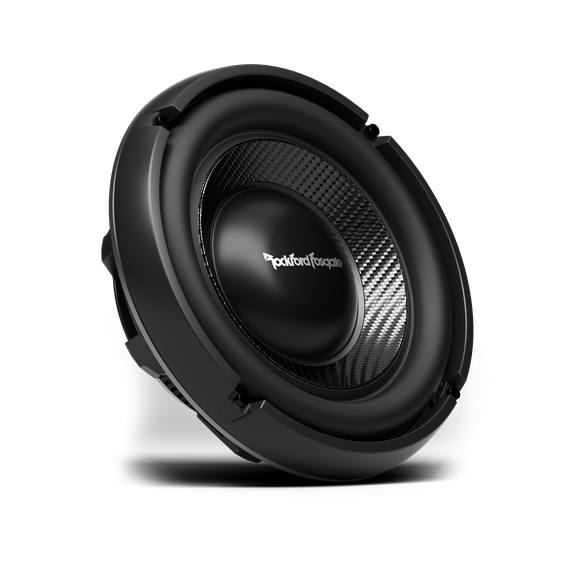

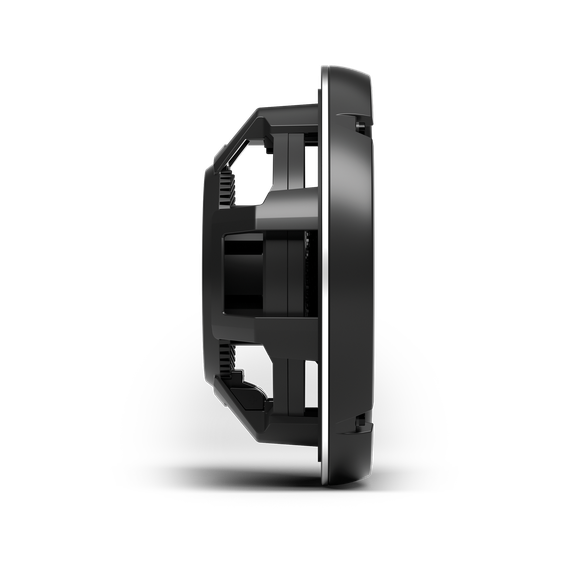

RockFord Fosgate T1S1-10S
The T1S1-10S is a 10-inch, shallow-mount subwoofer from Rockford Fosgate’s “T1 Slim” series — made especially for tight installations where standard subs won’t fit, while still delivering deep, powerful bass. It features a carbon fiber/PMI/glass fiber cone, a 2.5″ high-temp copper voice coil, and a durable polymer surround for reliable bass with minimal distortion.
Feature
| Feature | Details |
|---|---|
| Dual Nomex progressive spiders | With stitched tinsel leads |
| Cone Material | Linear Carbon Fiber / PMI / Glass Fiber cone with aluminum dustcap |
| Terminals | Custom 10 AWG slot-loaded brass push spring terminals with corrosion-resistant tin plating |
| Surround Material | Supercritical synthetic organic polymer surround |
| Trim Ring | Detachable die-cast aluminum trim ring |
| Frame | Die-cast aluminum frame with integrated heat-sink fins |
| Tinsel Leads | Symmetrical ultra-flexible braided flat tinsel leads, fatigue-resistant |
| Voice Coil | Dual-wound single 2.5″ pure copper voice coil with interior and exterior windings |
| Enclosure Optimization | Optimized for compact sealed enclosures |
| Warranty | 1 Year |
| Optional Accessories | Protective grille insert available |
| Construction | Co-molded surround and cone body chemically bonded for high durability |
| Motor Structure | High-temp, high-energy Neodymium motor structure |
Specifications
| Specification | Details |
|---|---|
| Size | 10″ |
| Sd | 356 cm² |
| Frequency Response | 26 – 250 Hz |
| Qms | 7.0 |
| Vas | 16.4 L |
| Re | 0.88 Ω |
| Fs | 34 Hz |
| Qts | 0.60 |
| Qes | 0.65 |
| Nominal Impedance | 1 Ω |
| Subwoofer Type | Shallow |
| Le | 0.45 mH |
