Description

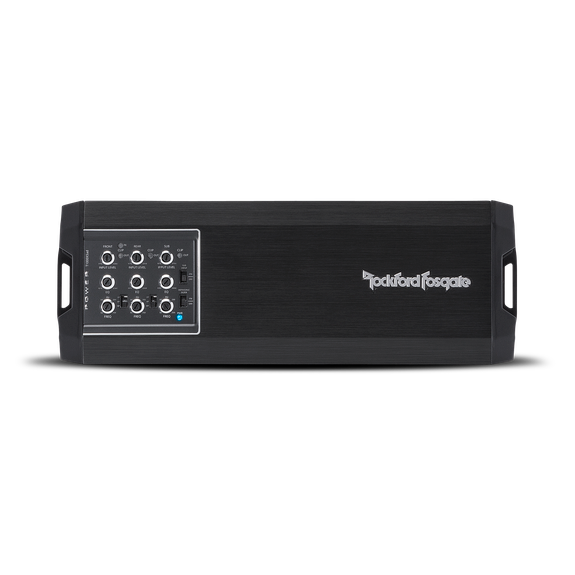

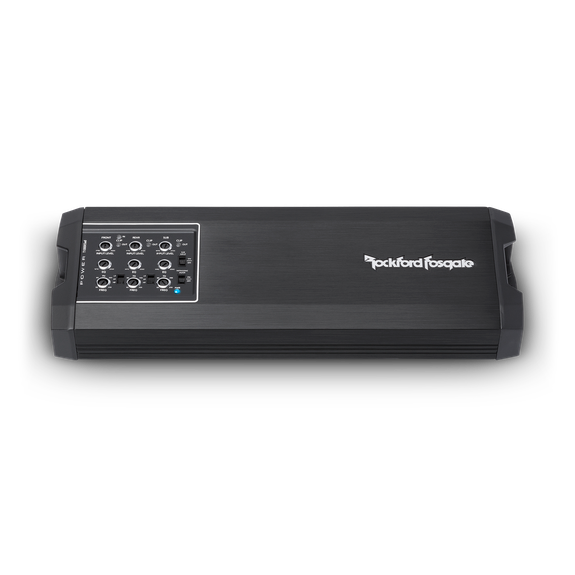

Rockford Fosgate Power T1000X5ad
The Rockford Fosgate T1000X5ad is a compact, high-performance 5-channel amplifier delivering 1000 watts RMS. It features Rockford’s proprietary Class-AD technology for the front and rear channels, and Class-BD for the subwoofer channel, ensuring superior audio quality and power efficiency. Designed for versatility, it offers 100W RMS per channel at 4Ω and 600W RMS for the subwoofer at 2Ω. The amplifier is equipped with dual fan cooling, real-time thermal sensing, and a C.L.E.A.N. input/output clip detection system, providing reliable performance in demanding conditions.
Features
| Feature | Details |
|---|---|
| RMS Power Output | 100 W × 4 @ 4 Ω |
| 600 W × 1 @ 2 Ω | |
| Amplifier Topology | Class-AD & Class-BD – Class A/B fidelity with Class D efficiency |
| Thermal Management | Dual fan cooling; real-time thermal sensing; Rollback technology |
| C.L.E.A.N. System | Input/output clip detection with indicator LEDs |
| Design / Installation | Compact – ideal for tight spaces (under seats, small vehicles) |
Specifications
| Specification | Details |
|---|---|
| Model | T1000X5ad |
| Channels | 5 (4 full-range + 1 subwoofer) |
| RMS Power Output | 100W x 4 @ 4Ω; 600W x 1 @ 2Ω |
| Frequency Response | 20Hz – 20kHz |
| Input Sensitivity | 150mV – 12V |
| Circuit Topology | Class-AD (front/rear); Class-BD (subwoofer) |
| Efficiency | >85% |
| Total Harmonic Distortion | <1.0% @ 4Ω; <1.0% @ 2Ω; <1.0% @ 1Ω |
| Tone Controls | Bass: 0 to +18 dB @ 45 Hz |
| Crossover Controls | Low-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth |
| Cooling | Dual Fan |
| Fuse Rating | 100A |
| Dimensions (L x W x H) | 12″ x 4.3″ x 1.6″ |
| Weight | 3.44 lbs (1.56 kg) |
