Description

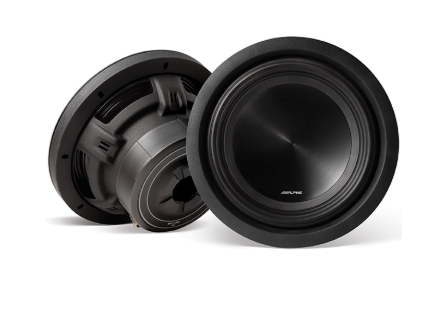

Alpine SWT-10S4
The Alpine SWT-10S4 is a 10-inch shallow mount subwoofer designed for truck and compact car installations. With a single 4-ohm voice coil, it offers 350W RMS and 1000W peak power handling. Its 11mm Xmax allows for deep bass output in limited spaces. The subwoofer features a Kevlar-reinforced pulp cone and foam surround for durability and sound clarity. Its shallow mounting depth of 4-3/16 inches makes it ideal for tight installations
Specifications
Features
| Component | Description |
|---|---|
| Diaphragm | Material: Poly-Mica Dust Cap & Pulp-Kevlar; Design: 2-Piece Shallow Cone Structure |
| Surround | Material: Polyurethane Foam Surround; Design: H.A.M.R. Surround Technology |
| Spider | Material: Conex® Spider with Reinforced Layer Tinsel Leads; Design: Progressive |
| Voice Coil | Material: Spiral Cut Aluminum Former; Design: 65 mm Voice Coil with High-Temp 4-Layer SVC Winding |
| Motor Structure | Pole Geometry: Compound Radius Curve; Configuration: Dual Flare Pole Vent with Airflow Back Plate |
| Frame | Material: High Strength Steel; Design: Perimeter Venting with Airflow Management System |
| Terminals | Layout: Push Terminals; Design: 8 AWG |
| Gasket | Design: Concealed Mount Gasket (Integrated Grille System Ready, US Pat #7,760,900) |
Tech Specs
| Specification | Value |
|---|---|
| CEA-2031 Power Rating | 350 W |
| Power Range | 100 W – 350 W |
| RMS Power Handling | 350 W |
| Peak Power Handling | 1000 W |
| Mounting Depth | 105.5 mm (4‑3/16″) |
| Mounting Diameter | 227 mm (8‑15/16″) |
| Displacement | -0.02 cu. ft. |
| Added Volume | +0.03 cu. ft. |
| Frequency Response | 30 Hz – 200 Hz |
About The Product
Shallow Mounting Depth
The SWT 10” Truck Subwoofer has been engineered to offer more installation flexibility without sacrificing big output, making it ideal for building the perfect sound system for your truck. At just 4-1/8” deep, these subs deliver deep bass performance in areas where a traditional subwoofer wouldn’t fit. The vented pole, optimized for a 4-1/8” deep box, ensures the ideal enclosure size, allowing great bass performance to fit virtually anywhere in your truck.
4 Unique Alpine Technologies
Alpine integrates four cutting-edge technologies to maximize performance in a compact package. The Radial Vented VC Heat Sink & Airflow Management System actively cools the voice coil for consistent power handling. The FEA Optimized Dual-Sided Machined CRC Motor Structure creates a symmetrical magnetic field, reducing distortion and improving output. The FEA Optimized Injection Molded TPE Spider with Pass-Through Gap Design provides mechanical clearance for over 50mm of peak-to-peak excursion, unlocking massive output potential. Finally, the FEA Optimized HAMR Surround (High-Amplitude Multi Roll) allows extreme excursions without sacrificing cone area, ensuring linear, distortion-free control at high output levels.
