Description

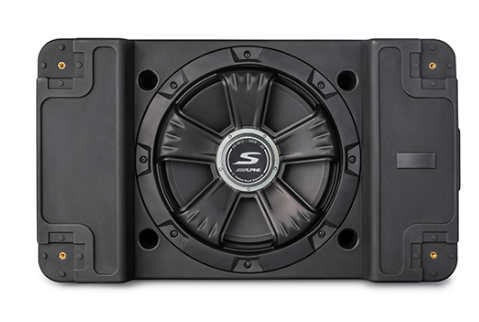

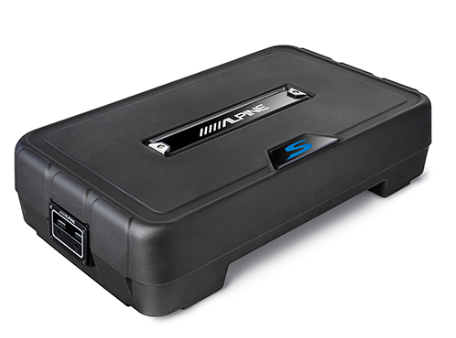

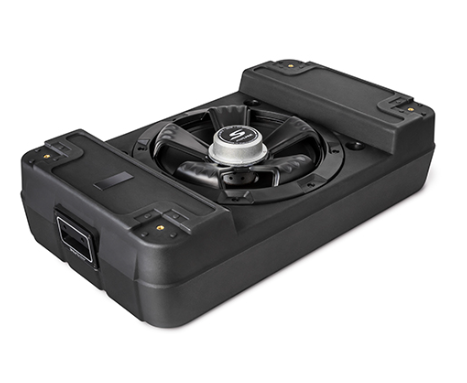

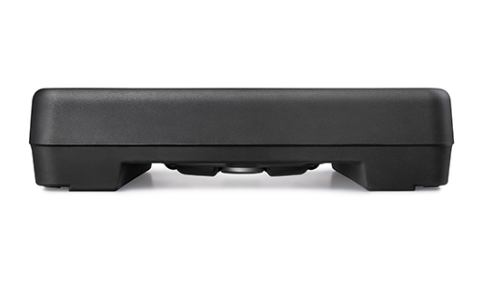

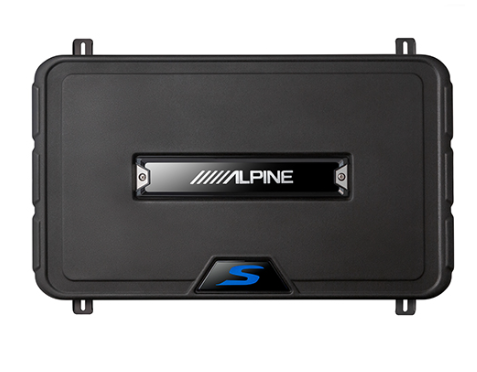

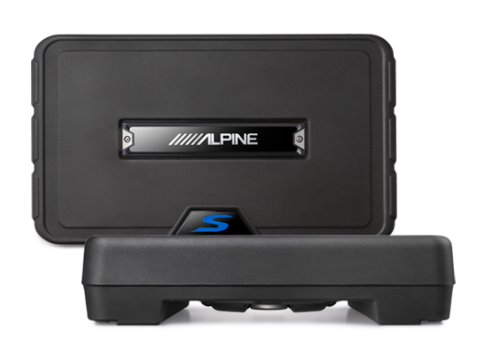

Alpine SS-SB12
The Alpine SS-SB12 is a 12-inch powered subwoofer designed to deliver deep, punchy bass in compact vehicle spaces. It features a built-in Class D amplifier with 300W RMS power, ensuring clean, distortion-free low-frequency output. The subwoofer comes in a ported enclosure optimized for maximum bass response and includes adjustable low-pass filter and phase control for seamless integration with your car audio system. Its compact design allows installation under seats or in tight areas without sacrificing audio quality.
Specifications
FEATURES
| Feature |
Details |
| Subwoofer |
Preloaded 12” S-Shallow Subwoofer |
| Enclosure |
Optimal sealed cabinet quality, rugged polymer construction |
| Magnet |
Neodymium, front-mounted |
| Motor |
Alpine Gen2 DD Linear Magnetic Circuit |
| Mounting |
Adjustable, foam-padded brackets for flexible installation and reduced vibration |
| Compatibility |
Works with S2-A55V, KTA-200M, or KTA-30MW amplifiers |
TECH SPECS
| Spec |
Details |
| Dimensions |
22.25” W x 5.25” H x 13.125” D |
| Power Handling |
300W RMS |
| Frequency Response |
30Hz – 200Hz |
| X-Max |
11mm (1-Way Linear) |
| Nominal Impedance |
2Ω |
| Voice Coil |
Copper, 2” (50.0 mm), single 2Ω coil for 2Ω load |
About The Product
Designed for Tight Spaces
Now you don’t have to choose between bass and space! Alpine’s 12” S-Series Shallow Preloaded Subwoofer Enclosure measures at a minimal 5.25” deep to deliver clean and reliable bass performance in most vehicle applications.
Powerful Performance
The SS-SB12 features a 2” voice coil inside a lightweight yet powerful neodymium magnet for up to 300W RMS of power handling. This, combined with a front-mounted magnet motor, allows the enclosure to have an extremely shallow footprint while maintaining powerful bass performance.
