Description

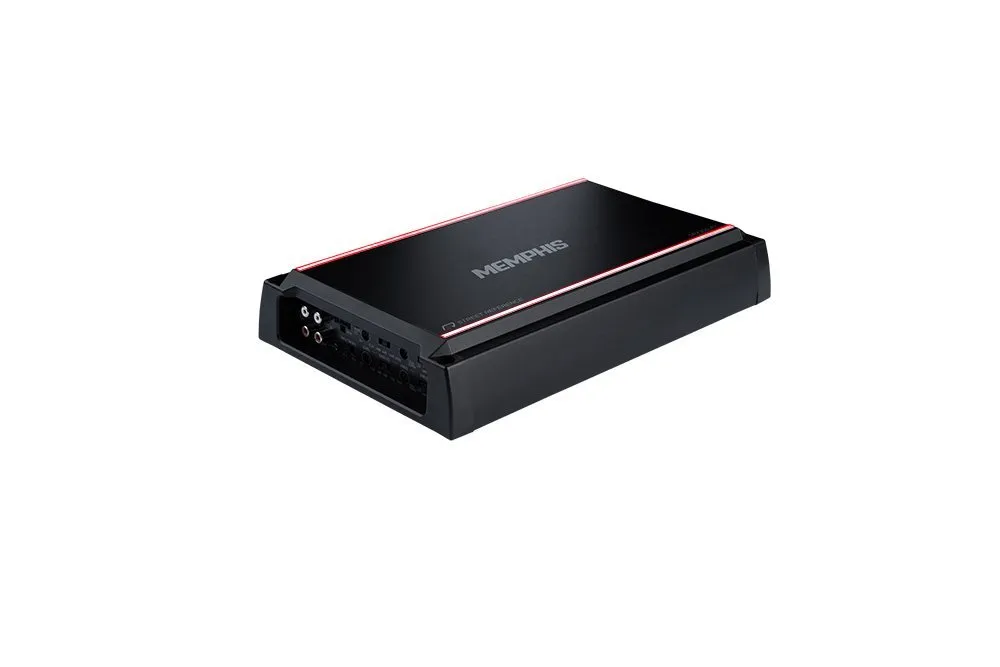

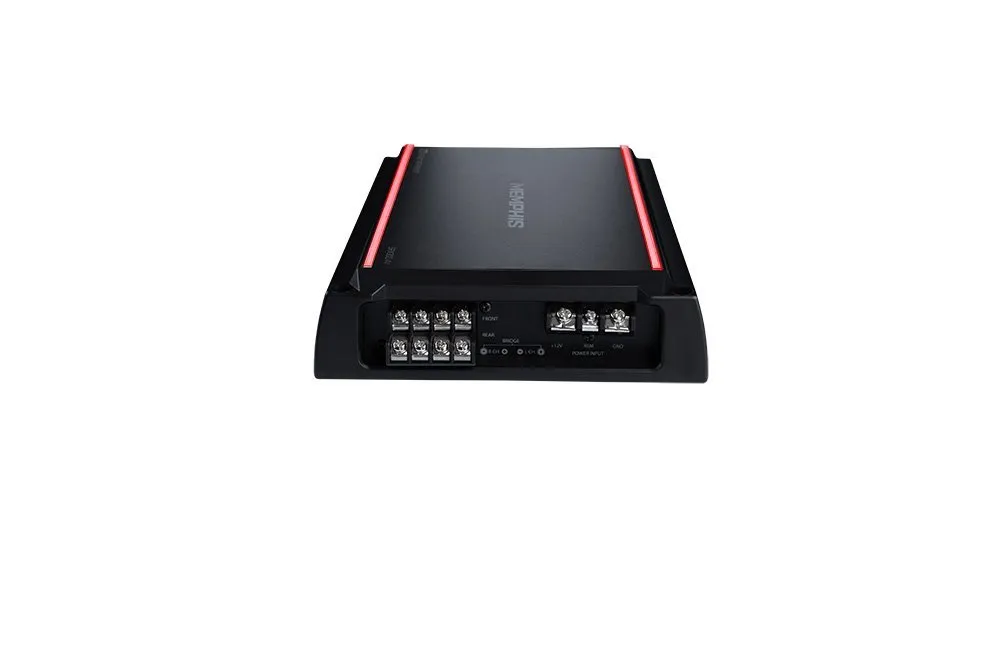

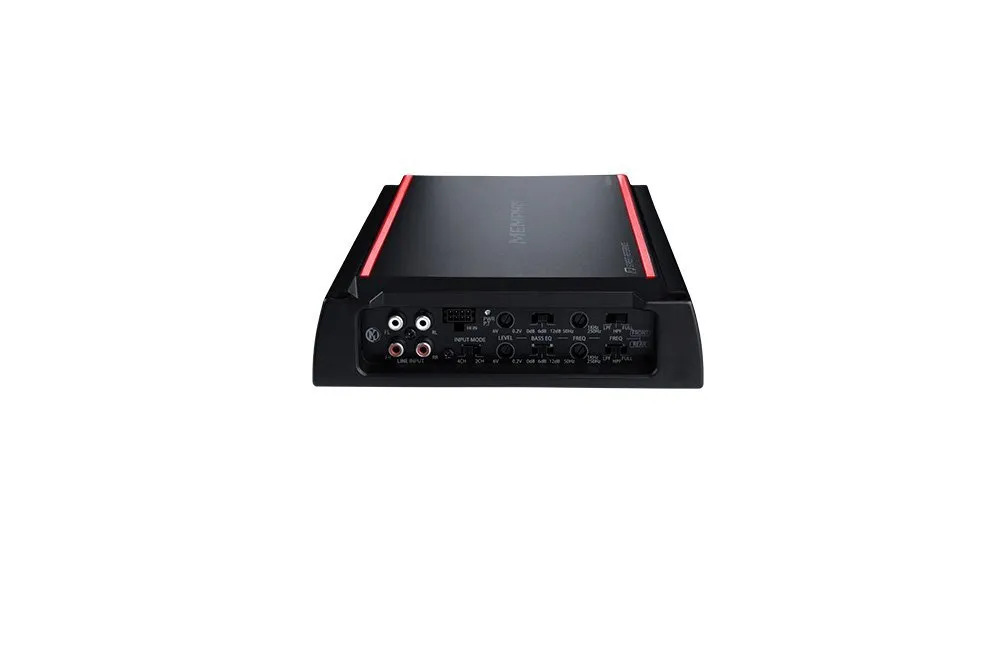

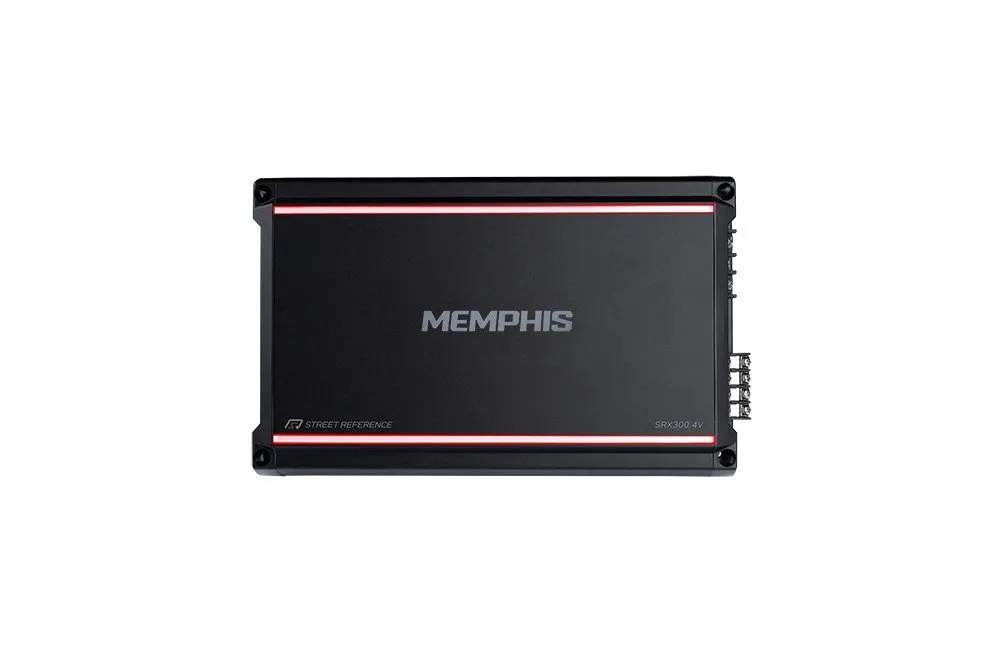

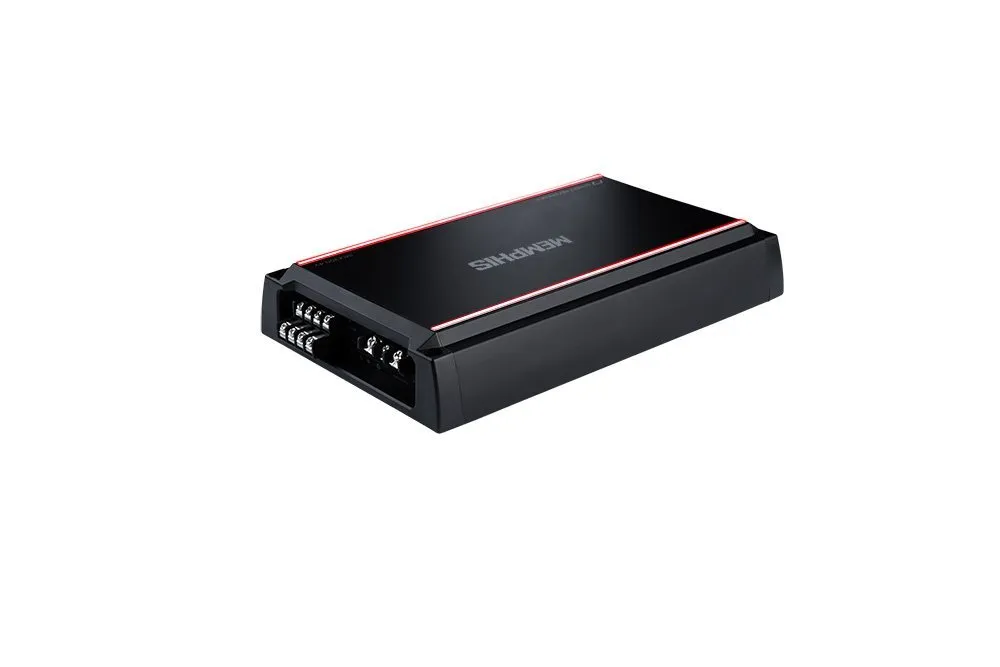

Memphis SRX300.4
The Memphis SRX300.4 is a premium 4-channel Class AB amplifier from the Street Reference Series, engineered to deliver clean and reliable power for your car audio system. With a total RMS output of 300 watts, it provides stable performance at both 4Ω and 2Ω speaker loads and can be bridged to power subwoofers. Its compact yet durable design features high- and low-level inputs, variable crossovers, and built-in protection circuitry against thermal, overload, and short-circuit conditions. Ideal for powering a full-range speaker system, the SRX300.4 ensures clear, distortion-free audio with a rugged aluminum chassis built for long-lasting performance.
Features
| Feature | Specification |
|---|---|
| Series | Street Reference |
| Subwoofer Size | 10″ |
| Impedance | 4 Ohm Single Voice Coil |
| Power Handling (Peak) | 600 watts |
| Power Handling (RMS) | 300 watts |
| Cone Material | Polypropylene Cone |
| Surround | Rubber Surround |
| Spider | Progressive poly cotton spider |
| Enclosure Compatibility | Optimized for sealed and ported enclosures |
| Terminals | 12 AWG compression terminals |
| Voice Coil | High Temperature Aluminum |
| Sensitivity | 84 dB |
| Recommended Sealed Box Volume | 0.75 cubic feet |
| Recommended Ported Box Volume | 2.0 cubic feet |
| Top-Mount Depth | 4.55″ |
| Cutout Diameter | 9.15″ |
| Authorized Dealer | Yes |
| Warranty | 1-year Manufacturer’s Warranty |
Specification
| Category | Specifications / Details |
|---|---|
| RMS Power 4Ω | 50W × 4 |
| RMS Power 2Ω | 75W × 4 |
| Bridged/Mono @ 4Ω | 150W × 2 |
| THD (4Ω) | <1% |
| Frequency Response | 10Hz – 24kHz |
| Dimensions (L x W x H) | 12.5 × 7.87 × 2.16 inches |
| Recommended Amp Kit | 8GKIT |
