Description
Memphis SRX1244V

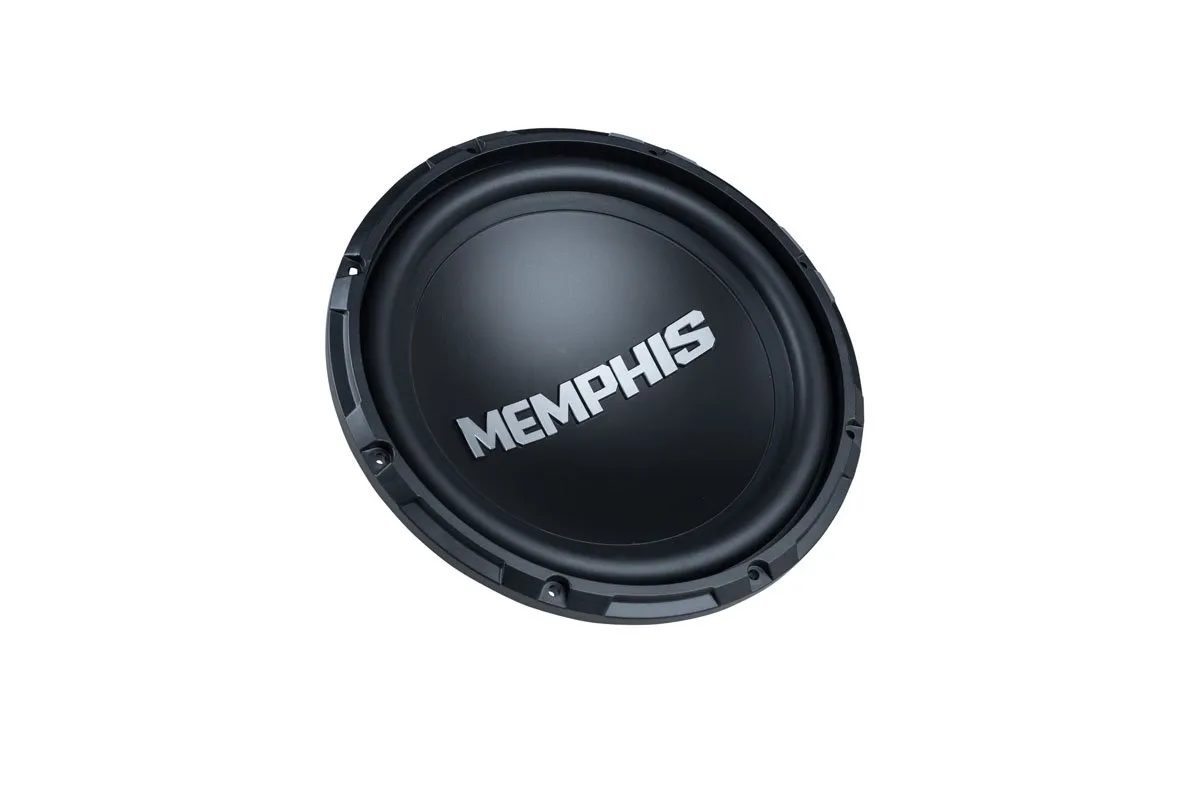

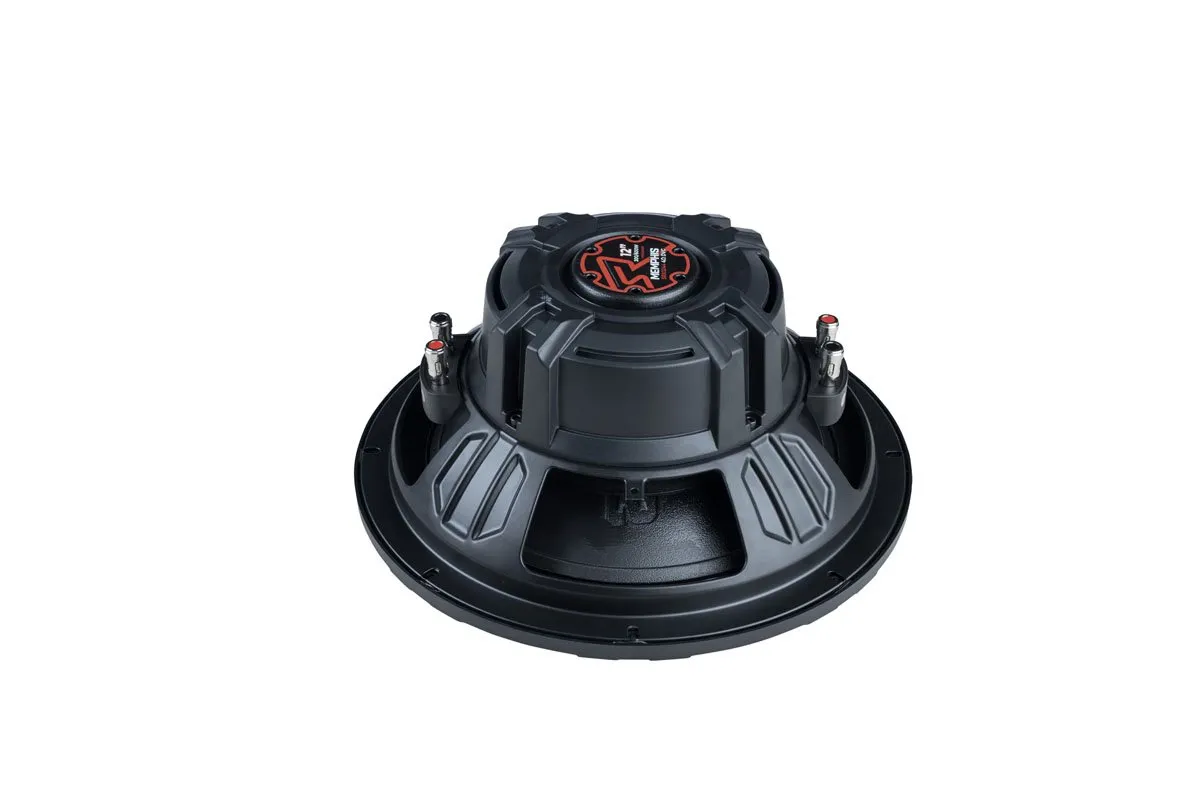

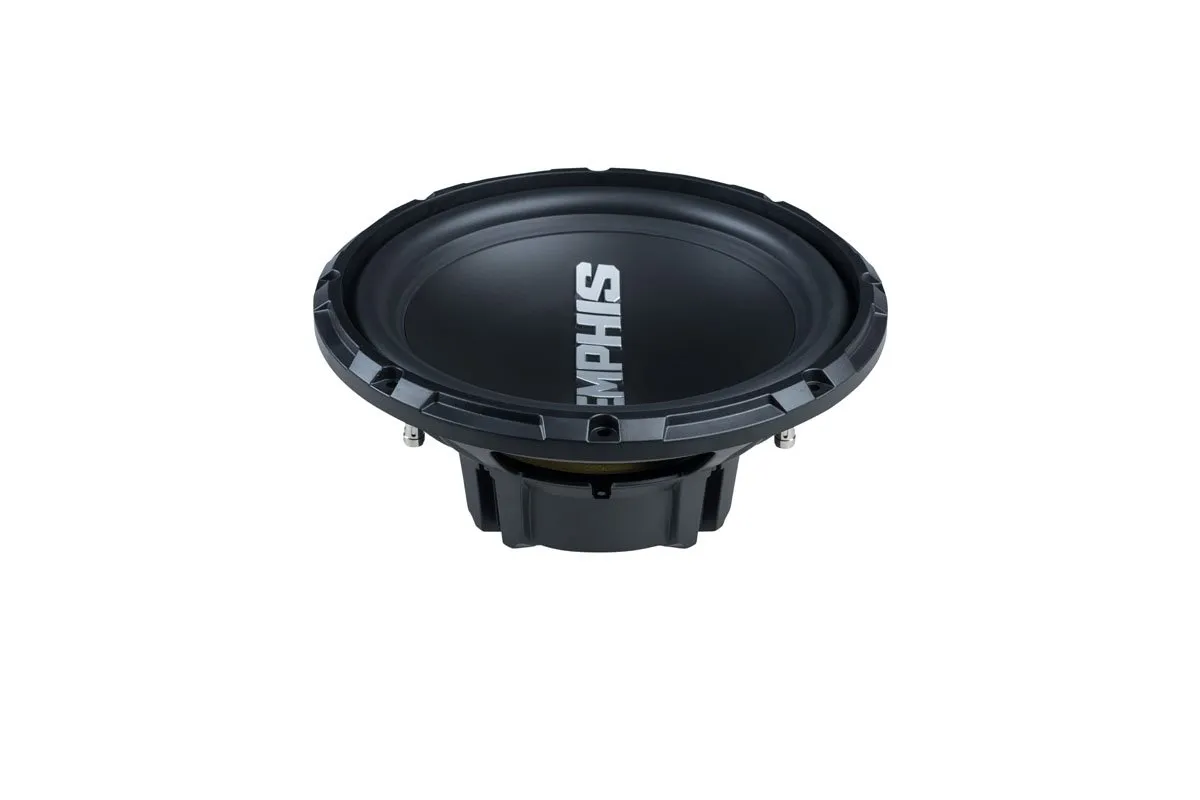

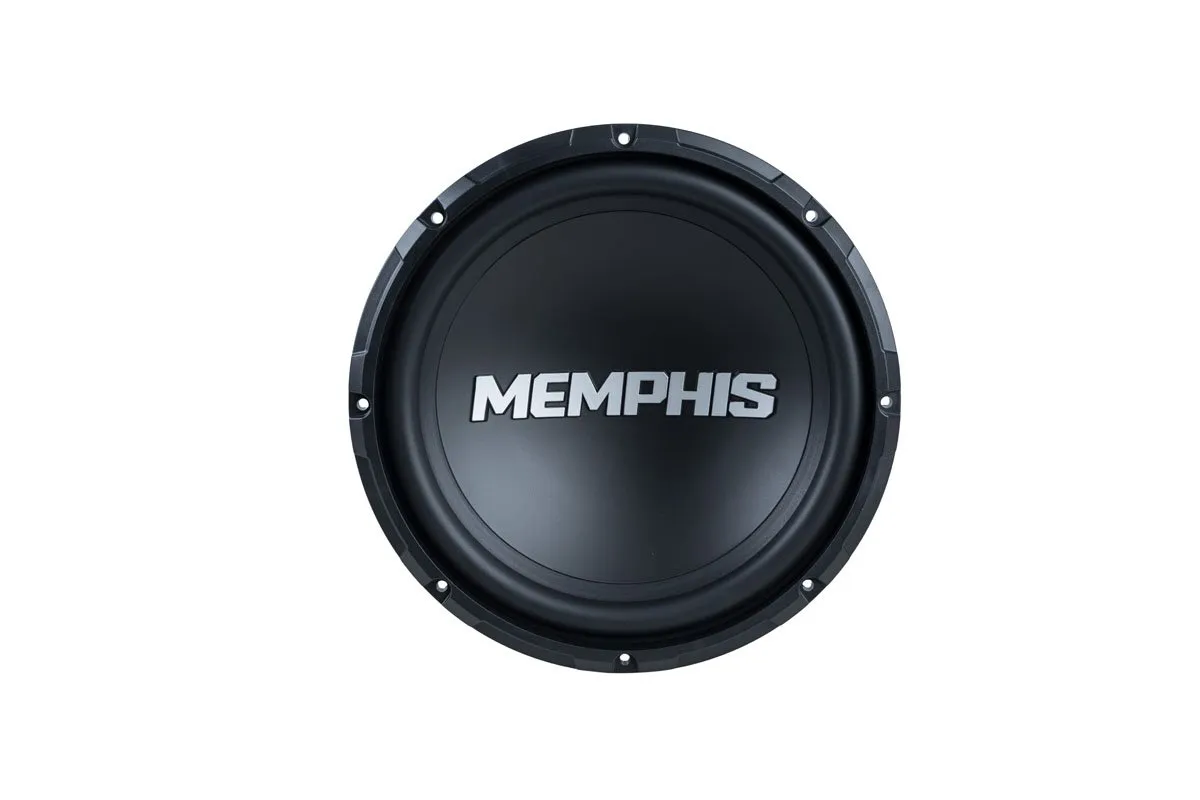

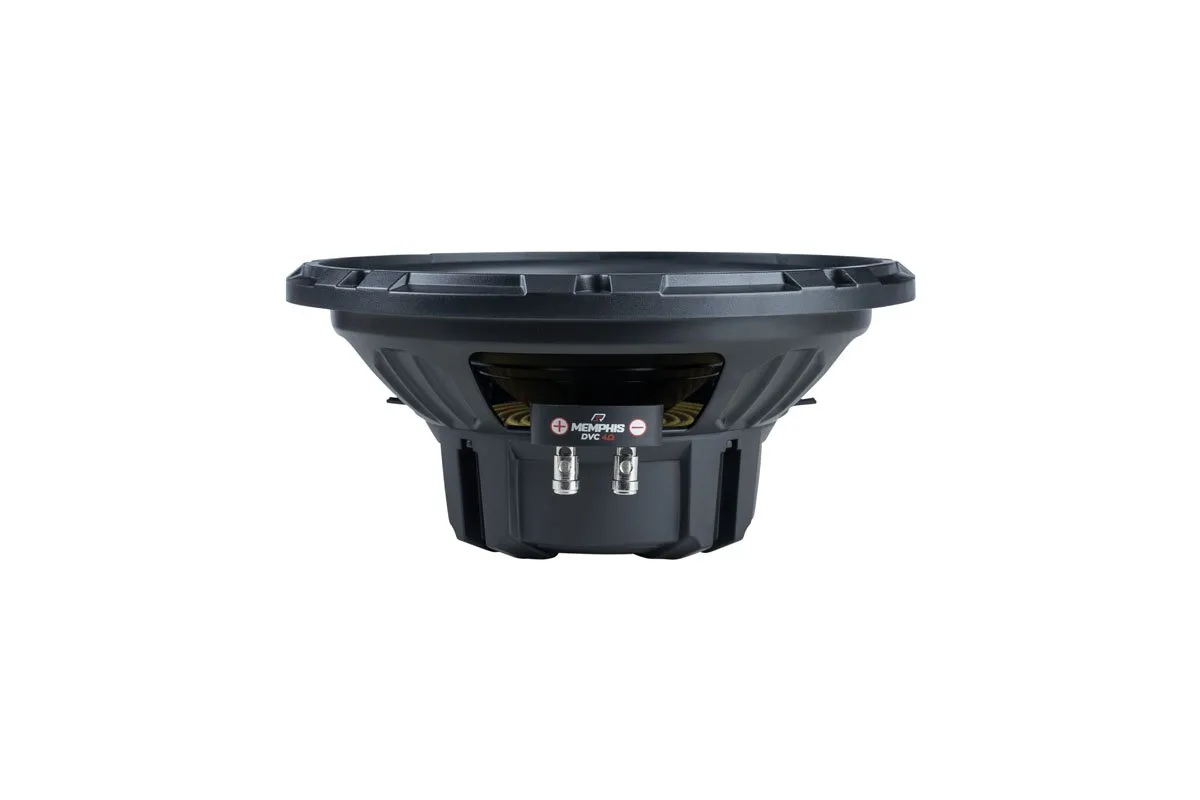

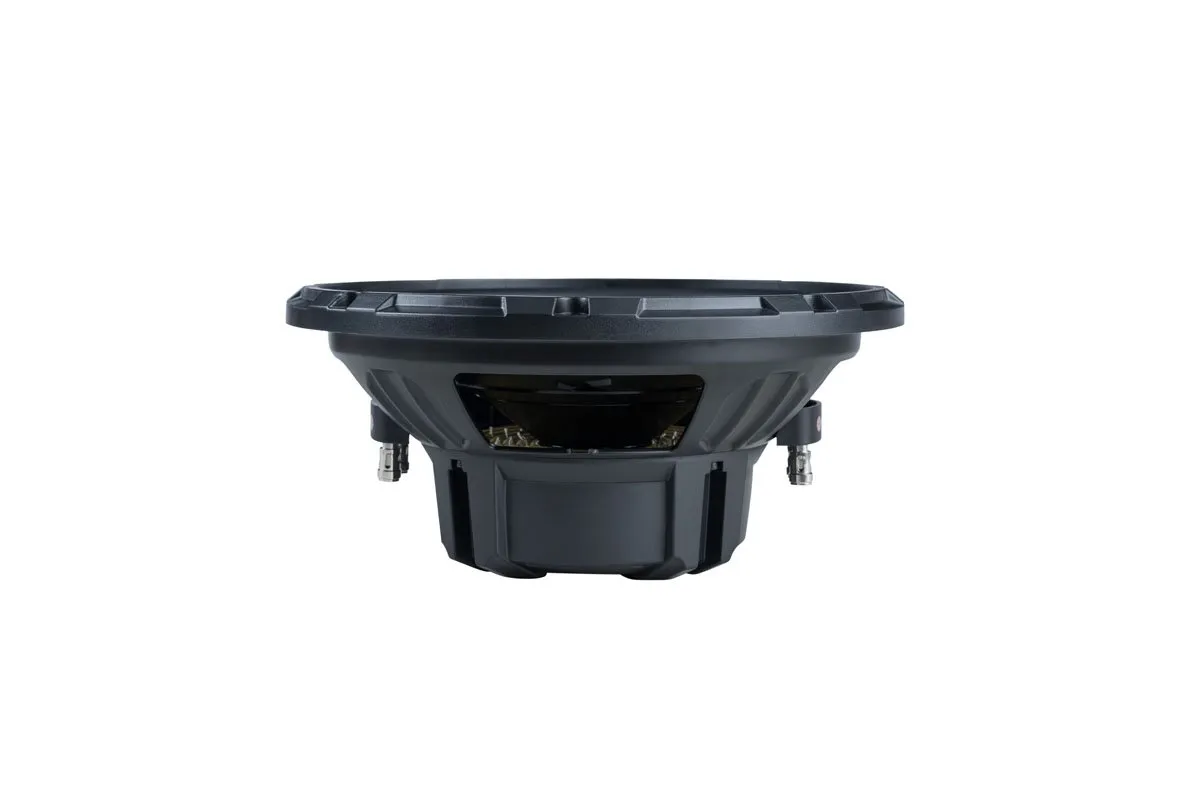

The SRX1244V is a 12″ subwoofer from Memphis Audio’s “Street Reference” series. It has dual 4‑Ω voice coils, giving you flexible wiring options (you can wire it to 2 Ω or 8 Ω). Built with a rugged polypropylene cone, rubber surround, and a progressive poly-cotton spider, it delivers reliable low-frequency performance. It also includes DVVC (Direct Vent Voice‑Coil Cooling) for thermal management under power. The SRX1244V handles 300 W RMS and peaks at 600 W, making it a solid choice for both sealed and ported enclosures.
Feature
| Specification | Details |
|---|---|
| Cone & Surround | Polypropylene cone & rubber surround |
| Suspension | Progressive poly-cotton spider |
| Enclosure Compatibility | Optimized for both sealed and ported enclosures |
| Voice Coil Former | Anodized aluminum |
| Terminals | 12 AWG compression terminals |
| Impedance | 4Ω |
Specifications
| Specification | Details |
|---|---|
| Model | SRX1244V |
| Impedance | Dual Voice Coil 4Ω |
| Size (in) | 12 |
| RMS / Peak Power | 300 / 600 |
| Sensitivity (dB) | 85.5 |
| Mounting Depth (in) | 4.92 |
| Cut Out Diameter (in) | 11.06 |
| Voice Coil | Dual |
