Description

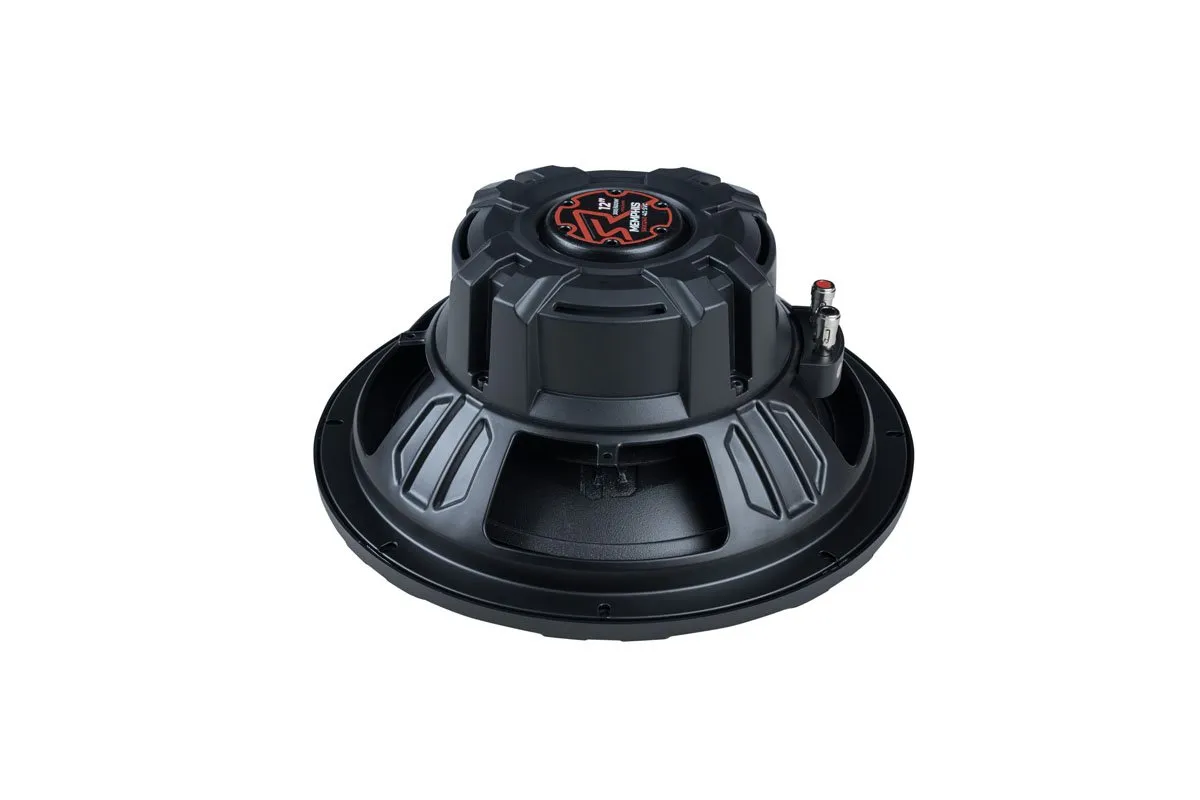

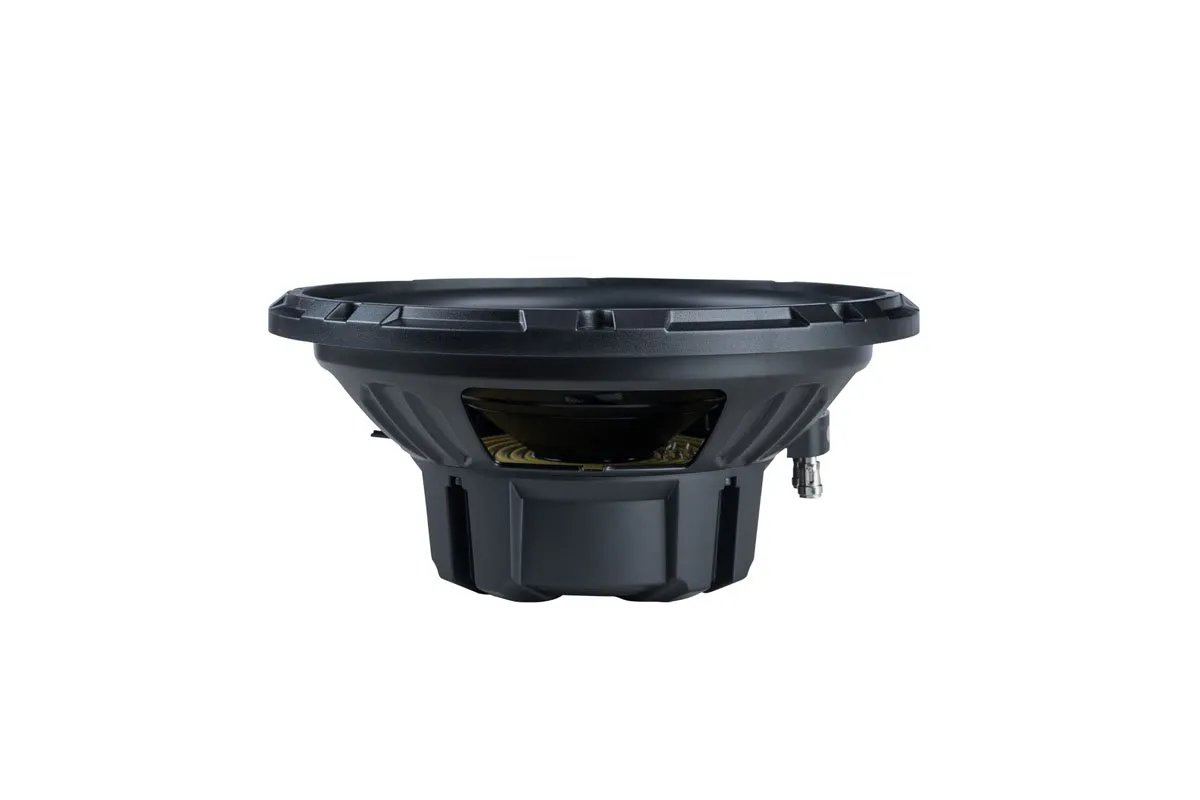

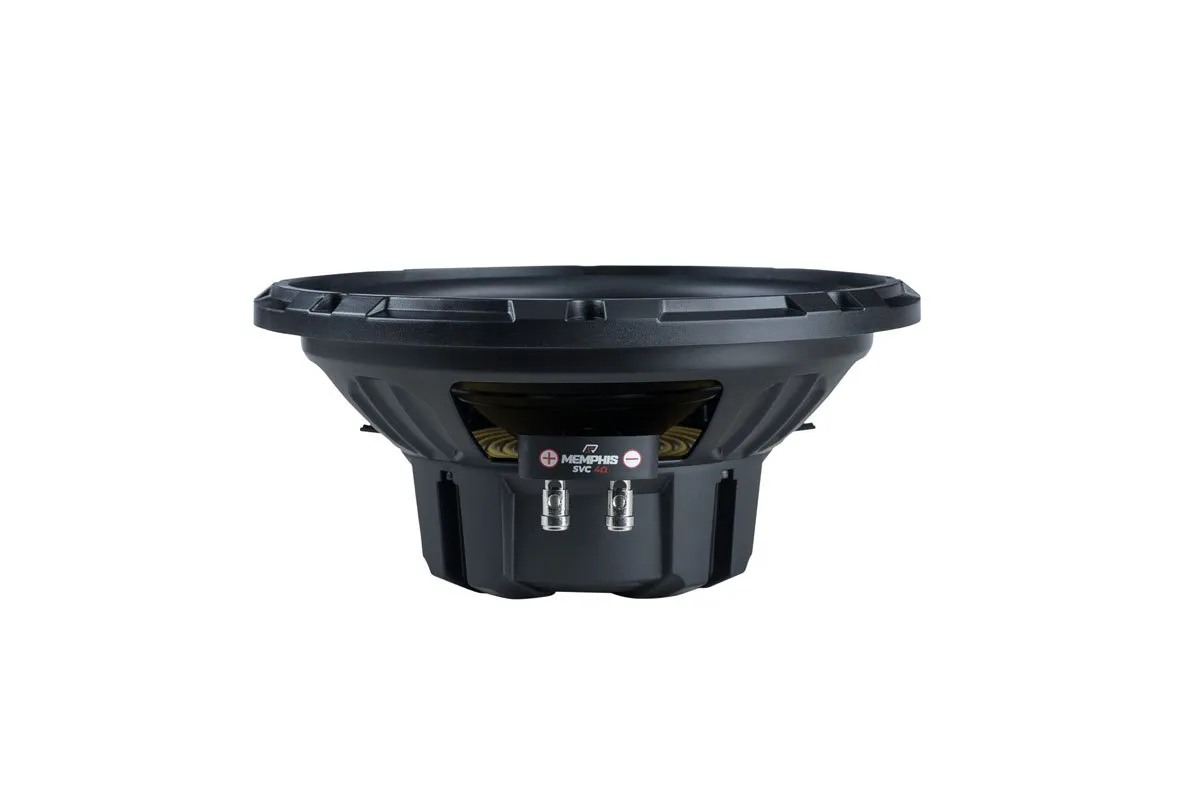

Memphis SRX1240V
The SRX1240V is a 12″ subwoofer from Memphis Audio’s Street Reference (“SRX”) series. It has a rugged polypropylene cone and a progressive poly-cotton spider for controlled movement. Designed for both sealed and ported enclosures, it features DVVC (Direct‑Vent Voice‑Coil Cooling) to manage heat under load. The sub has a single 4 Ω voice coil and 12 AWG compression terminals for reliable wiring. Rated at 300 W RMS / 600 W peak, it’s a strong, budget‑friendly choice for solid bass performance.
Feature
| Specification | Details |
|---|---|
| Cone & Surround | Polypropylene cone & rubber surround |
| Suspension | Progressive poly-cotton spider |
| Enclosure Compatibility | Optimized for both sealed and ported enclosures |
| Voice Coil Former | Anodized aluminum |
| Terminals | 12 AWG compression terminals |
| Impedance | 4Ω |
Specifications
| Specification | Details |
|---|---|
| Model | SRX1240V |
| Impedance | Single Voice Coil 4Ω |
| Size (in) | 12 |
| RMS / Peak Power | 300 / 600 |
| Sensitivity (dB) | 85.5 |
| Magnet Size (Oz) | 30 |
| Mounting Depth (in) | 4.92 |
| Cut Out Diameter (in) | 11.06 |
| Voice Coil | Single |
