Description

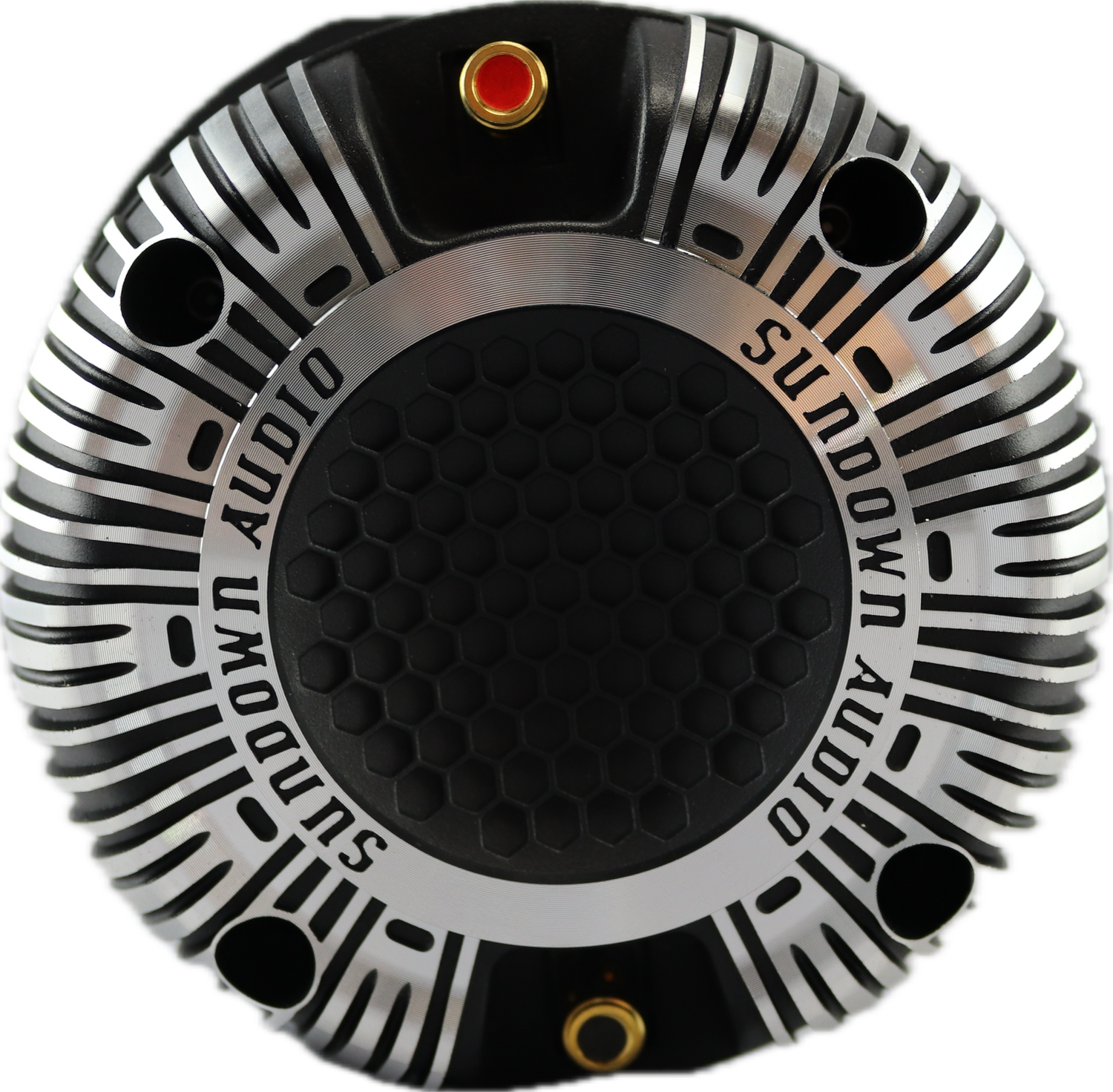

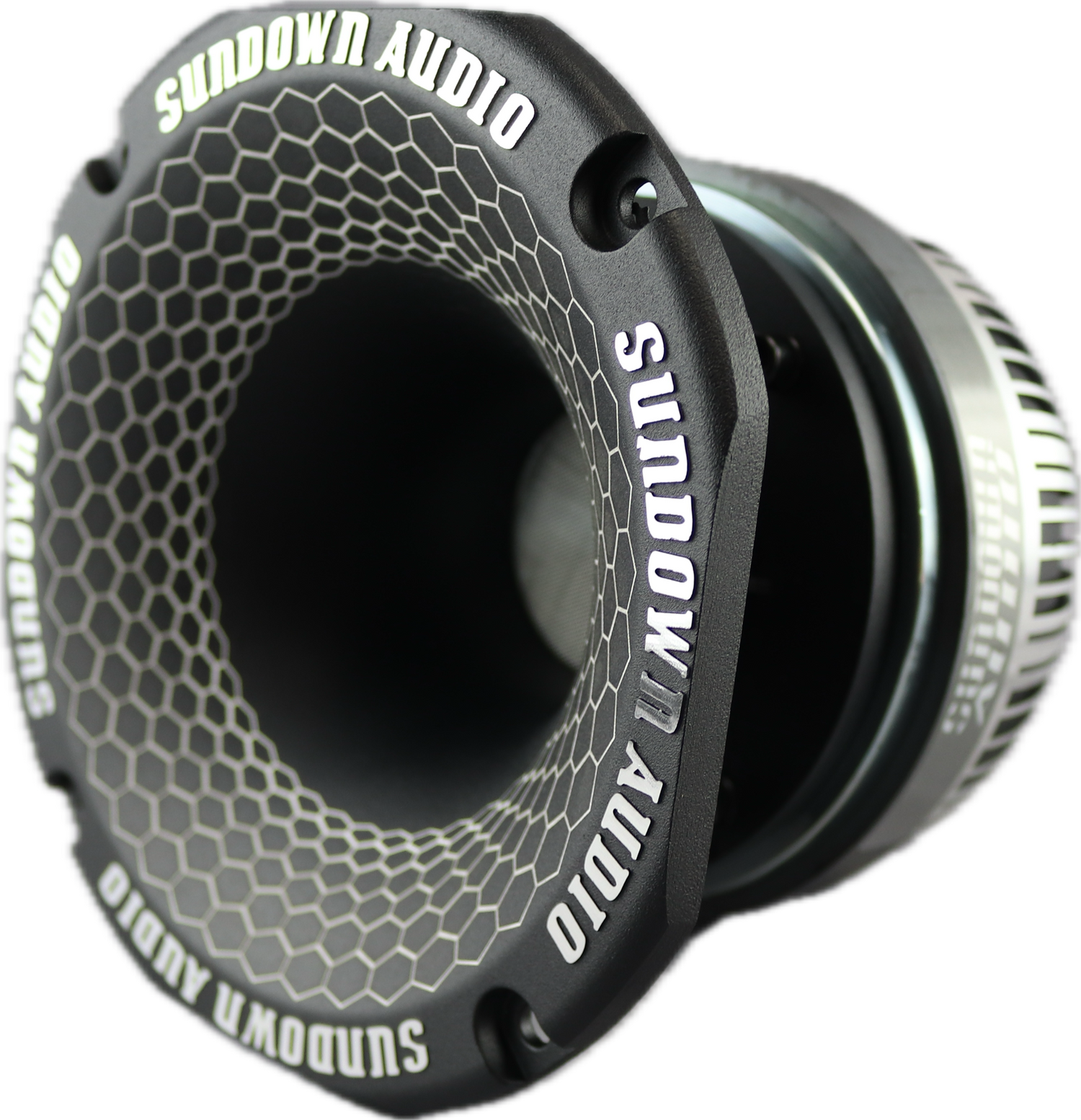

Sundown Audio SHFST
The Sundown Audio SHFST is a 2‑inch throat super horn driver with a ferrite magnet, engineered for high‑output mid‑to‑high frequency projection in car audio and PA systems. Built with a titanium diaphragm, die‑cast aluminum horn and cover, and a robust CCAW voice coil on a Kapton former, it delivers crisp, detailed sound from approximately 1,000 Hz to 20,000 Hz. With 80 W RMS (160 W program) power handling, 4 ohm impedance, and high sensitivity (~115 dB), the SHFST provides excellent efficiency and sonic clarity with minimal amplifier power. Its compact design and rugged construction make it ideal for custom installations in doors, pillars, or dedicated horn positions where enhanced mid‑high frequency output and efficient sound dispersion are desired.
Key Features:
- Efficient Power Handling: Rated at 80W RMS and 160W program power, this driver offers a balance of power and performance for demanding setups.
- Wide Frequency Range: Covers frequencies from 1,000Hz to 20,000Hz, ensuring crisp and detailed sound.
- High Sensitivity: A sensitivity of 115 dB (1W/1m @ Hz) delivers excellent output with minimal power consumption.
Durable Construction:
- Diaphragm Material: Titanium diaphragm for reliable performance and precise audio reproduction.
- Voice Coil Design: 2-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former provides thermal stability and durability.
- Robust Build: Die-cast aluminum cover and horn for lightweight strength and effective sound dispersion.
- Magnet: Strontium ferrite magnet ensures high magnetic flux and long-lasting reliability.
Specifications:
- Exit Throat Diameter: 2 inches
- Impedance: 4 Ohms
- Cutout Size: 5.5 inches
- Mounting Depth: 5.15 inches
- Driver Size: 5.28 x 2.5 inches
- Product Dimensions: 6.75 x 6.75 x 5.5 inches (L x W x H)
Additional Details:
- Voice Coil Winding Depth: 2 mm
- Gap Height: 2.5 mm
- Materials: Titanium diaphragm, Kapton former, and die-cast aluminum components provide durability and optimized performance.
