Description

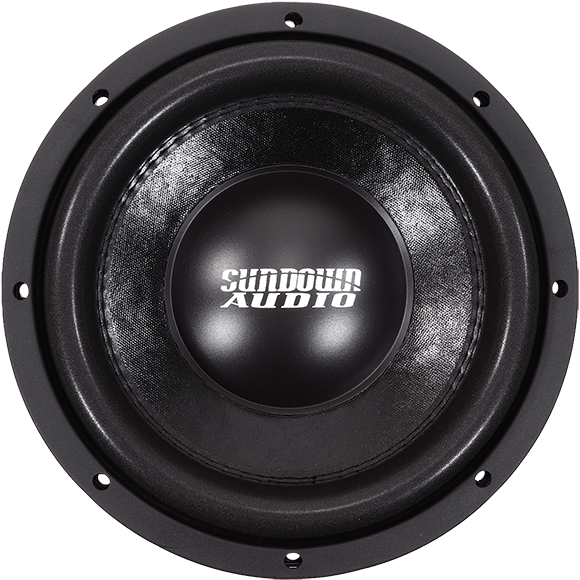

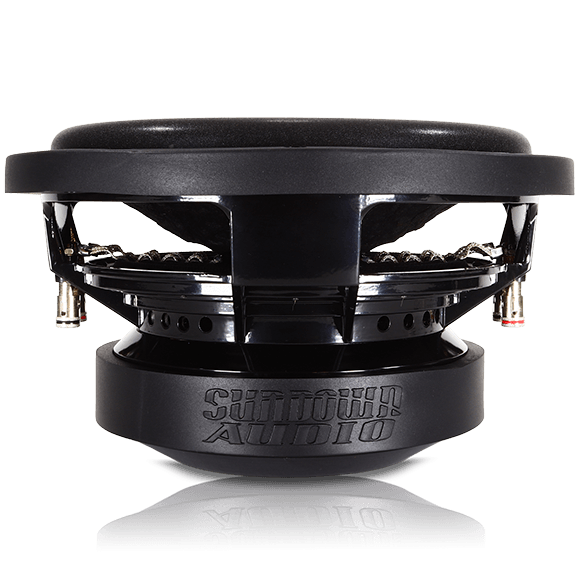

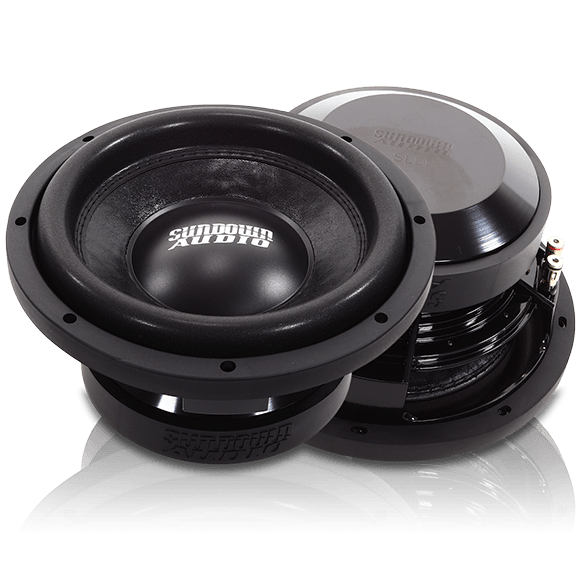

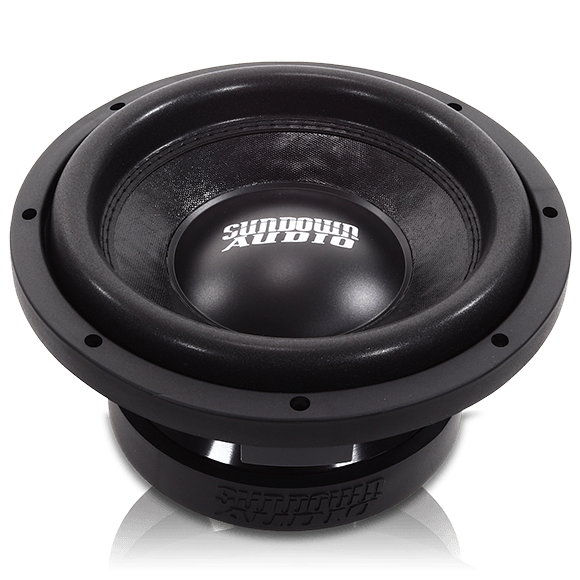

Sundown Audio SD-2 10 D4
The Sundown Audio SD-2 10 D4 is a 10-inch subwoofer designed to deliver deep, clean, and high-output bass for car audio enthusiasts. The dual 4-ohm voice coil (D4) configuration offers flexible wiring options (2 Ω or 8 Ω) to match a wide range of amplifiers. Engineered with a vented magnetic gap, vented pole piece, high-temperature copper voice coil, stitched “Mini-XL” tinsel leads, and a reinforced suspension system, the SD-2 10 D4 combines reliable performance with excellent thermal handling. Ideal for ported or sealed enclosures, it is perfect for under-seat, behind-seat, or custom stealth installations where strong, controlled low-end is required.
Specifications
| T/S Specs | |
|---|---|
|
RMS Power (D4)
|
|
|
RMS Power (D2)
|
|
|
Peak Power (D2)
|
|
|
Peak Power (D4)
|
|
|
RE D2 (Ohms)
|
|
|
RE D4 (Ohms)
|
|
|
FS D2 (Hz)
|
|
|
FS D4 (Hz)
|
|
|
VAS D2 (L)
|
|
|
VAS D4 (L)
|
|
|
Qes D2
|
|
|
Qes D4
|
|
|
Qms D2
|
|
|
Qms D4
|
|
|
Qts D2
|
|
|
Qts D4
|
|
|
BL D2 (NA)
|
|
|
BL D4 (NA)
|
|
|
Mms D2 (Grams)
|
|
|
Mms D4 (Grams)
|
|
|
Cms D2 (uM/N)
|
|
|
Cms D4 (uM/N)
|
|
|
Sens D2 (dB @ 1w/1m)
|
|
|
Sens D4 (dB @ 1w/1m)
|
|
|
Xmax D2
|
|
|
Xmax D4
|
|
| Subwoofer Measurements | |
|
Product Sku
|
SD-2 10 |
|
Displacement (Inches)
|
|
|
Depth (Inches)
|
|
|
Cutout (Inches)
|
|
|
Motor Diameter (Inches)
|
|
| Ported Enclosure Specs | |
|
Ported Enclosure Size
|
|
|
Recommended Port Area
|
|
|
Recommended Port Tuning
|
|
| Sealed Enclosure Specs | |
|
Sealed Enclosure Size
|
|
| 4th Order Enclosure Specs | |
|
4th Order Sealed Side
|
|
|
4th Order Ported Side
|
|
|
4th Order Port Area
|
|
|
4th Order Port Length
|
|
Specifications
| T/S SPECS | SLD 10″ D2 | SLD 10″ D4 |
|---|---|---|
| RE (Ohms) | 3.65 | 6.85 |
| FS (Hz) | 44.907 | 46.817 |
| VAS (L) | 14.630 | 12.091 |
| Qes | 0.452 | 0.547 |
| Qms | 2.212 | 2.246 |
| Qts | 0.376 | 0.440 |
| Le (mH) | ||
| BL (NA) | 18.247 | 24.492 |
| Mms (Grams) | 146.252 | 162.818 |
| Cms (uM/N) | 85.883 | 70.979 |
| Sens (dB @ 1w/1m) | 86.5 | 85.4 |
| Xmax | 12mm | 12mm |
Enclosure Specifications
| Sealed Enclosure | 0.5 cu ft |
| Ported Enclosure | 1.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 15 sq in |
| Displacement | |
| Depth | 4.9″ |
| Outside Diameter | 10.5″ |
| Cut-Out | 9.25″ |
About The Product

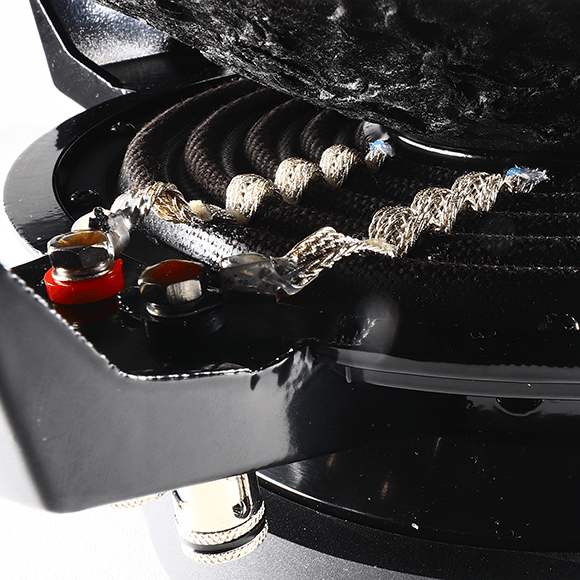

Sundown’s highest-power slim subwoofers, the SLD takes incredibly high volume by introducing numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate “slits” for better cooling and less distortion, and a magnet shorting ring. Sundown also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added “mini-XL” lead wires for years of flawless service.
