Description
Alpine S2-SB12

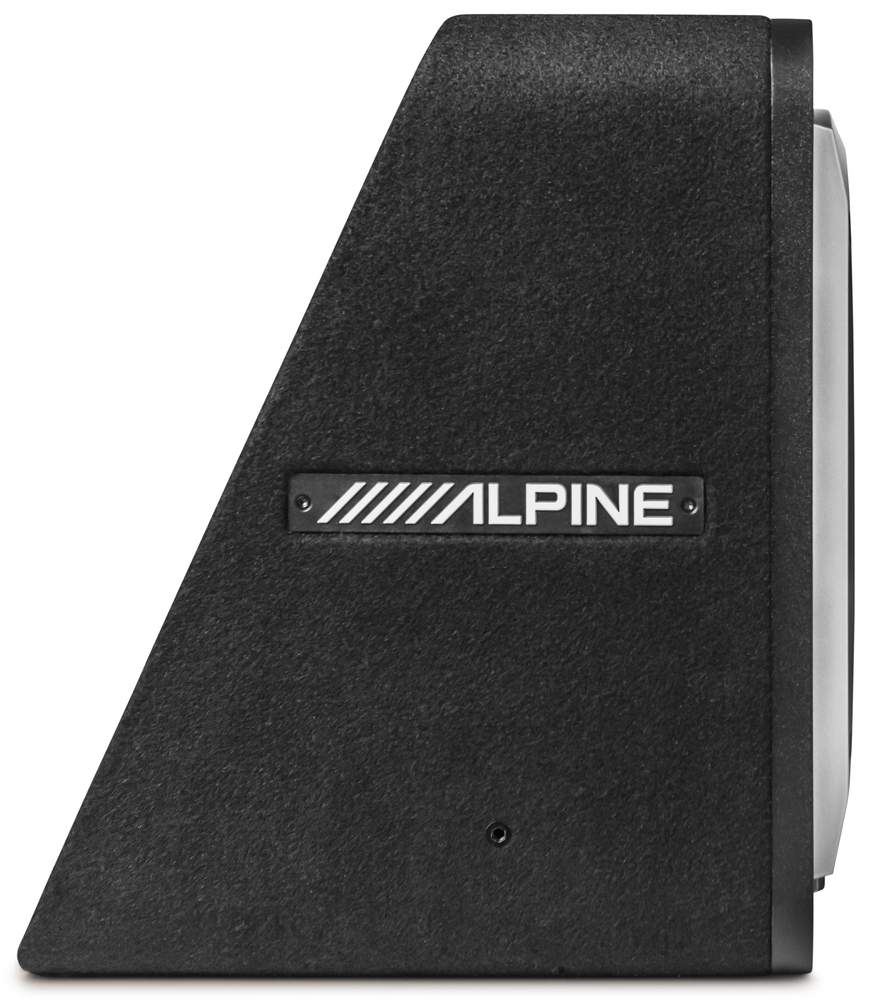

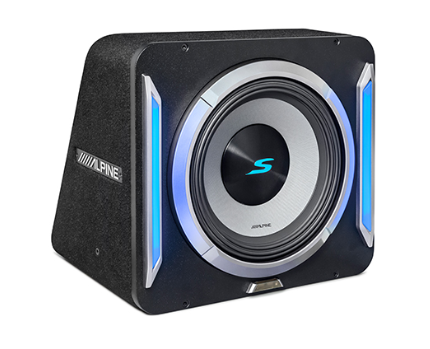

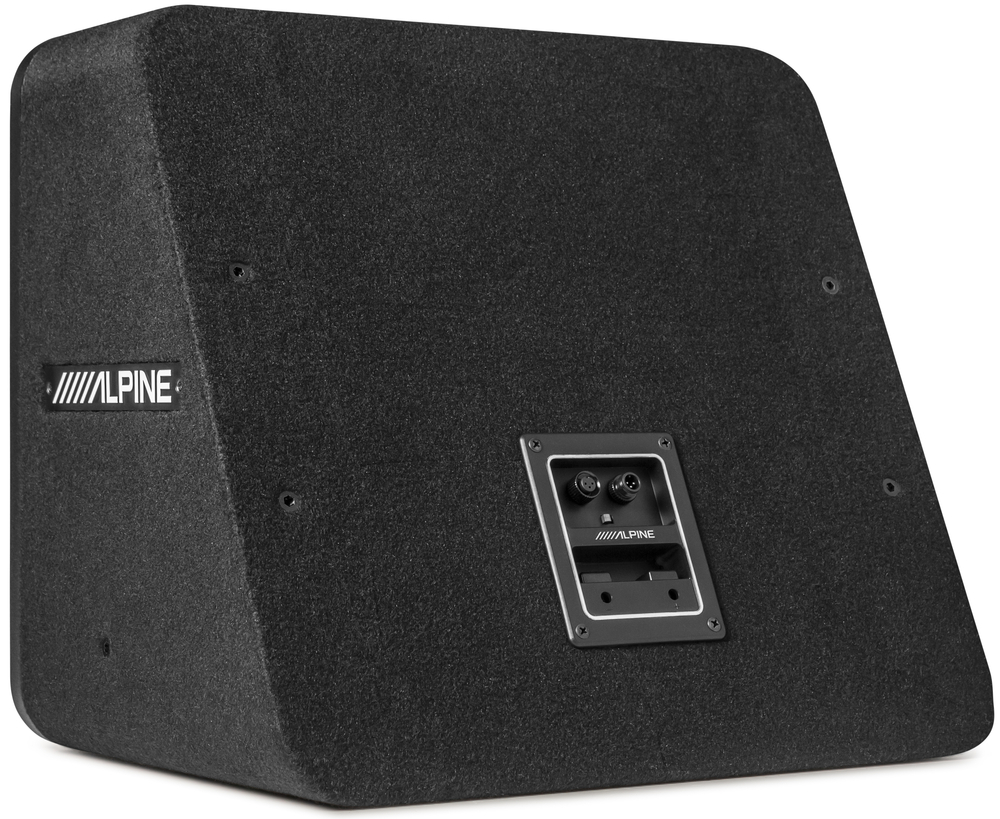

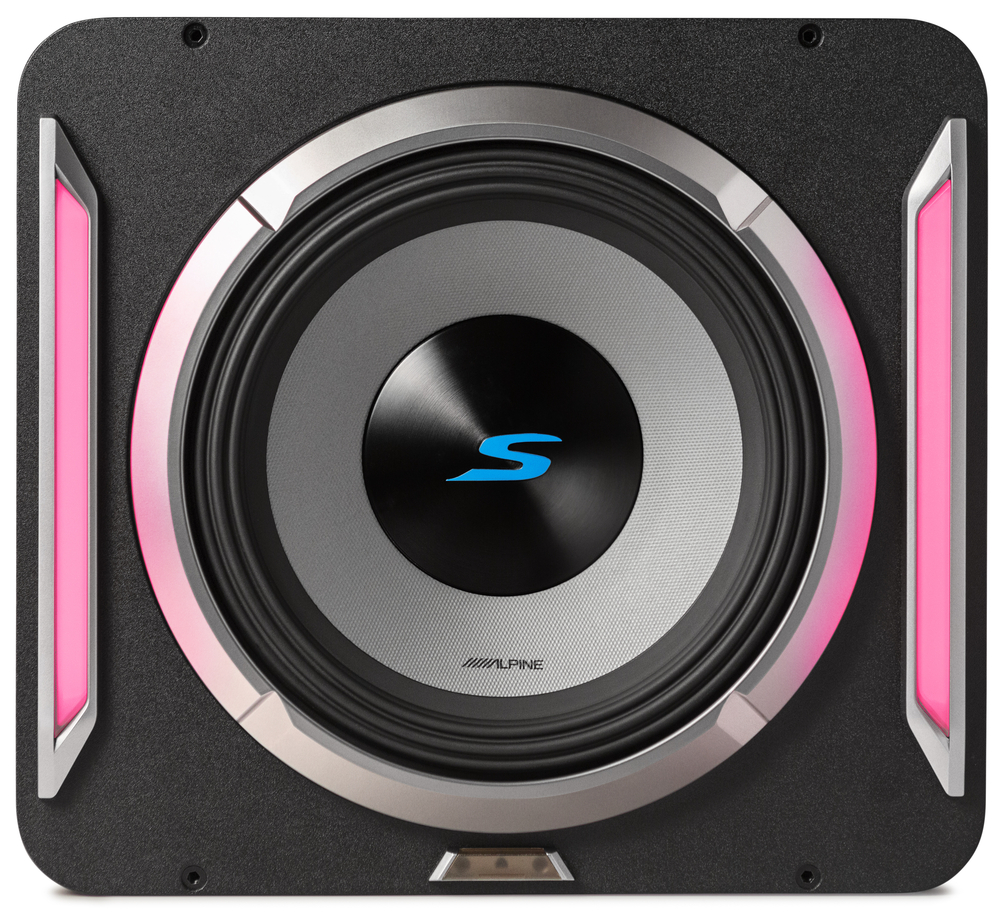

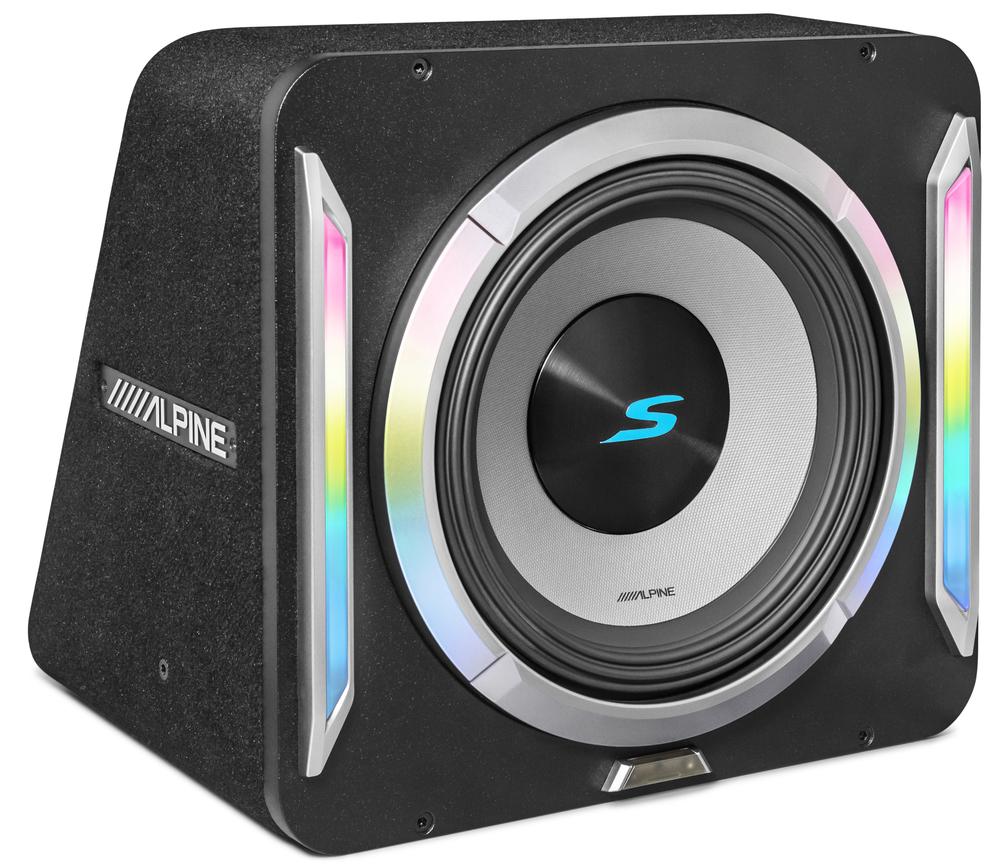

The Alpine S2‑SB12 is a 12″ PrismaLink® S‑Series pre‑loaded sealed subwoofer enclosure featuring built‑in RGBW lighting and high‑performance bass output. It houses the S2‑W12D4 12″ subwoofer (dual 4‑ohm voice coils wired to 2 Ω) and delivers approx. 600 W RMS / 1800 W peak power handling. The enclosure is designed in a compact “wedge” style to fit more vehicles, and offers aesthetic appeal through integrated RGB lighting with 12 static colours and 4 dynamic modes controllable via included remote or compatible Alpine receivers.
Specifications
FEATURES
| Feature | Details |
|---|---|
| Subwoofer | Preloaded S2-W12D4 12” S-Series Subwoofer |
| Enclosure | Sealed Wedge Style Design |
| Lighting | RGBW Multi-color Trim Bar, IR Remote included |
| Lighting Modes | 12 Static Colors, 4 Dynamic Modes |
| Multi-Link | Link 2 or more enclosures together |
| Lighting Control | Via iLX-W670 Head Unit |
| Cone Material | Carbon Fiber / Polypropylene |
| Construction | Lightweight, High Output, Low Distortion |
| Bass | Enhanced “Punch” and Accurate Bass |
| Surround | High-Amplitude Multi-Roll (HAMR) for High Excursion |
| Mounting Compatibility | KTX-EBKT Mounting Brackets, KTX-LK12 12” Linking Bracket |
TECH SPECS
| Spec | Details |
|---|---|
| Enclosure Dimensions | 16.5” W × 15” H × 13.25” D |
| Power Handling | 600W RMS / 1800W Peak |
| Nominal Impedance | 2Ω |
| Frequency Response | 23Hz – 215Hz |
| Sensitivity | 86dB |
| X-Max (1-Way) | 15mm |
| Voice Coil | 2.6” |
| Magnet Weight | 64oz |
| Voice Coil Wiring | Dual 4Ω coils wired in parallel for 2Ω load |
About The Product
Illuminate Your Audio
Color and sound collide to bring you an intentionally crafted 12-inch wedge style subwoofer enclosure, designed for optimal bass performance and vehicle fitment, and an integrated RGB lighting system that’s multi-link capable for single, dual, and even quad-enclosure installations.
Lighting Link Control with iLX-W670
Manage the integrated RGBW trim bars effortlessly through the intuitive Lighting Link control screen on the iLX-W670 Receiver. With a simple touch, users can easily change the ambiance, adjust colors, and change modes on the PrismaLink® enclosures. Whether it’s setting the perfect vibe for a late-night drive or enhancing the atmosphere of a weekend getaway, the intuitive interface empowers users to tailor their lighting experience with precision and ease.
PRODUCT OVERVIEW
This 12-inch wedge-style subwoofer enclosure blends style, performance, and expandability, delivering powerful bass with a visual RGB lighting experience.
