Description

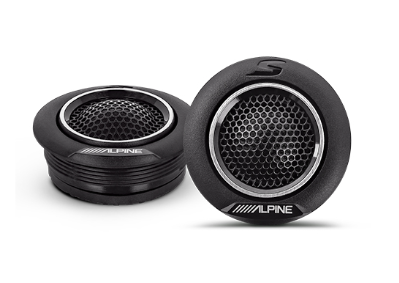

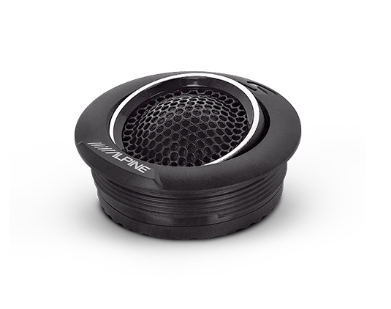

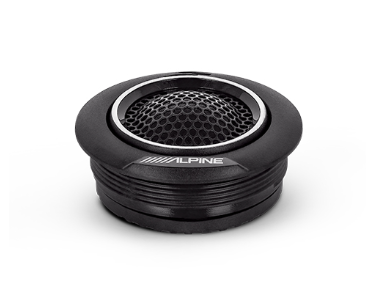

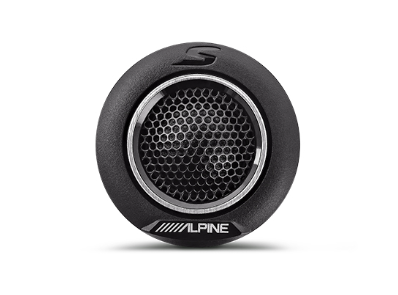

Alpine S2‑S10TW
The Alpine S2‑S10TW is a 1″ component tweeter set from Alpine’s S‑Series designed to upgrade the high‑frequency performance of a car audio system. It features a cloth‑dome tweeter, Hi‑Res Audio certification (up to 40 kHz), compact mounting depth (¾″ / ~1.8cm) for tight installations, and includes flush‑mount and stealth mounting hardware for flexible installation.
Specifications
Features
| Specification | Details |
|---|---|
| Tweeter Type | 1” Cloth Dome Tweeter |
| Certification | Hi-Res Audio certified (up to 40kHz) |
| Power Handling | 80W RMS / 240W Peak |
| Dome Design | Updated dome design (compared to S-S10TW) for improved control and smoothness |
| Wave Guide | Enhanced wave guide for wider dispersion |
| Grille | New silhouette-style grille design |
| Mount | Swivel flush-mount design |
| Housing | Removable housing for tight factory locations |
| Size | Compact size: 2” cutout, ¾” depth |
| Impedance | 4 Ohm |
| Performance | Delivers clear, accurate high frequencies |
| Compatibility | Designed for use with Alpine S-Series component systems |
| Upgrade | Ideal factory tweeter upgrade |
Tech Specs
| Specification | Details |
|---|---|
| Tweeter Size | 1″ (2.5cm) Component Tweeter |
| Power Handling | 80W RMS / 240W Peak Power |
| Impedance | 4 Ohm |
| Frequency Response | 1kHz – 40kHz |
| Sensitivity | 87dB SPL (1W @ 1m) |
| Cutout Diameter | 2″ (5.1cm) |
| Mounting Depth | 3/4″ (1.8cm) |
| Mount Type | Swivel Flush Mount Housing |
| Material | Cloth Dome Tweeter Material |
| Housing | Removable Mounting Housing for Custom Installs |
About The Product
Crystal Clear Sound
Don’t let the compact size fool you. The S2-S10TW tweeters are engineered to add clarity and detail to your sound system. By accurately reproducing the upper frequencies, these 1-inch tweeters enhance vocals, instruments, and subtle details that most factory systems miss. With every note and nuance, you’ll rediscover your music and experience your favorite songs like it’s the first time.
Updated Design
Compared to the previous generation, the S2-S10TW features an improved dome shape and tweeter assembly for better control and a smoother dynamic range. A newly designed silhouette-style grille and enhanced wave guide work together to widen sound dispersion and create a more natural, immersive soundstage.
