Description

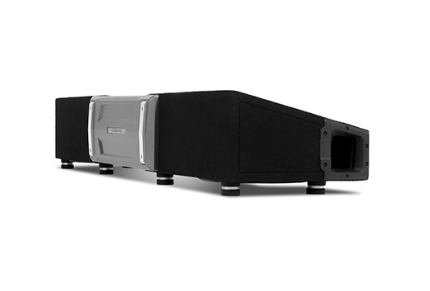

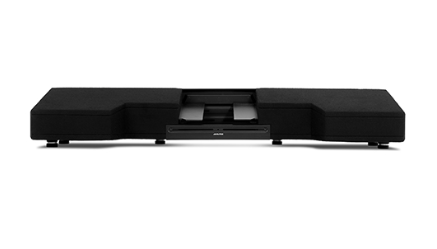

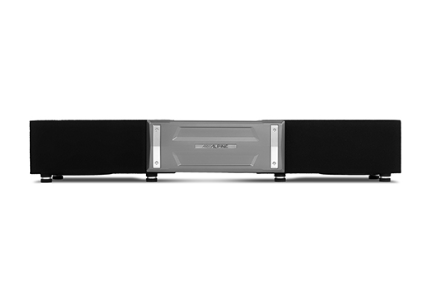

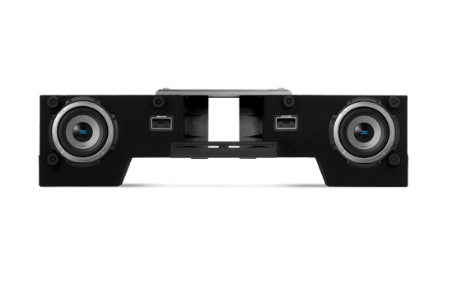

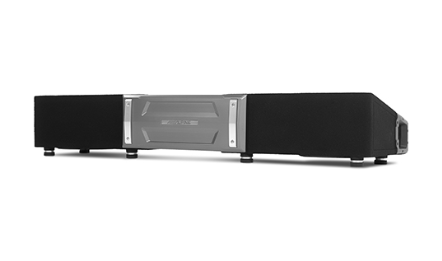

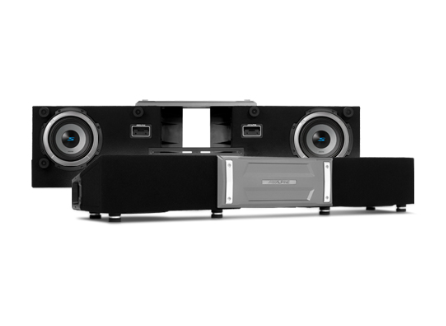

Alpine S2-DB8V-TRK
The Alpine S2‑DB8V‑TRK is a dual 8″ pre‑loaded ported subwoofer enclosure designed for trucks, housing two S2‑W8D2 8″ S‑Series subwoofers in an under‑seat friendly platform. It offers a width adjustable from 40″ to 51″ using an included ProLink™ bracket system, making it compatible with many full‑size trucks and crew‑cabs.
Specifications
FEATURES
| Feature | Details |
|---|---|
| Design | Groundbreaking Alpine Halo Design |
| Enclosure | ProLink™ Ported Enclosure, expandable width 40″–51″ |
| Installation | Compact, under-the-seat in most full-size trucks |
| Amplifier Tray | Integrated (not applicable with all vehicles) |
| Foot Design | Rubber, modular stackable for uneven floors |
| Subwoofers | High-performance S-Series, dual 8″ |
| Brackets | Front Link Alpine Branded |
| Ports | Side-firing cabin loading ports |
| Terminals | Premium Alpine wire terminals |
| Construction | CARB compliant 5/8″ MDF, premium black carpet |
TECH SPECS
| Spec | Details |
|---|---|

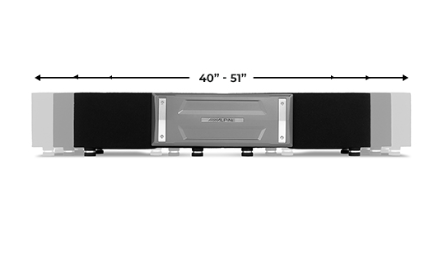

| Dimensions | 40″–51″ W (adjustable) x 8-3/4″ H x 13-3/4″ D |
| Power Handling | 600W RMS |
| Frequency Response | 34Hz – 200Hz |
| Sensitivity | 84dB |
| Voice Coils | Dual, wired in parallel for 2Ω load (two 4Ω enclosures) |
| Amplifier Compatibility | S2-A60M for optimal power output |
| Vented Enclosure Tuning | 36Hz |
| Terminals | Custom spring-loaded, fit up to 12AWG wire |
About The Product
Designed for Trucks
Your truck works hard, and your bass should too. The S2-DB8V-TRK pairs Alpine’s redesigned S2-W8D2 8″ S-Series subwoofers with a space-saving ProLink™ enclosure that fits neatly under the rear bench seat of most full-size trucks. It delivers deep, accurate bass while preserving the comfort and utility of your cabin.
Big Bass Performance
The S2-DB8V-TRK delivers powerful, accurate bass thanks to its two preloaded S2-W8D2 8″ S-Series subwoofers and precision-tuned, ported enclosure. The carbon fiber/polypropylene cones and Alpine’s exclusive HAMR surround allow for long, controlled excursion, producing deep, impactful lows without distortion. Down-firing design and side-firing ports maximize cabin loading, so you hear and feel every note.
