Description

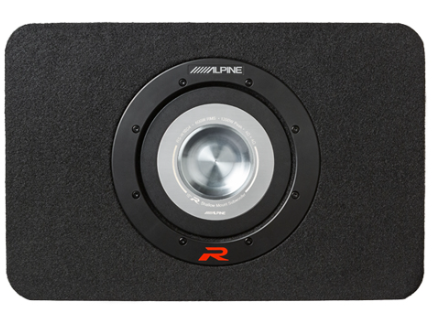

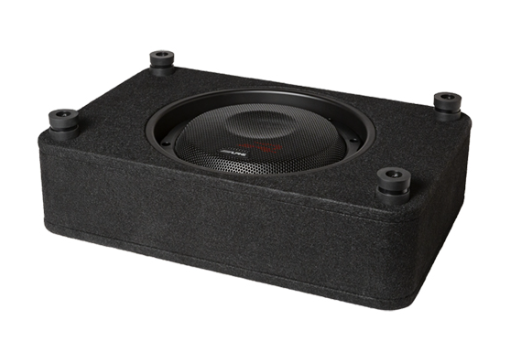

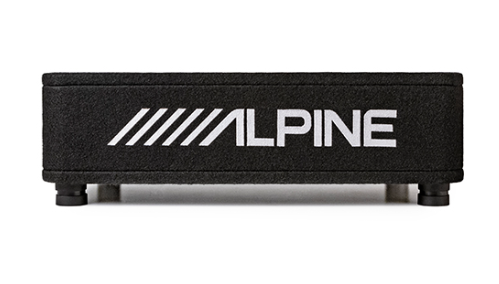

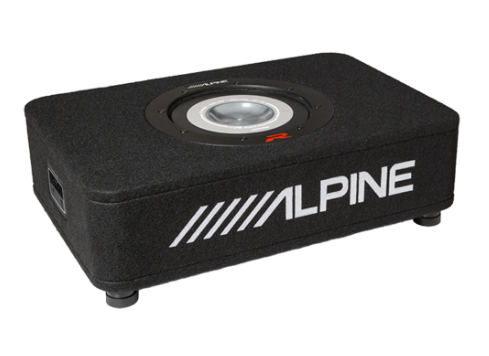

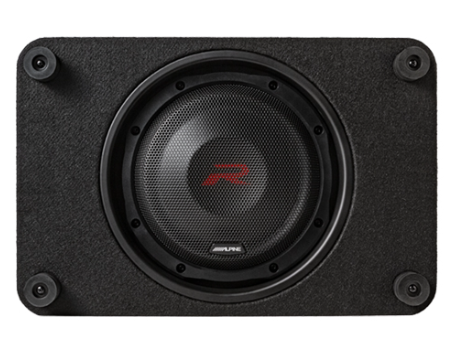

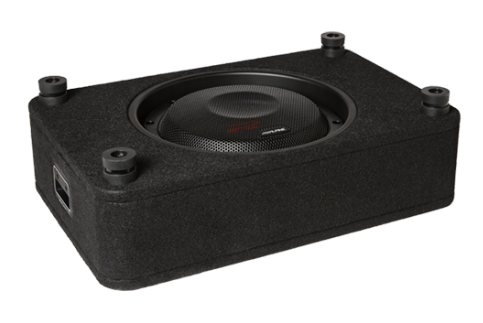

Alpine RS-SB10
The Alpine RS-SB10 is a compact 10-inch R-Series powered subwoofer designed to deliver deep, punchy bass in limited vehicle spaces. It features a built-in Class D amplifier with 300W RMS power for clean, distortion-free low-frequency output. The subwoofer comes in a ported enclosure optimized for maximum bass response and includes adjustable low-pass filter and phase control for seamless integration with your car audio system. Its compact design allows installation under seats or in tight spaces without compromising audio quality.
Specifications
FEATURES
| Feature | Details |
|---|---|
| Subwoofer | Pre-installed 10” R-Shallow Subwoofer (RS-W10D4) |
| Enclosure | Optimal sealed cabinet quality, CARB compliant ¾” MDF construction |
| Dust Cap | Aluminum |
| Magnet | Neodymium, Alpine Gen2 DD Linear Magnetic Circuit |
| Carpet | Premium Alpine embroidered black carpet |
| Terminal Cup | Alpine-branded |
| Grille | Pre-installed steel mesh grille |
| Foot Design | Rubber, modular stackable |
| Compatibility | Works with S-A60M or R-A75M amplifiers |
TECH SPECS
| Spec | Details |
|---|---|
| Dimensions | 21.15” W x 5.25” H x 16” L |
| Power Handling | 600W RMS |
| Frequency Response | 29Hz – 200Hz |
| Voice Coils | Dual 4Ω voice coils wired in parallel for a 2Ω load |
| Nominal Impedance | 2Ω |
| Voice Coil Size | 4” (101.6 mm) |
About The Product
Designed for Tight Spaces
Now you don’t have to choose between bass and space! Alpine’s R-Series Shallow Preloaded Subwoofer Enclosure measures at a minimal 5.25” deep to deliver a loud and fun sound in most vehicle applications. Rubber “feet” are adjustable in height to accommodate uneven vehicle floors.
Extreme Output
Don’t let the size fool you – the enclosures feature the same motor movement (20MM of 1-way excursion) as the full-size R2-Series Subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series Shallow Subwoofers is an oversized 4-inch voice coil that houses the lightweight and powerful neodymium magnet for 600W RMS of power handling.
