Description
Alpine R-W10D4

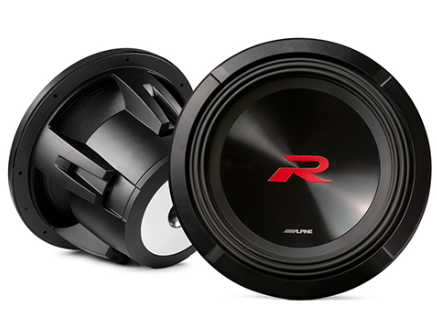

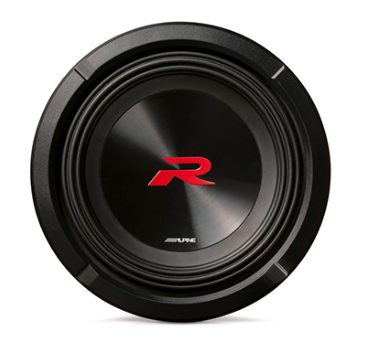

The Alpine R-W10D4 is a 10-inch R-Series dual 4-ohm subwoofer designed to deliver deep, powerful bass for car audio enthusiasts. With 500W RMS and 1500W peak power, it ensures clean, distortion-free low-frequency output. The subwoofer features a Kevlar-reinforced cone for durability, a Santoprene® surround for extended excursion, and a dual 4-ohm voice coil for flexible wiring options. Suitable for sealed or ported enclosures, it provides consistent, tight bass that enhances any audio system.
Specifications
Features
| Feature | Description |
|---|---|
| Dual Voice Coil (DVC) Subwoofers | Includes configuration jumpers for flexible wiring |
| Dust Cap | Polypropylene/Ceramic composite for durability |
| Cone | Kevlar reinforced pulp cone for high performance |
| Grille Mount System | Twist-lock design for secure installation |
| Surround | High-Amplitude Multi-Roll (H.A.M.R.) surround for enhanced excursion |
| Magnets | Large double-stacked magnets for powerful output |
Tech Specs
| Specification | Value |
|---|---|
| RMS Power | 750 W |
| Peak Power Handling | 2250 W |
| Frequency Response | 26 Hz – 200 Hz |
| Sensitivity (1W/1m) | 82.4 dB |
| Nominal Impedance | 4 Ω |
| Voice Coil | 65 mm |
| X-Max | 20 mm |
| Magnet Weight | 123 oz |
| Mounting Depth | 6” (152 mm) |
| Cutout Size | 9-1/16” (231 mm) |
| Terminals | Push-Type (Up to 8 AWG wire size) |
| Compliance | CTA-2031 |
About The Product
Next-Gen Sound Performance
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
New Motor Structure

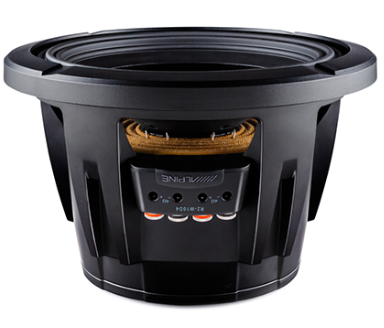

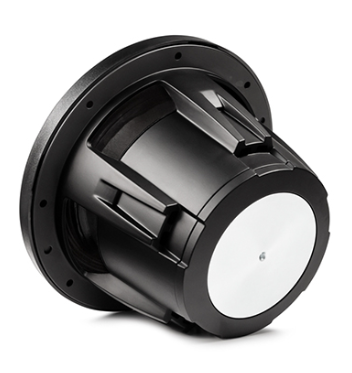

The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
Reviews
There are no reviews yet.
