Description
Memphis PRX824V2

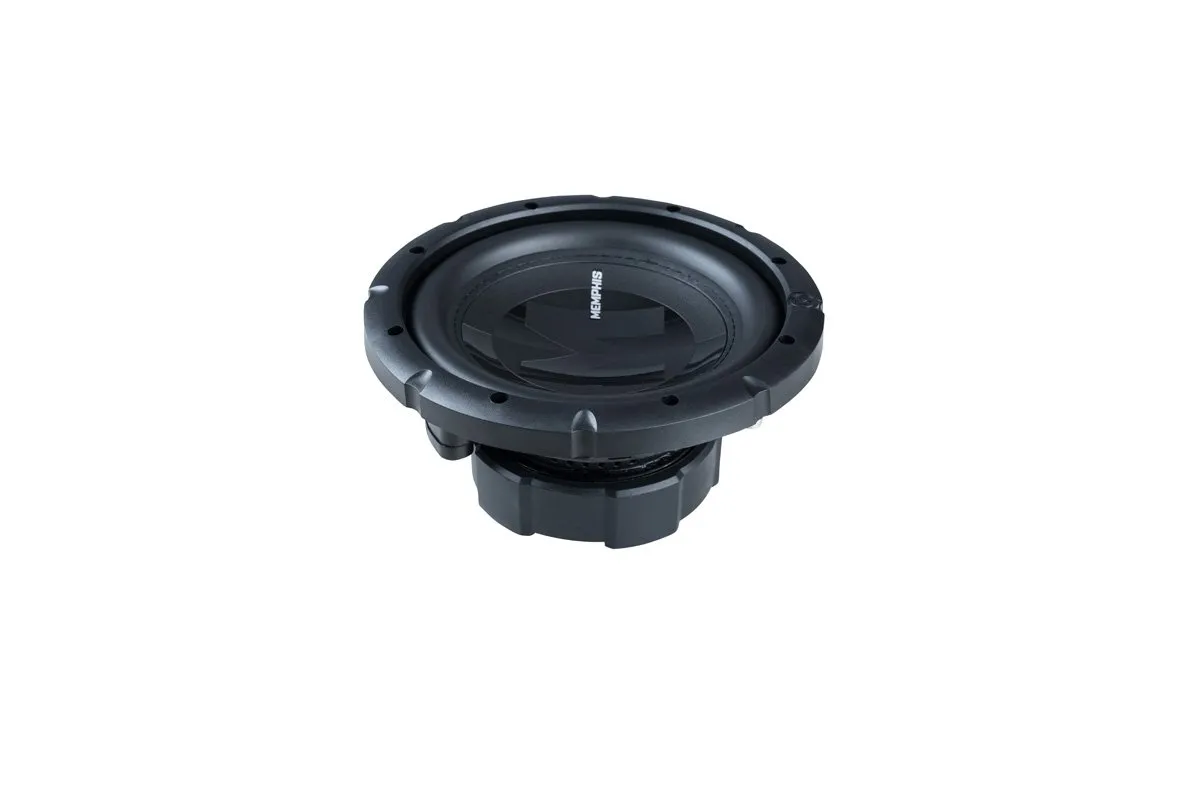

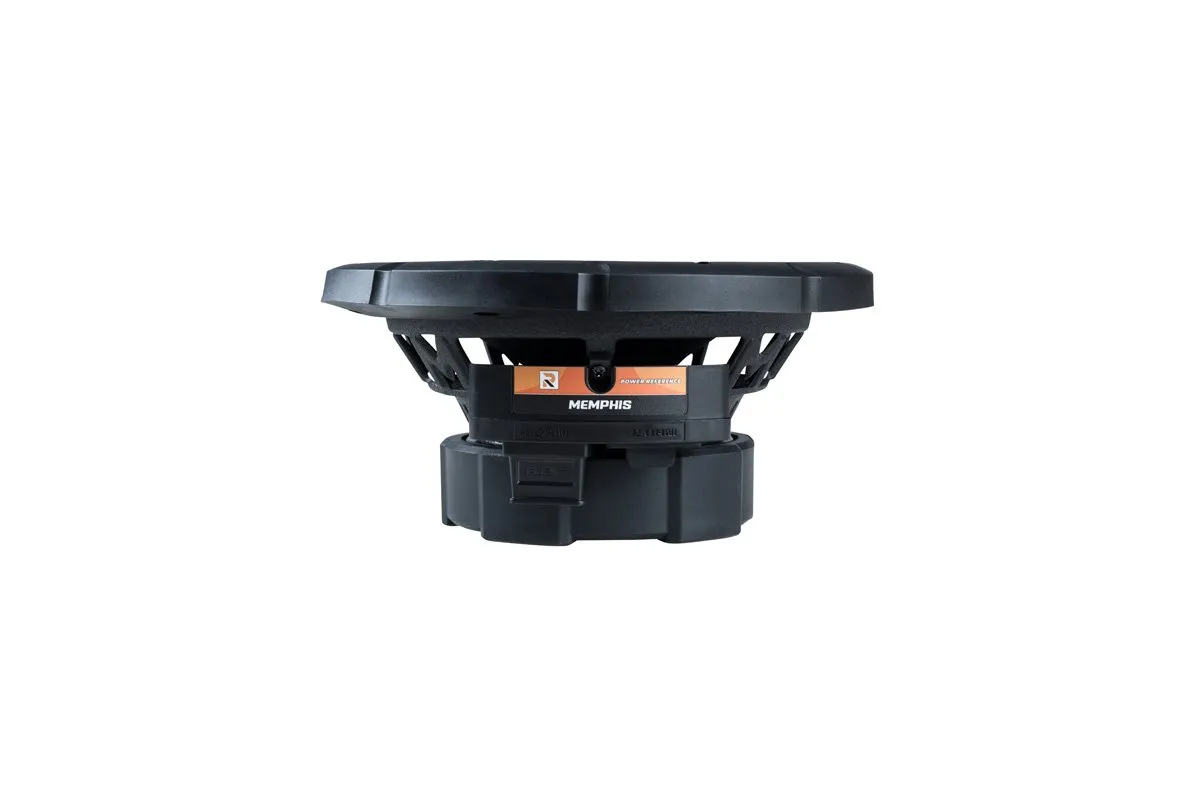

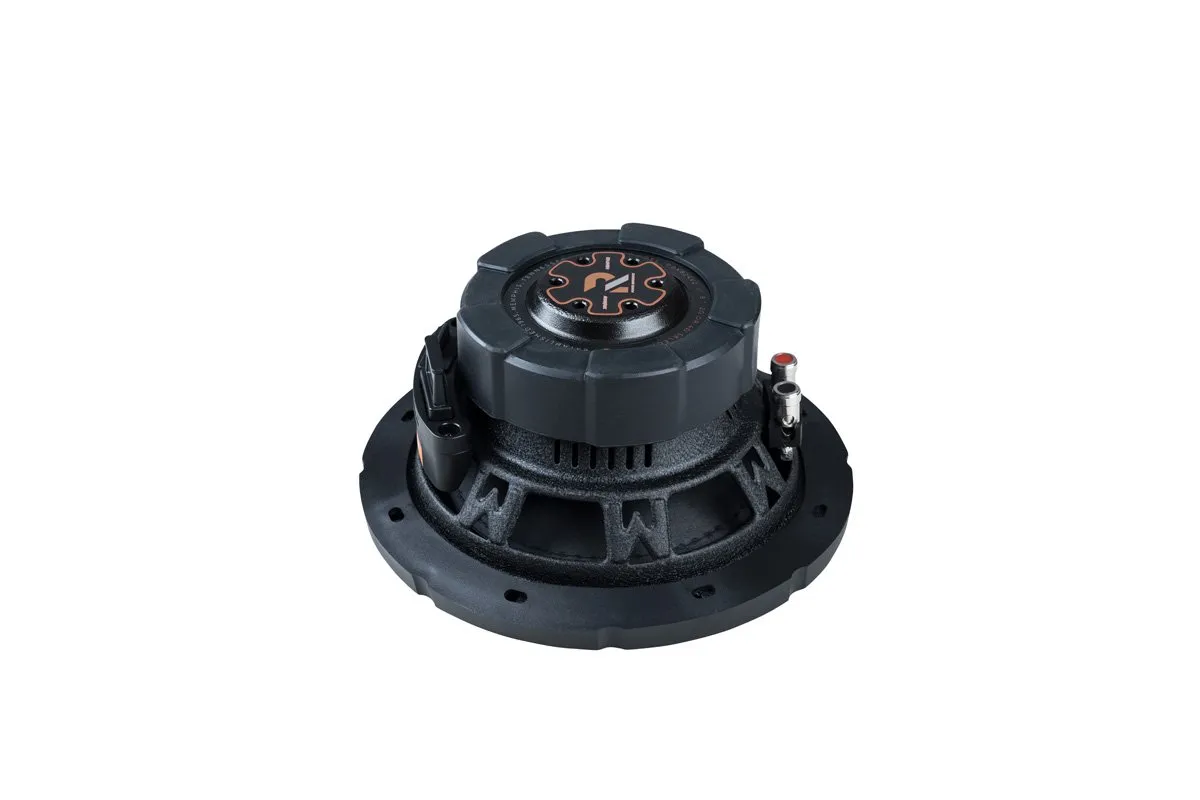

The PRX824V2 is an 8″ Power Reference subwoofer from Memphis Audio, built to deliver deep and punchy bass in a compact form factor. It features FLEX™ selectable impedance, allowing you to switch between 2 Ω and 4 Ω using a jumper plug. The sub also includes DVVC (Direct Voice Coil Cooling) for improved thermal management, a black polypropylene cone, stitched butyl‑rubber surround, a reinforced spider, and an improved suspension design. With 200 W RMS and a 400 W peak rating, it’s a versatile sub for custom builds or factory-style upgrades.
Features
| Specification | Details |
|---|---|
| Voice Coil Design | 8″ FLEX™ Dual Selectable Impedance |
| FLEX Plug | Move the plug to select impedance |
| Coil Cooling | DVVC – Direct Voice Coil Cooling technology |
| Cone | Black on black polypropylene cone |
| Surround | Stitched butyl rubber surround |
| Suspension | Reinforced spider with improved suspension and coil design |
| Leads | Woven tinsel leads |
| Voice Coil Former | High-temperature TIL |
Specifications
| Specification | Details |
|---|---|
| Model | PRX824V2 |
| Impedance | Selectable Voice Coil 2Ω or 4Ω |
| Size (in) | 8 |
| RMS / Peak Power | 200 / 400 |
| Sensitivity (dB) | 84 @ 2Ω / 84 @ 4Ω |
| Magnet Size (Oz) | 33 |
| Mounting Depth (in) | 3.9 |
| Cut Out Diameter (in) | 6.92 |
| Voice Coil | 1.5 |
