Description
DS18 DS18 PRO-ZXI694BM
The PRO‑ZXI694BM is a 6×9″ pro‑audio mid‑bass loudspeaker engineered for powerful low‑frequency punch and clear midrange performance. Designed with a robust motor structure and reinforced cone, it delivers strong mid‑bass response ideal for pro audio systems, PA setups, car audio upgrades, and SPL‑oriented builds. Its rugged construction and optimized voice coil ensure reliable performance even under demanding high‑volume conditions.
Specifications
| Category |
Specification |
| SKU |
PRO-ZXI694BM |
| Nominal Diameter |
6×9″ / 152.4 x 228.6 mm |
| Nominal Impedance |
4 Ω |
| RMS Power Handling |
300 W |
| Maximum Power Handling |
600 W |
| Sensitivity (1W/1m) |
98 dB |
| Frequency Response |
80Hz–12.5KHz |
| Recommended High-Pass Crossover |
100 Hz |
Motor / Voice Coil Specifications
| Feature |
Specification |
| Voice Coil Diameter |
1.5″ / 38.6 mm |
| Voice Coil Former Material |
Glass Fiber |
| Winding Material |
CCAW |
| Basket Material |
Aluminum |
| Magnet Weight |
30 + 3 oz |
Thiele & Small Parameters
| Parameter |
Value |
| Equivalent Volume (Vas) |
14.9 L / 0.5271 ft³ |
| Excursion (Xmax) |
7.2 mm |
| Free Air Resonance (Fs) |
100 Hz |
| Mechanical Factor (Qms) |
10.64 |
| Electrical Factor (Qes) |
0.439 |
| Total Factor (Qts) |
0.421 |
| DC Resistance (Re) |
3.6 Ω |

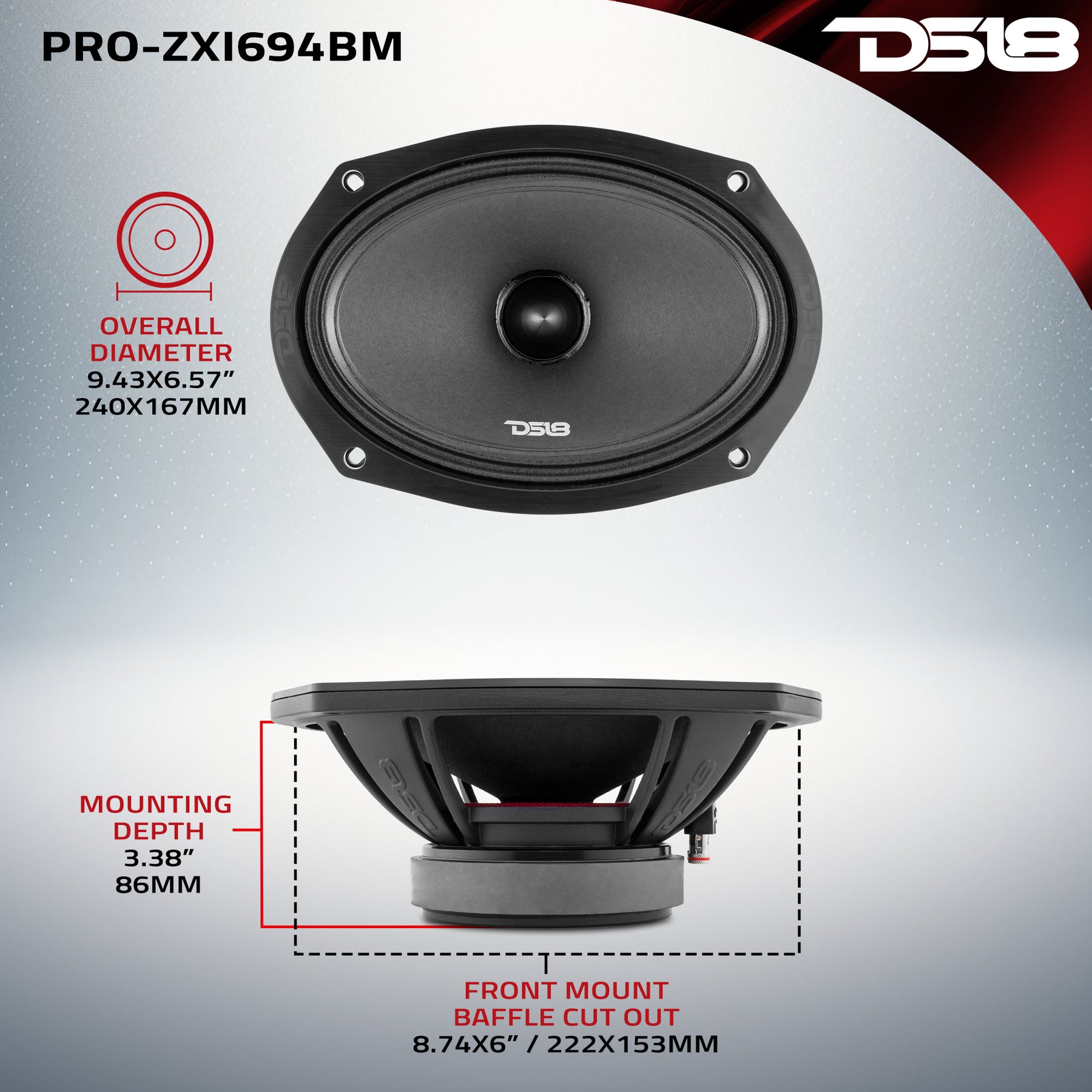

Measurements
| Dimension / Feature |
Value |
| Overall Diameter |
9.43 x 6.57″ / 240 x 167 mm |
| Front Mount Baffle Cutout |
8.74 x 6″ / 222 x 153 mm |
| Mounting Depth |
3.38″ / 86 mm |
| Overall Depth |
3.7″ / 94 mm |
| Product Weight |
6 lbs |
| Product Dimensions (W x L x H) |
10.25 x 7.25 x 4.25 in |
| Master Carton Weight |
49 lbs |
| Master Carton Dimensions |
21 x 15.25 x 9.5 in |
| Quantity per Master Carton |
8 |
| Sold In |
Piece |
Product Overview
6×9” Mid-Range Loudspeaker with Bullet 600W 4-Ohm
Introducing the DS18 PRO-ZXI694BM – the ultimate audio solution for the music lover who demands nothing but the best! With its sleek black basket face and bullet dust cap, this speaker not only looks great but also sounds phenomenal, delivering clear, crisp, and powerful mid and high range frequencies with ease.
Designed with the audio enthusiast in mind, the ZXI series takes Pro Audio to new heights of elegance, clarity, and loudness. The PRO-ZXI694BM is perfect for anyone who wants unparalleled volume and sound quality without sacrificing efficiency or performance.

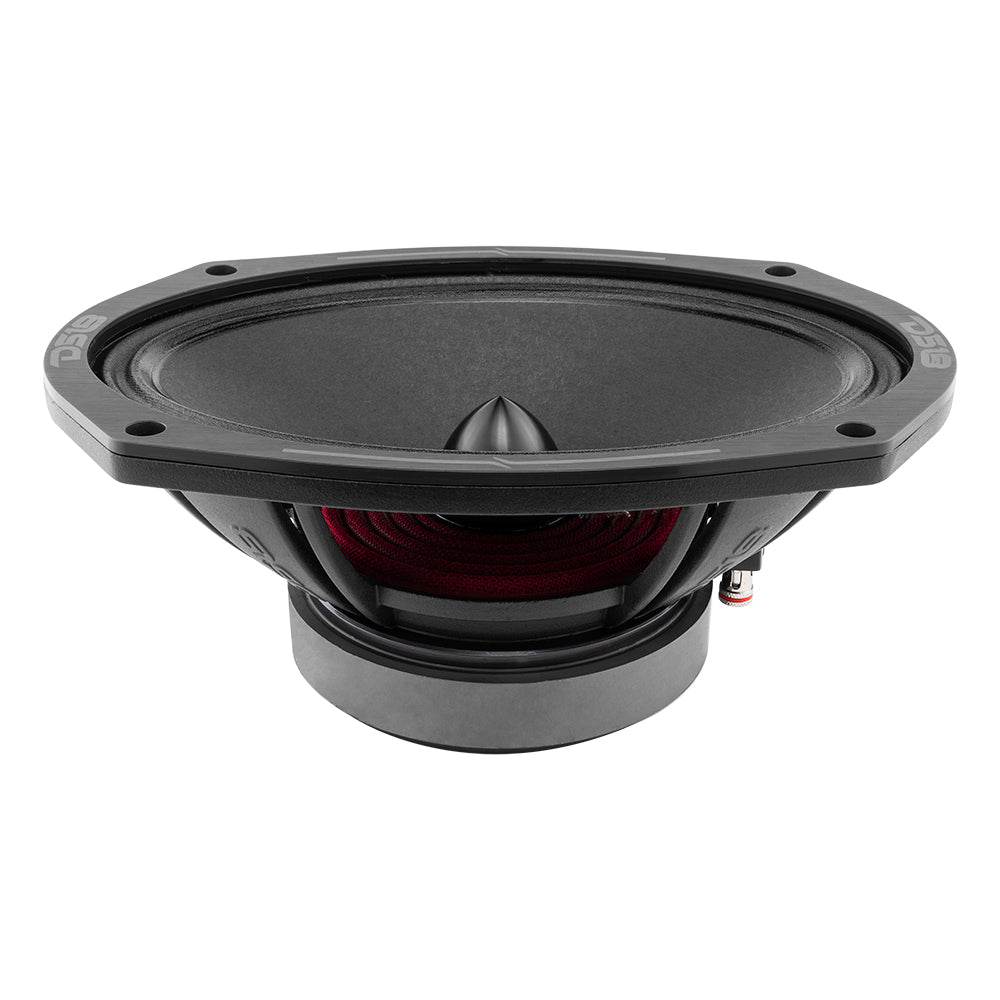

The bullet design of the DS18 PRO-ZXI694BM helps enhance its frequency response, which ranges between 80Hz and 12.5KHz, and improves its ability to handle mid-range frequencies. The bullet shape of the dust cap allows for smoother and more efficient sound dispersion, which helps to minimize distortion and improve clarity, even at higher volumes.
With a sensitivity rating of 98dB, this speaker is highly efficient and requires less power to achieve the same volume as less sensitive speakers. This translates to a cleaner and clearer sound with less distortion, even at high volumes.

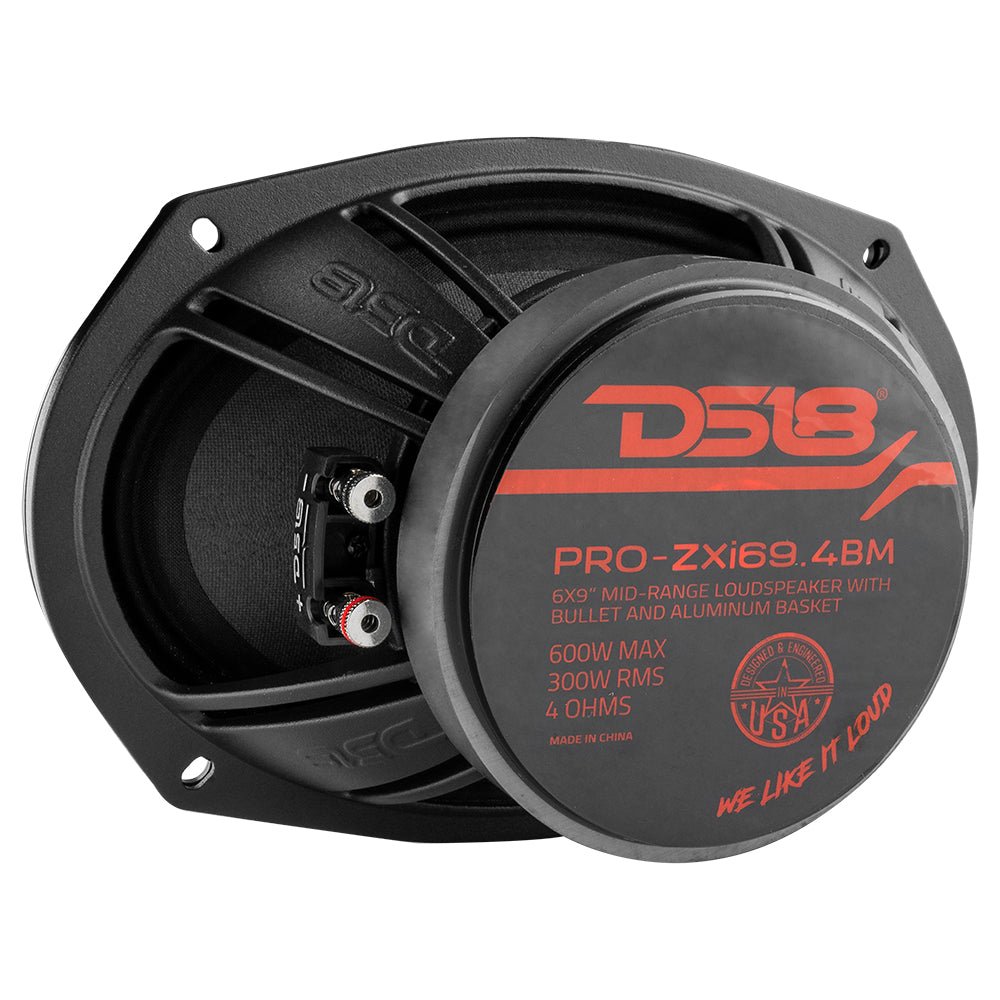

The PRO-ZXI694BM’s magnet weighs in at a light 30 Oz + 3 Oz, constructed from high-quality ferrite, ensuring that it can handle the power thrown at it efficiently. Its 3.38″ mounting depth makes installation a breeze, allowing you to easily upgrade your car’s audio system without breaking a sweat.
The PRO-ZXI694BM is the perfect addition to any audio system, offering a premium listening experience that is unmatched by other speakers on the market.
