Description

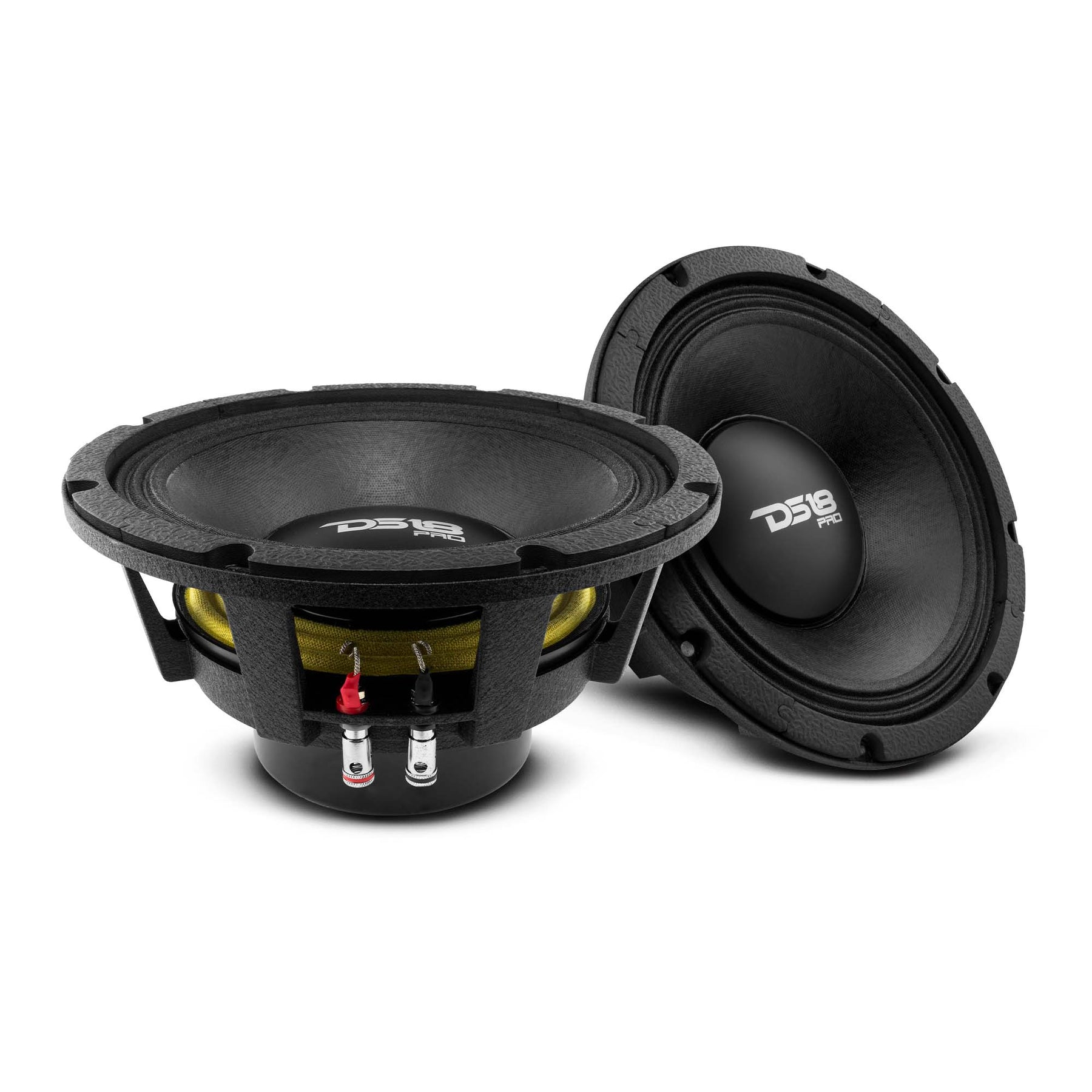

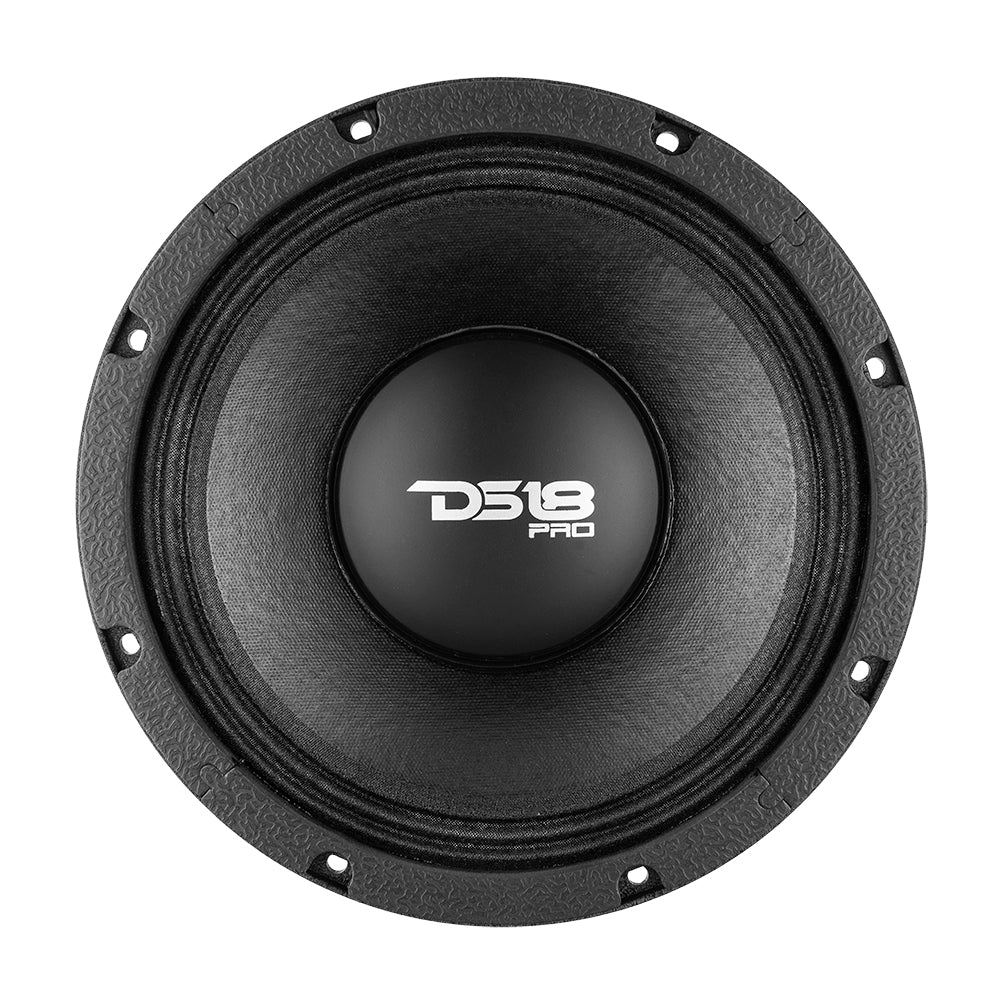

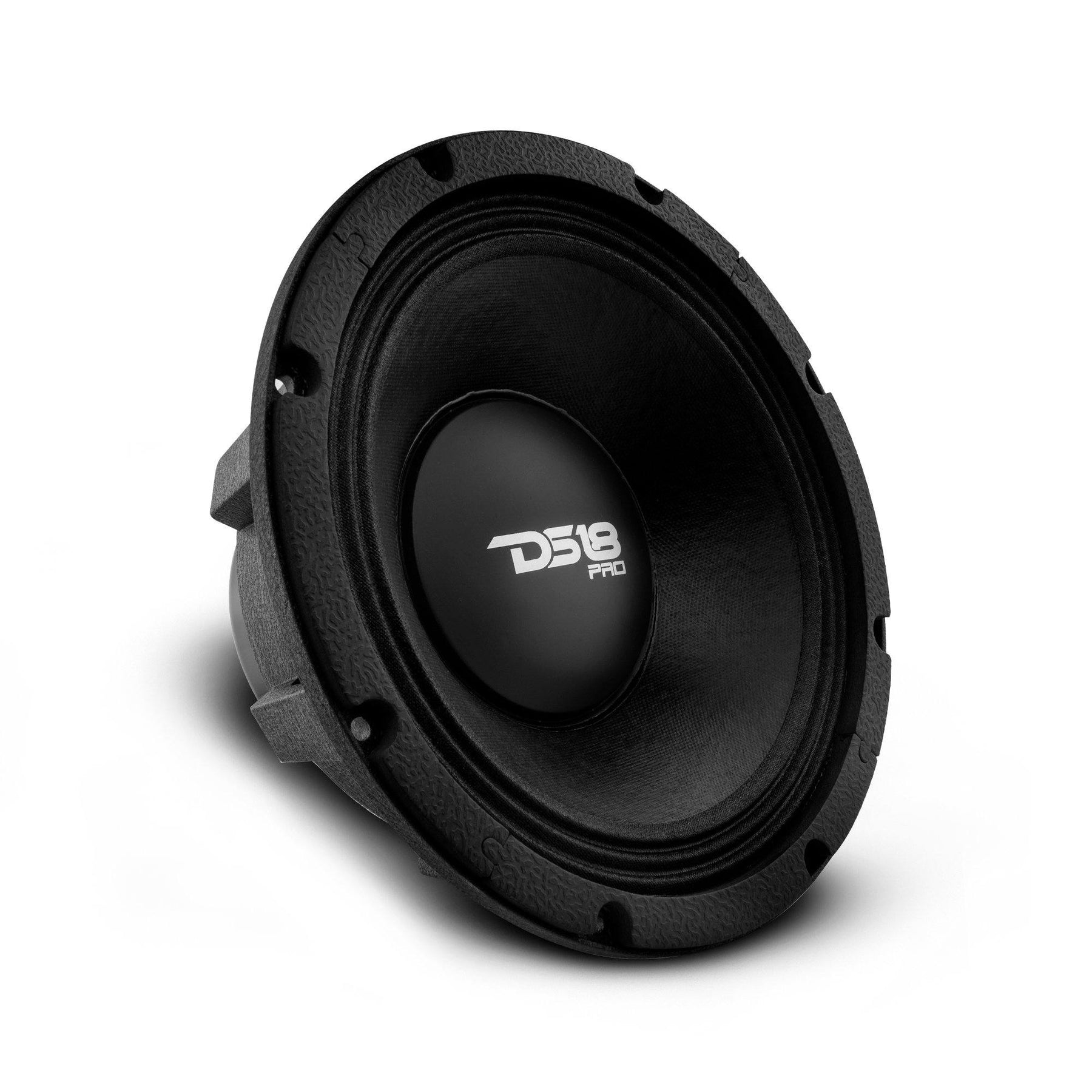

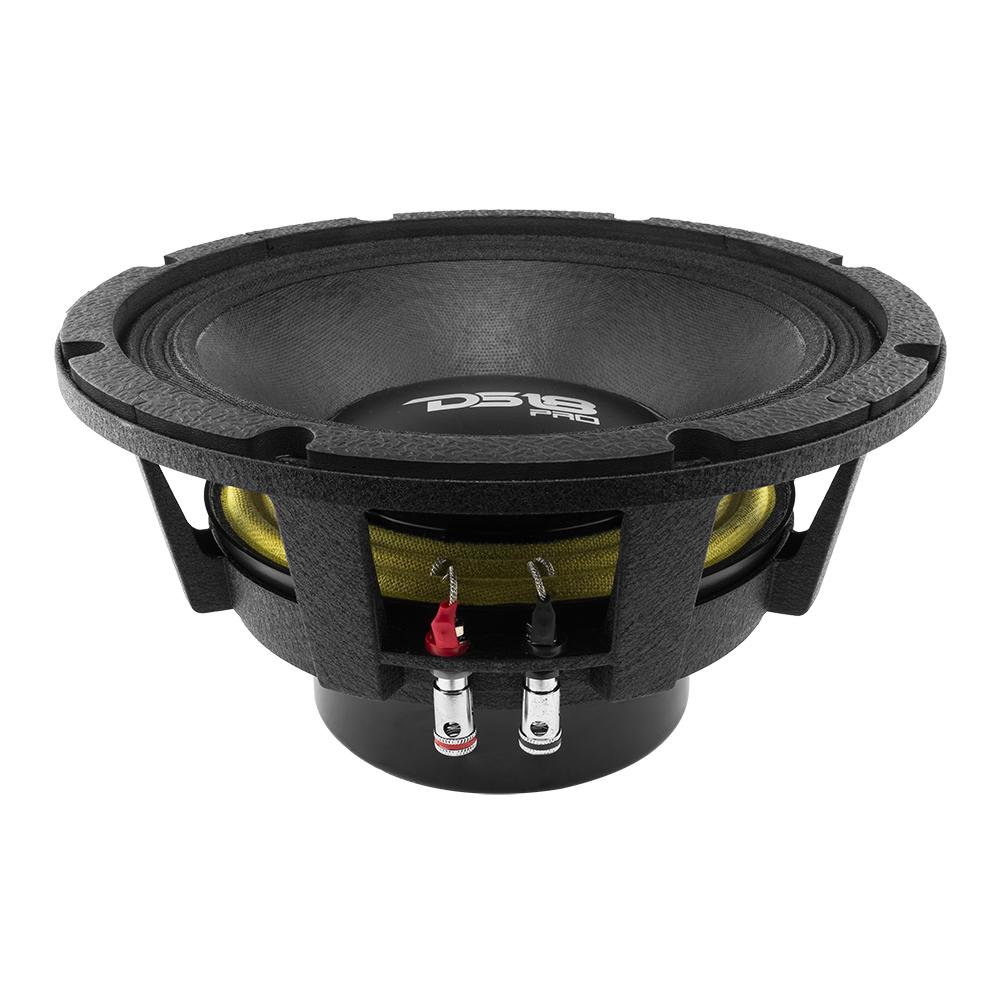

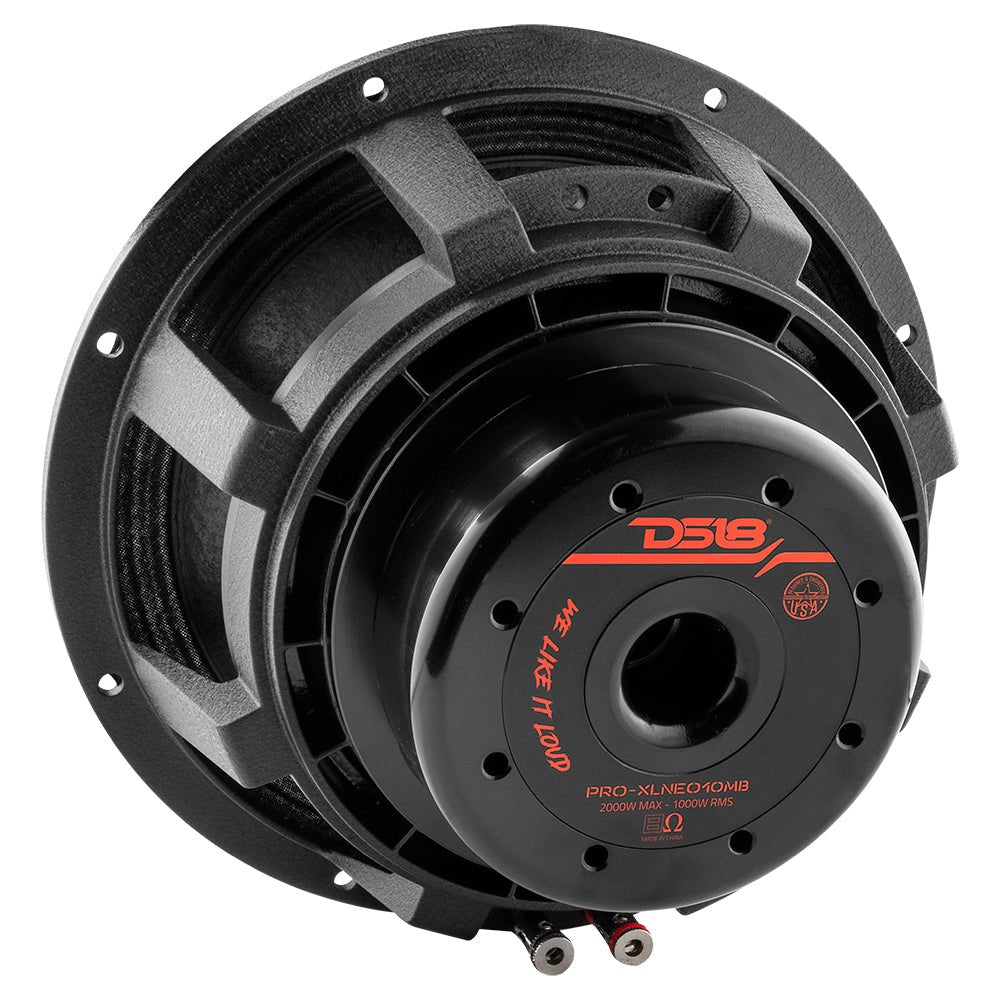

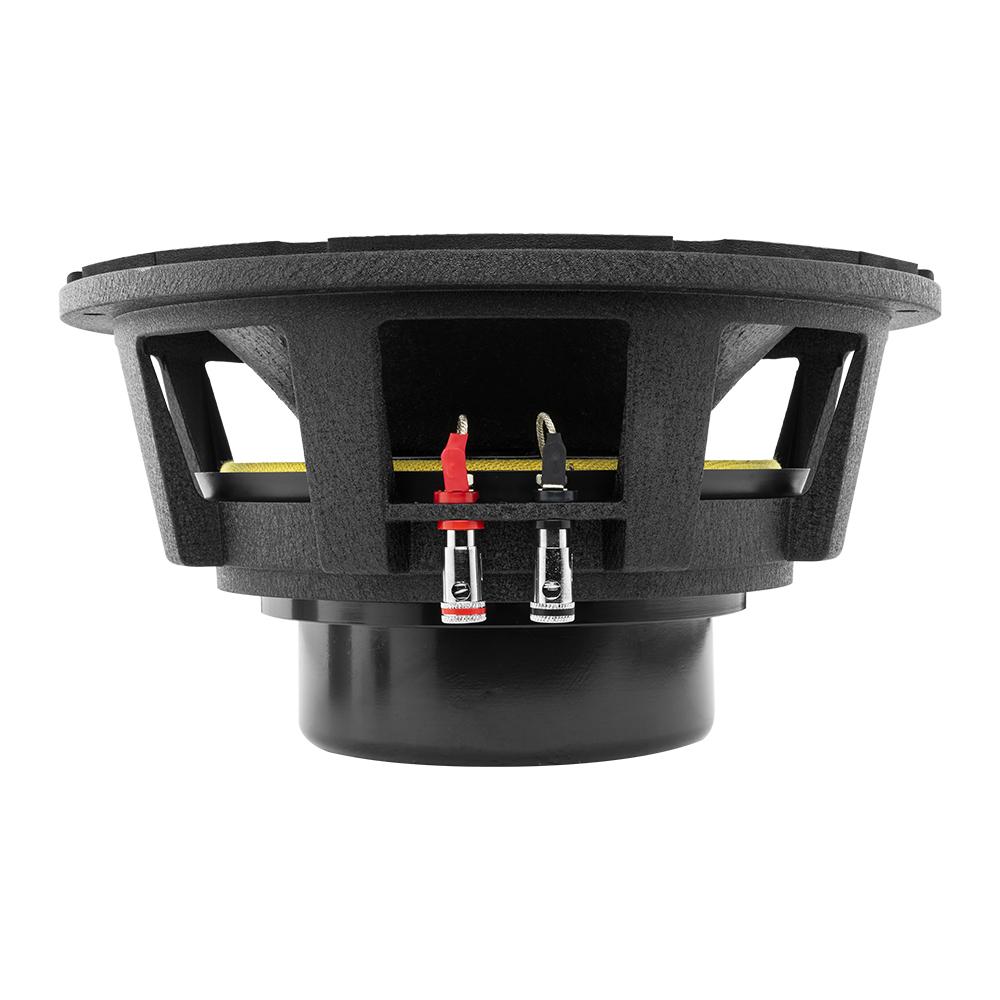

DS18 PRO-XLNEO10MB
The PRO‑XLNEO10MB is a 10″ professional mid‑bass loudspeaker engineered for high‑output performance and strong low‑frequency response. Designed with a reinforced cone, robust motor structure, and optimized voice coil, it delivers powerful mid‑bass punch and clear midrange detail, making it ideal for pro audio systems, PA setups, custom car audio builds, and SPL‑oriented installations. Its durable construction ensures reliable performance even under demanding high‑volume conditions.
Specifications
| Category | Specification |
|---|---|
| SKU | PRO-XLNEO10MB |
| Nominal Diameter | 10″ / 254 mm |
| Nominal Impedance | 8 Ω |
| RMS Power Handling | 1000 W |
| Maximum Power Handling | 2000 W |
| Sensitivity (1W/1m) | 96.5 dB |
| Frequency Response | 50Hz–7KHz |
| Recommended High-Pass Crossover | 100 Hz |
Motor / Voice Coil Specifications
| Feature | Specification |
|---|---|
| Voice Coil Diameter | 4″ / 99.8 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 18.5 oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 20.53 L / 0.72 ft³ |
| Excursion (Xmax) | 13.8 mm |
| Free Air Resonance (Fs) | 64 Hz |
| Mechanical Factor (Qms) | 3.03 |
| Electrical Factor (Qes) | 0.255 |
| Total Factor (Qts) | 0.235 |
| DC Resistance (Re) | 5.2 Ω |

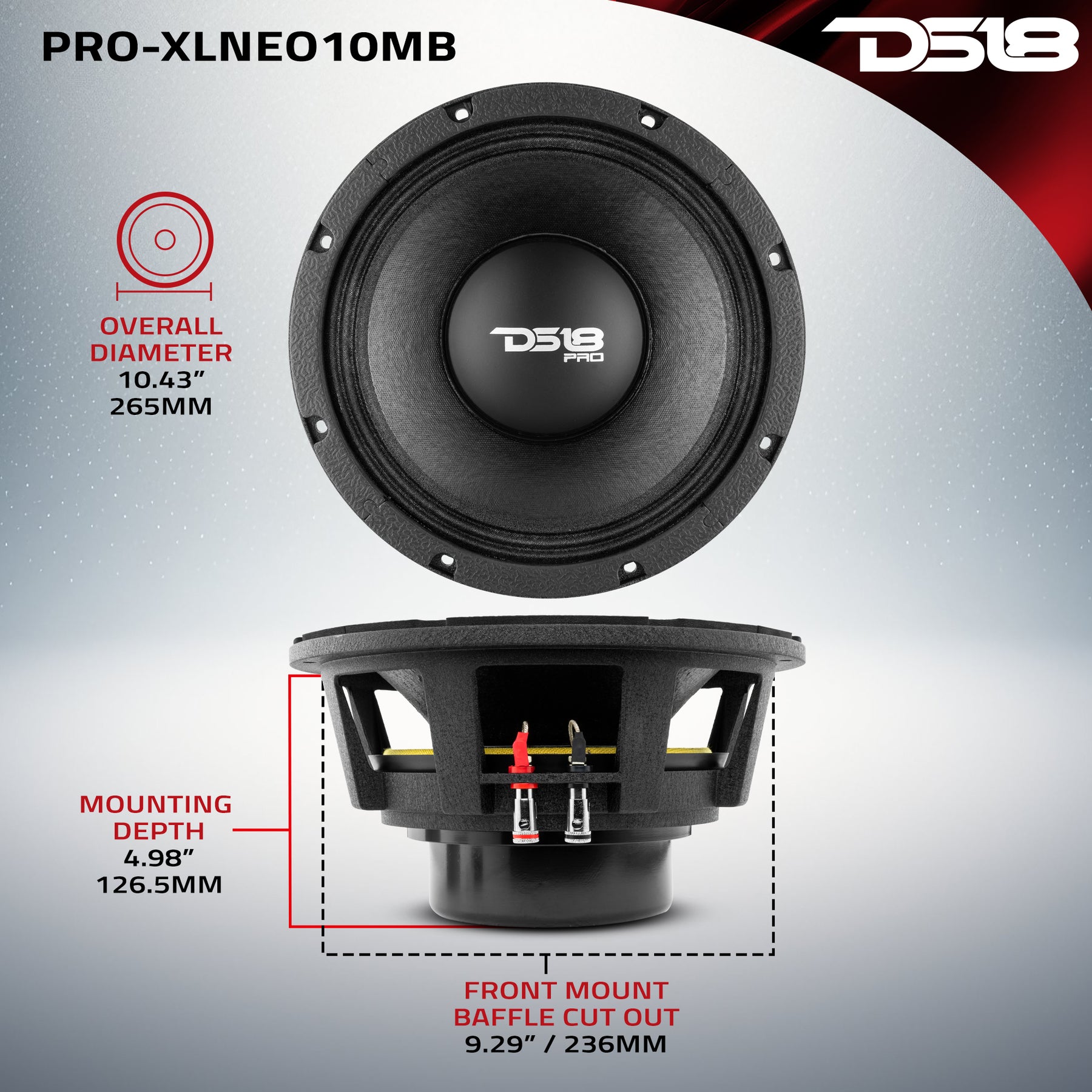

Measurements
| Dimension / Feature | Value |
|---|---|
| Overall Diameter | 10.43″ / 265 mm |
| Front Mount Baffle Cutout | 9.29″ / 236 mm |
| Mounting Depth | 4.98″ / 126.5 mm |
| Overall Depth | 5.45″ / 138.5 mm |
| Product Weight | 0.72 lbs |
| Product Dimensions (W x L x H) | 10 x 10 x 4.25 in |
| Master Carton Weight | 13.5 lbs |
| Master Carton Dimensions | 21 x 21 x 18.5 in |
| Quantity per Master Carton | 16 |
| Sold In | Piece |
Product Overview
10” Neodymium Mid-Bass Loudspeaker 1000W RMS 8 Ohm
Blow minds with the mid-bass responses from the PRO-XLNEO10MB!
This specialty mid-bass speaker packs a powerful punch and is backed with the awesome force of it’s Neodymium motor structure, providing superior efficiency and power transition compared to traditional ferrite motors used on most speakers.
The PRO-XLNEO10MB handles 1000w RMS and 2000 Peak, while also retaining a very impressive 96.5db sensitivity, driving these XL NEO speakers to the core.
