Description

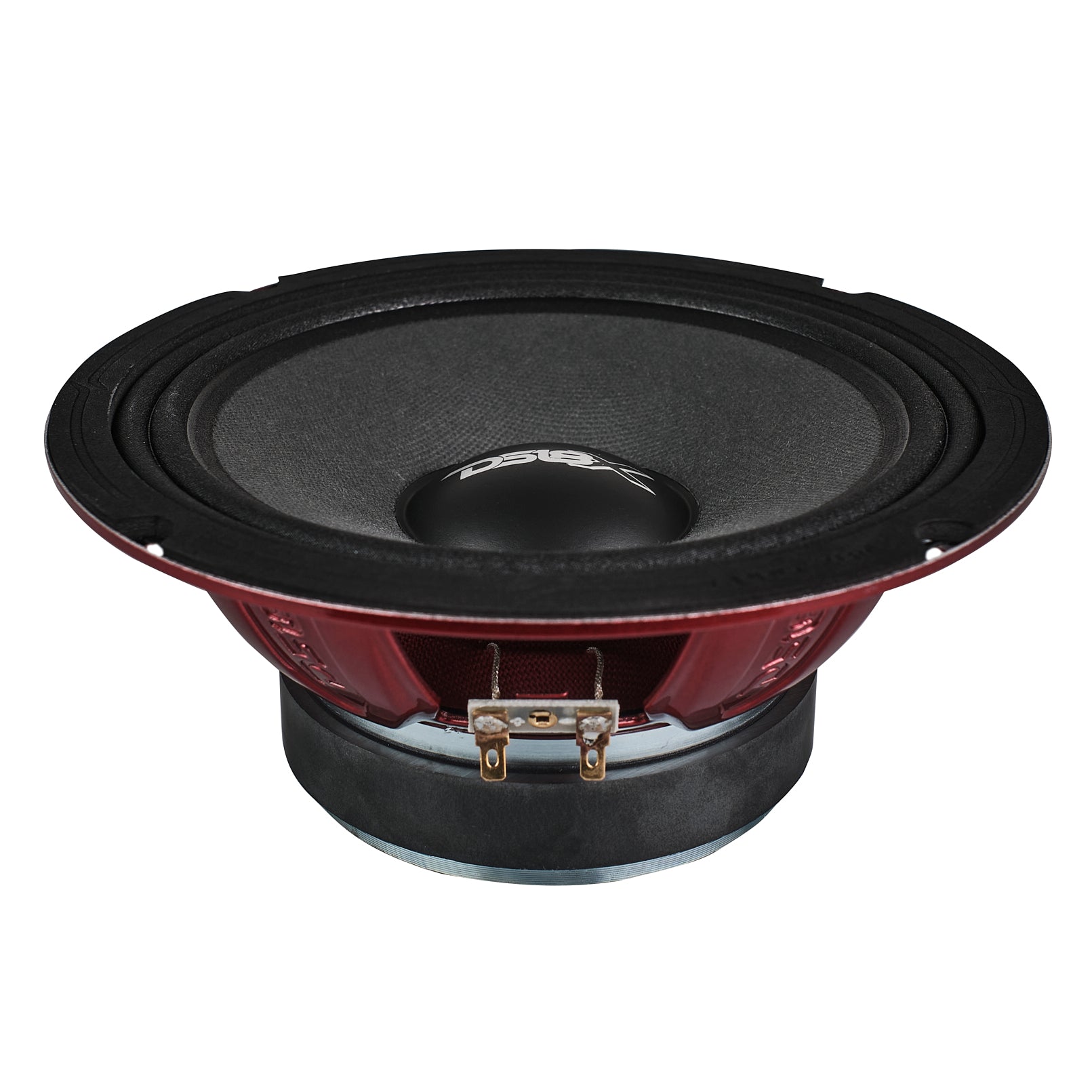

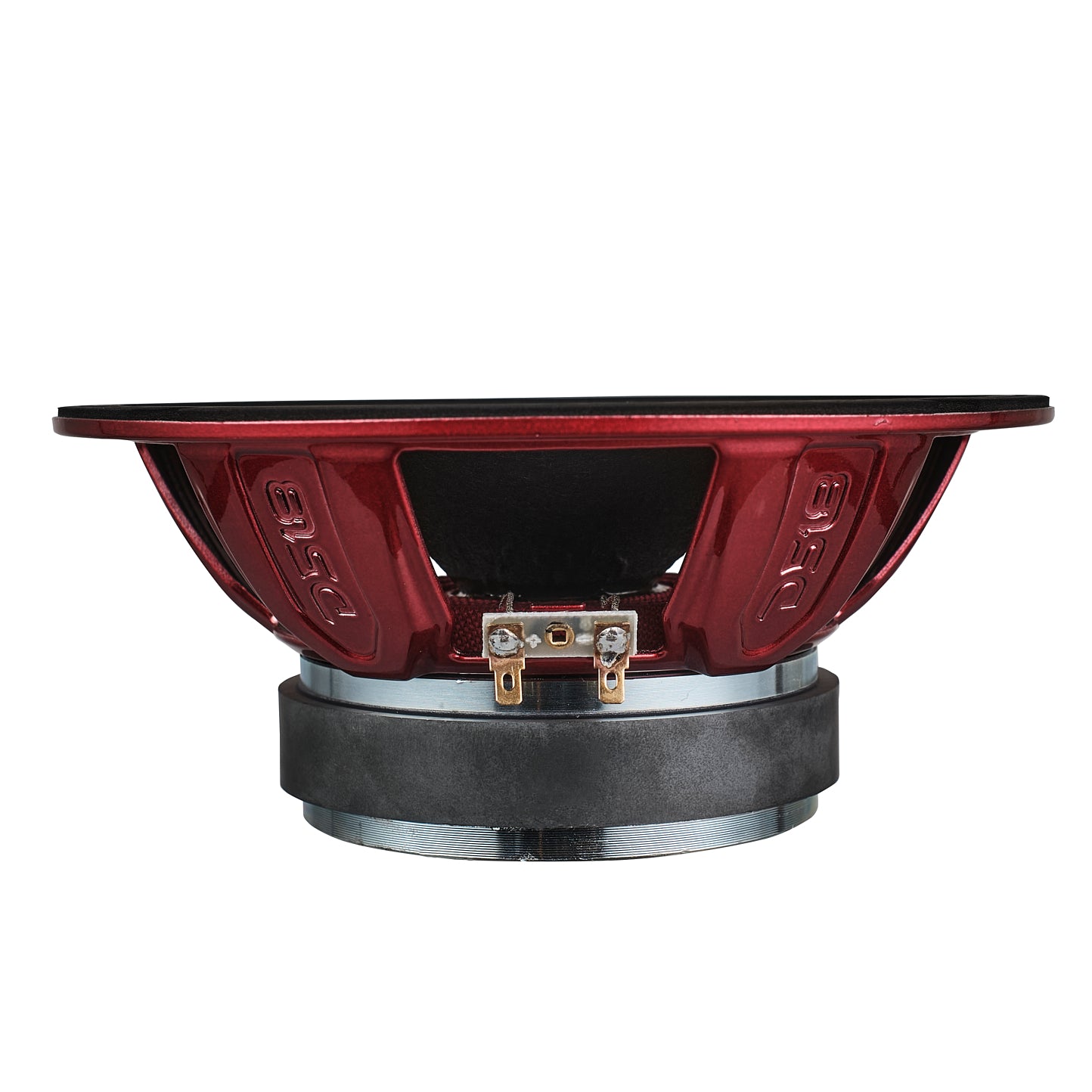

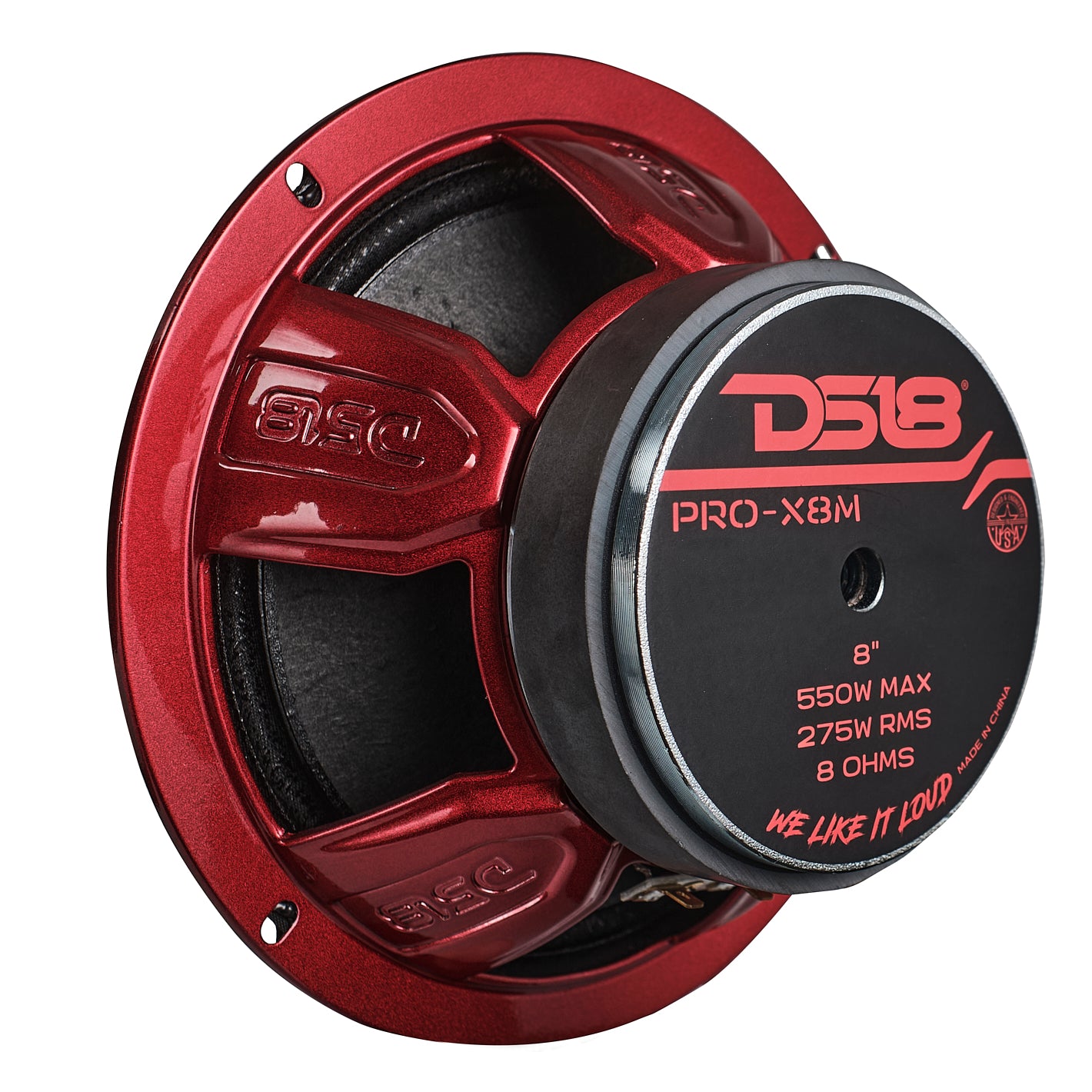

DS18 PRO-X8M
The PRO-X8M is an 8″ professional midrange loudspeaker engineered to deliver clear, detailed midrange frequencies with strong output and reliable performance. Designed with a robust motor structure and optimized cone, it provides focused vocals and smooth midrange response, making it ideal for pro audio systems, PA setups, and custom car audio installations where enhanced midrange clarity is needed.
Specifications
| Specification | Value |
|---|---|
| SKU | PRO-X8M |
| Nominal Diameter | 8 inch (203 mm) |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 275 Watts |
| Max Power Handling | 550 Watts |
| Sensitivity | 97 dB |
| Frequency Response | 80 Hz – 13 kHz |
| Recommended Hi-Pass | 120 Hz |
| Sold In | Single |
Construction Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 38.1 mm (1.5 inch) |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 30 oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 14.27 L |
| Xmax | 9.3 mm |
| Fs | 120 Hz |
| Qms | 8.454 |
| Qes | 1.037 |
| Qts | 0.924 |
| Re | 5.2 ohms |
Measurements & Packaging
| Specification | Value |
|---|---|
| Overall Diameter | 8.22″ / 209 mm |
| Front Mount Baffle Cutout | 7.16″ / 182 mm |
| Mounting Depth | 3.2″ / 82 mm |
| Overall Depth | 3.5″ / 88.6 mm |
| Product Weight | 6 lbs |
| Product Dimensions | 9 x 9 x 4 in |
| Master Carton Weight | 50.5 lbs |
| Master Carton Dimensions | 19 x 18.5 x 8.5 in |
| Master Carton Quantity | 8 |
Product Overview
8” Mid-Range Loudspeaker | 275W RMS | 8-Ohm
Get loud, stay clear—DS18’s PRO-X8M is built for audio lovers who want serious midrange performance. If you’re upgrading a custom build or fine-tuning your daily driver, the PRO-X8M delivers punch and precision.
Primed for Intensity
With 275W RMS and 550W MAX power handling, the PRO-X8M is designed to run strong all day long. Its 97dB sensitivity rating means you get extreme volume with minimal power input—so you’ll hear every note, even over the roar of the road.
Optimized Sound Clarity
Covering a wide frequency response of 80Hz–13KHz, the PRO-X8M captures the sharpest details. Built with a non-pressed paper cone, cloth edge surround, and a 30oz ferrite magnet, the PRO-X8M delivers bold, distortion-free sound with every session.
Made to Fit, Built to Last
The PRO-X8M fits easily into most setups. Its new steel basket is built to take a beating in high-SPL systems and custom installs alike.
