Description

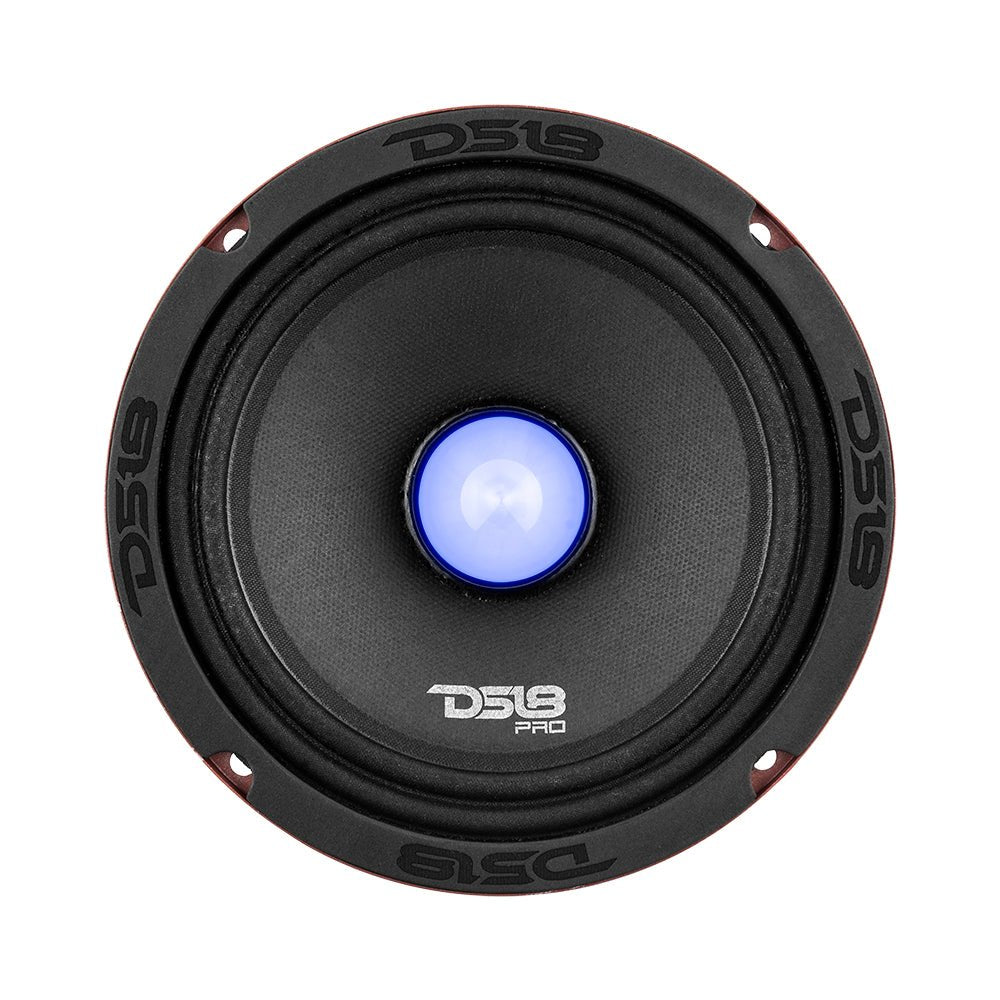

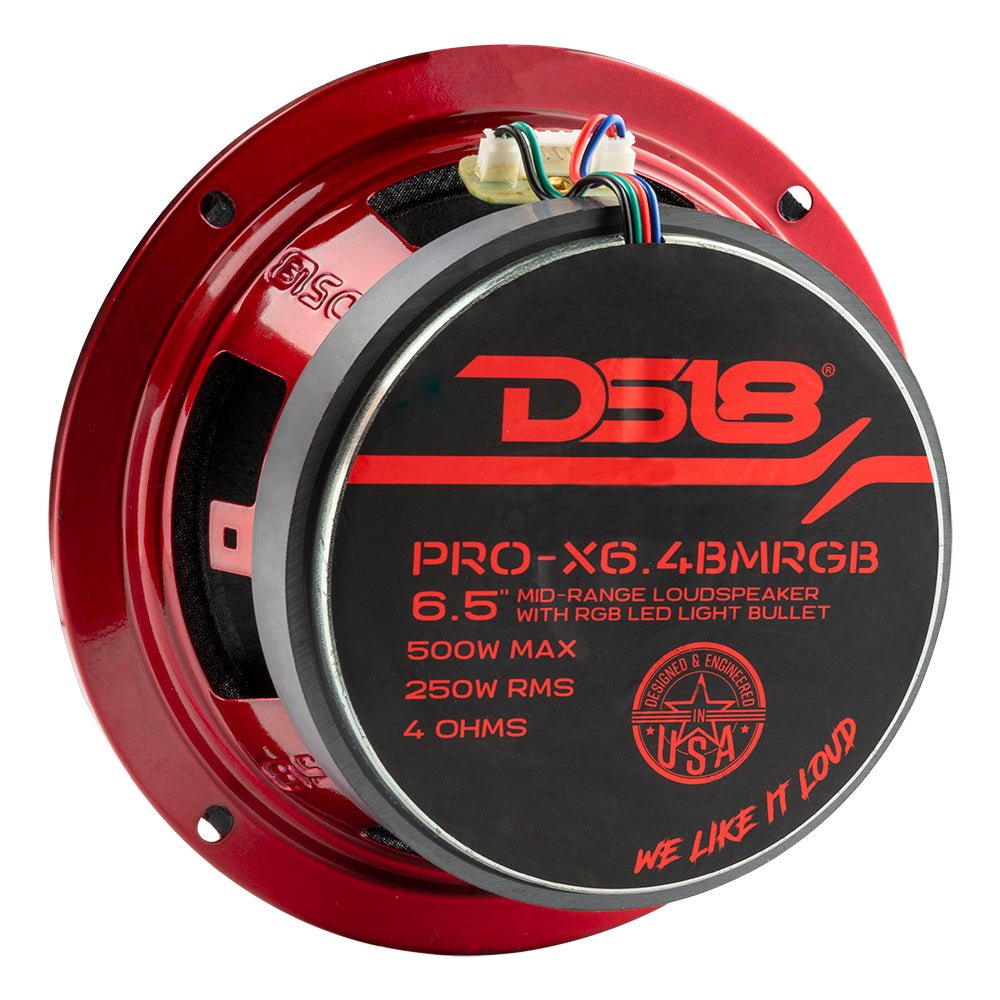

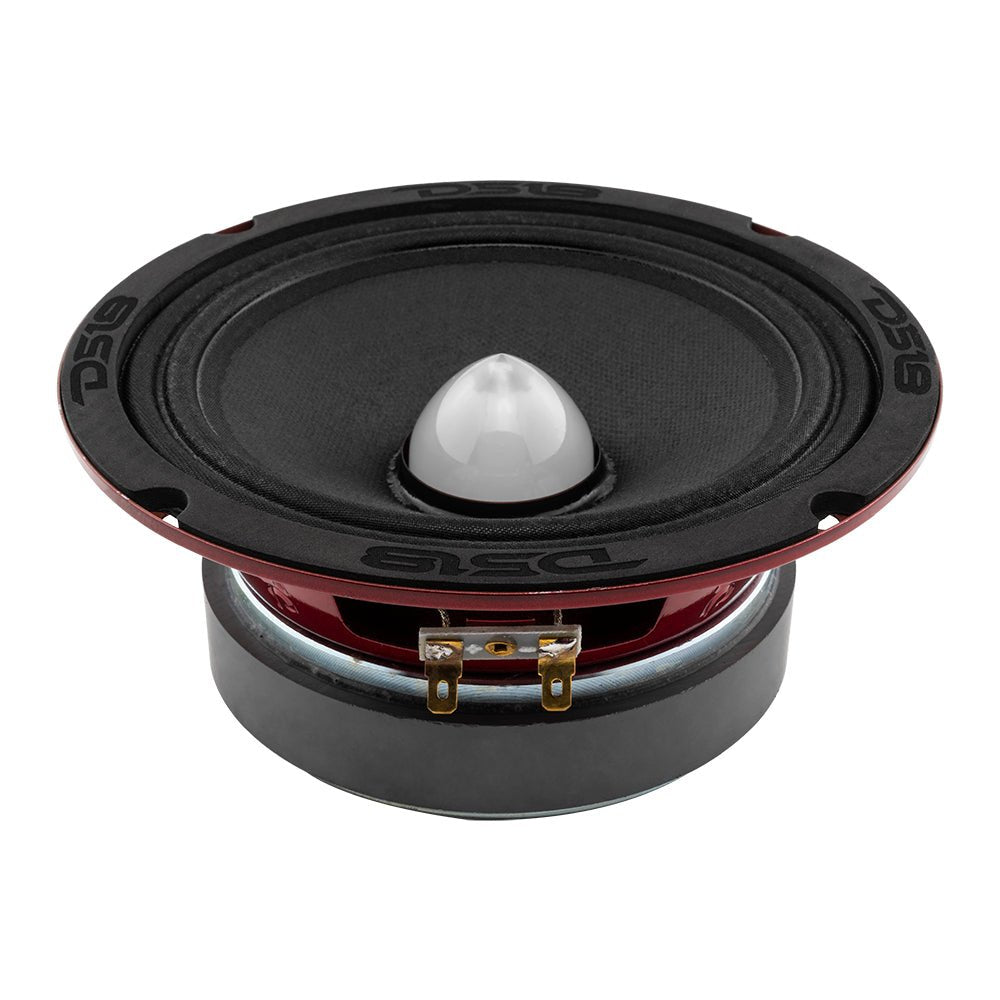

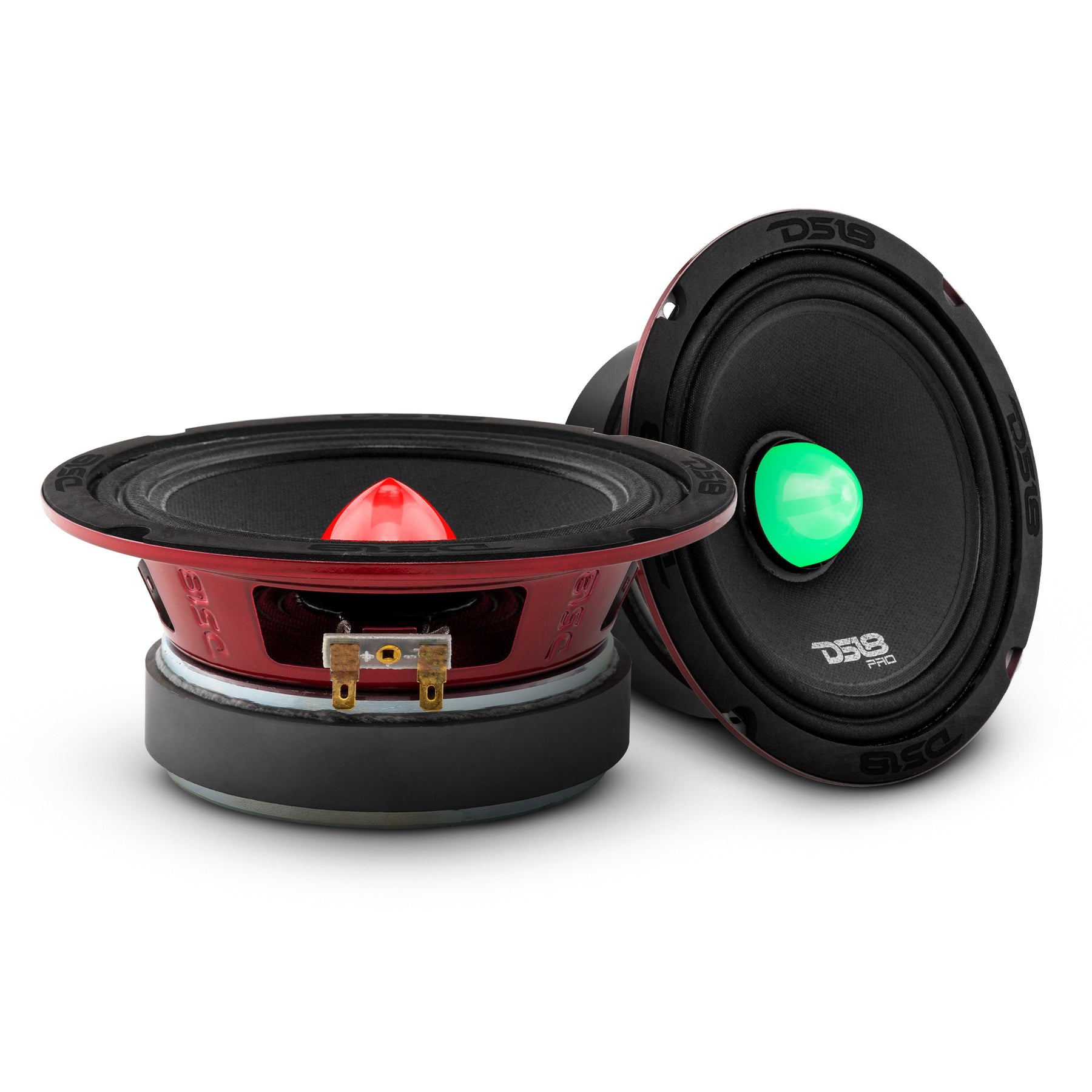

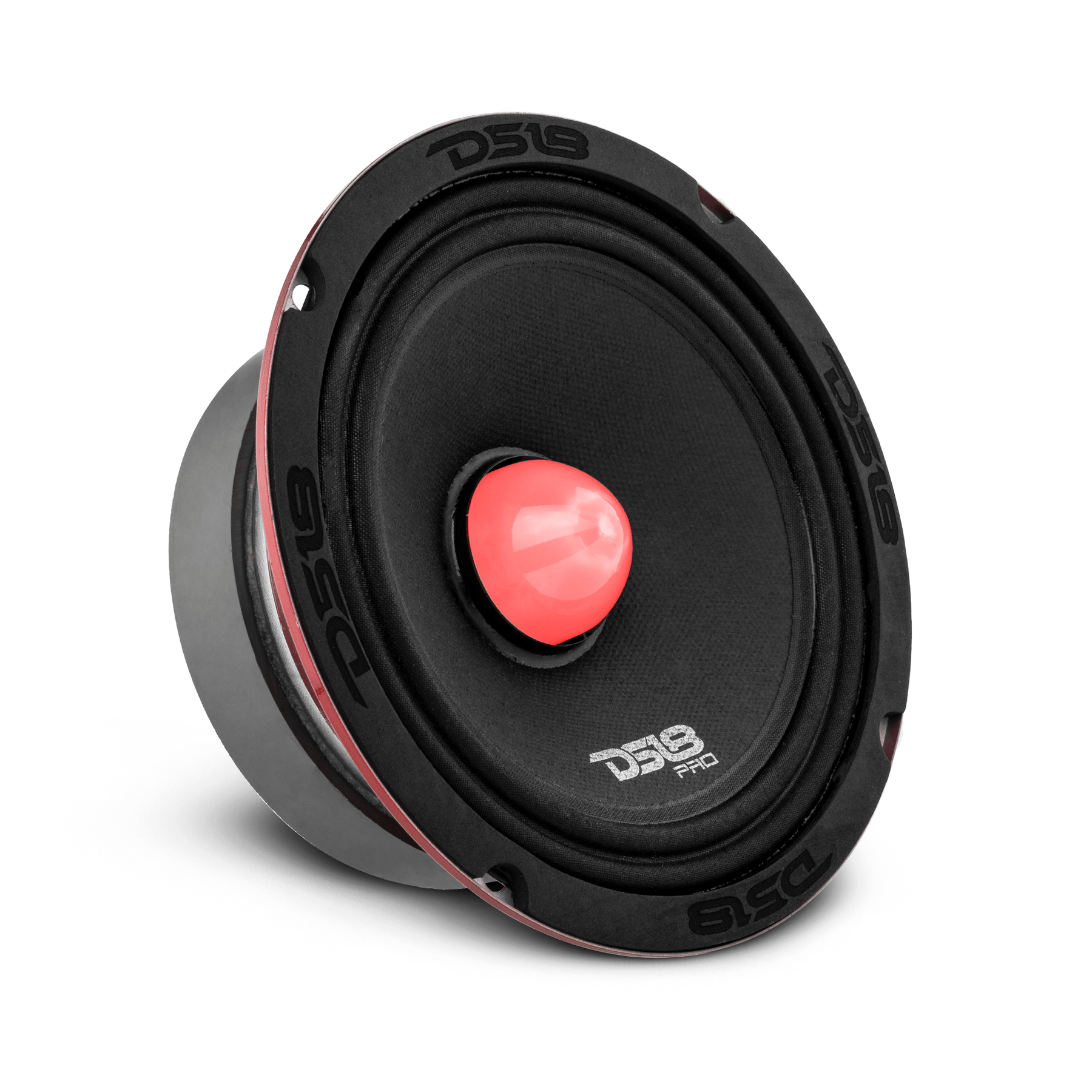

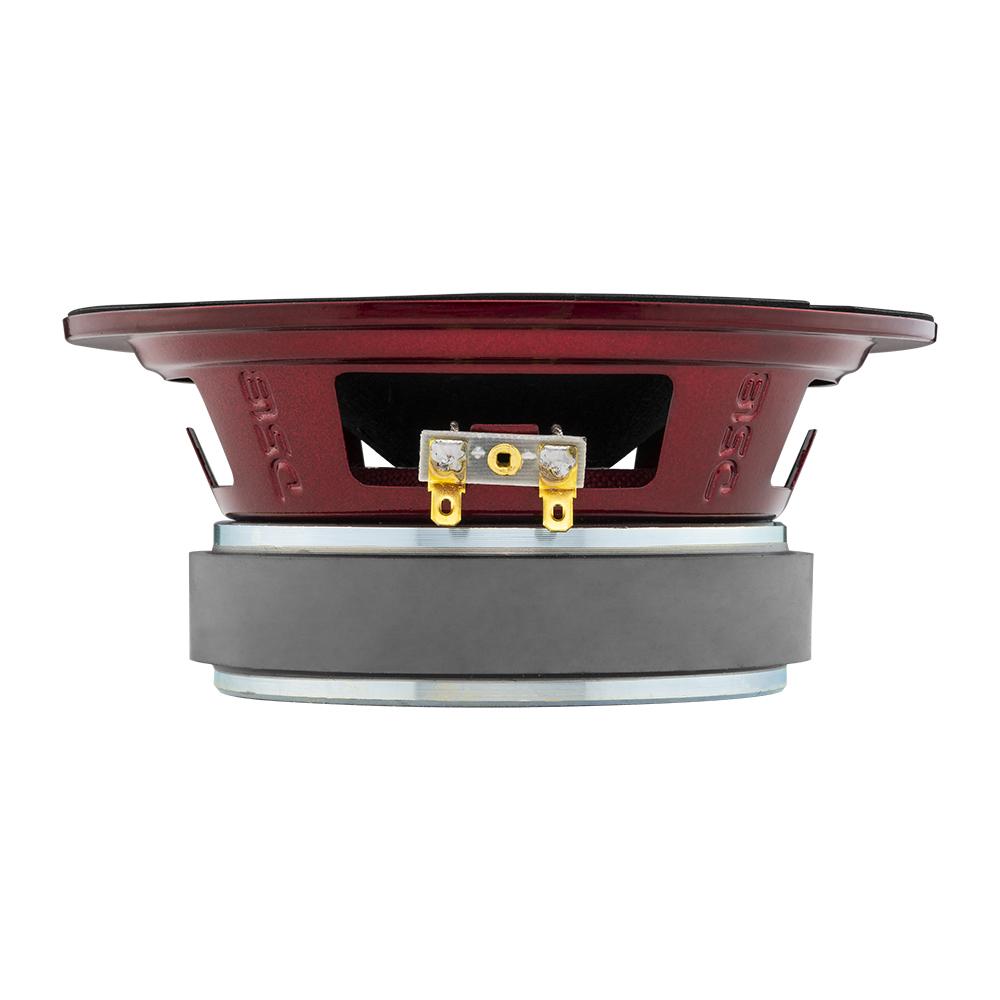

DS18 PRO-X6.4BMRGB
The PRO‑X6.4BMRGB is a 6.5″ mid‑bass loudspeaker with built‑in RGB lighting, engineered to deliver punchy mid‑bass performance and crisp midrange clarity while adding vibrant visual effects to your audio system. Perfect for custom car audio builds, motorcycles, Jeeps, UTVs, and show installations, this RGB‑enabled speaker blends powerful sound with eye‑catching illumination. Its durable construction and optimized components ensure reliable performance even in demanding high‑volume setups.
Specifications
| Category |
Specification |
| SKU |
PRO-X6.4BMRGB |
| Nominal Diameter |
6.5″ / 165.1 mm |
| Nominal Impedance |
4 Ω |
| RMS Power Handling |
250 W |
| Maximum Power Handling |
500 W |
| Sensitivity (1W/1m) |
94 dB |
| Frequency Response |
125 Hz – 12 kHz |
| Recommended High-Pass Crossover |
135 Hz |
Motor / Voice Coil Specifications
| Feature |
Specification |
| Voice Coil Diameter |
1.5″ / 38.6 mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCAW |
| Basket Material |
Steel |
| Magnet Weight |
30 oz |
Thiele & Small Parameters
| Parameter |
Value |
| Equivalent Volume (Vas) |
2.349 L |
| Excursion (Xmax) |
8.2 mm |
| Free Air Resonance (Fs) |
135 Hz |
| Mechanical Factor (Qms) |
7.707 |
| Electrical Factor (Qes) |
0.789 |
| Total Factor (Qts) |
0.716 |
| DC Resistance (Re) |
3.2 Ω |

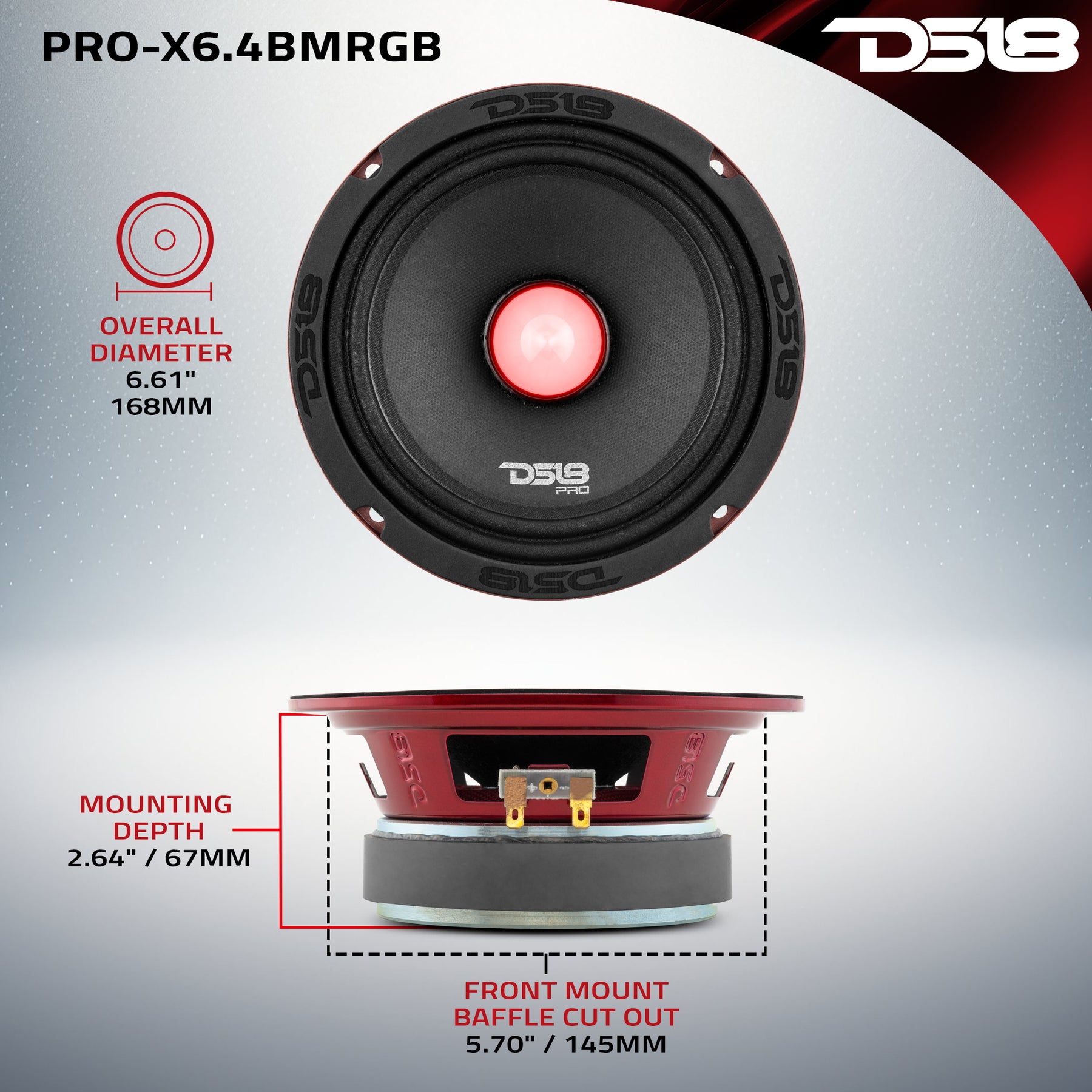

Measurements
| Dimension / Feature |
Value |
| Overall Diameter |
6.61″ / 168 mm |
| Front Mount Baffle Cutout |
5.70″ / 145 mm |
| Mounting Depth |
2.64″ / 67 mm |
| Overall Depth |
2.83″ / 72 mm |
| Product Weight |
5.5 lbs |
| Product Dimensions (W x L x H) |
7.25 x 7.25 x 3.25 in |
| Master Carton Weight |
43 lbs |
| Master Carton Dimensions |
15.25 x 15.25 x 7.25 in |
| Quantity per Master Carton |
8 |
| Sold In |
Single |
Product Overview
6.5″ Mid-Range Loudspeaker with Bullet & RGB LED Lights 500 Watts 4-Ohm
Drawing inspiration from our renowned PRO-X6.4BM, the PRO-X6.4BMRGB raises the bar even higher with the inclusion of an innovative full RGB bullet. Experience a symphony of power and visual splendor, while the PRO-X6.4BMRGB harmonizes raw performance with captivating aesthetics, leaving you breathless and yearning for more.
With an impressive 250W RMS and 500W Peak power, the PRO-X6.4BMRGB commands attention and guarantees an audio encounter like no other. Its incredible 94dB sensitivity ensures the PRO-X8.4BMRGB delivers thunderous sound that resonates through your vehicle, turning every drive into a thrilling concert on wheels.
But the magic doesn’t stop there. Prepare to be mesmerized as the integrated RGB resonator comes to life, casting a vibrant kaleidoscope of colors that pulsate in perfect sync with your music. Whether you want to match your mood, create a dynamic ambiance, or complement your vehicle’s color scheme, the PRO-X6.4BMRGB grants you the freedom to customize your audio experience like never before.
The PRO-X6.4BMRGB boasts an array of high-performance features that set it apart from the competition. A robust ferrite magnet, combined with a high wattage voice coil crafted from CCAW, ensures exceptional durability and unwavering performance. And the bullet tweeter, made from translucid ABS with RGB LED lights, elevates the visual appeal while enhancing the overall audio quality.
The DS18 PRO-X6.4BMRGB comes alive with a range of technical specifications that further reinforce its superiority. The DS18 PRO-X6.4BMRGB transcends the boundaries of sonic excellence, delivering an impressive frequency range that captures every delicate whisper and earth-shattering bass note with stunning accuracy. With a frequency response spanning from 125Hz to 12KHz, this exceptional speaker ensures that no detail is left unheard.
Unleash the power of DS18’s PRO-X6.4BMRGB.
