Description

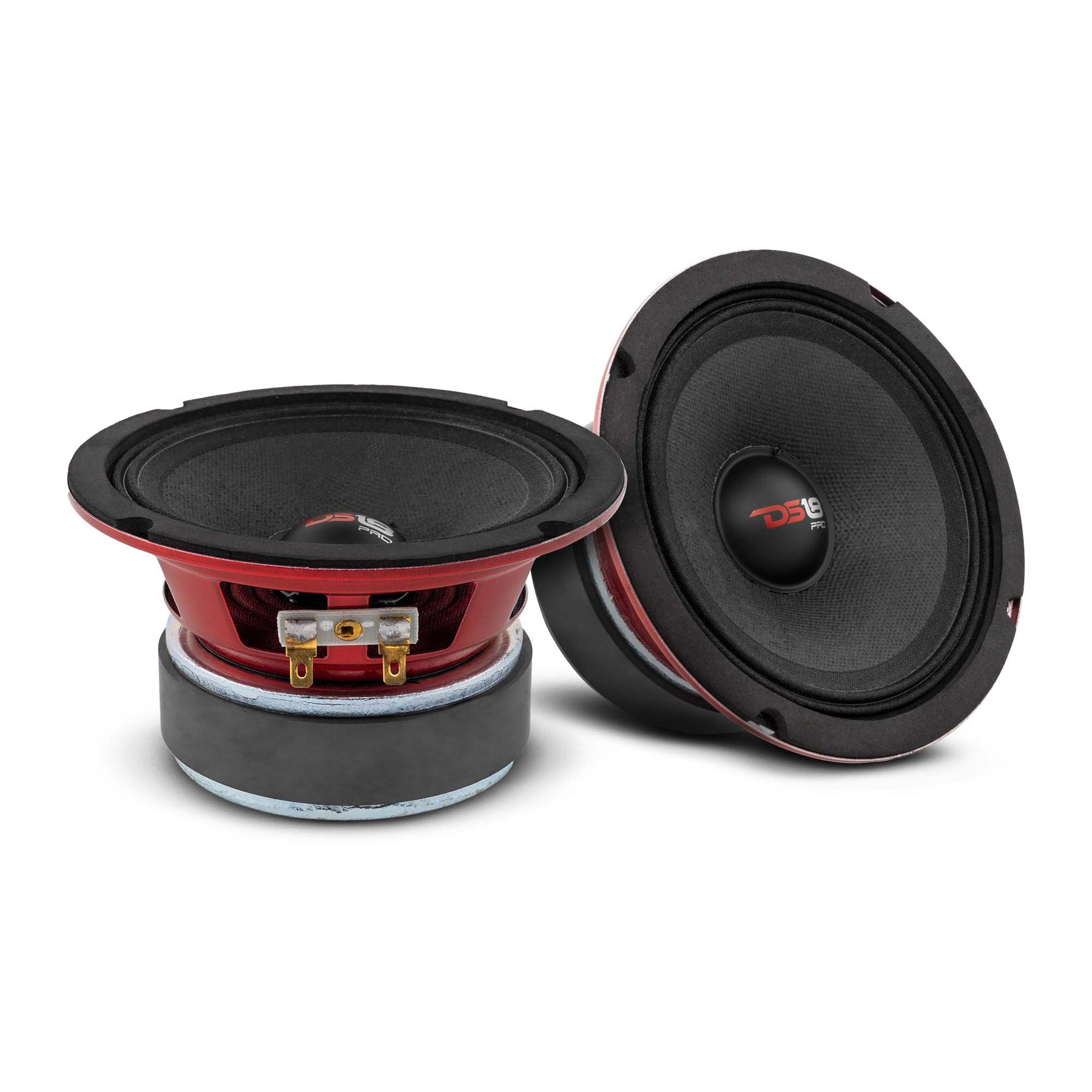

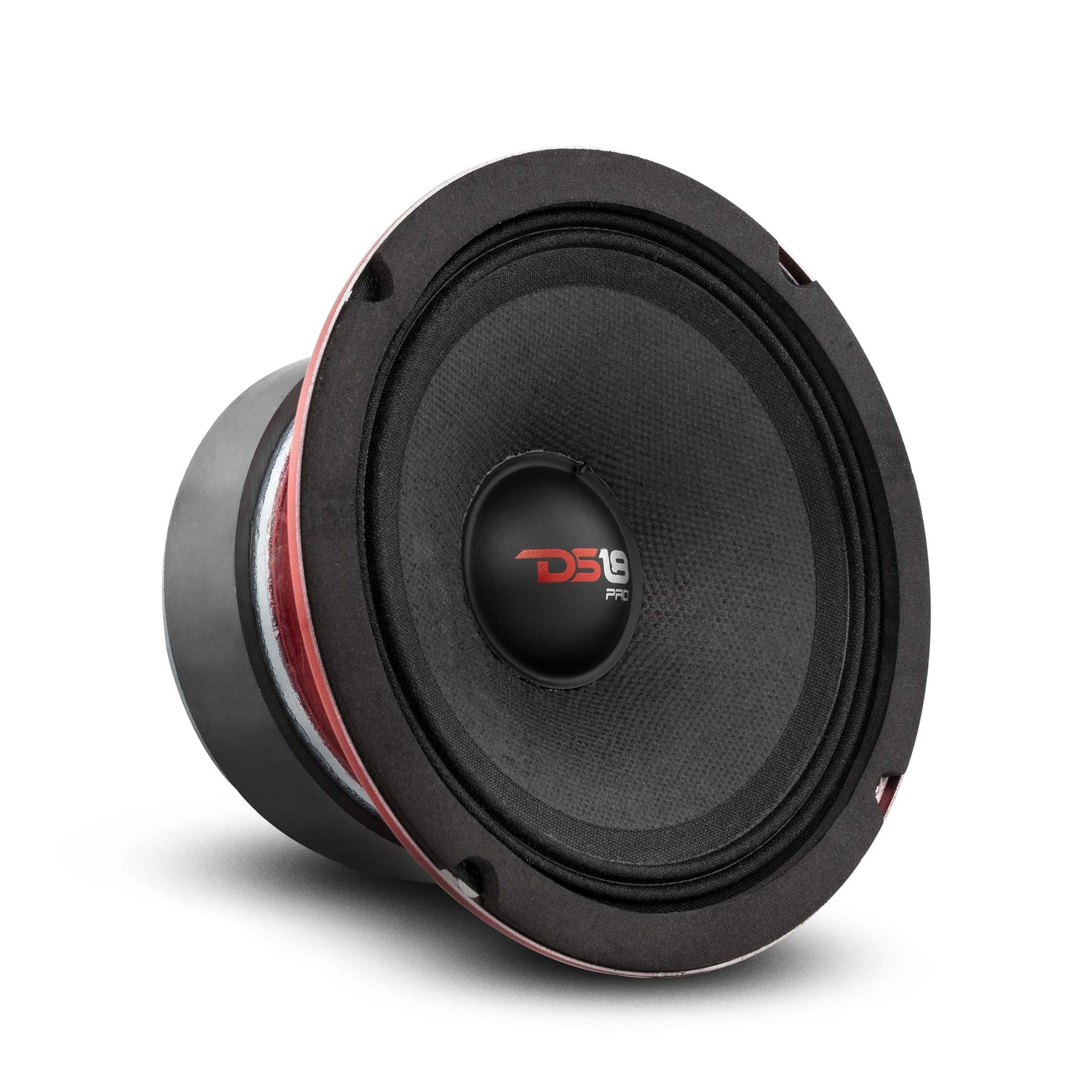

DS18 PRO-X5M
The PRO‑X5M is a 5.25″ professional midrange loudspeaker engineered to deliver clear, detailed midrange frequencies with reliable performance and high efficiency. Its optimized cone design and robust motor structure provide focused vocal clarity and smooth midrange response, making it an excellent choice for pro audio systems, PA setups, and custom car audio builds where precise midrange output is needed.
Specifications
| Specification | Value |
|---|---|
| SKU | PRO-X5M |
| Nominal Diameter | 5.25 inch |
| Nominal Impedance | 8 ohms |
| Max Power Handling | 300 WATTS |
| RMS Power Handling | 150 WATTS |
| Sensitivity | 90.4 dB |
| Frequency Response | 245 Hz – 13.5 kHz |
| Recommended Hi Pass | (unspecified) |
VOICE COIL & CONE
| Specification | Value |
|---|---|
| Voice Coil Diameter | 30.5 mm (1.2 inch) |
| Voice Coil Former Material | Kapton |
| Winding Material | KCCAW |
| Cone Material | Non-pressed Paper |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 18.5 oz |
THIELE & SMALL PARAMETERS
| Parameter | Value |
|---|---|
| Vas | 0.864 L |
| Xmax | 6.7 mm (0.25 inch) |
| Fs | 245 Hz |
| Qms | 6.852 |
| Qes | 1.785 |
| Qts | 1.416 |
| Re | 5.2 ohms |

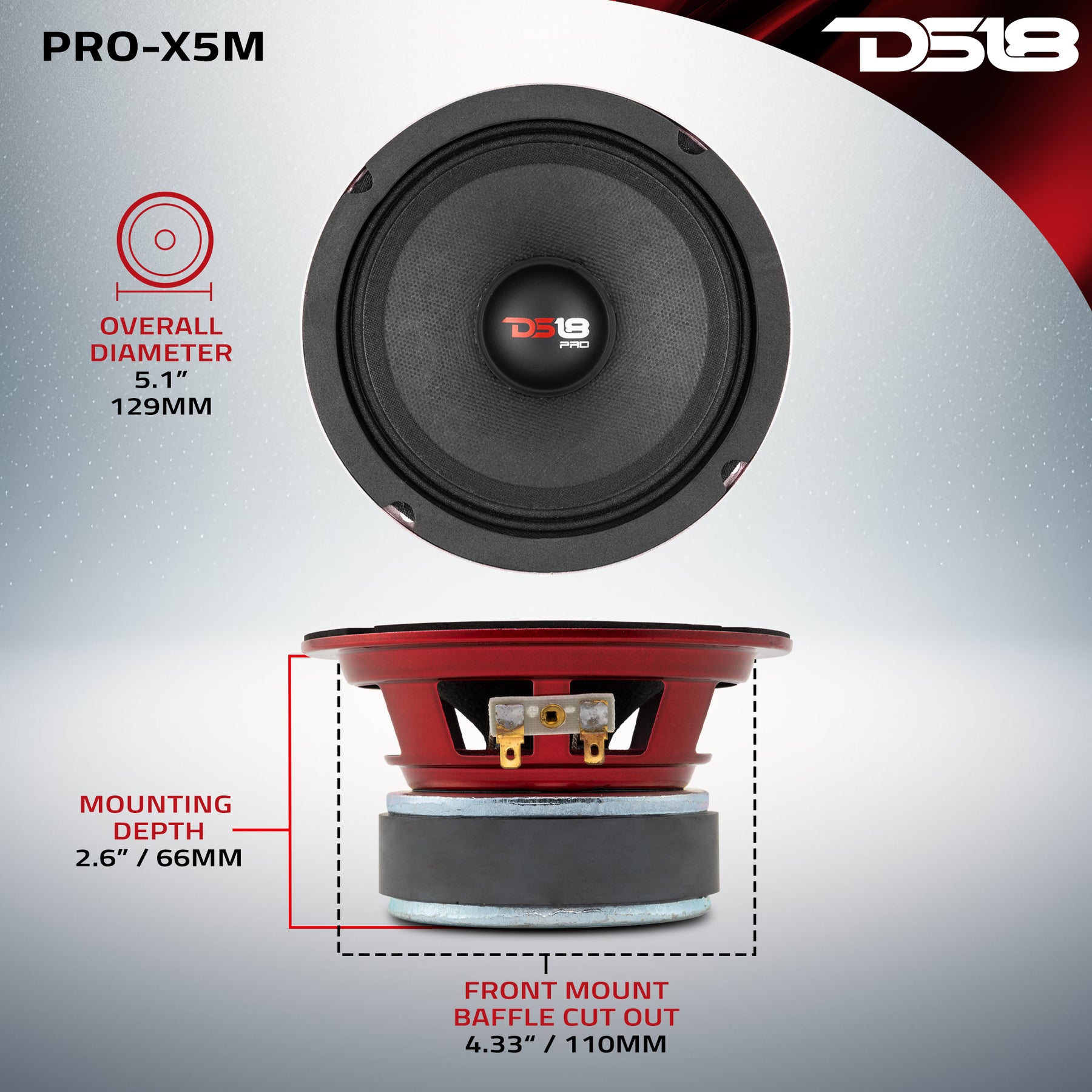

MEASUREMENTS
| Specification | Value |
|---|---|
| Overall Diameter | 5″ / 129 mm |
| Front Mount Baffle Cutout | 4.33″ / 110 mm |
| Mounting Depth | 2.6″ / 66 mm |
| Overall Depth | 2.83″ / 72 mm |
| Product Weight | 2.7 lbs |
| Product Dimensions | 5.5 x 5.5 x 3.25 in |
| M/C Weight | 35 lbs |
| M/C Dimensions | 16.5 x 11.5 x 7.5 in |
| M/C Quantity | 12 |
| Sold In | (unspecified) |
Product Overview
5.25” Mid-Range Loudspeaker 150 Watts 8-Ohms
Experience the power and clarity of the DS18 PRO-X5M, the ultimate mid-range speaker for audiophiles and music lovers everywhere. These speakers pack a serious punch with their strong midrange and crystal-clear high frequencies, delivering a concert-like sound quality without any distortion.
But the real magic of the DS18 PRO-X5M lies in its ability to handle extreme volume levels without sacrificing sound quality. With a high sensitivity of 93dB, you can crank up the volume to max and still enjoy crystal-clear audio with every note. And with a frequency response of 200Hz to 16KHz, you’ll notice richer and more accurate tones that will take your music to the next level.
Not only do these loudspeakers deliver a top-notch audio experience, but they’re built to last. With a maximum power handling of 300 watts and an RMS power handling of 150 watts, they’re more than capable of handling consistent and heavy usage. And with a mounting depth of just 2.6”, they’re easy to install in your car or home audio system.
Upgrade to the DS18 PRO-X5M 5.25” Mid-Range Loudspeaker today and experience the power and clarity of a true audiophile-grade speaker. Order now and prepare to be blown away by the concert-like audio experience that these speakers provide!
