Description

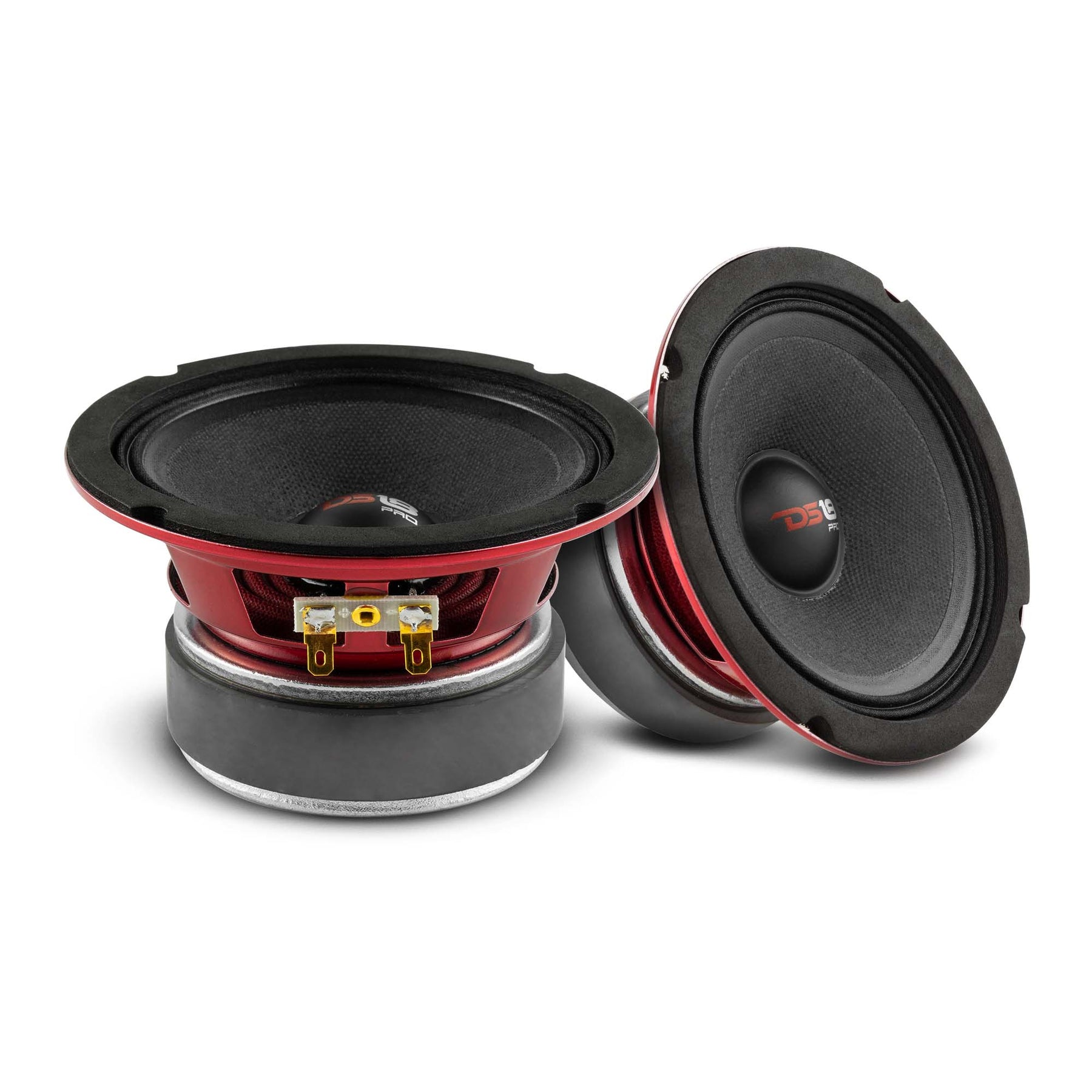

DS18 PRO-X5.4M
The PRO‑X5.4M is a 5.25″ professional midrange loudspeaker designed to deliver clear and detailed midrange frequencies with high efficiency and reliable performance. Its optimized cone and robust motor structure provide focused vocal clarity and smooth midrange response, making it ideal for pro audio systems, PA setups, and custom car audio installations where strong midrange output is required.
Specifications
| Specification |
Value |
| SKU |
PRO-X5.4M |
| Nominal Diameter |
5.25″ / 133.3 mm |
| Nominal Impedance |
4 ohms |
| RMS Power Handling |
150 Watts |
| Maximum Power Handling |
300 Watts |
| Sensitivity (1w/1m) |
93 dB |
| Frequency Response |
200 Hz – 16 kHz |
| Recommended Hi Pass Crossover |
250 Hz |
VOICE COIL & MAGNET
| Specification |
Value |
| Voice Coil Diameter |
1.2″ / 30.5 mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCAW |
| Basket Material |
Steel |
| Magnet Weight |
18.5 oz |
THIELE & SMALL PARAMETERS
| Parameter |
Value |
| Vas |
0.827 L |
| Xmax |
6.7 mm |
| Fs |
240 Hz |
| Qms |
6.382 |
| Qes |
1.625 |
| Qts |
1.326 |
| Re |
3.2 ohms |

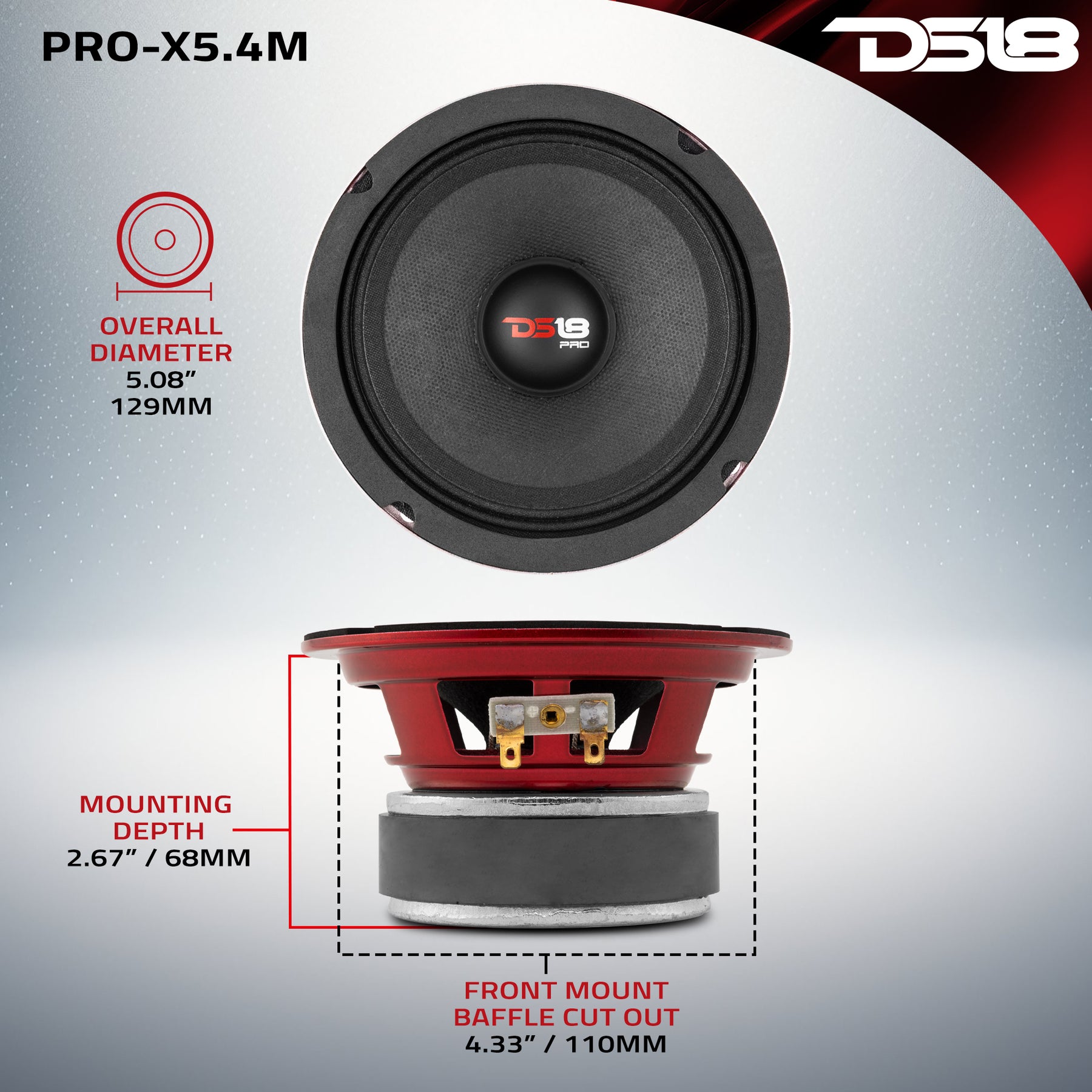

MEASUREMENTS
| Specification |
Value |
| Overall Diameter |
5″ / 129 mm |
| Front Mount Baffle Cutout |
4.33″ / 110 mm |
| Mounting Depth |
2.6″ / 66 mm |
| Overall Depth |
2.83″ / 72 mm |
| Product Weight |
3 lbs |
| Product Dimensions |
5.5 x 5.5 x 3.25 in |
| M/C Weight |
51.5 lbs |
| M/C Dimensions |
16.875 x 11.75 x 10.75 in |
| M/C Quantity |
18 |
| Sold In |
Piece |
Product Overview
5.25” Mid-Range Loudspeaker 150W RMS 4-Ohm
Step into the world of powerful, high-quality sound with DS18’s PRO-X5.4M 5.25” Mid-Range Loudspeaker! The PRO-X5.4M delivers a concert-like audio experience without any distortion, making it an excellent choice for audiophiles and music enthusiasts alike.
With a high 93dB sensitivity, the PRO-X5.4M lets you crank up the volume without any sound distortion. The 200Hz to 16KHz frequency range provides richer and more accurate tones that any audiophile will immediately notice, making these loudspeakers an excellent choice for those who want to experience music the way it was meant to be heard.
The DS18 PRO-X5.4M can handle up to 150 Watts RMS, making it capable of handling consistent and heavy usage. The 18.5 Oz ferrite magnet and 1.2” Kapton voice coil make for a powerful combination, ensuring that every beat is heard and handled efficiently.
Whether you’re listening to your favorite album or enjoying a live concert, the DS18 PRO-X5.4M will take your audio experience to the next level. Its compact size and 2.6” mounting depth make it easy to install in your car, truck, or home, while its powerful performance ensures that you’ll enjoy high-quality sound for years to come.
DS18’s PRO-X5.4M is a high-quality midrange loudspeaker that delivers crystal-clear audio and powerful performance. Its high sensitivity, wide frequency range, and impressive power handling make it an excellent choice for audiophiles and music enthusiasts who want to enjoy loud, clear music without any distortion. Order your DS18 PRO-X5.4M today and experience the thrill of powerful, high-quality sound!
