Description

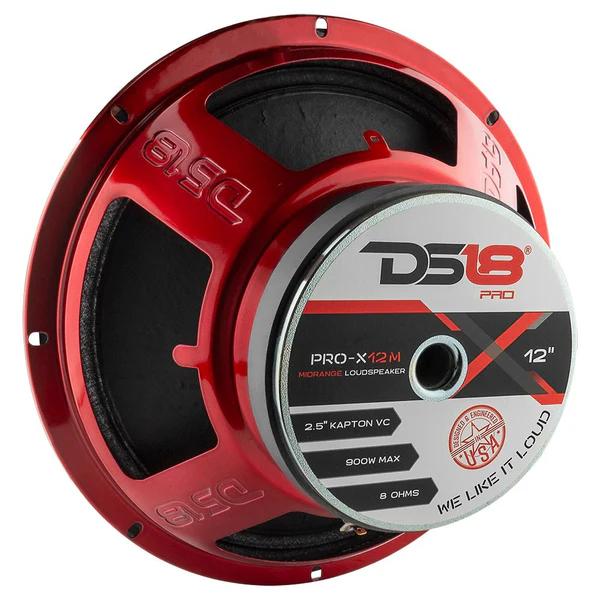

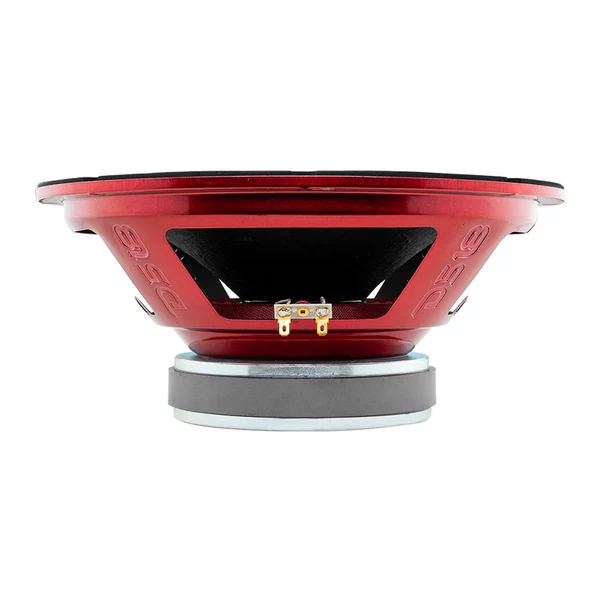

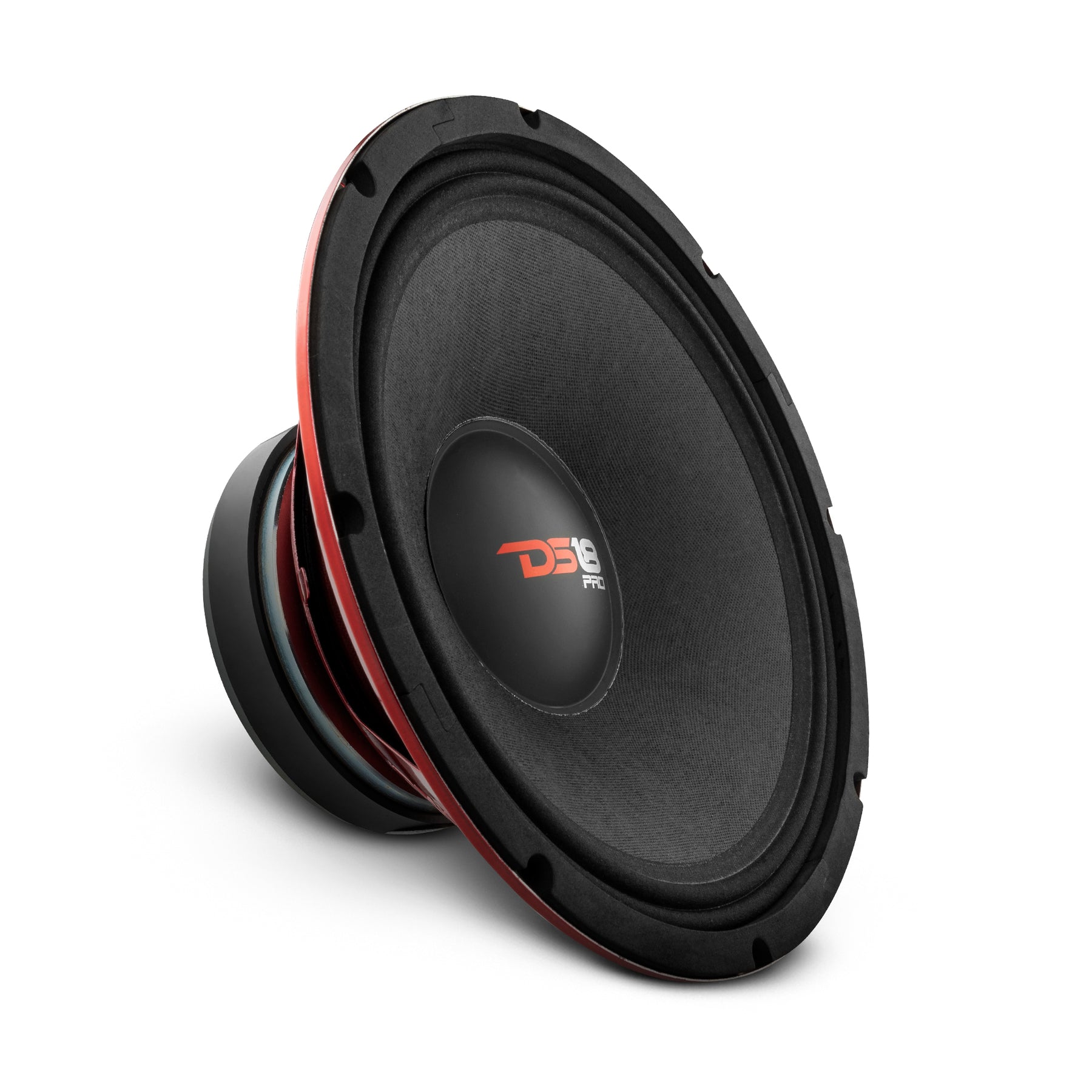

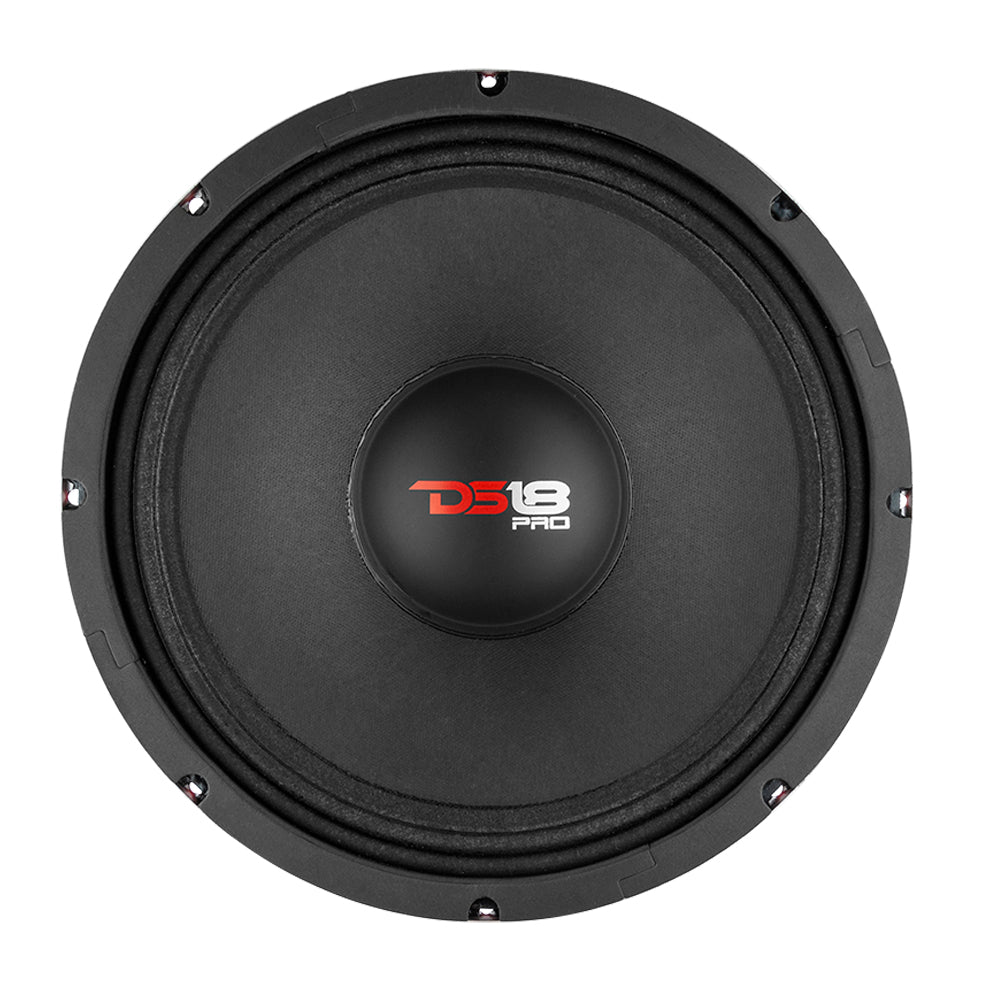

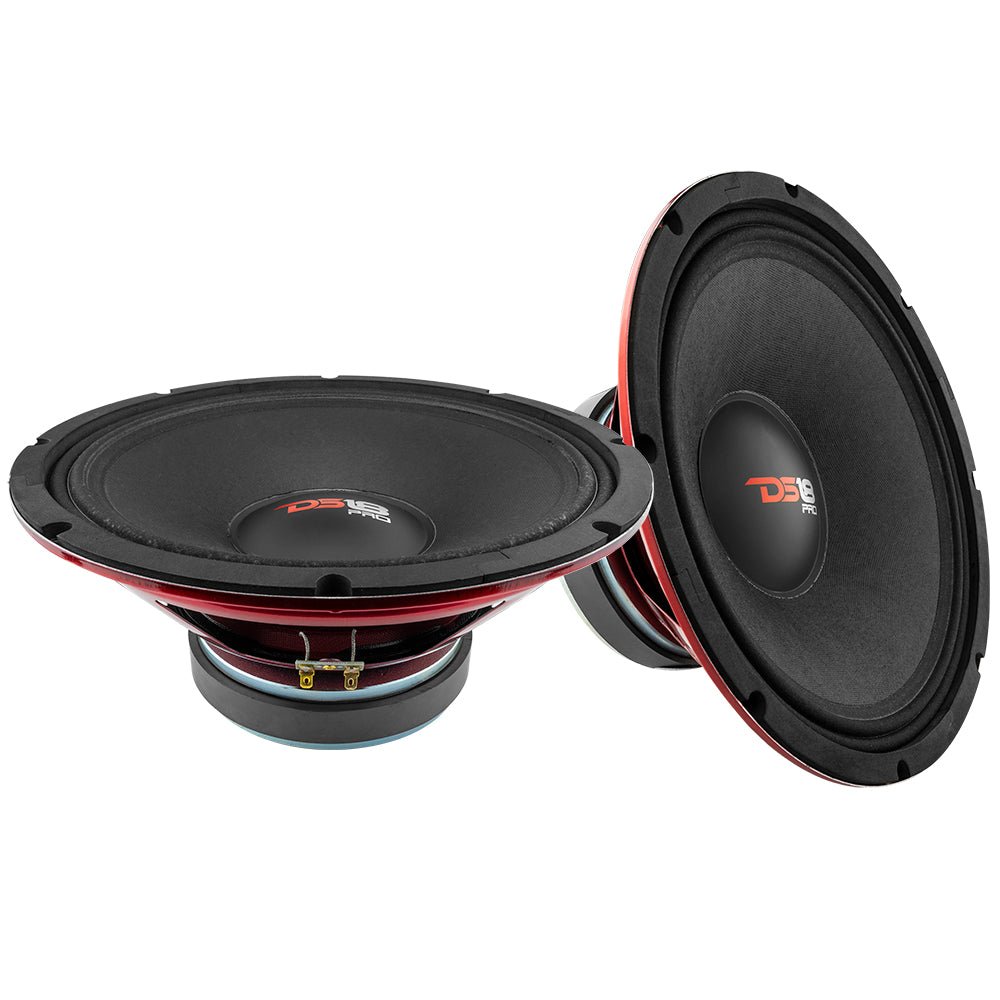

DS18 PRO-X12M

The PRO‑X12M is a 12″ professional midrange loudspeaker engineered to deliver clear, detailed midrange frequencies with high efficiency and robust output. Its optimized cone design and durable motor structure provide focused vocal clarity and smooth midrange response, making it a great choice for pro audio systems, PA setups, custom car audio installations, and other sound projects where strong midrange performance is essential.


Specifications

Specification Value
SKU PRO X12M
Nominal Diameter 12 inch 308 mm
Nominal Impedance 8 ohms
RMS Power Handling 450 Watts
Maximum Power Handling 900 Watts
Sensitivity 1w 1m 97.5 dB
Frequency Response 63.5 Hz to 11.3 kHz
Recommended Hi Pass Crossover 100 Hz
Sold In Piece

CONSTRUCTION SPECIFICATIONS
Specification Value
Voice Coil Diameter 2.5 inch 65.5 mm
Voice Coil Former Material Kapton
Winding Material CCAW
Basket Material Steel
Magnet Weight 60 oz

THIELE AND SMALL PARAMETERS
Parameter Value
Vas 23.78 L
Xmax 10.5 mm
Fs 64.6 Hz
Qms 2.2
Qes 0.485
Qts 0.392
Re 5.2 ohms

MEASUREMENTS AND PACKAGING
Specification Value
Overall Diameter 12.12 inch 308 mm
Front Mount Baffle Cutout 10.9 inch 278 mm
Mounting Depth 4.96 inch 126 mm
Overall Depth 5.35 inch 136 mm
Product Weight 11.5 lbs
Product Dimensions 12.875 x 12.875 x 5.75
Master Carton Weight 48.5 lbs
Master Carton Dimensions 26.25 x 13.5 x 12.25
Master Carton Quantity 4




Product Overview

12” Mid-Range Loudspeaker 450 Watts 8-Ohms

Experience the power and clarity of the DS18 PRO-X12M, the ultimate mid-range speaker for audiophiles and music lovers everywhere. These speakers pack a serious punch with their strong midrange and crystal-clear high frequencies, delivering a concert-like sound quality without any distortion.
But the real magic of the DS18 PRO-X12M lies in its ability to handle extreme volume levels without sacrificing sound quality. With a high sensitivity of 97.5dB, you can crank up the volume to max and still enjoy crystal-clear audio with every note. And with a frequency response of 63Hz to 5KHz, you’ll notice richer and more accurate tones that will take your music to the next level.
Not only do these loudspeakers deliver a top-notch audio experience, but they’re built to last. With a maximum power handling of 900W and an RMS power handling of 450W, they’re more than capable of handling consistent and heavy usage. And with a mounting depth of just 4.96”, they’re easy to install in your car or home audio system.
Upgrade to the DS18 PRO-X12M 12” Mid-Range Loudspeaker today and experience the power and clarity of a true audiophile-grade speaker. Order now and prepare to be blown away by the concert-like audio experience that these speakers provide!

Reviews

There are no reviews yet.

Be the first to review “DS18 PRO-X12M”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What kind of speaker is the PRO‑X12M?

A1: It’s a 12″ professional midrange loudspeaker designed for clear and powerful midrange performance.

Q2: Where can this speaker be used?

A2: It’s ideal for pro audio systems, PA setups, custom car audio builds, and other installations needing strong midrange clarity and presence.

Q3: Does it handle bass frequencies?

A3: It focuses on midrange frequencies; for bass and deeper low‑end response, pairing with a dedicated woofer or subwoofer is recommended.

Q4: Do I need an external amplifier?

A4: Yes — using a quality external amplifier is recommended to achieve optimal output and clarity.

Q5: What makes the PRO‑X12M unique?

A5: Its large driver area and efficient design help enhance midrange detail and presence in multi‑speaker audio systems.
