Description
DS18 PRO-X10MBASS
The PRO‑X10MBASS is a 10″ professional mid‑bass loudspeaker engineered for high‑output performance and punchy low‑frequency response. Designed with a robust motor structure, reinforced cone, and optimized voice coil, it delivers powerful mid‑bass presence and clear midrange detail, making it ideal for pro audio systems, PA setups, custom car audio builds, and SPL‑oriented installations. Its reliable construction ensures consistent performance even under demanding high‑volume conditions.
Specifications
| Category |
Specification |
| SKU |
PRO-X10MBASS |
| Nominal Diameter |
10″ / 254 mm |
| Nominal Impedance |
8 Ω |
| RMS Power Handling |
400 W |
| Maximum Power Handling |
800 W |
| Sensitivity (1W/1m) |
95 dB |
| Frequency Response |
80Hz–6.3 kHz |
| Recommended High-Pass Crossover |
80 Hz |
Motor / Voice Coil Specifications
| Feature |
Specification |
| Voice Coil Diameter |
2.5″ / 65.5 mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCA + SV |
| Basket Material |
Steel |
| Magnet Weight |
60 oz |
Thiele & Small Parameters
| Parameter |
Value |
| Equivalent Volume (Vas) |
24.79 L / 0.875 ft³ |
| Excursion (Xmax) |
10.5 mm |
| Free Air Resonance (Fs) |
70 Hz |
| Mechanical Factor (Qms) |
9.819 |
| Electrical Factor (Qes) |
0.54 |
| Total Factor (Qts) |
0.512 |
| DC Resistance (Re) |
5.3 Ω |

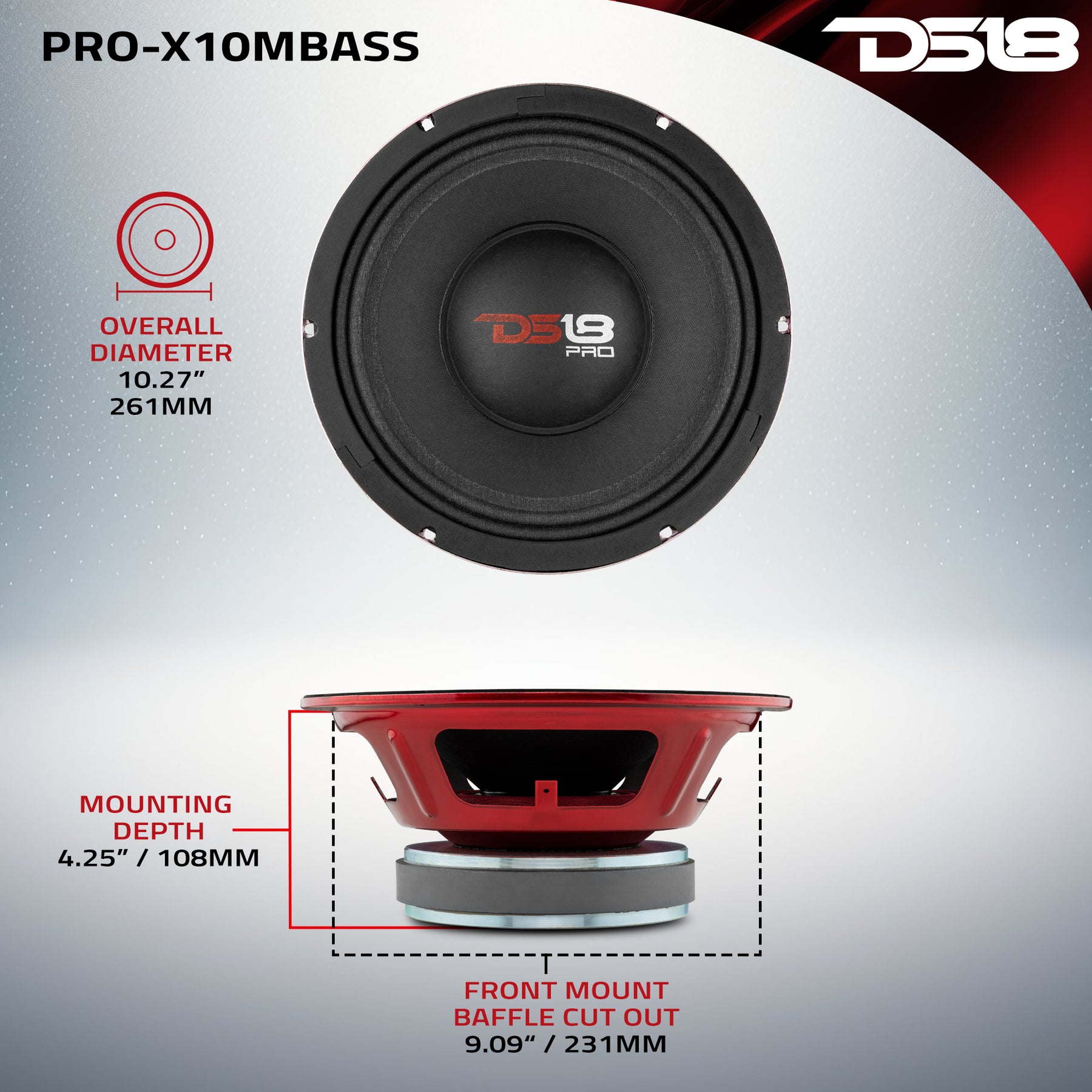

Measurements
| Dimension / Feature |
Value |
| Overall Diameter |
10.27″ / 261 mm |
| Front Mount Baffle Cutout |
9.09″ / 231 mm |
| Mounting Depth |
4.25″ / 108 mm |
| Overall Depth |
4.55″ / 115.7 mm |
| Product Weight |
11 lbs |
| Product Dimensions (W x L x H) |
10.875 x 10.875 x 5 in |
| Master Carton Weight |
46.5 lbs |
| Master Carton Dimensions |
22.5 x 11.75 x 11 in |
| Quantity per Master Carton |
4 |
| Sold In |
Single |
Product Overview
10” Mid-Bass Loudspeaker 800W MAX 8-Ohm
Unleash the full potential of your stereo system with DS18’s PRO-X10MBASS, a powerhouse of sound that takes your audio experience to new heights.
The PRO-X10MBASS stands tall with a 10″ diameter, ensuring a full-bodied sound that fills every corner of your space with remarkable clarity. With a nominal impedance of 8 Ohms, this loudspeaker is built to handle power and deliver stunning performance without compromise.
With a high sensitivity rating of 95dB, the PRO-X10MBASS stands out as an exceptional performer in its category. Even at lower power levels, the PRO-X10MBASS delivers astonishing sound clarity and detail, ensuring that every note and nuance is faithfully reproduced.
Crafted with precision, the PRO-X10MBASS features a 2.5″ / 65.5mm voice coil diameter, constructed with durable KAPTON material for optimal performance and longevity. The steel basket and frame materials enhance its overall durability, ensuring that it can withstand the demands of intense audio sessions. Empowered by a robust 60 oz ferrite magnet, paired with the high powered voice coil the PRO-X10MBASS achieves its maximum potential, and produces a strong punch of mid-bass that will resonate through your entire system.
The frequency response of 80Hz – 6.3KHz covers a wide range, allowing the PRO-X10MBASS to reproduce both thunderous lows and crystal-clear highs with equal finesse. For seamless integration into your audio setup, a recommended Hi Pass Crossover of 80Hz ensures that the speaker operates at its optimal frequency range, complementing the rest of your system flawlessly.
Get ready to be captivated by the DS18 PRO-X10MBASS – the perfect blend of engineering mastery and audio supremacy. Upgrade your stereo system today and rediscover the true power of music.
